Topcon RL-H5A Troubleshooting Guide

Self-Leveling Errors & Flashing Indicators

Problem: The laser won't self-level — indicator keeps flashing

The RL-H5A self-levels within ±10 arc minutes of plumb. If it's set up on a surface more tilted than that, it won't level and the indicator flashes.

1. Move the tripod to more level ground or adjust the tripod legs until the unit is roughly level before it tries to self-level.
2. Check that the tripod head is secure and not rocking. A loose tripod connection can prevent self-leveling from completing.
3. Let the unit sit undisturbed for 10 seconds after you place it. Vibration or wind during leveling will cause it to retry.
4. If it still won't level on flat ground, the internal pendulum may be locked. Verify the unit wasn't transported in lock mode — some cases have a transit lock.

Problem: The laser levels but then starts flashing mid-job

This usually means the tripod shifted — someone kicked it, soft ground settled, or vibration from nearby equipment. The RL-H5A monitors level continuously and shuts the beam when it detects movement beyond tolerance.

1. Drive the tripod legs deeper into the ground and use a tripod with wider legs on soft soil.
2. Keep heavy equipment 10+ feet away from the tripod while the laser is in use.
3. If the ground is hard, use a tripod pad or stable base rather than spikes.

Receiver Not Detecting the Beam

Problem: Receiver shows no signal even when pointed at the laser

1. Check battery in both units. Low battery in the receiver is the #1 cause of missed detection. The LS-80L/80X/100D have separate batteries from the laser.
2. Check the distance. The receiver must be within the working range — 1,300 ft radius for the LS-80L/80X. At maximum range in direct sunlight, signal can be intermittent.
3. Check for obstructions. The laser beam is invisible — dirt, dust, or debris on the laser aperture will block the beam. Wipe the rotating head with a clean dry cloth.
4. Verify grade rod clamp is secure. A loose clamp lets the receiver tilt, pointing it away from the beam.
5. Check rotation speed setting. If the laser is in low-RPM mode and the receiver is moving quickly, it may miss the beam between rotations. Set to high RPM for moving work.

Problem: Receiver detects intermittently / beeps then goes quiet

This typically means the receiver is near the edge of the beam height — the beam is hitting the very top or bottom of the receiver window. Move the rod until you're solidly in the detection zone (steady tone, not intermittent).

Accuracy Issues

Problem: Grade readings seem off compared to my benchmarks

1. Run a two-peg test. Set the laser at one end of the job, read the receiver at a known benchmark, then move 200 feet and read again. If the readings don't match your benchmark elevations, the laser needs calibration.
2. Check the tripod. A tripod that shifts between setup points causes false readings. Always re-check level after walking the tripod.
3. Check your rod for wear. A bent or worn grade rod introduces error. Lay the rod on a flat surface to check for straightness.
4. Verify receiver clamp height. The receiver must be at the same height on the rod at each reading point. Mark the rod with tape at your target elevation.

Problem: The laser is accurate at 50 feet but not at 200 feet

This is a calibration issue — the laser beam isn't perfectly horizontal. The error amplifies with distance. The RL-H5A can drift out of calibration from impacts or temperature extremes. The fix requires Topcon calibration equipment — contact a certified service center or use Gradelog to find one near you.

Battery & Power Issues

Problem: New batteries but the laser dies quickly

1. Check battery brand. Cheap alkaline batteries lose power significantly in cold weather. Use name-brand alkaline (Duracell, Energizer) or switch to the Topcon BT-74Q rechargeable pack.
2. Check operating temperature. The RL-H5A spec is -4°F to 131°F. Below freezing, battery performance drops sharply — even new batteries may only last a few hours.
3. Check for moisture ingress. If water got into the battery compartment, corrosion can drain batteries and damage contacts. Inspect the compartment and clean with contact cleaner.

Problem: Rechargeable pack not holding charge

The BT-74Q NiMH pack degrades after 500–800 charge cycles (about 2–3 years of daily use). If charge life has dropped significantly, replace the pack. It's a standard part — available through Express Tools.

Display & Audio (LS-100D Receiver)

Problem: LCD display shows dashes or blank

1. Low battery — the LS-100D display dims and shows dashes when battery is below 20%. Replace batteries.
2. Extreme temperature — LCD displays can go blank below -4°F. Warm the unit before use.
3. If neither, the display may have failed. Contact Express Tools or a Topcon service center.

Problem: Audio beep is too quiet on the job

The LS-100D has adjustable audio volume. Press and hold the audio button to cycle through volume levels. The LS-80L and LS-80X have fixed volume — if they're too quiet for your job, the LS-100D is the upgrade.

Still Having Issues?

If you've worked through these steps and the problem persists, two options:

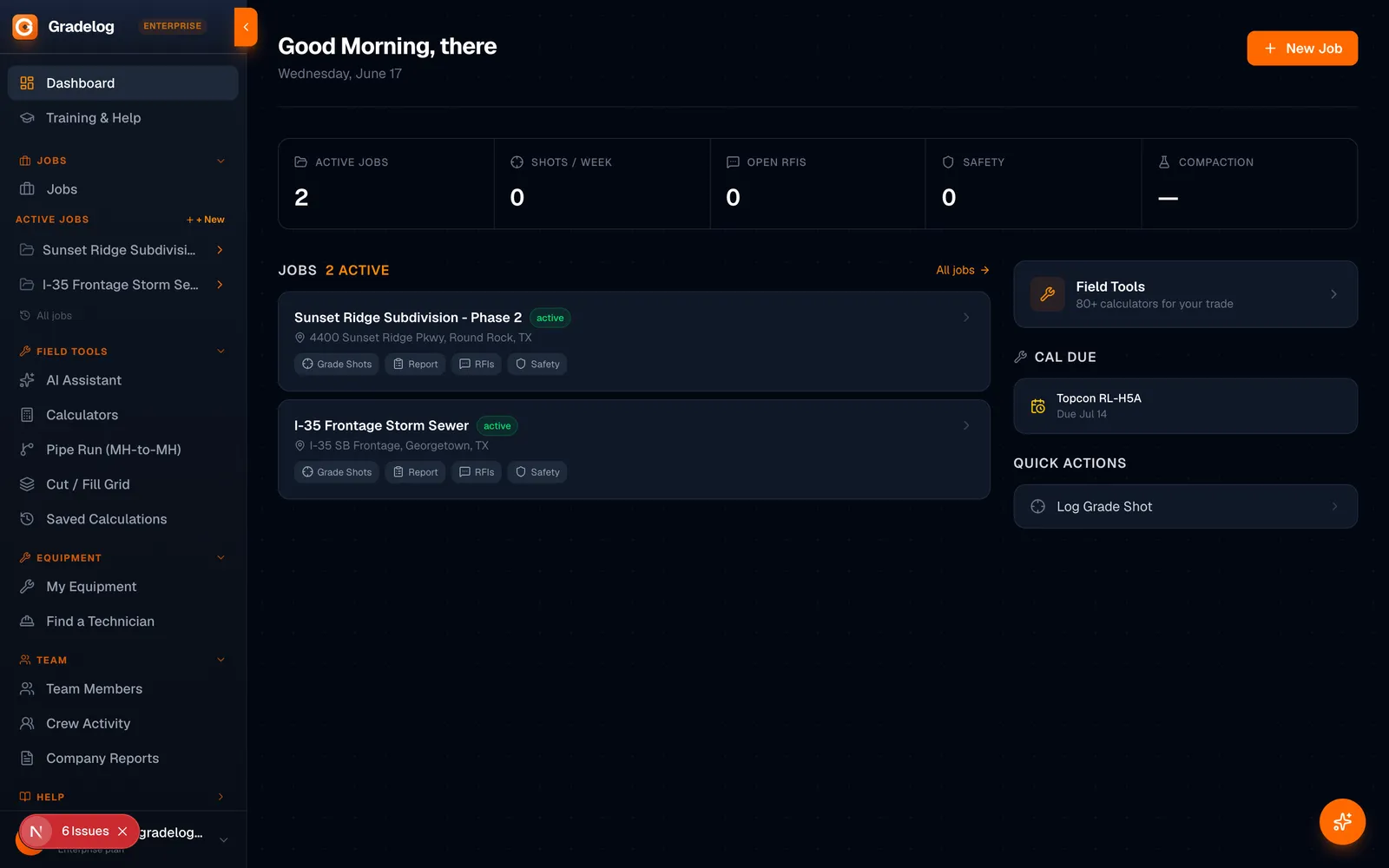

• Gradelog AI support — describe your issue and get step-by-step diagnostic help, equipment-specific to the RL-H5A. Free for any Express Tools customer. gradelog.com →
