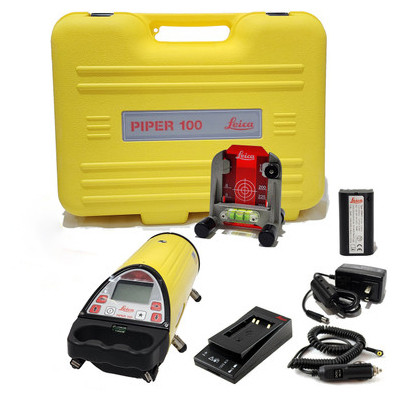

Leica Piper 100 Pipe Laser Package - Red Beam

Professional Pipe Laser for Utility and Underground Construction

The Leica Piper 100 is a compact, field-proven pipe laser engineered for utility contractors who demand accuracy and reliability on every underground installation. Combining a bright red beam with Leica's precision grade-setting technology, the Piper 100 keeps sewer, storm drain, water line, and conduit runs on grade from start to finish. Whether you're working in a tight residential trench or a deep municipal sewer run, this laser delivers the performance that gets the job done right the first time.

Overview and Jobsite Applications

Built for the demands of underground construction, the Leica Piper 100 integrates a laser plumb reference directly into the unit, eliminating the need for a separate plumbing device when setting up at manholes or structures. The intuitive control panel allows fast grade entry in percent, per-mille, or degrees, so crews spend less time on setup and more time laying pipe. The rugged housing is rated for the wet, muddy conditions common in trench work, and the self-leveling system automatically compensates for minor disturbances to maintain consistent grade control throughout the shift.

Key Specifications

• Model: Leica Piper 100 | SKU: 6000230
• Laser Class: Class 2 red beam (635 nm)
• Grade Range: ±10% (horizontal and vertical)
• Grade Accuracy: ±0.03% (0.3 mm/m)
• Self-Leveling Range: ±5°
• Range: Up to 200 m (660 ft) typical working range
• Display: Dual-sided LCD with backlight
• Grade Entry: Percent, per-mille, and degree modes
• Power Source: 4 × D-cell alkaline batteries
• Battery Life: Up to 60 hours continuous operation
• Operating Temperature: -20°C to +50°C (-4°F to +122°F)
• Protection Rating: IP67 dust and water resistant
• Weight: Approx. 3.2 kg (7.1 lb) with batteries

Key Features

• Integrated laser plumb reference for fast, accurate manhole and structure setup
• Dual-sided display for grade readout visible from both ends of the trench
• Automatic self-leveling with out-of-level alarm to prevent grade errors
• Bright red beam visible in typical underground pipe conditions
• Simple keypad grade entry in multiple units — no complex menus
• Robust IP67-rated housing built for standing water, mud, and impact
• Long battery life reduces interruptions on full-day or multi-day runs
• Compatible with Leica rod eye and remote control accessories

Job Applications

Municipal Sewer Installation: Set and hold precise invert grades on gravity sewer mains from manhole to manhole. The integrated plumb laser speeds up instrument centering over inverts so crews maintain schedule on high-production municipal contracts.

Storm Drain and Drainage Infrastructure: Maintain consistent fall on storm drain laterals and trunk lines where grade tolerance is tight. The Piper 100's ±0.03% accuracy keeps drainage systems flowing as designed and helps avoid costly re-work.

Water and Utility Line Installation: Use the Piper 100 for water main, conduit, and other utility installations requiring controlled grade or level runs. Quick grade changes between segments keep machine and crew moving without downtime.

Residential and Commercial Site Work: From house sewer laterals to commercial site utility packages, the compact Piper 100 fits standard pipe diameters and sets up fast in confined or shallow trenches where larger equipment is impractical.

Compatible Accessories

• Leica Rod Eye 120 – Pipe Laser Detector
• Leica Remote Control Unit for Piper Series
• Leica Pipe Laser Carrying Case
• Leica Piper Centering Rod and Target
• Replacement D-Cell Battery Pack (4-pack)

Related Guides

• How to Set Up a Pipe Laser for Sewer Installation
• Pipe Laser Grade Entry: Percent vs. Per-Mille vs. Degrees Explained
• Leica Piper 100 vs. Piper 200 – Which Pipe Laser Is Right for Your Project?
• Underground Utility Laser Safety and Best Practices

Frequently Asked Questions

What is the grade accuracy of the Leica Piper 100?

The Leica Piper 100 achieves a grade accuracy of ±0.03% (equivalent to 0.3 mm per meter), making it suitable for precision gravity sewer, storm drain, and utility installations where tight tolerances are required.

Does the Leica Piper 100 require a separate plumb laser for manhole setup?

No. The Piper 100 features an integrated laser plumb reference built directly into the unit, allowing contractors to center the instrument over a manhole invert or structure without the need for a separate plumbing device, saving setup time and equipment cost.

What battery type does the Leica Piper 100 use and how long does it last?

The Piper 100 operates on four standard D-cell alkaline batteries, providing up to 60 hours of continuous use. This extended runtime reduces the need for mid-shift battery changes on long production days.

Is the Leica Piper 100 waterproof enough for trench work?

Yes. The Piper 100 carries an IP67 protection rating, meaning it is fully dust-tight and can withstand temporary immersion in water up to 1 meter. It is designed to operate in the wet, muddy, and demanding conditions typical of underground pipe installation work.
