Leica Piper 200 Pipe Laser Package with Alignmaser - Red Beam

The Leica Piper 200 (Model 6000231) is a professional-grade red beam pipe laser engineered for gravity sewer, storm drain, and underground utility crews who demand accurate, repeatable grade control. Compatible with pipe diameters from 8 inches up to 48 inches and beyond, this package ships complete with the AlignMaster target system for rapid visual alignment feedback — no repeated trench entries required. Set your grade, lock it in, and lay pipe with confidence that your slope is on point from first joint to final inspection.

Product Overview

Designed for the rigors of open-cut and tunneling applications, the Leica Piper 200 delivers a bright, visible red beam with exceptional range and accuracy. Its self-leveling compensator automatically accounts for minor instrument shifts, keeping your grade locked even as jobsite conditions change. The sealed, waterproof housing meets IP67 standards, so rain, mud, and trench water are never a concern. Whether you're running a 200-foot gravity main or threading utility pipe under a road crossing, the Piper 200 gives your crew the confidence to keep production moving.

Key Specifications

• Model Number: 6000231
• Beam Color: Red (635 nm)
• Grade Range: ±10% (automatic self-leveling within ±5%)
• Grade Accuracy: ±0.01% (1mm per 10m)
• Pipe Diameter Compatibility: 8 in. to 48 in.+ (with centering rod system)
• Beam Range: Up to 300 m (985 ft) in pipe
• Self-Leveling Range: ±5° automatic compensation
• Ingress Protection: IP67 — fully dust-tight and waterproof to 1m
• Battery Life: Up to 60 hours on standard alkaline batteries
• Operating Temperature: -20°C to +50°C (-4°F to +122°F)
• Weight: Approx. 3.2 kg (7.1 lb) with batteries

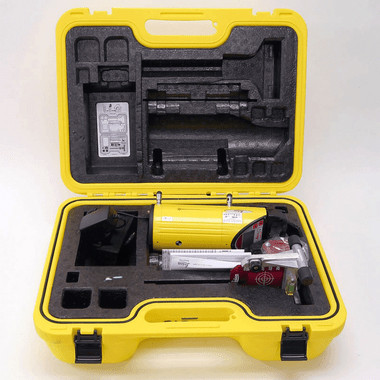

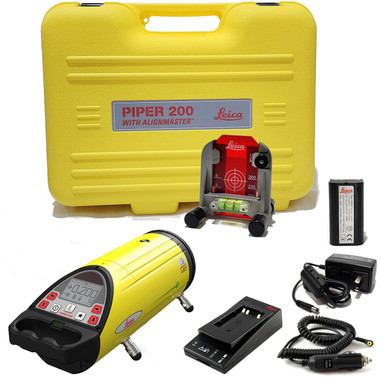

What's in the Kit

• Leica Piper 200 pipe laser unit
• AlignMaster target system for visual grade alignment
• Centering rod assembly for pipe diameter adjustment
• Hard transport and storage case
• Battery pack and charger
• Quick-start guide and operator documentation

Job Applications

Gravity Sewer Mains: Maintain consistent downhill grade on sanitary sewer installations where slope precision is critical to long-term system performance and code compliance.

Storm Drain Systems: Control grade on large-diameter corrugated metal and concrete storm pipe, keeping your crew productive across long runs without constant re-checks.

Municipal Utility Crossings: Set precise grades under road crossings and in confined trench conditions where access is limited and accuracy cannot be compromised.

Tunneling and Bore Operations: Use the long-range beam to guide pipe placement in microtunneling and auger bore setups where direct line-of-sight is essential over extended distances.

Compatible Accessories

• Leica Piper AlignMaster Target (Replacement)
• Leica Pipe Laser Centering Rod Extensions
• Leica GHT58 Universal Tripod Adapter
• Leica Battery Pack and Charger Kit
• Protective Transport Case (Replacement)

Related Guides

• How to Set Grade with a Pipe Laser: Step-by-Step Guide
• Pipe Laser vs. Grade Rod: Which is Right for Your Project?
• Leica Piper 200 vs. Piper 100: Which Model Do You Need?
• Top Pipe Laser Tips for Gravity Sewer Installations

Frequently Asked Questions

What pipe diameters is the Leica Piper 200 compatible with?

The Piper 200 is compatible with pipe diameters from 8 inches up to 48 inches and larger using the included centering rod system and optional extensions. The centering rods keep the laser perfectly centered in the pipe for accurate grade transfer.

What is the AlignMaster and how does it help my crew?

The AlignMaster is a visual target system that attaches to the pipe being laid. It gives your crew a clear, immediate read on whether the pipe is aligned with the laser beam — on grade or off — without requiring anyone to climb into the trench or pull the laser repeatedly. This speeds up production and reduces rework.

Is the Leica Piper 200 waterproof enough for trench work?

Yes. The Piper 200 is rated IP67, meaning it is fully dust-tight and can withstand temporary immersion in water up to 1 meter deep. It is built to handle rain, mud, and the wet conditions common in open-cut trench environments.

How does the Piper 200 differ from the Leica Piper 100?

The Piper 200 offers an extended grade range of ±10% compared to the Piper 100's more limited range, making it better suited for steeper grade applications and larger-diameter pipe runs. It also includes the AlignMaster target in the standard package. The Piper 100 is a cost-effective option for projects with moderate grade requirements.
