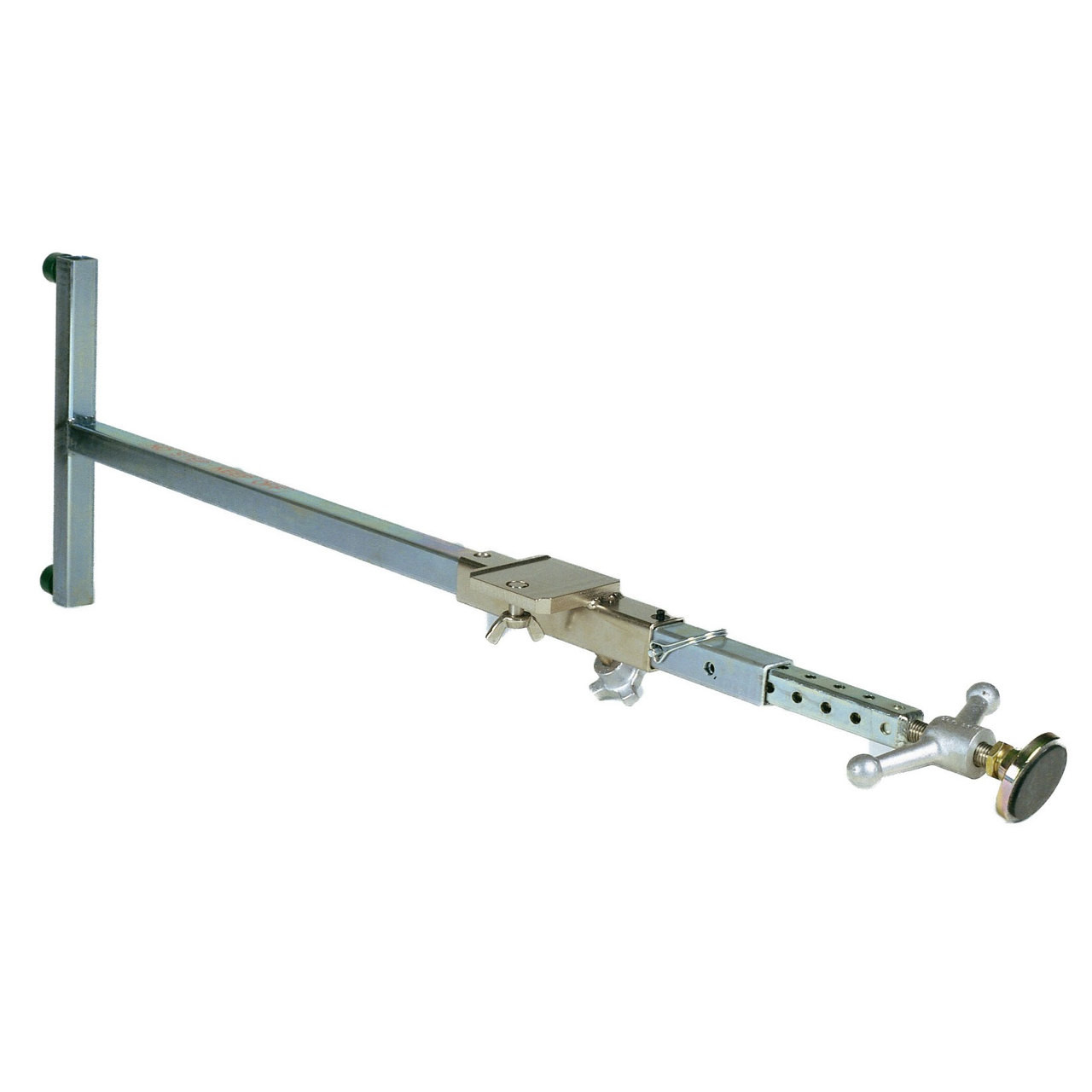

Spectra Precision 1244 T-Bar for Pipe Laser

Overview

The Spectra Precision 1244 T-Bar is a heavy-duty adjustable mounting system engineered for precise positioning of pipe lasers in challenging underground environments. This professional-grade T-bar provides the stability and flexibility needed for large-diameter pipe installation, open trench work, and confined manhole applications where traditional rigid invert plates fall short. Constructed from durable materials with an adjustable design, the 1244 accommodates pipe diameters from 8 inches to 24 inches, making it an essential tool for municipal contractors, civil engineering firms, and underground utility installation crews. The T-bar's quick-adjustment mechanism allows operators to achieve precise grade elevations efficiently, reducing setup time while maintaining the accuracy required for gravity-flow pipe systems. Whether you're installing sanitary sewers, storm drains, or water mains, the 1244 T-Bar delivers the reliability and performance demanded by professional grade control applications.

Key Specifications

• Pipe Diameter Range: 8" to 24" (203mm to 610mm)
• Material Construction: Heavy-duty steel with corrosion-resistant coating
• Adjustment Type: Telescoping with secure locking mechanism
• Weight: Approximately 12 lbs (5.4 kg)
• Laser Mounting: Standard 5/8"-11 threaded adapter
• Maximum Load Capacity: 15 lbs (6.8 kg)
• Temperature Range: -20°F to 140°F (-29°C to 60°C)
• Compatibility: All Spectra Precision pipe lasers and most major brands

What's in the Kit

• Spectra Precision 1244 T-Bar Assembly
• Adjustable telescoping legs (2)
• Center mounting bracket with 5/8"-11 thread
• Locking knobs and hardware
• Rubber contact pads for pipe protection
• Carrying case for transport and storage
• Quick-start setup guide
• Manufacturer's warranty documentation

Job Applications

• Sanitary Sewer Installation: Perfect for maintaining precise grade control in gravity-flow sewer systems where even slight elevation errors can cause flow problems and costly callbacks. The 1244's stability ensures consistent laser alignment throughout the installation process.
• Storm Drain Construction: Ideal for large-diameter storm pipe projects where accurate grade is critical for proper water conveyance. The adjustable design accommodates varying pipe sizes commonly encountered in municipal drainage systems.
• Manhole Alignment: Enables accurate laser setup within confined manhole spaces for checking invert elevations and aligning connecting pipes. The compact footprint allows positioning in tight working areas where larger tripods won't fit.
• Open Trench Grade Control: Provides a stable platform for pipe lasers in excavated trenches where ground conditions make traditional setups impractical. The T-bar bridges across the pipe opening, eliminating concerns about unstable trench bottom conditions.
• Water Main Installation: Supports precision alignment for pressurized and gravity water distribution systems where proper grade ensures system efficiency and prevents air pocket formation.
• Culvert and Box Conduit Work: Adaptable for larger rectangular or round culvert installations where maintaining design grade is essential for hydraulic performance and structural specifications.

Compatible Accessories

• Spectra Precision Pipe Lasers - Complete line of pipe lasers designed to mount directly on the 1244 T-Bar
• Laser Targets and Target Rods - Essential receiving equipment for grade checking and alignment verification
• Pipe Laser Remote Controls - Wireless remotes for adjusting laser position without entering the trench
• Grade Rods and Measuring Tools - Precision measuring equipment for verifying elevations and slopes
• Laser Detectors - Electronic receivers for enhanced visibility in bright conditions or long distances
• Heavy-Duty Carrying Cases - Additional protective storage solutions for transportation between job sites

Related Guides

• Complete Guide to Pipe Laser Setup and Calibration
• Best Practices for Sewer and Storm Drain Grade Control
• How to Choose the Right Pipe Laser Mounting System
• Essential Tools for Underground Utility Construction

FAQ

Will the 1244 T-Bar work with pipe lasers from other manufacturers?

Yes, the 1244 features a standard 5/8"-11 threaded mounting adapter that is compatible with most major pipe laser brands including Topcon, Leica, and Trimble. Always verify your specific laser's mounting thread before purchase.

What is the minimum pipe diameter this T-bar can accommodate?

The Spectra Precision 1244 is designed for pipes 8 inches in diameter and larger. For smaller pipe diameters (4" to 8"), consider the Spectra 1242 compact T-bar or alternative invert plate mounting solutions available at Express Tools.

Can the 1244 be used in wet or muddy conditions?

Absolutely. The 1244 T-Bar is constructed with corrosion-resistant materials specifically for harsh underground environments. The rubber contact pads provide secure grip even on wet pipe surfaces, though you should always ensure debris is cleared from contact points for maximum stability.

How do I determine the correct height adjustment for my laser?

The height adjustment depends on your project's design grade and pipe invert elevation. Set the T-bar so the laser beam projects at the desired elevation inside the pipe, typically at the centerline or a specified offset. Consult your project plans and use a grade rod to verify the laser height before beginning installation.
