DT205 Digital Theodolite Kit with 5 Second Accuracy - Model

Overview

The Topcon DT205 Digital Theodolite Kit delivers 5-second angular accuracy for professional surveyors, civil engineers, and construction layout teams managing boundary surveys, infrastructure projects, and precision angle measurement tasks. Land surveyors rely on this instrument for property corner verification and ALTA surveys where sub-minute accuracy prevents legal disputes. Engineering firms use it for bridge alignment, tower plumb verification, and structural monitoring applications. This complete kit configuration includes carrying case, optical plummet, detachable tribrach, and rechargeable battery system—everything required for immediate deployment on control network establishment, as-built documentation, and regulatory compliance surveys where 5-second precision eliminates rework and validates critical layout dimensions.

Key Specifications

• Angular Accuracy: 5 seconds (horizontal and vertical circles)
• Display Resolution: 1 second (selectable 5"/10" reading modes)
• Telescope Magnification: 30× with 45mm objective diameter
• Minimum Focus Distance: 0.9 meters (3.0 feet)
• Compensator Working Range: ±3 minutes with 1-second accuracy
• Environmental Protection: IP66 dust-tight and waterproof rating
• Battery Life: 20 hours continuous operation (BT-52QA rechargeable)
• Operating Temperature: -20°C to +50°C (-4°F to 122°F)
• Instrument Weight: 5.1 kg (11.2 lbs) with battery
• Data Storage: 10,000 point internal memory

What's in the Kit

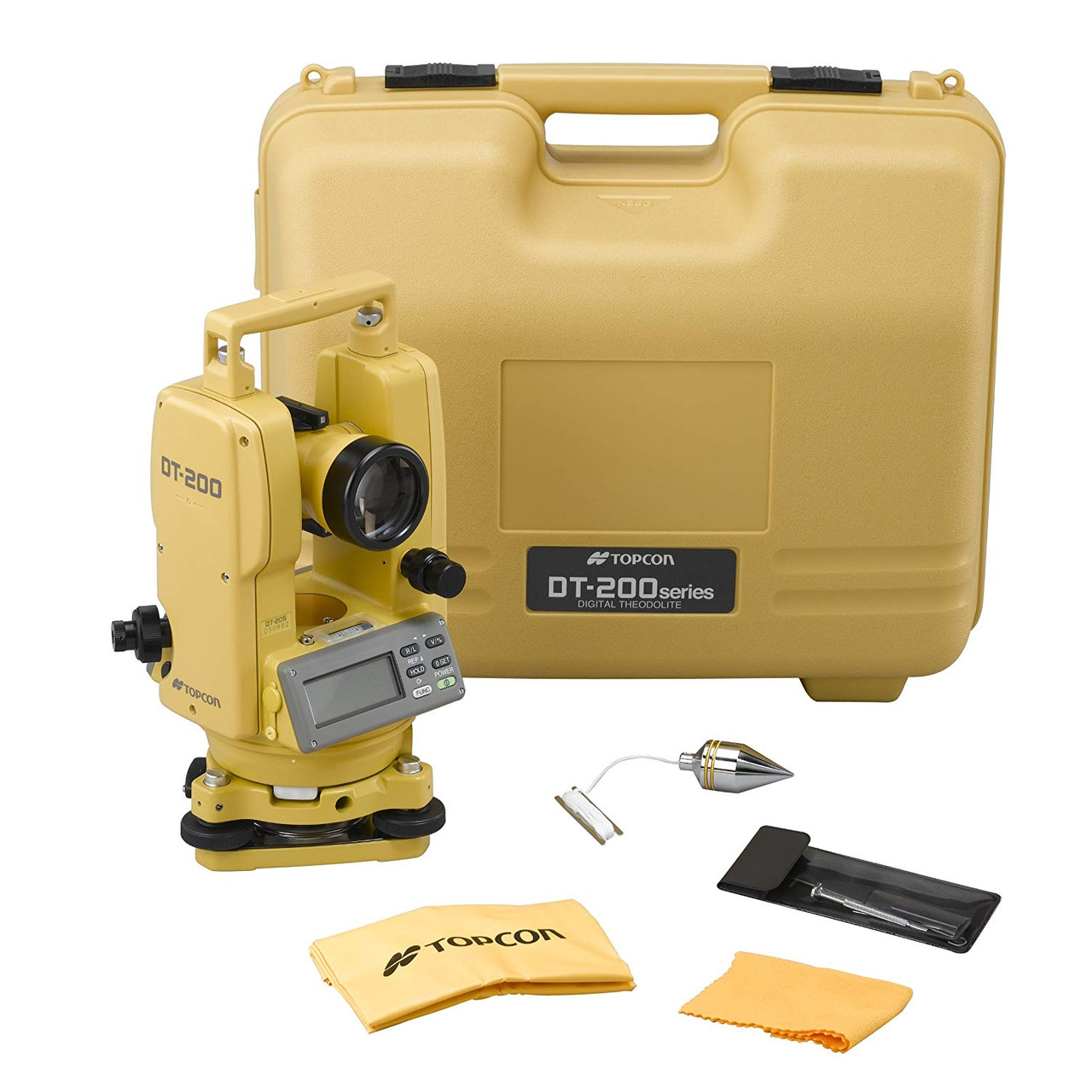

• DT205 Theodolite Body – Main instrument with dual-axis compensator and backlit LCD display
• Detachable Tribrach – Precision three-screw leveling base with optical plummet
• BT-52QA Rechargeable Battery – Lithium-ion power cell with 20-hour runtime
• BC-27CR Battery Charger – Single-bay charger with 100-240V universal input
• Plumb Bob and Gammon Reel – Optical centering verification tools
• Adjusting Tools – Pin and screwdriver set for field calibration adjustments
• Hard-Shell Carrying Case – Weather-resistant transport case with foam insert protection
• Lens Covers and Rain Shield – Objective and eyepiece protection with instrument weather guard
• Instruction Manual and Calibration Certificate – Factory test documentation and operation guide

Job Applications

• Boundary and ALTA Surveys: 5-second accuracy meets legal requirements for property corner documentation and eliminates angular closure errors in traverse networks.
• Control Network Establishment: Precision angle measurement supports geodetic control extension and horizontal control densification for large infrastructure projects.
• Bridge and Highway Layout: Accurate horizontal and vertical angles verify pier alignment, bearing placement, and curve stakeout on transportation projects.
• Tower and Chimney Plumb Verification: Vertical circle accuracy detects deflection and validates structural plumbness for cell towers, smokestacks, and high-rise construction.
• As-Built Documentation: Angular measurements provide verification data for completed work and regulatory compliance reporting on municipal and federal projects.
• Mining and Tunnel Alignment: Delivers the precision required for underground control surveys and shaft plumb verification where positional errors compound over distance.

Compatible Accessories

Heavy-Duty Aluminum Tripod – Flat-head tripod with adjustable legs for stable instrument mounting on uneven terrain.

Topcon Detachable Tribrach – Spare precision tribrach for rapid instrument exchange without re-leveling.

Centering Optical Plummet – Standalone plummet for independent tribrach centering verification.

Reflectorless Target System – Non-prism targets for angle-only measurements when distance measurement isn't required.

Survey Instrument Umbrella – Clamp-on weather protection for extended operation in rain or direct sunlight.

Related Guides

How to Set Up and Level a Digital Theodolite – Step-by-step leveling procedures and tribrach centering techniques for accurate angle measurement.

Theodolite vs. Total Station: When to Use Each Instrument – Application comparison explaining when angle-only measurement delivers better value than integrated EDM systems.

Performing the Two-Peg Test for Compensator Calibration – Field calibration method for verifying and adjusting digital theodolite accuracy.

Troubleshooting Theodolite Accuracy and Measurement Errors – Common error sources including atmospheric refraction, instrument settlement, and improper leveling.

Frequently Asked Questions

What's the difference between 5-second and 7-second theodolite accuracy for boundary surveys?

5-second accuracy delivers angular precision of ±5" per observation, which translates to approximately 2.4mm of lateral error at 100 meters. For ALTA surveys, long-distance traverse legs, and legal boundary establishment where precision directly affects property descriptions, 5-second instruments meet professional survey standards. 7-second models suffice for construction layout and topographic work where tolerance requirements allow greater angular uncertainty. Most state regulations require 10-second or better accuracy for boundary surveys, making the DT205 compliant with all jurisdictional requirements.

Can this theodolite measure distances or only angles?

The DT205 measures horizontal and vertical angles only—it does not include electronic distance measurement (EDM) capability. For applications requiring both angle and distance data, consider a total station. Theodolites excel in applications like tower plumb verification, astronomic observations, trilateration networks, and angle-only traverse work where separate distance measurement methods (tape, GPS, or laser rangefinder) provide adequate results. The angle-only configuration reduces instrument cost and eliminates EDM-related calibration requirements.

How often does the DT205 require professional calibration?

Topcon recommends annual factory calibration for instruments in daily commercial use, with field verification (two-peg test and plate bubble check) before critical surveys. Instruments experiencing transport shock, extreme temperature cycling, or showing systematic errors during field checks should receive immediate service. The included calibration certificate documents factory testing; maintaining calibration records supports quality assurance requirements on engineering projects and professional liability documentation. Most surveyors perform weekly field checks and return instruments for certification annually or after 200-300 operating days.

What battery life can I expect during a full day of fieldwork?
