Spectra Precision DG511-13 Pipe Laser w/ Scope, Power Cable and NiMH Recharge

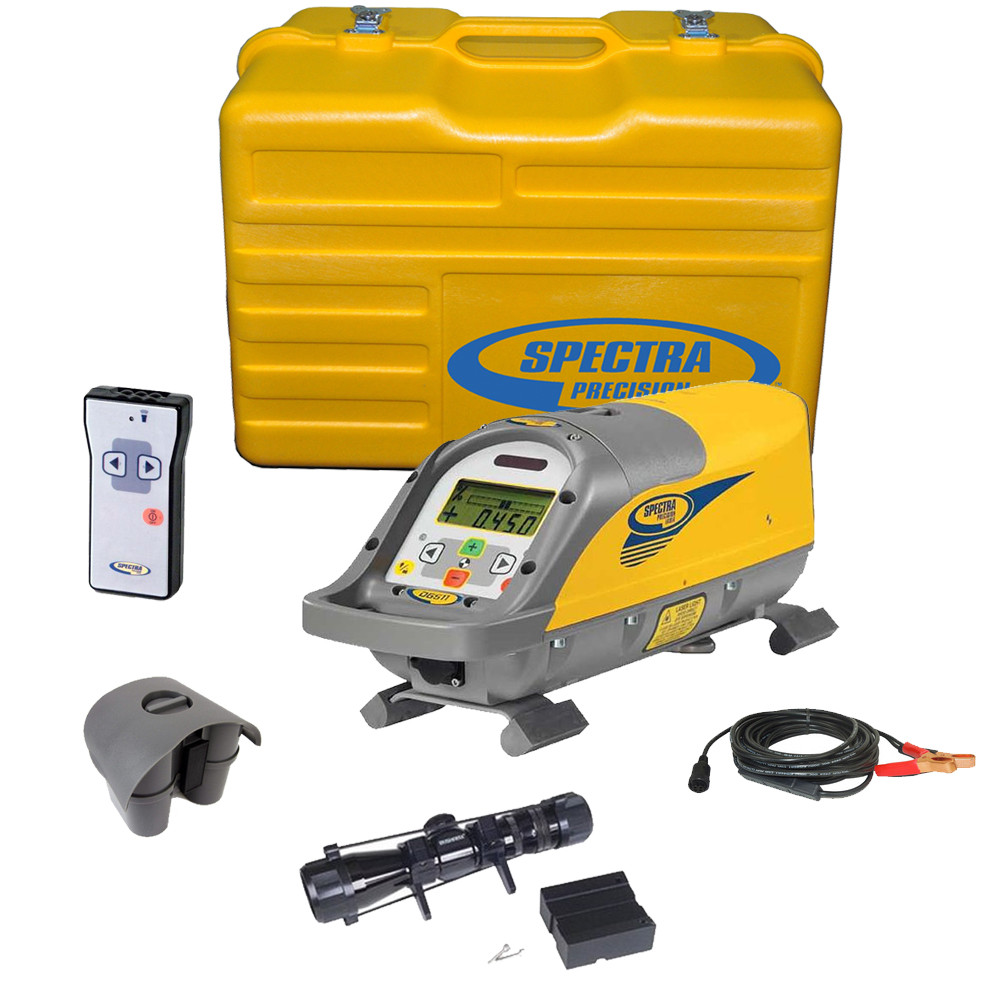

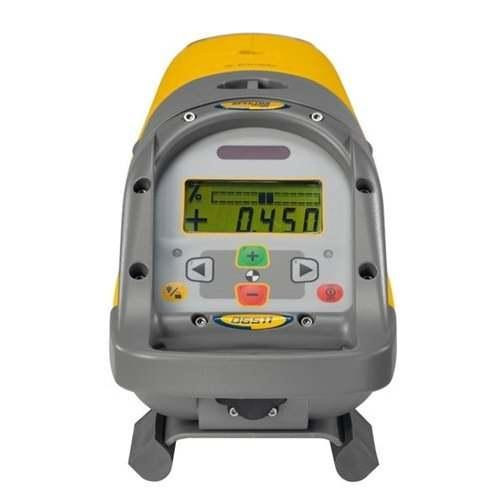

# Spectra Precision DG511-13 Pipe Laser with Scope, Power Cable and NiMH Battery ## Overview The Spectra Precision DG511-13 delivers professional-grade pipe laser performance with the added advantage of optical verification through the included 1233 Scope. This premium configuration combines Spectra's proven single-beam laser technology with independent optical sighting capability, allowing contractors to verify alignment in bright sunlight or long-distance applications where laser visibility diminishes. The complete package includes AC power cable for continuous operation and rechargeable NiMH battery for cordless flexibility, making this an ideal solution for sewer, storm drain, and utility contractors who demand verification capability without returning to the office for dedicated optical instruments. The DG511 head unit provides ±10 arc second accuracy across the full diameter range, while the detachable scope enables traditional optical sighting when conditions require visual confirmation of grade stakes or reference points. ## Key Specifications - **Accuracy**: ±10 arc seconds over full diameter range - **Beam Type**: Single red diode laser, visible to 600+ feet with detector - **Grade Range**: 0% to ±40% in 0.01% increments - **Diameter Capacity**: 6" to 48" pipe (larger with optional extensions) - **Self-Leveling Range**: ±10% automatic leveling - **Power Options**: AC power cable (included) or rechargeable NiMH battery (included) - **Runtime**: Up to 40 hours on single NiMH charge - **Optical Scope**: 1233 Scope with independent sighting, 20x magnification - **Display**: Backlit LCD showing grade, battery status, and operating mode - **Construction**: IP68 waterproof rating, survives 3-foot drops - **Operating Temperature**: -4°F to 122°F (-20°C to 50°C) - **Warranty**: 3-year manufacturer warranty ## What's in the Kit - DG511 Pipe Laser Head Unit - 1233 Optical Scope (detachable, 20x magnification) - AC Power Cable for continuous operation - Rechargeable NiMH Battery Pack - Battery Charger - Carrying Case with custom foam inserts - Grade Card and conversion charts - Operating Manual ## Job Applications - **Sanitary Sewer Installation** – The optical scope allows surveyors to verify invert elevations and manhole depths independently before laser setup, eliminating return trips for optical equipment and reducing setup errors on critical sewer projects where grade tolerances are tight. - **Storm Drain Systems** – Long runs exceeding 400 feet benefit from optical verification of distant grade stakes before committing to laser alignment, particularly valuable when working around existing utilities where slight misalignment could cause costly conflicts. - **Directional Boring Guidance** – Optical sighting enables verification of entry and exit pit elevations before boring begins, while the laser provides continuous grade reference during the bore, reducing the risk of surfacing errors that require expensive redrilling. - **Large Diameter Culvert Projects** – The scope's 20x magnification allows precise alignment checks on 36"+ culverts where even minor angular errors translate to significant elevation differences over distance, critical for hydraulic performance in drainage structures. - **Municipal Utility Rehabilitation** – Contractors can optically verify existing invert elevations and document as-built conditions, then immediately switch to laser mode for new pipe installation without transporting separate optical instruments to confined urban worksites. - **Pressurized Force Main Installation** – Optical capability enables independent verification of design grades on pressure systems where pumping station efficiency depends on minimizing high points and maintaining consistent slope throughout the alignment. ## Compatible Accessories - [Spectra Precision LR50 Laser Receiver](#) – Target-style receiver with rod clamp for open-trench verification - [Spectra Precision RC502 Remote Control](#) – Adjust grade and power from up to 300 feet away - [Spectra Precision 1152 Trivet](#) – Stability base for use in hand holes and small manholes - [Spectra Precision 11" Pipe Extension](#) – Extends capacity to 60" diameter pipe - [Spectra Precision 22" Pipe Extension](#) – Extends capacity to 72" diameter pipe - [Replacement NiMH Battery Pack](#) – Spare battery for extended field operations - [Heavy-Duty Target with Magnetic Mount](#) – Hands-free alignment verification in pipe ## Related Guides - [Pipe Laser Setup Guide: Achieving Accurate Grade in 6 Steps](#) - [When to Use Optical Verification vs. Laser-Only Alignment](#) - [Pipe Laser Maintenance: Extending Service Life in Harsh Conditions](#) - [Understanding Pipe Laser Accuracy: Arc Seconds vs. Actual Elevation Error](#) ## Frequently Asked Questions

What advantage does the optical scope provide over laser-only pipe lasers?

The 1233 Scope allows independent optical verification of grade stakes, manhole inverts, or reference points without relying on laser visibility. This is critical in bright sunlight, across long distances beyond effective laser range, or when you need to verify elevations before committing to laser setup. Contractors can perform traditional optical surveying and laser alignment with a single instrument instead of transporting separate equipment to the jobsite.

Can I use the DG511-13 on AC power continuously or is battery operation required?

The included AC power cable enables unlimited runtime when power is available at the setup location, ideal for long manhole-to-manhole runs or extended projects. The rechargeable NiMH battery provides up to 40 hours cordless operation when AC power isn't accessible, with the flexibility to swap batteries mid-job. Most contractors use AC power when convenient and reserve battery operation for remote locations or when working in active traffic areas where cords create safety hazards.

What diameter pipe can the DG511-13 handle, and how do extensions affect this range?

The standard configuration handles 6" to 48" diameter pipe. Adding the 11" extension increases capacity to 60", while the 22" extension expands range to 72" diameter. The laser head remains the same across all configurations—extensions simply position the beam at the appropriate height for larger pipe diameters. Accuracy remains ±10 arc seconds regardless of pipe size or extension use.

How does the ±10 arc second accuracy translate to actual elevation error over distance?

At ±10 arc seconds, the DG511-13 produces approximately 0.05 feet (0.6 inches) of potential elevation error at 1,000 feet. For typical sewer runs of 300-400 feet between manholes, this translates to roughly 0.18 inches maximum deviation—well within acceptable tolerances for most municipal specifications. The optical scope allows you to verify this accuracy by independently sighting reference benchmarks before and after laser setup.
