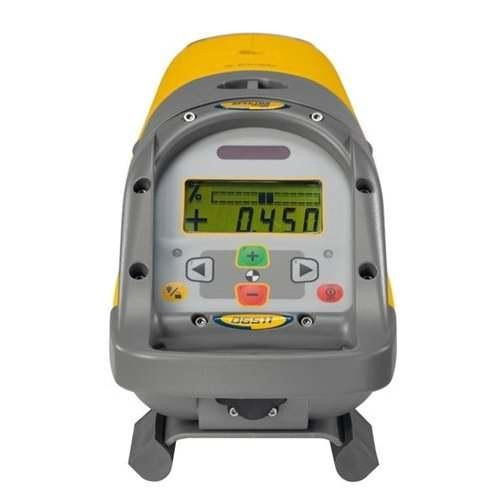

Spectra Precision DG511-6 Pipe Laser w/Vertical Pole Assembly METRIC

# Spectra Precision DG511-6 Pipe Laser w/Vertical Pole Assembly METRIC ```html

Overview

The Spectra Precision DG511-6 delivers precision pipe laser technology calibrated in metric units, engineered specifically for international infrastructure projects and contractors working across borders. This single-grade laser system features a robust vertical pole assembly that ensures stable alignment in trenches up to 5 meters deep, making it the go-to solution for gravity-fed sewer, water, and drainage installations worldwide.

Built on Spectra's proven DG511 platform, this metric-calibrated model provides the same rugged reliability you'd expect from American-made laser technology, now with millimeter accuracy for projects requiring SI unit compliance. The integrated vertical pole mount eliminates the need for separate tripods or stands, speeding setup time and reducing equipment costs on metric-standard jobsites from Europe to Asia-Pacific.

Whether you're installing storm drains in Toronto, sanitary sewers in Dubai, or agricultural drainage in Australia, the DG511-6 adapts to your project requirements with tool-free grade adjustments and intuitive controls that your crew can operate without extensive training.

Key Specifications

• Measurement System: Metric calibration (millimeters)
• Grade Range: -10% to +40% single grade
• Accuracy: ±10 arc seconds (±5mm at 100m)
• Beam Diameter: 50mm at 30m
• Working Range: Up to 400m diameter with laser detector
• Self-Leveling Range: ±5° automatically
• Vertical Pole Length: Extends to 5 meters
• Power Source: Rechargeable NiMH battery pack or alkaline D-cells
• Battery Life: 30+ hours (rechargeable), 50+ hours (alkaline)
• Operating Temperature: -20°C to +50°C
• IP Rating: IP68 (fully submersible to 1m for 30 minutes)
• Drop Survival: 1 meter onto concrete

What's in the Kit

• Spectra Precision DG511-6 Pipe Laser (metric calibration)
• Vertical Pole Assembly (extends to 5m)
• Rechargeable NiMH Battery Pack
• AC Battery Charger (110-240V universal)
• Alkaline Battery Tray (accepts 4 D-cells)
• Hard-Shell Carrying Case

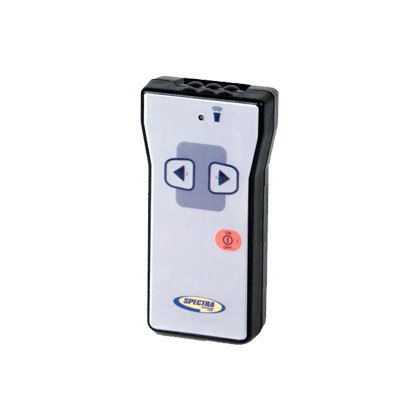

• RC502 Remote Control
• Grade Adjustment Knob
• Operator's Manual (multiple languages)
• Factory Calibration Certificate

Job Applications

• International Sewer Installation: Municipal contractors working on cross-border projects can maintain consistent metric measurements without conversion errors that plague dual-system workflows, ensuring your crew meets specifications whether you're in Montreal, Mexico City, or Manila.
• Water Main Projects in Metric Jurisdictions: From potable water distribution to transmission mains, this laser eliminates the guesswork when your engineering plans specify metric grades and your inspection reports require millimeter documentation—critical for passing authority reviews in metric-standard countries.
• Agricultural Drainage Systems: Large-scale farm drainage projects across Canada, Europe, and South America demand precise slopes for efficient water removal; the vertical pole assembly lets you set grade quickly in open fields without hauling heavy tripods across muddy terrain.
• Storm Drainage Networks: Civil contractors bidding on government infrastructure work in metric countries can confidently quote projects knowing the DG511-6 delivers the precision required for proper hydraulic performance—preventing costly rework due to inadequate slopes.
• Utility Conduit Installation: Telecom and electrical contractors installing underground conduit banks can ensure proper drainage slopes while meeting metric specifications common in international data center and industrial facility construction.
• Mining and Tunneling Dewatering: Underground operations requiring precise drainage channels benefit from the laser's submersible housing and long battery life, maintaining alignment in the demanding conditions where metric measurements are industry standard globally.

Compatible Accessories

Spectra Precision CR600 Laser Receiver – Metric digital readout with millimeter precision

RC602 Long-Range Remote Control – Operate laser functions up to 300m away

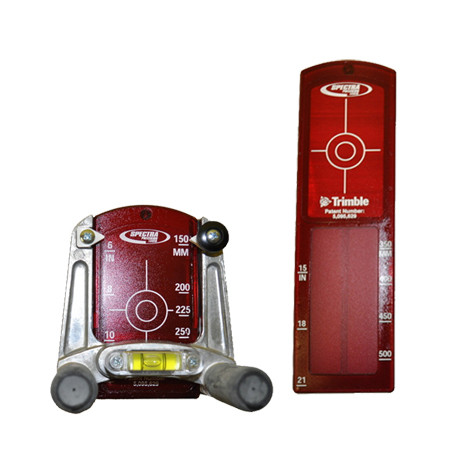

Spectra Precision Laser Targets – Manual alignment targets for visual confirmation

Metric Grade Rods – Centimeter-marked measurement poles

Additional NiMH Battery Packs – Extended runtime for long shifts

Universal Pipe Clamps – Secure detector mounting for metric pipe sizes

Related Guides

Metric vs. Imperial Pipe Lasers: Choosing the Right System

How to Set Up a Pipe Laser with Vertical Pole Assembly

Grade Calculation Guide for Gravity-Fed Systems

International Standards for Pipe Laser Accuracy

FAQ

Can this laser be recalibrated to imperial units if my work changes?

No, the DG511-6 is factory-calibrated exclusively for metric measurements. The internal firmware and display are configured for millimeter precision and cannot be converted to feet/inches. If you regularly work in both systems, consider the DG511-5 (imperial) for US projects and keep the DG511-6 dedicated to metric work, or explore Spectra's dual-display models that show both units simultaneously.

What's the maximum trench depth I can work with using the included vertical pole?

The included vertical pole extends to 5 meters (approximately 16 feet), suitable for most municipal sewer and water main installations. For deeper excavations, Spectra offers extension poles up to 7.5 meters. The pole's graduated markings help you quickly position the laser at the correct invert elevation without repeated measurements, saving 10-15 minutes per setup compared to tripod-mounted systems.

How does the IP68 rating perform in real-world trench conditions?

The DG511-6 withstands complete submersion up to 1 meter for 30 minutes, which covers accidental drops into standing trench water or heavy rain exposure during setup. Contractors report the laser surviving muddy water, concrete slurry splashes, and high-pressure washdowns. However, don't intentionally operate it while submerged—the IP68 rating is for survival, not underwater operation. Always dry and inspect the battery compartment seals after water exposure.

Will this work with my existing imperial-calibrated laser detector?

The DG511-6 emits a standard rotating laser beam that any pipe laser detector can sense, so your existing detector will physically receive the signal. However, if your detector displays imperial measurements, you'll need to manually convert readings—defeating the purpose of a metric-dedicated system. For seamless operation, pair this laser with a metric-calibrated detector like the Spectra CR600 or CR700, which display millimeter elevations directly, eliminating conversion math errors that can compromise grade accuracy.
