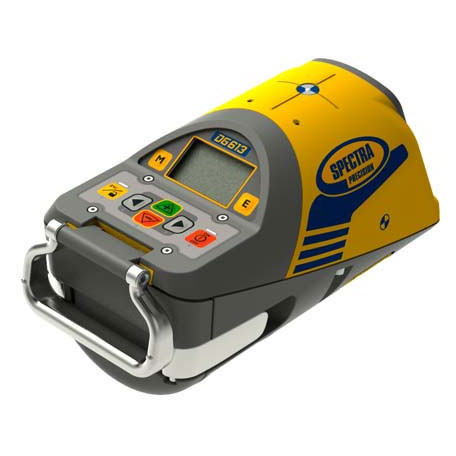

Spectra DG613G Dialgrade Pipe Laser, 8-inch Trivet Plate, Remote Control, Target, Rechargeable Batteries - GREEN BEAM

Overview

The Spectra DG613G Dialgrade Green Beam Pipe Laser System represents the pinnacle of precision pipe laying technology, engineered specifically for contractors who demand exceptional visibility and accuracy in challenging installation environments. This complete system combines Spectra's industry-proven dialgrade technology with a high-visibility green beam that cuts through ambient light, dust, and difficult conditions up to 4x better than traditional red lasers. Whether you're installing storm drains, sanitary sewers, water mains, or utility conduits, the DG613G delivers the performance professionals rely on to keep projects on grade and on schedule.

Built for the demands of modern underground construction, this comprehensive kit includes everything needed for immediate deployment: the DG613G laser, heavy-duty 8-inch trivet plate for superior stability in soft or uneven ground, wireless remote control for convenient grade adjustments from anywhere in the trench, precision target for accurate positioning, and rechargeable battery system that eliminates downtime and recurring costs. The dialgrade feature allows simple mechanical grade setting from -10% to +40%, making it ideal for complex drainage applications where precise fall is critical. With its rugged aluminum housing, IP68 waterproof rating, and proven reliability in the field, the DG613G is the professional-grade solution for contractors who won't compromise on accuracy or durability.

Key Specifications

• Beam Color: Green (high-visibility, 532nm wavelength)
• Grade Range: -10% to +40% dialgrade adjustment
• Accuracy: ±1/16 inch at 100 feet
• Beam Diameter: 5/8 inch at 100 feet, 1 inch at 200 feet
• Working Range: Up to 1,500 feet with compatible detector
• Visible Range: Up to 600 feet in typical conditions
• Self-Leveling Range: ±5 degrees
• Protection Rating: IP68 waterproof and dustproof
• Operating Temperature: 14°F to 122°F (-10°C to 50°C)
• Power Source: Rechargeable NiMH batteries (included)
• Battery Runtime: Up to 40 hours on single charge
• Housing: Rugged cast aluminum construction
• Weight: 12 lbs (laser unit)
• Trivet Plate Size: 8-inch diameter for enhanced stability
• Warranty: 3-year manufacturer's warranty

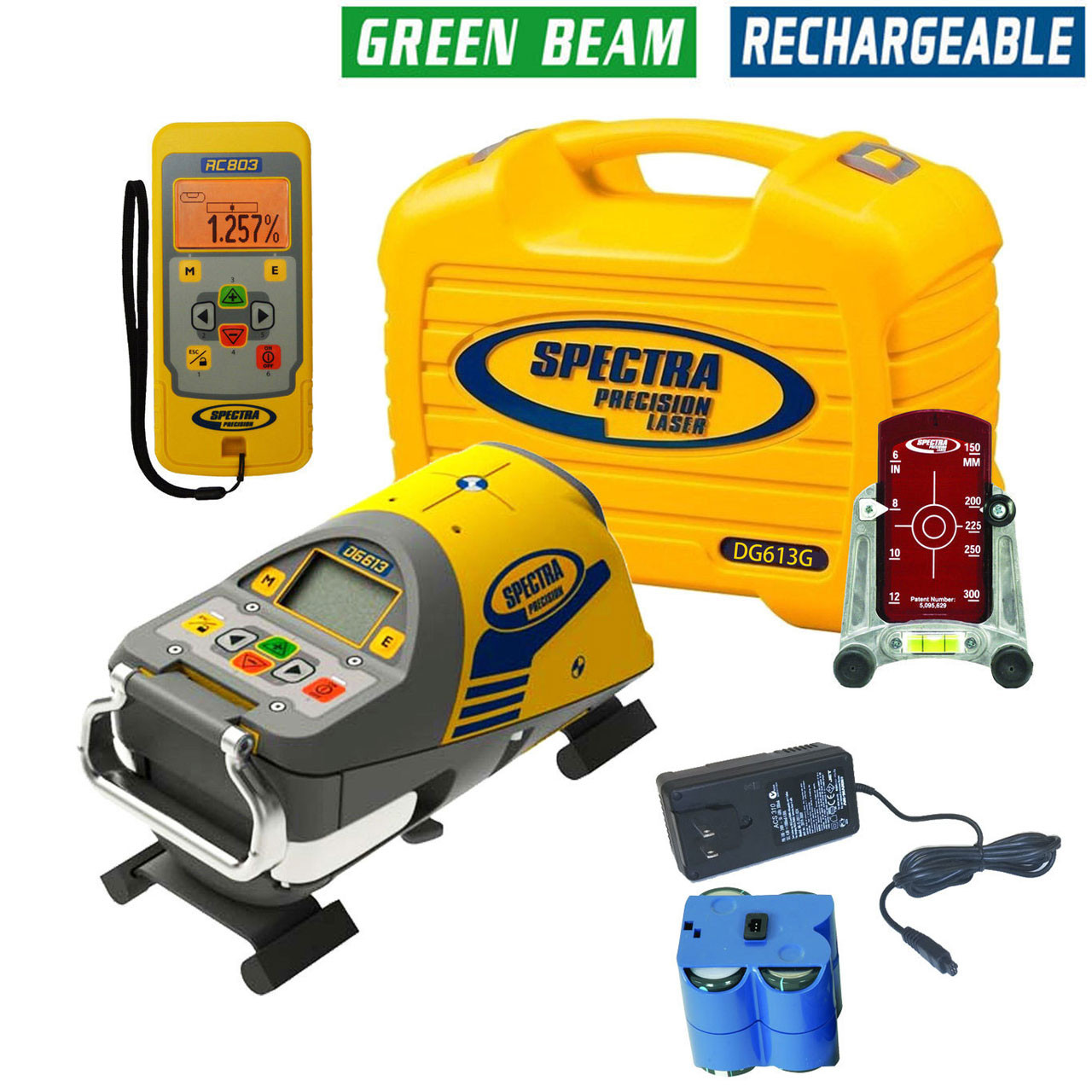

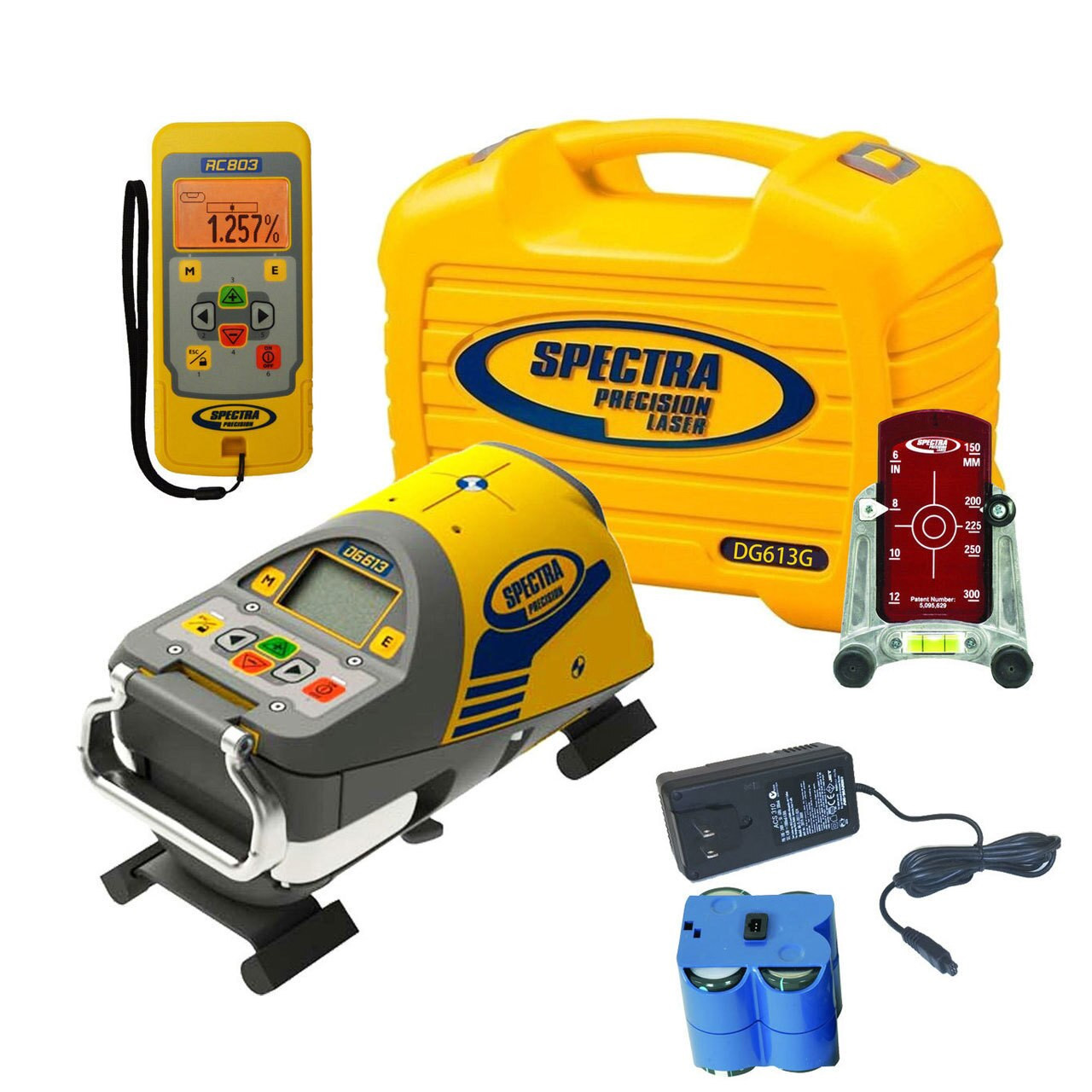

What's in the Kit

• Spectra DG613G Green Beam Dialgrade Pipe Laser
• 8-inch Heavy-Duty Trivet Plate with mounting hardware

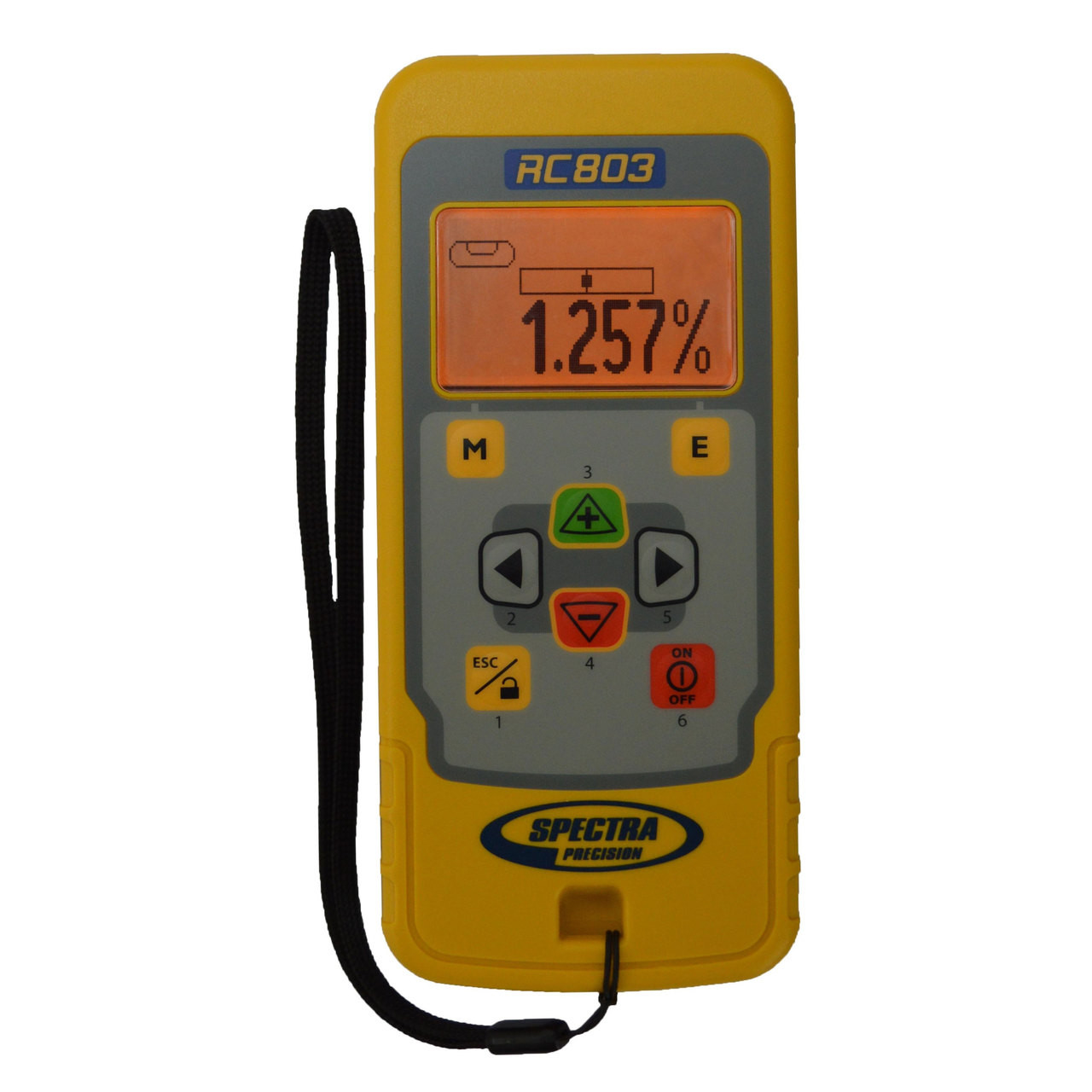

• Wireless Remote Control with battery
• Precision Target with adjustable mounting bracket
• Rechargeable NiMH Battery Pack (2)
• AC Battery Charger with multi-voltage compatibility
• Hard-Shell Carrying Case with custom foam insert
• Operator's Manual and Quick Start Guide
• Calibration Certificate
• Cleaning Cloth and lens maintenance kit

Job Applications

• Sanitary Sewer Installation: The precise dialgrade adjustment ensures proper flow rates critical for waste water systems, while the green beam remains visible even in deep, poorly-lit trenches where traditional red lasers become difficult to see.
• Storm Drain Systems: Complex drainage networks require accurate grade control across multiple runs and junction points. The DG613G's ±1/16" accuracy at 100 feet guarantees water flows exactly as engineered, preventing standing water and system failures.
• Water Main Installation: Long runs demand consistent accuracy over extended distances. With a working range up to 1,500 feet with detector, the DG613G maintains grade precision across entire pipe sections without constant repositioning.
• Utility Conduit Placement: Electrical, fiber optic, and communication conduits require precise elevation control. The wireless remote allows grade adjustments without climbing in and out of the trench, dramatically improving efficiency and safety.
• Culvert and Underdrain Construction: The wide grade range (-10% to +40%) handles everything from flat culverts to steep underdrains, while the 8-inch trivet plate provides rock-solid stability on uneven ground or loose soil conditions common at these sites.
• Industrial Process Piping: Manufacturing facilities and processing plants demand exacting tolerances for proper drainage and flow. The DG613G's proven accuracy and green beam visibility excel in both indoor and outdoor industrial environments.

Compatible Accessories

• Spectra LR50 Series Laser Receivers and Rod Clamps - for extended range detection beyond visible beam
• Spectra Additional Target Sets - multiple targets for complex multi-run installations
• Spectra External Battery Packs - extended runtime for long days or cold weather operation
• Heavy-Duty Manhole Brackets and Adapters - secure mounting in existing infrastructure
• Grade Rod Sets - precision measuring tools for setup and verification
• Replacement Trivet Plates (6-inch, 10-inch) - alternative sizes for specific ground conditions
• Protective Lens Shields - additional protection in harsh environments

Related Guides

Complete Pipe Laser Setup and Calibration Guide

Green Beam vs Red Beam Lasers: Which is Right for Your Application?

Pipe Laser Maintenance and Care Best Practices

Underground Utility Installation: Professional Techniques and Tips

FAQ

What advantages does green beam technology offer over traditional red beam lasers?

Green beam lasers are up to 4x more visible to the human eye than red beams, especially in bright ambient light, dusty conditions, or over longer distances. This increased visibility reduces eye strain, speeds up work, and improves accuracy by making the beam easier to locate on the target. Green beams are particularly beneficial in shallow trenches with high ambient light or when working in fog, dust, or steam conditions common in utility construction.

How long do the rechargeable batteries last, and what happens if they die on the job?

The included NiMH rechargeable battery packs provide up to 40 hours of continuous operation per charge under normal conditions. This kit includes two battery packs, allowing you to keep one charging while using the other. Runtime may be reduced in extreme temperatures. The batteries fully recharge in approximately 4-6 hours using the included AC charger, and the laser provides low-battery warnings well before shutdown.

Can the DG613G be used in wet conditions or standing water?

Yes, the DG613G features an IP68 waterproof rating, meaning it's completely protected against dust ingress and can withstand continuous submersion in water. This makes it ideal for wet trenches, muddy conditions, or installations where water infiltration is common. The sealed housing protects all internal components, and the trivet plate elevates the unit above standing water in the pipe.

What is dialgrade technology and why is it important for pipe laying?

Dialgrade technology allows you to mechanically set precise grades using a calibrated dial on the laser itself, rather than relying on complex electronic adjustments or mathematical calculations. Simply rotate the grade dial to your desired percentage (from -10% to +40%), and the laser projects that exact slope. This proven mechanical system is faster, more intuitive, and more reliable than digital systems, especially in field conditions. It's particularly valuable for drainage applications where specific fall rates are engineered into the system design.
