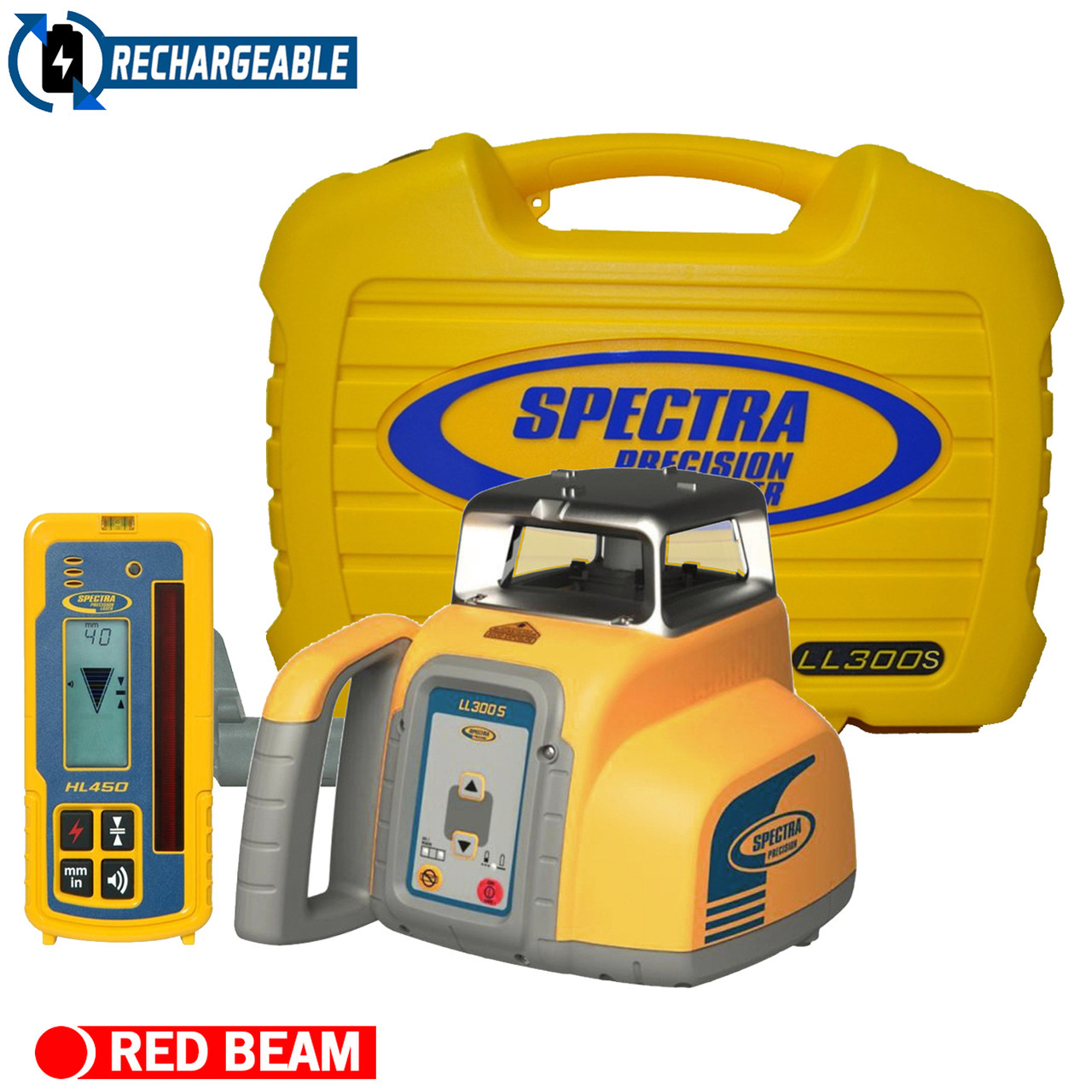

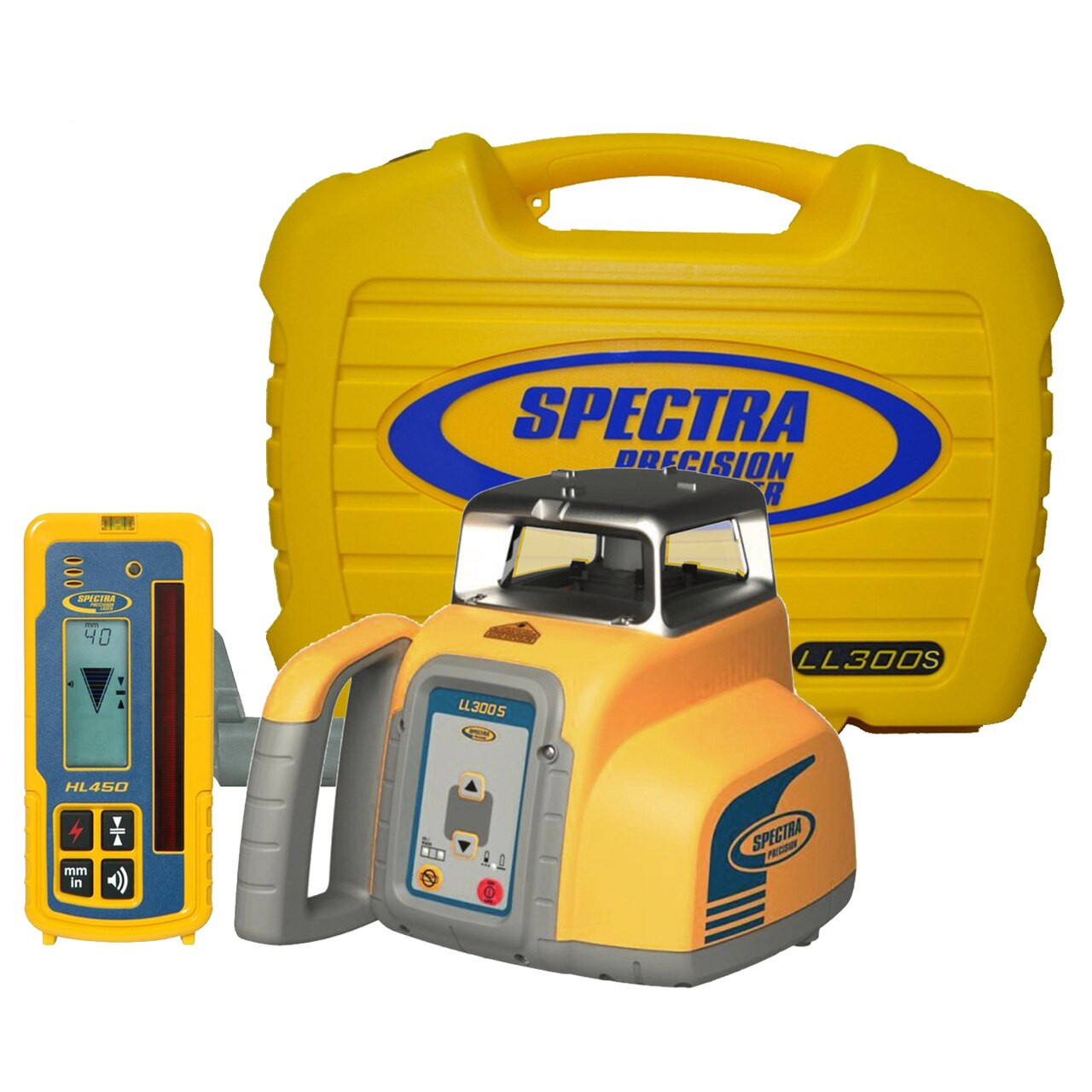

Spectra Precision LL300S-4 Laser level Package with HL450 Receiver - Rechargeable Batteries

Overview

The Spectra Precision LL300S-4 is a field-proven red beam rotary laser level engineered for contractors, grading crews, and survey professionals who demand reliable medium-range leveling performance. This complete package pairs the self-leveling LL300S laser head with the HL450 digital laser receiver, enabling accurate grade work on drainage systems, foundation layouts, concrete pours, and site preparation projects up to 1,000 feet in diameter. The rechargeable battery configuration eliminates downtime and recurring alkaline costs, while the rugged IP67-rated construction withstands harsh conditions including rain, dust, and rough handling. Whether you're installing underground utilities, establishing footer elevations, or setting finish grades, this kit delivers the accuracy and durability required for professional earthwork and construction applications.

Key Specifications

• Accuracy: ±1/16 inch at 100 feet (±1.5 mm at 30 m)
• Self-leveling Range: ±5 degrees
• Beam Type: Single-grade red beam laser
• Rotation Speed: 0, 150, 300, 600 RPM (4 speeds)
• Working Range: Up to 1,000 feet (300 m) diameter with HL450 receiver
• Receiver Detection Range: 500-foot radius (150 m)
• Receiver Accuracy: ±1/16 inch (±1.5 mm) digital LCD readout
• Environmental Rating: IP67 (dustproof and waterproof)
• Power Source: Rechargeable NiMH battery pack (included)
• Run Time: Up to 60 hours per charge
• Operating Temperature: -4°F to 122°F (-20°C to 50°C)
• Mounting Thread: 5/8-inch x 11 TPI
• Warranty: 3-year manufacturer warranty

What's in the Kit

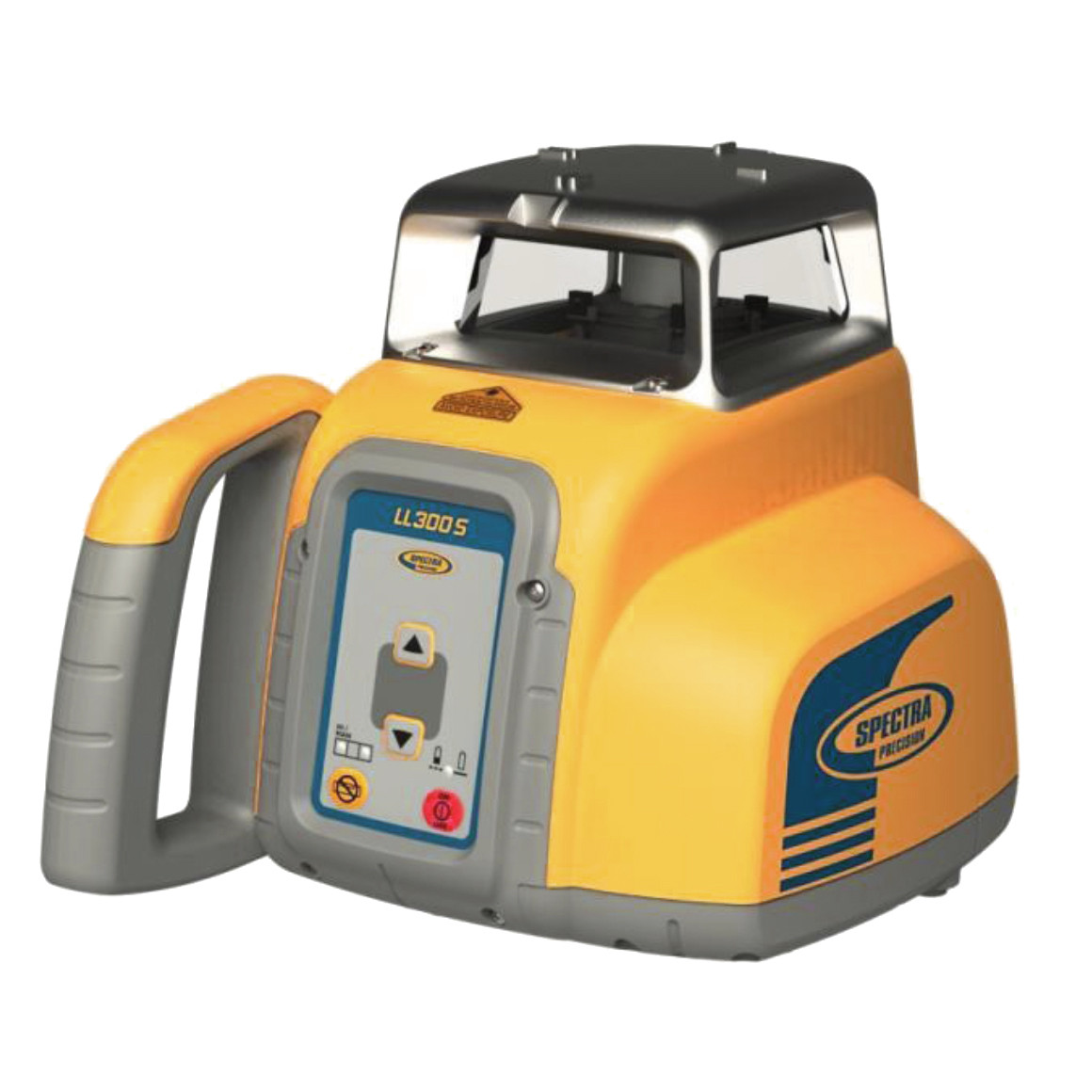

• LL300S-4 Self-Leveling Rotary Laser Head
• HL450 Digital Laser Receiver with Rod Clamp
• Rechargeable NiMH Battery Pack for Laser
• Battery Charger with AC Adapter
• Alkaline Battery Tray (backup power option)

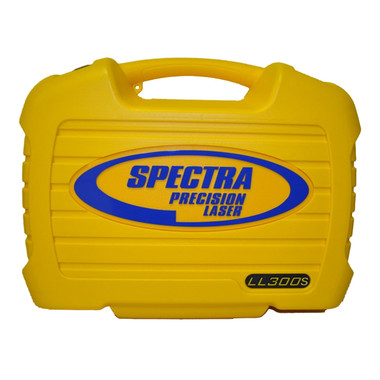

• Hard-Shell Carrying Case with Foam Insert
• Target Card for Short-Range Setup
• Operating Manual and Quick Start Guide

Job Applications

• Site Grading and Excavation: Establish consistent grade elevations across large sites, enabling operators to cut and fill to precise benchmarks without constant checking.
• Foundation and Footer Layout: Set level reference points around building perimeters to ensure footers, slabs, and stemwalls meet elevation specifications before concrete placement.
• Drainage and Utility Trenching: Maintain proper pipe slopes for gravity-fed systems by using the receiver on grade rods to monitor depth throughout trench runs.
• Concrete Slab and Deck Pours: Check screed elevations and verify flatwork thickness during placement, reducing callbacks and ensuring ACI flatness tolerances are achieved.
• Landscaping and Hardscape Installation: Level patios, retaining wall courses, and irrigation lines quickly with a rotating reference plane visible to multiple crew members simultaneously.
• Ceiling and Soffit Installation: Transfer level elevations indoors for drop ceiling grids, suspended HVAC equipment, and finish carpentry when working in large open spaces.

Compatible Accessories

Expand your laser level system with these professional-grade accessories:

• Spectra Precision HL700 Laser Receiver – Upgraded receiver with extended 600-foot radius detection range
• Spectra Precision LR30W Wireless Machine Receiver – Grade control receiver for excavators and dozers
• 10-Foot Aluminum Grade Rod with Tenths – Direct-elevation metric and inch/tenth scales
• Heavy-Duty Laser Detector Rod Clamp – Reinforced receiver mounting bracket
• Elevator Tripod for Rotary Lasers – Adjustable-height tripod with 5/8-11 thread, extends to 10 feet
• Red Beam Laser Enhancement Glasses – Increase beam visibility in bright conditions
• Replacement Rechargeable Battery Pack – Spare battery for extended run time on multi-day projects

Related Guides

• How to Set Up and Calibrate a Rotary Laser Level – Step-by-step instructions for field setup and accuracy verification
• Spectra Precision LL300S vs. LL400: Which Laser Level Is Right for Your Crew? – Feature comparison and job-type recommendations
• Using a Laser Receiver for Excavation and Grading – Techniques for achieving accurate cuts and fills with digital receivers
• Troubleshooting: Rotary Laser Won't Self-Level – Common causes and field fixes for leveling errors

Frequently Asked Questions

What is the maximum working range of the LL300S-4 with the HL450 receiver?

The HL450 receiver detects the LL300S laser beam up to 500 feet in radius (1,000-foot diameter), providing a total working area suitable for most residential and commercial site work. Actual range depends on ambient light conditions—you'll achieve maximum distance in early morning, late afternoon, or overcast conditions when sunlight interference is minimized.

Can I use this laser level to set drainage slopes, or is it level-only?

The LL300S-4 is a single-grade laser, meaning it projects a level plane only—it does not have built-in slope capability. However, you can create slopes manually by elevating one side of the tripod or using a grade rod with offset measurements. For projects requiring frequent slope adjustments, consider the Spectra Precision LL500, which includes dual-axis manual slope controls.

How long does the rechargeable battery last, and can I use alkaline batteries as backup?

The included rechargeable NiMH battery pack provides up to 60 hours of continuous operation on a single charge. The package also includes an alkaline battery tray that accepts four D-cell batteries, giving you a reliable backup power option if you're working in remote locations without access to charging facilities or need extended run time across multi-day projects.

Is the HL450 receiver compatible with other Spectra Precision laser levels?

Yes, the HL450 is a universal laser receiver compatible with all Spectra Precision red beam rotary lasers, as well as most other manufacturers' rotating lasers operating in the red spectrum. This cross-compatibility allows you to use the receiver across multiple tools in your fleet, reducing equipment redundancy and simplifying crew training on detector operation.
