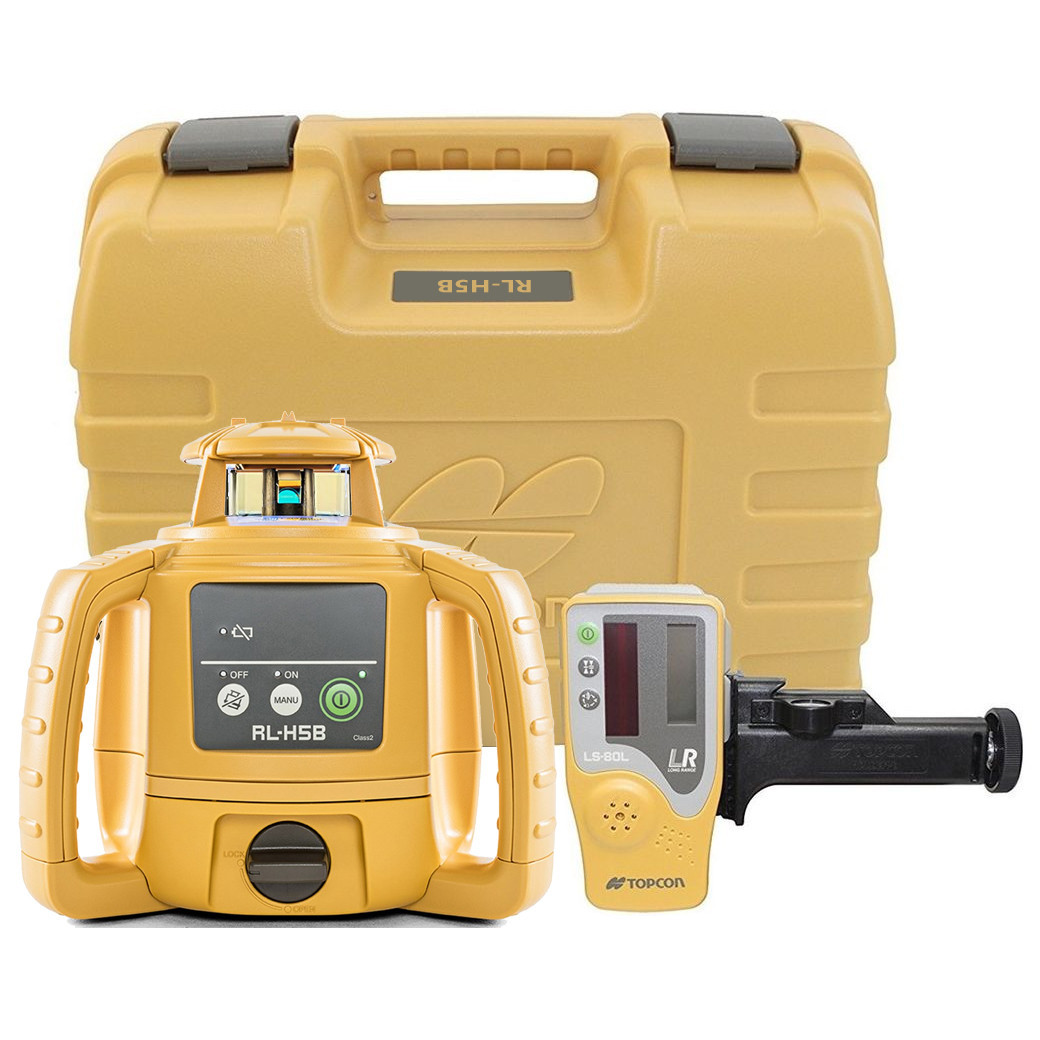

Topcon RL-H5B Self-Leveling Laser PS.DB2 Kit with LS-80X Receiver, Alkaline Batteries, Grade Rod Inches and Tripod

Overview

The Topcon RL-H5B Self-Leveling Laser PS.DB2 Kit with LS-80X Receiver, Alkaline Batteries, inch grade rod, and tripod (1021200-73-K2) is a complete horizontal rotary laser package for contractors who need consistent site control. The RL-H5B self-leveling rotary laser provides horizontal leveling across large work areas with a working diameter of approximately 2,600 feet when used with the LS-80X receiver. Accuracy is specified at ±10 arc-seconds (±0.6 mm at 30 m), and the ±5° self-leveling range helps crews get to work quickly while maintaining dependable reference lines through changing site conditions.

This kit is configured for field teams that prefer alkaline operation on jobs where charging is limited. The RL-H5B supports more than 100 hours of runtime on alkaline batteries, supporting extended shifts and remote-site workflows. The LS-80X receiver is designed for extra-long-range detection and includes front and rear LCD screens so grade information is readable from either side. Its 5-channel capability with inches, millimeters, and tenths display modes supports varied plan requirements, while dB alerts provide audible grade indication in noisy environments. With IP66 protection on the laser, the core system is suited to exterior conditions common to slab, foundation, and site-prep work.

Key Specifications

• Kit model: Topcon 1021200-73-K2 (RL-H5B PS.DB2 with LS-80X and field accessories)
• Laser type: RL-H5B self-leveling horizontal rotary laser
• Working range: up to about 2,600 ft diameter with LS-80X receiver
• Laser accuracy: ±10 arc-seconds (±0.6 mm at 30 m)
• Self-leveling range: ±5°
• Durability rating: IP66
• Laser runtime: 100+ hours on alkaline batteries
• Receiver: LS-80X with extra-long-range detection and dB alerts
• Receiver display: front and rear LCD with inches/mm/tenths modes and 5-channel operation
• Receiver mounting: magnetic mount and rod clamp support

What's Included

• Topcon RL-H5B self-leveling rotary laser
• Topcon LS-80X extra-long-range laser receiver
• Alkaline battery pack/components for extended runtime operation
• 16 ft grade rod with inch graduations (1/8 in increments)
• Heavy-duty tripod for stable instrument setup

For crews working from architectural inch plans, this RL-H5B PS.DB2 configuration is a practical purchase from Express Tools.
