Topcon TP-L5GV Pipe Laser Package - GREEN Beam with Laser Plumb 329560151 SmartLine

Overview

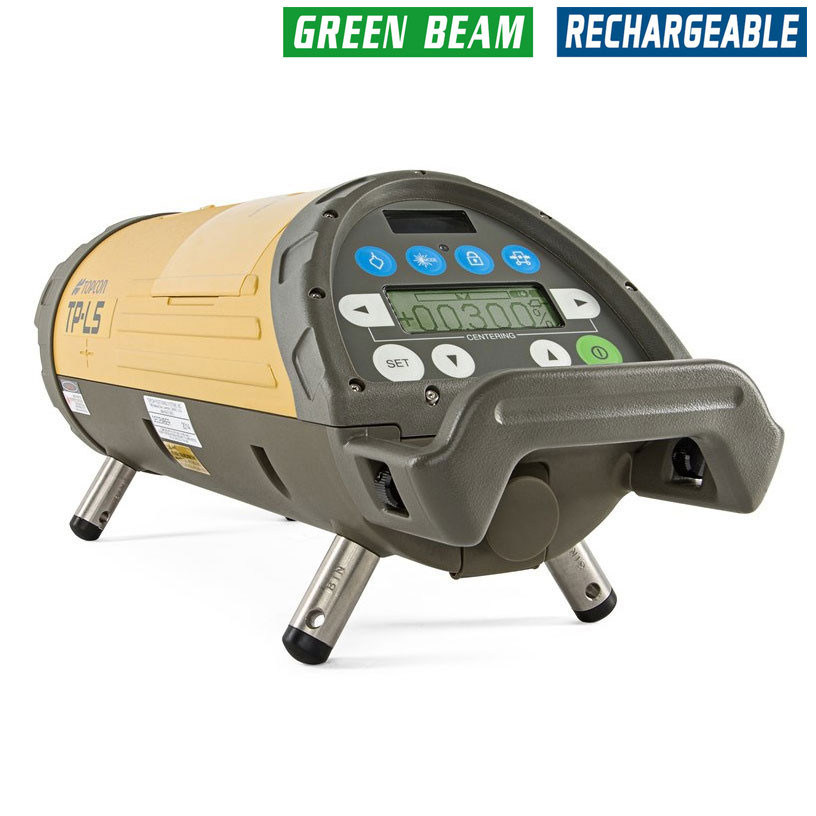

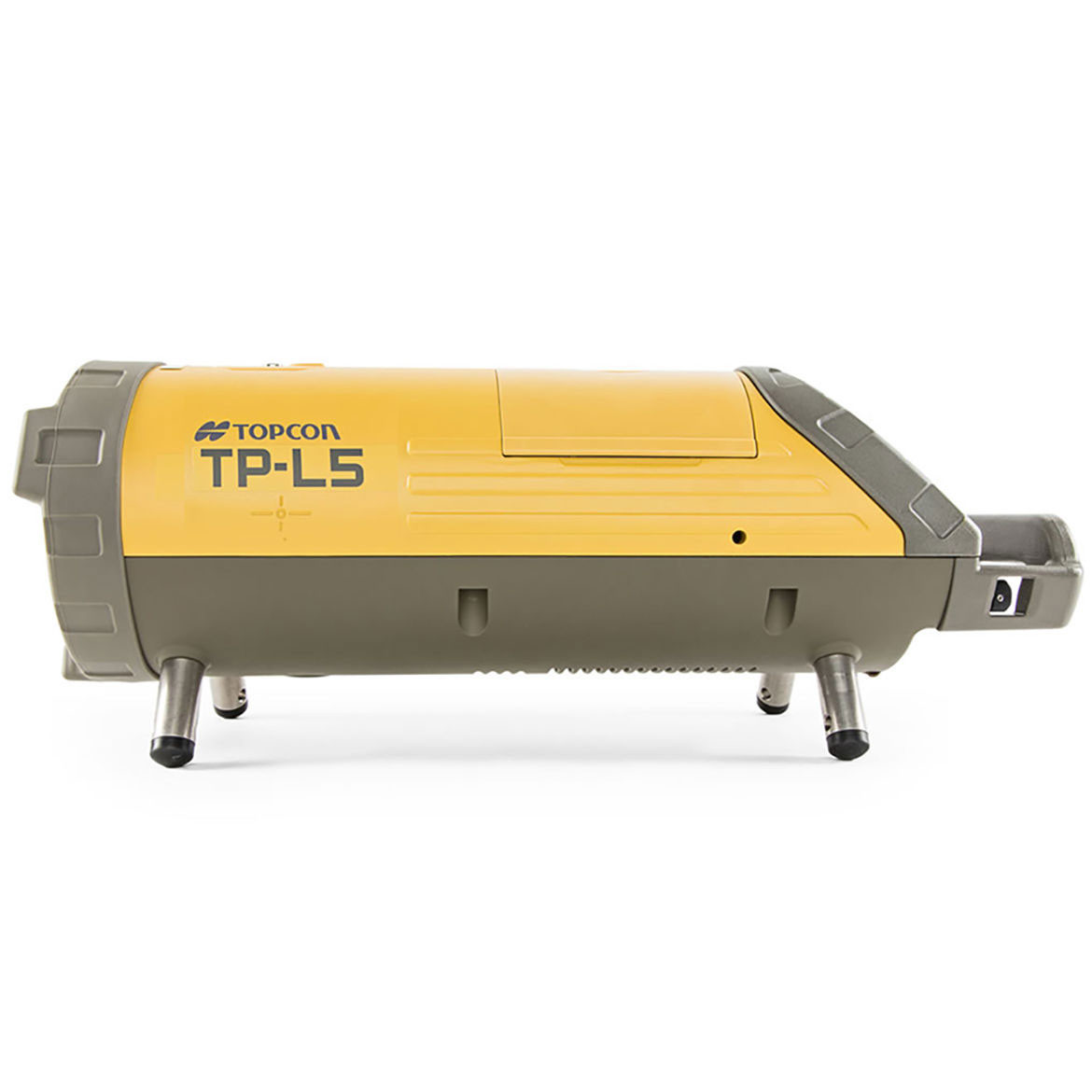

The Topcon TP-L5GV Pipe Laser Package with GREEN Beam and Laser Plumb (329560151) represents a significant advancement in underground construction technology, combining the superior visibility of green laser technology with precision vertical alignment capabilities. Priced at $5,720, this SmartLine system is engineered for contractors who demand accuracy in the most challenging environments—from deep municipal sewer installations to storm drain projects where vertical and horizontal alignment must be verified simultaneously.

What sets the TP-L5GV apart from standard pipe lasers is its integrated laser plumb feature, which projects a true laser reference point rather than a simple LED indicator. This enhancement is invaluable when working in deep trenches, performing vertical drop checks, or installing wall-mounted pipe systems where traditional plumb verification methods fall short. The green beam technology offers up to 4x better visibility than traditional red lasers, particularly in bright ambient light conditions or when sunlight penetrates the trench.

Built to withstand the rigors of underground construction, the TP-L5GV features robust construction with IP66 environmental sealing, protecting against dust infiltration and powerful water jets from any direction. Whether you're working in wet conditions during spring runoff or dusty summer excavations, this laser maintains performance and accuracy throughout demanding job site conditions.

Key Specifications

• Laser Color: Green beam (532nm wavelength) for superior visibility
• Working Range: Up to 2,000 feet (600m) with receiver
• Accuracy: ±1/16 inch at 100 feet (±1.5mm at 30m)
• Grade Range: -10% to +40% in single axis; ±10% dual axis
• Laser Plumb: Integrated laser plumb dot for vertical alignment verification
• Self-Leveling Range: ±5° with auto-leveling accuracy of ±10 arc seconds
• Power Source: Rechargeable Li-ion battery; AC adapter compatible
• Battery Life: Up to 30 hours continuous operation (green beam mode)
• Environmental Rating: IP66 dust-tight and water jet resistant
• Operating Temperature: -4°F to 122°F (-20°C to 50°C)
• Display: Intuitive LCD control panel with grade display
• Weight: 11.9 lbs (5.4 kg) with battery

What's in the Kit

• Topcon TP-L5GV Green Beam Pipe Laser with Laser Plumb (main unit)
• Rechargeable lithium-ion battery pack
• AC power adapter/charger with regional plug
• Laser receiver with LCD display and grade indicator
• Pipe target with magnetic mounting system
• Heavy-duty carrying case with custom foam inserts
• Adjustment tools and alignment accessories
• User manual and quick-start guide
• Calibration certificate with test data
• Two-year manufacturer's warranty documentation

Job Applications

• Municipal Sewer Installation: The green beam cuts through the challenging lighting conditions found in deep municipal trenches, while the laser plumb enables crews to verify manhole drops and vertical alignments without stopping workflow. The extended battery life means fewer interruptions on long runs, and the ±1/16" accuracy ensures connections meet strict municipal specifications.
• Storm Drain Systems: Complex storm drain networks often require frequent grade changes and vertical drops. The TP-L5GV's dual-axis capability handles compound slopes, while the laser plumb eliminates guesswork when transitioning from horizontal runs to catch basin drops. The IP66 rating protects against water intrusion during wet weather installations.
• Deep Trench Excavations: In trenches exceeding 15 feet, traditional plumb bobs become impractical and LED references lose visibility. The TP-L5GV's laser plumb projects a clear reference point visible at any depth, allowing operators to confirm vertical walls and proper shoring placement while simultaneously maintaining pipe grade accuracy.
• Utility Corridor Construction: Multi-utility trenches demand precise elevation control to prevent conflicts between water, sewer, gas, and communication lines. The green beam remains visible even when multiple crews work with headlamps and portable lighting, reducing installation errors and costly rework.
• Industrial Process Piping: Manufacturing facilities and treatment plants require exact slopes for gravity drainage systems. The laser plumb feature is essential for wall-mounted pipe installations and overhead runs where vertical alignment affects system performance. The ±10% dual-axis range accommodates the complex routing common in industrial settings.
• Tunnel and Culvert Work: Extended-range projects up to 2,000 feet benefit from the green beam's visibility over distance. The laser plumb assists with cross-passage alignment and vertical shaft verification, while the rugged construction withstands the harsh underground environment and potential impacts from equipment operation.

Compatible Accessories

• Topcon LS-100D Digital Laser Receiver with remote display capability
• RC-60 Remote Control for grade adjustment from receiver position
• Extended-life battery packs for multi-shift operations
• Pipe targets in various sizes (4", 6", 8", 12", 18", 24", 36")
• Magnetic and clamp-style target mounts for different pipe materials
• Trivet mounting stands for irregular invert conditions
• Laser safety glasses (green lens) for close-range setup work
• Vehicle charging adapter for field battery maintenance
