Topcon TP-L6BG Pipe Laser Economy Package - GREEN Beam with LED Plumb

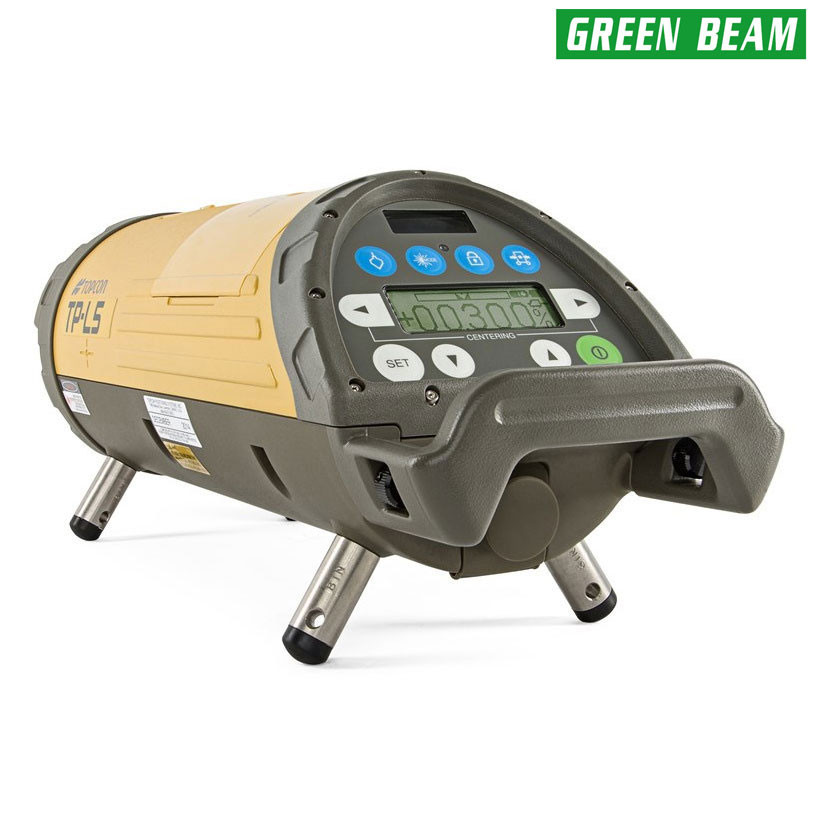

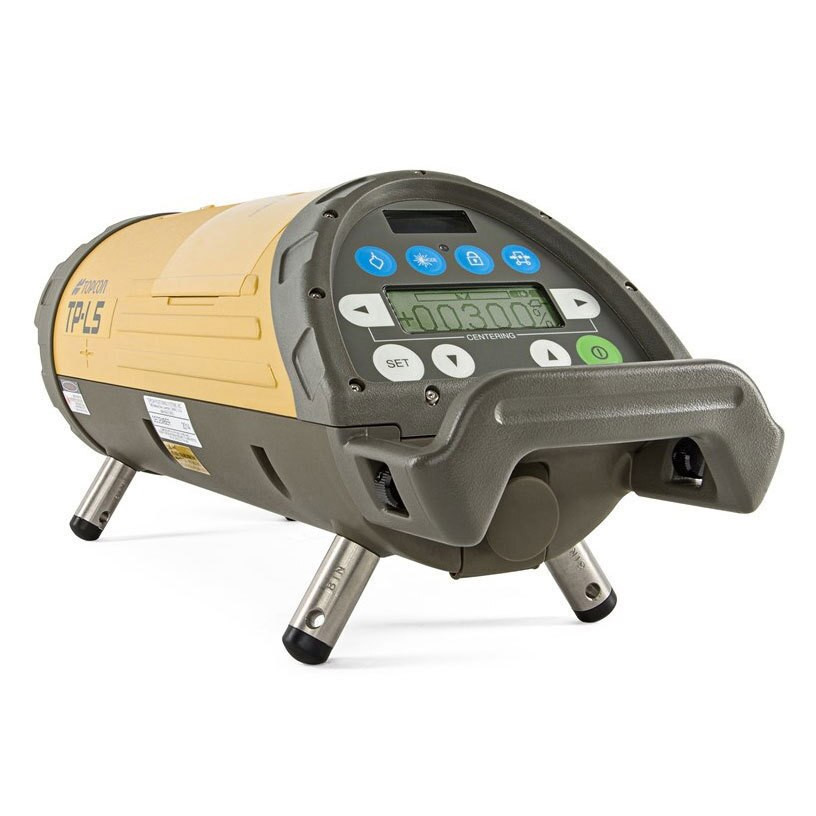

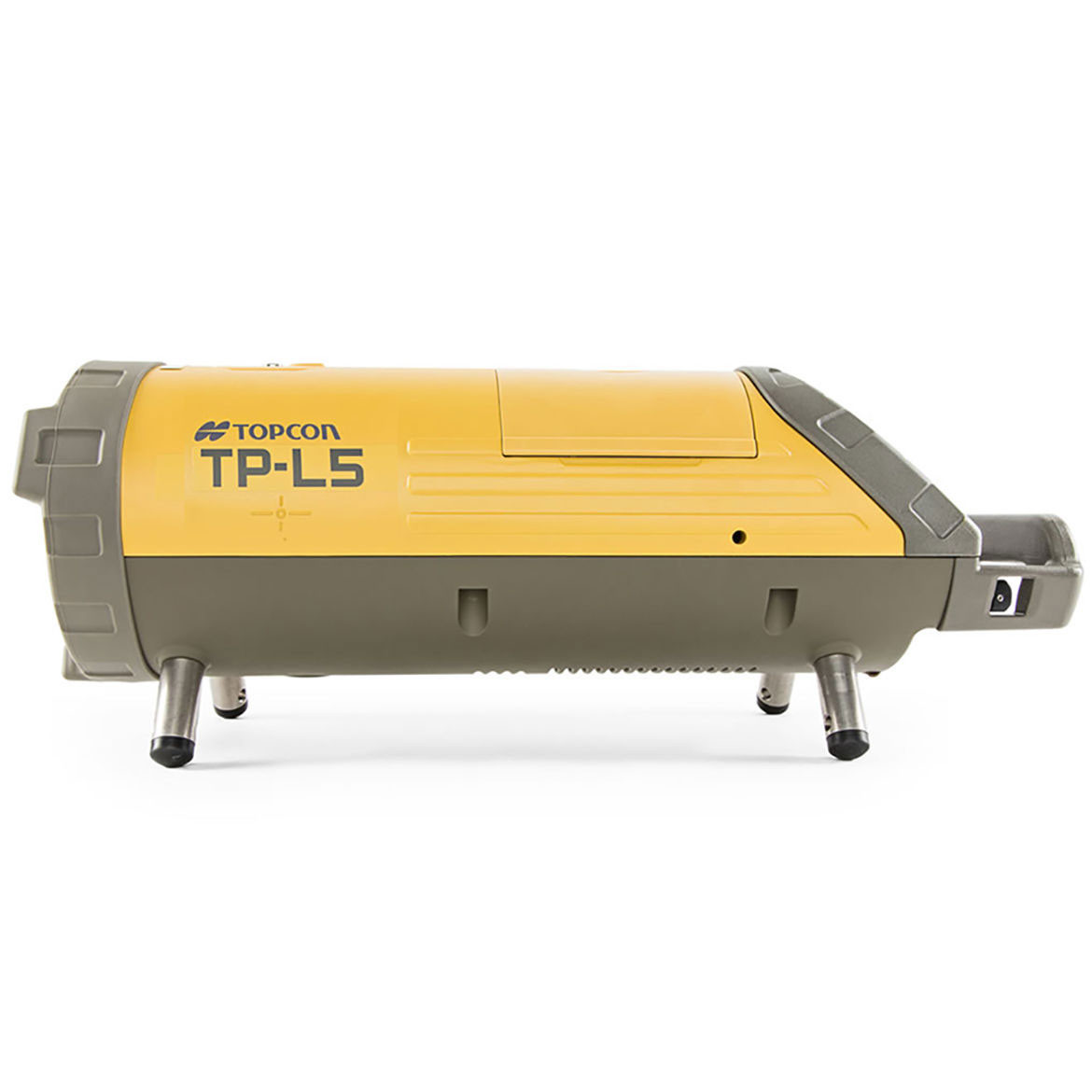

Topcon TP-L6BG Green Beam Pipe Laser

The Topcon TP-L6BG is a professional-grade green beam pipe laser engineered for contractors who demand reliable, accurate grade and alignment control on underground utility projects. Whether you're laying sewer mains, storm drain systems, or culvert runs, the TP-L6BG delivers a bright, easily visible green laser beam that outperforms red beam models in low-light and dusty underground environments. Designed as an economy-tier instrument in Topcon's proven TP-L6 series, the BG model provides the core performance that utility and civil contractors need without the overhead of advanced remote-control or external alignment integration features—making it an ideal choice for single-crew operations focused on straightforward pipe installation accuracy.

Underground Utility Alignment Built for the Jobsite

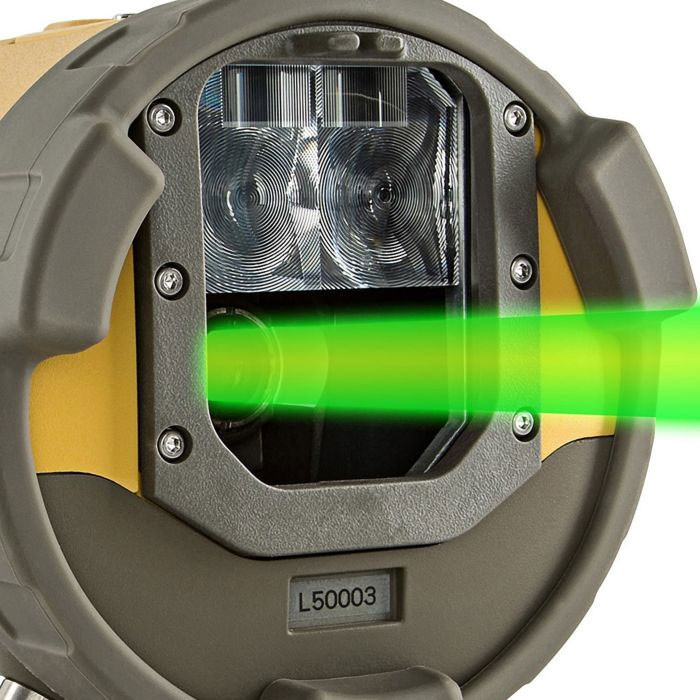

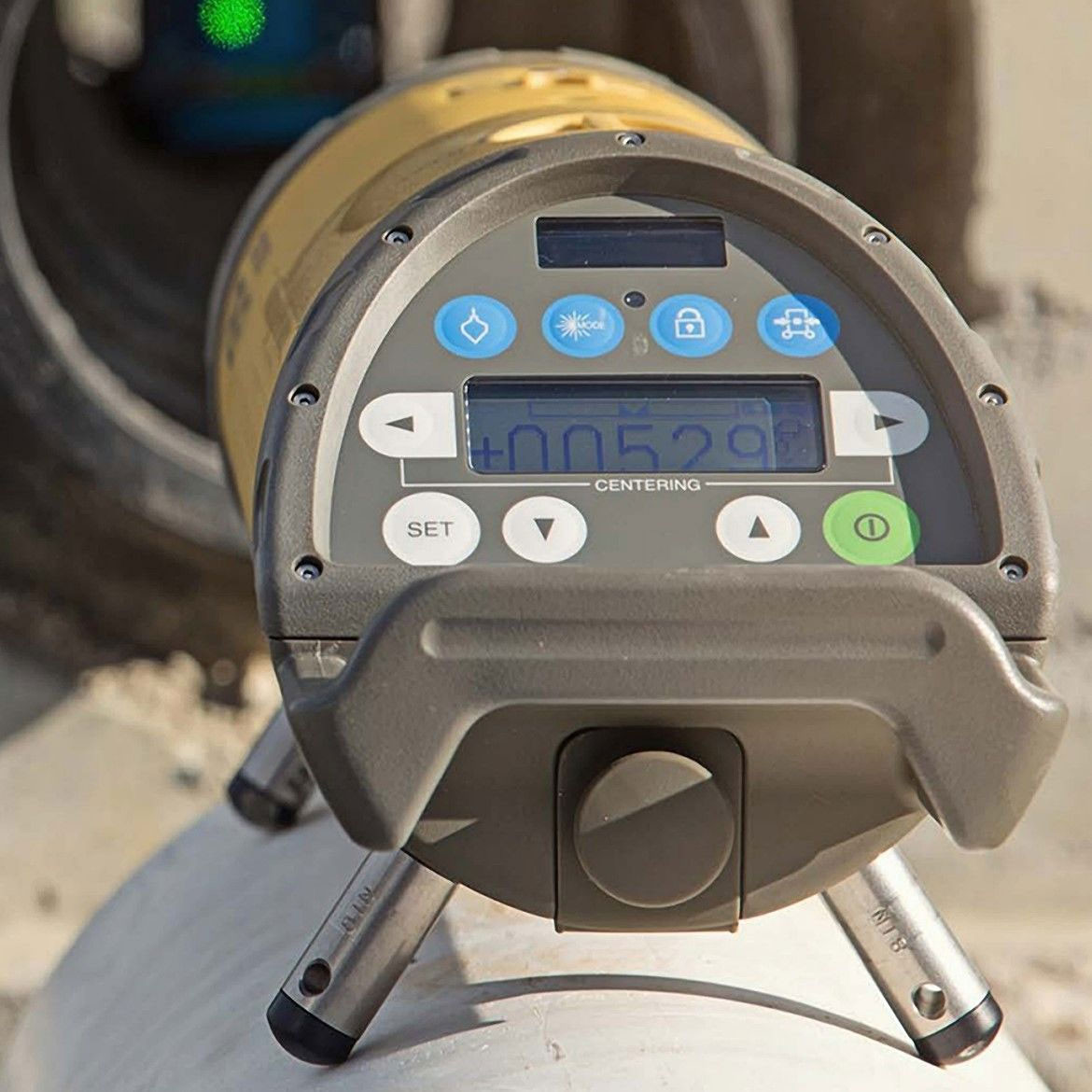

The TP-L6BG is purpose-built for the demands of open-cut and trenchless pipe installation. Its green laser wavelength (532nm) is significantly more visible to the human eye than a comparable red beam, allowing grade checkers and machine operators to read the beam quickly and confidently even in partially shaded or dusty trench conditions. The instrument's rugged housing is designed to withstand the vibration, moisture, and debris exposure common in underground construction environments. With a straightforward setup process and intuitive controls, crews can have the laser operational and on-grade in minimal time—keeping production moving and reducing costly delays.

Key Specifications

• Laser Class: Class IIIa / Class 3R
• Laser Color: Green (532nm wavelength)
• Grade Range: 0% to ±40% (manual grade setting)
• Grade Accuracy: ±0.05% (±3mm per 6m)
• Self-Leveling Range: ±10% automatic compensation
• Beam Visibility Range: Up to 300m (984 ft) with target
• Plumb Indicator: LED plumb indicator for quick setup reference
• Power Source: Rechargeable battery pack (alkaline backup compatible)
• Battery Life: Up to 20 hours continuous operation
• Operating Temperature: -20°C to +50°C (-4°F to +122°F)
• Ingress Protection: IP66 rated — dust-tight and water-resistant
• Weight: Approximately 2.2 kg (4.9 lbs) with battery
• Model Number: TP-L6BG | Part No. 1034437-07

Key Features

• Green Beam Advantage: 532nm green laser is up to 4x more visible than red beam at equivalent power, reducing eye strain and improving read speed underground
• Automatic Self-Leveling: ±10% electronic self-leveling compensator speeds up setup and maintains accuracy during minor ground settlement
• Wide Manual Grade Range: Set grades from 0% to ±40% to accommodate steep runs and varied project profiles
• LED Plumb Indicator: Built-in LED plumb reference assists with quick instrument positioning in the pipe without external plumb tools
• IP66 Rated Housing: Sealed against dust ingress and high-pressure water jets — engineered for real trench conditions
• Long Battery Runtime: Up to 20 hours per charge keeps the laser running through extended shifts without mid-day battery changes
• Compact and Lightweight: Easy to transport between setups and position within confined pipe diameters
• Topcon Build Quality: Backed by Topcon's reputation for precision optical instrumentation used by contractors worldwide

Job Applications

The TP-L6BG is the right tool across a wide range of underground utility and civil construction scenarios:

• Municipal Sewer Installation: Set accurate inverts and maintain consistent grade across long sewer main runs, reducing the risk of low spots, standing water, and costly rework during inspection.
• Storm Drain and Culvert Construction: Control grade and alignment on storm drain laterals and cross-culverts where consistent fall is critical to drainage performance and DOT compliance.
• Utility Conduit Runs: Align electrical, telecommunications, or water service conduit in open-cut trenches where a visible, accurate beam reference speeds up crew production.
• Irrigation and Agricultural Drainage: Establish precise grade on agricultural tile drainage and irrigation mainlines where even minor grade errors lead to poor system performance over time.

Compatible Accessories

• Topcon Pipe Laser Targets and Target Holders
• Topcon TP-L6 Series Replacement Battery Pack
• Pipe Laser Mounting Tripods and Grade Stakes
• Topcon Hard Carrying Cases for Pipe Lasers
• Grade Rods and Detection Accessories

Related Guides

• How to Set Up a Pipe Laser for Sewer Grade — Contractor's Guide
• Red Beam vs. Green Beam Pipe Lasers: Which Should You Use?
• 5 Tips for Maintaining Grade Accuracy on Long Pipe Runs
• Topcon TP-L6 Series Model Comparison Guide

Frequently Asked Questions

What is the grade range of the Topcon TP-L6BG?

The TP-L6BG supports a manual grade setting range of 0% to ±40%, covering the vast majority of sewer, storm drain, and utility installation grades encountered in municipal and commercial construction. The automatic self-leveling compensator handles ±10% to assist with quick, accurate setup.

Why choose a green beam pipe laser over a red beam model?

Green laser light at 532nm aligns with the peak sensitivity range of the human eye, making it significantly brighter and easier to see than a red beam of equivalent power output. In underground trench conditions — which often involve low ambient light, dust, and mud — a green beam allows crews to read grade targets faster and with less eye fatigue, improving both productivity and accuracy.

Is the TP-L6BG suitable for use in wet or muddy trench conditions?

Yes. The TP-L6BG carries an IP66 ingress protection rating, meaning it is fully sealed against dust and protected against high-pressure water jets. This makes it appropriate for the wet, dirty conditions typical of underground pipe installation work. Always store the instrument in its protective case during transport between sites.

Does the TP-L6BG include a remote control for grade adjustment?

The TP-L6BG is the economy model in the TP-L6 series and does not include remote grade adjustment capability. Grade is set manually at the instrument. Contractors requiring wireless remote grade control from outside the pipe should consider the Topcon TP-L6BR or TP-L6BS models, which offer remote operation for increased crew flexibility on longer or more complex pipe runs.
