David White AL8-26 Automatic Level Package 26 Power 45-8926-1T TENTHS Rod and Tripod

Overview

The David White AL8-26 Automatic Level Package delivers a complete, job-ready leveling solution that combines precision optics, durable construction, and exceptional value. Engineered for construction professionals, site contractors, and land surveyors who demand accuracy without complexity, this turn-key package includes everything needed to establish elevation benchmarks, grade stakes, and foundation points the moment it arrives on site. The AL8-26 automatic level features 26-power magnification and a reliable compensator that maintains horizontal accuracy even when the instrument isn't perfectly leveled, dramatically reducing setup time and eliminating constant adjustments throughout the workday.

This bundled configuration pairs the AL8-26 level with a high-visibility 13-foot aluminum rod graduated in tenths of a foot and a sturdy flat-head tripod, creating an integrated system optimized for residential construction, commercial grading, drainage projects, and foundation work. Unlike cheaper builder's levels that require manual leveling or lack the magnification for distance readings, the AL8-26's automatic compensator and 26X optics deliver survey-grade performance in a package designed for the realities of active construction sites. The complete kit ships ready to work, eliminating the frustration of incompatible components or delayed shipments that can halt progress and cost you billable hours.

Key Specifications

• Magnification: 26 power (26X) for clear sight pictures at extended distances
• Leveling System: Automatic compensator with magnetic damping for fast, hands-free horizontal plane accuracy
• Accuracy: ±1/16 inch at 100 feet, suitable for construction and site work tolerances
• Minimum Focus: Approximately 3 feet, allowing close-range measurements in confined areas
• Compensator Working Range: ±15 minutes (approximately ±0.25°), providing forgiving setup parameters
• Objective Lens Diameter: 36mm for superior light gathering in early morning or late afternoon conditions
• Stadia Multiplication Constant: 100:1 for optical distance measurement capabilities
• Weather Resistance: Sealed optical system protects against dust and moisture intrusion
• Tripod Thread: Standard 5/8"-11 mounting thread compatible with survey equipment
• Package Weight: Approximately 16 pounds complete with rod, tripod, and carrying case

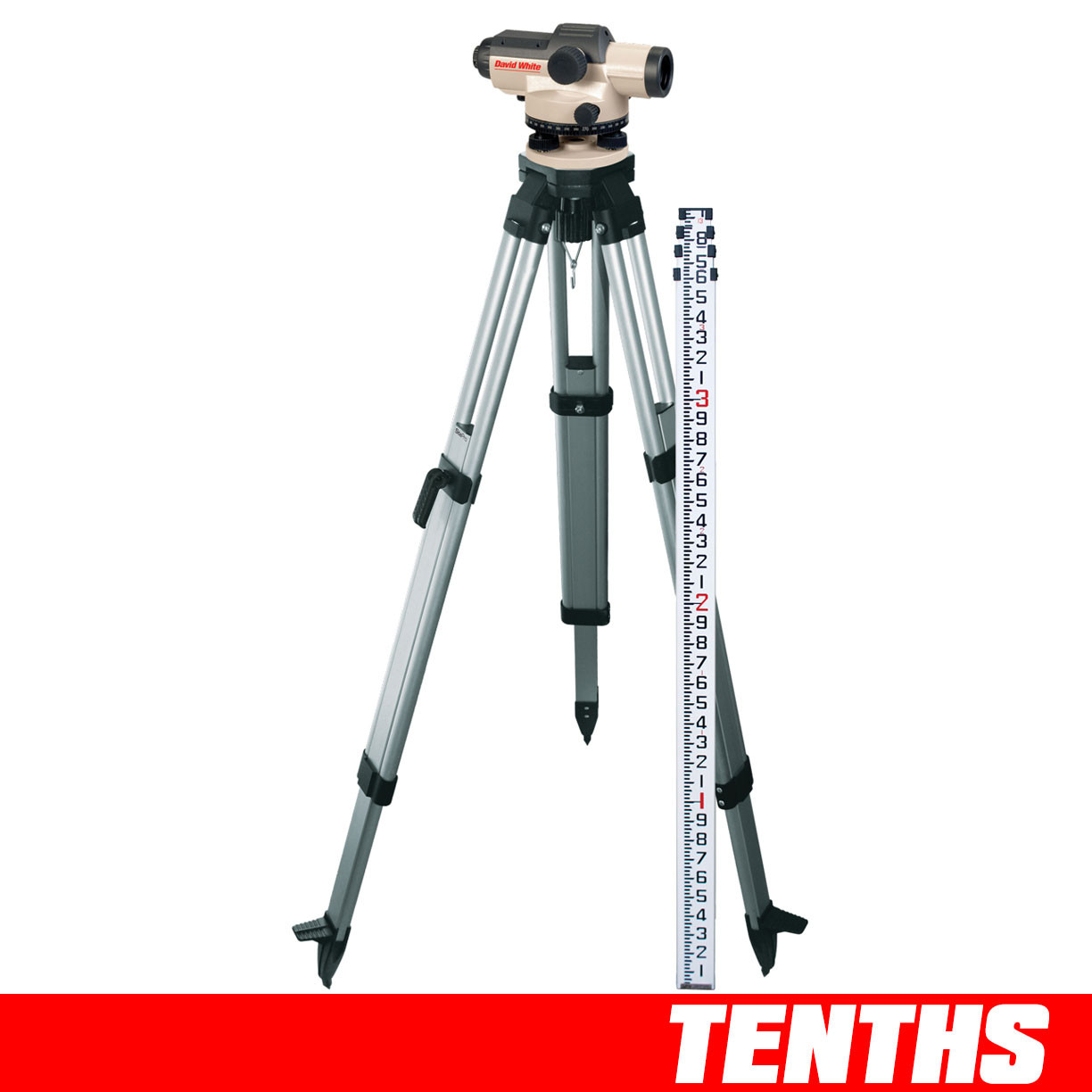

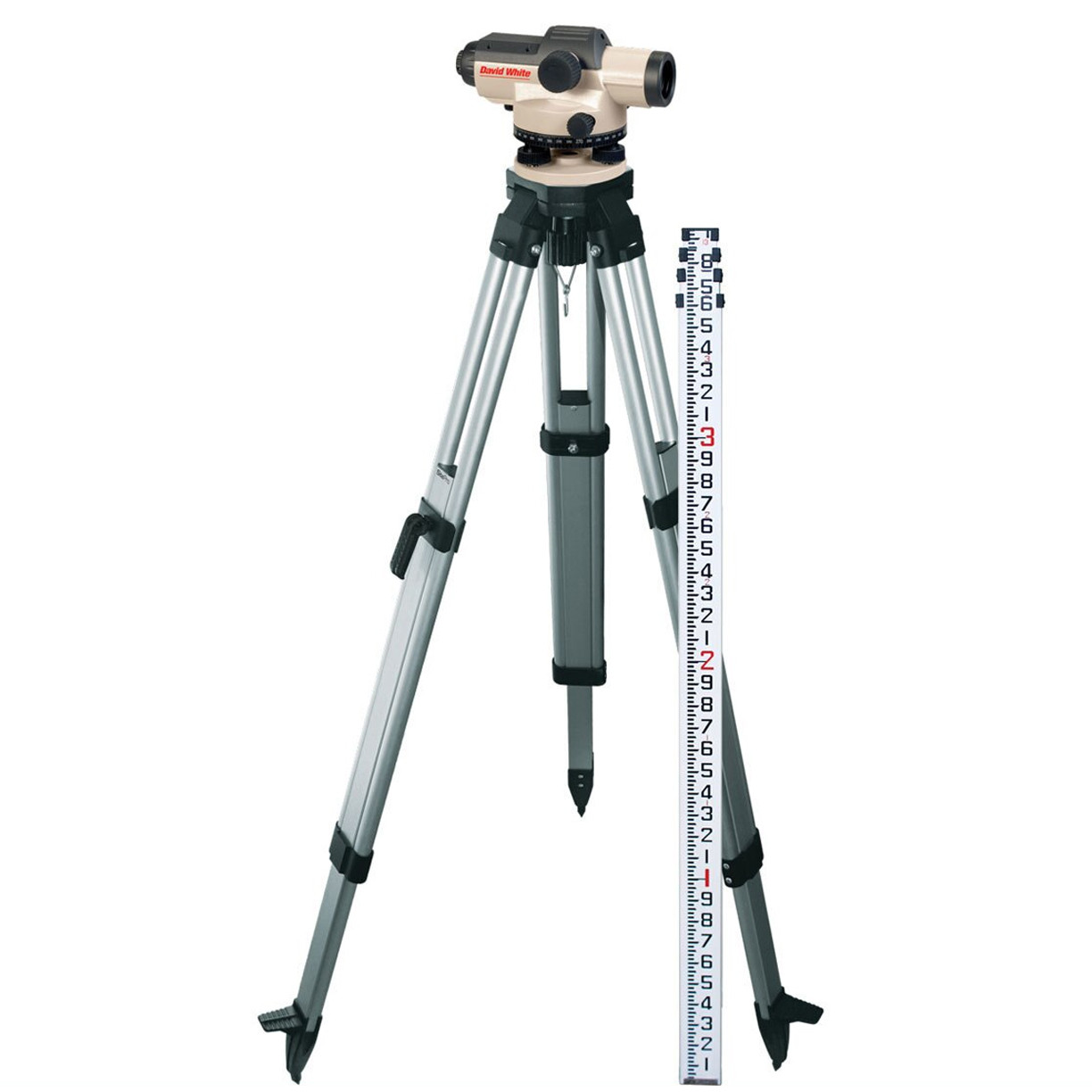

What's in the Kit

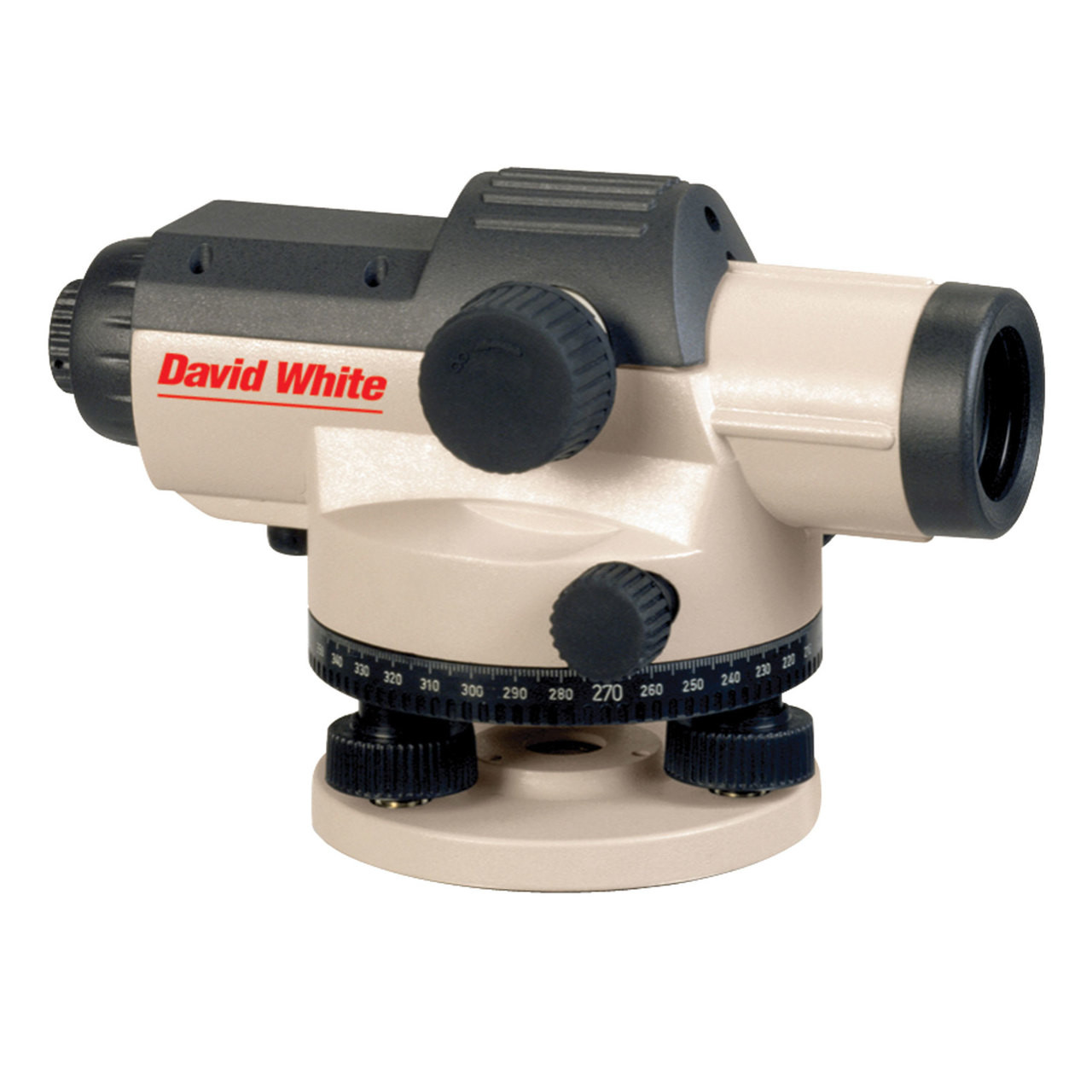

• David White AL8-26 Automatic Level: Factory-calibrated 26-power instrument with precision four-wire reticle, horizontal circle for angle measurement, and clamp/tangent fine-adjustment screws
• 45-8926-1T Aluminum Leveling Rod: 13-foot telescoping rod with bold tenths graduations for rapid readings, durable anodized finish, and slip-resistant section locks that maintain extension in all weather conditions
• Flat-Head Aluminum Tripod: Lightweight yet rigid support with replaceable steel points, quick-clamp leg locks, and wide stance for stability on uneven terrain
• Padded Carrying Case: Custom-fitted protective transport case with shoulder strap and internal compartments for secure instrument storage
• Adjustment Tools: Hex wrenches and screwdriver for field calibration verification and minor adjustments
• Instruction Manual: Detailed setup, operation, and maintenance documentation with calibration procedures
• Lens Cloth: Optical-safe cleaning cloth for maintaining clear sight pictures throughout the day
• Manufacturer Warranty: David White factory warranty covering defects in materials and workmanship

Job Applications

• Foundation Layout and Elevation Control: Establish precise footing elevations and verify level foundation forms before concrete placement. The 26X magnification allows accurate readings across large building footprints without repeatedly moving the instrument, while the automatic compensator ensures your reference plane remains true even when crew activity causes minor tripod disturbances.
• Site Grading and Earthwork: Set grade stakes for cut-and-fill operations, parking lot construction, and drainage management. The tenths rod provides direct decimal readings that integrate seamlessly with modern site plans and GPS machine control systems, eliminating error-prone fraction conversions and speeding up stake-out workflows.
• Concrete Flatwork and Slab Preparation: Monitor subgrade elevations, set screeds, and verify finished floor heights for warehouse floors, driveways, and sidewalks. The minimum 3-foot focus distance enables close-range shots in tight interior spaces, making the AL8-26 equally effective for finished grade verification and final surface inspection.
• Utility and Drainage Installation: Calculate proper slope for sewer lines, storm drains, and irrigation systems where gravity flow is critical. The stadia capability allows rapid distance measurements without a tape, letting you verify inverts and calculate pipe slopes efficiently even when working alone.
• Retaining Wall and Landscape Construction: Maintain consistent wall heights, terrace elevations, and step transitions across complex landscape projects. The robust construction and sealed optics withstand the dust, moisture, and vibration common to hardscape installation without compromising accuracy or requiring constant maintenance.
• Agricultural Land Leveling: Design proper field drainage, irrigation grades, and farm road profiles where water management directly impacts crop yields. The complete package provides the range and precision needed for large agricultural parcels while remaining simple enough for seasonal operators to master quickly.

Compatible Accessories

• Leveling Rod Targets: Sliding bulls-eye targets for extended-distance readings where rod graduations become difficult to resolve
• Grade Rods with Metric Graduations: Centimeter/millimeter scales for projects specified in metric units or international applications
• Tripod Replacement Parts: Steel points, wing nuts, and leg sections to maintain equipment longevity through multiple project cycles
• Optical Plumb Bob: Attachment for transferring points vertically between floors or establishing column centers
• Sunshade Extension: Lens hood that reduces glare and heat mirage when sighting across sun-heated surfaces
• Two-Way Radio Holders: Tripod-mounted clips for hands-free communication with rod operators on large sites
• Heavy-Duty Transport Case: Reinforced shipping case for contractors moving between multiple job sites weekly

Related Guides

• How to Set Up and Calibrate an Automatic Level
• Reading Tenths Rods: Avoiding Common Mistakes
• Establishing Permanent Site Benchmarks and Reference Points
• Field Maintenance Guide for Optical Survey Instruments

FAQ

What's the difference between tenths rods and traditional engineer's rods with feet/inches?

Tenths rods divide each foot into ten equal parts (0.1 ft increments) rather than twelve inches, providing decimal readings that match modern site plans and simplify mathematical calculations. This eliminates fraction-to-decimal conversions and reduces transcription errors when entering data into grading software or calculating cut/fill volumes. The 45-8926-1T rod included in this package uses the tenths system standard on most contemporary construction projects.

Can this automatic level be used for vertical applications or only horizontal leveling?

The AL8-26 is specifically designed for establishing horizontal planes and cannot measure vertical angles. The automatic compensator maintains a level line of sight for elevation measurements, benchmarking, and grade work. For applications requiring vertical angle measurement—such as determining slope percentages or measuring building heights—a transit or digital theodolite would be the appropriate instrument choice.

How often does the automatic compensator need calibration or adjustment?

Under normal use, the compensator should be verified at the beginning of each project and whenever the instrument experiences significant impact or temperature extremes. The two-peg calibration test (detailed in the included manual) takes approximately fifteen minutes and requires only the included rod and an open 200-foot space. Most contractors find the AL8-26 holds calibration for months of regular field use, though weekly verification is recommended for critical work.

Is this package suitable for professional land surveying or only construction work?

While the AL8-26 delivers excellent accuracy for construction applications (±1/16" at 100 feet), professional boundary surveys and legal descriptions typically require higher-precision instruments with finer accuracy specifications. This package excels at construction layout, site grading, foundation work, and building elevation control where its accuracy exceeds typical project tolerances. Surveyors often use similar automatic levels for topo shots and preliminary work before deploying higher-precision equipment for control networks.
