David White L6-20 Meridian Level INCHES Package with Rod and Tripod 44-8824-1C

Overview

The David White L6-20 Meridian Level INCHES Package (Model 44-8824-1C) delivers professional-grade optical leveling performance in a complete, ready-to-work bundle. Engineered for contractors, landscapers, and construction professionals who demand accuracy and reliability, this comprehensive kit includes everything needed to establish precise elevation benchmarks and grade references on any jobsite. The L6-20 Meridian level features 20x magnification power combined with a precision four-screw leveling system, ensuring accuracy to 1/4 inch at 100 feet. Unlike entry-level instruments that require constant readjustment, the Meridian L6-20 maintains calibration even in demanding field conditions, reducing setup time and increasing productivity throughout your workday.

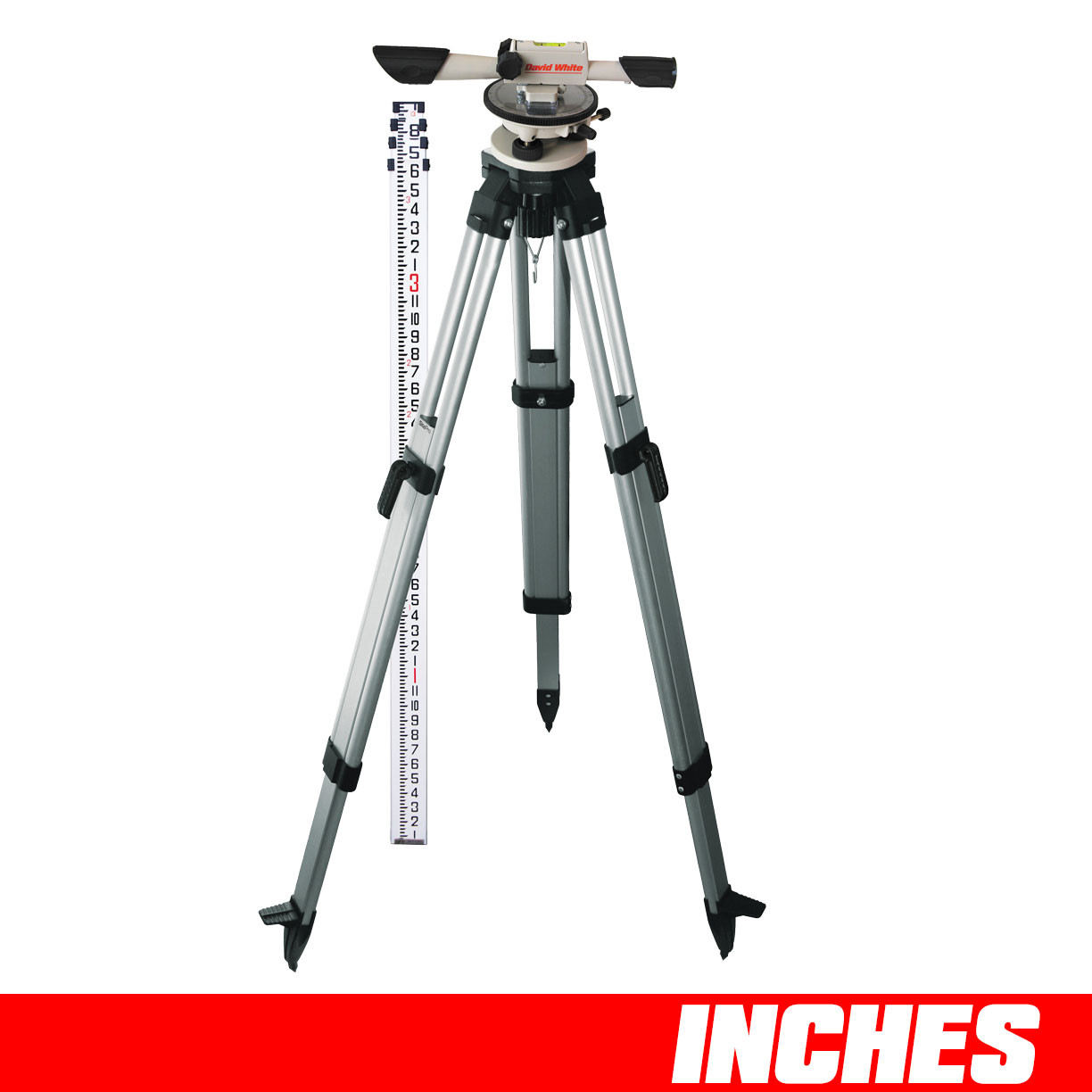

What sets this package apart is its inclusion of a 13-foot fiberglass measuring rod with inches and eighths graduations—specifically designed for professionals working in imperial measurements—alongside a durable aluminum tripod with a quick-release platform. This means you won't need to source compatible components separately or worry about mismatched equipment. The L6-20's compensator automatically levels the line of sight within the leveling range, compensating for minor setup imperfections and vibrations that would otherwise compromise readings. With its rugged construction, precise optics, and complete accessory package, the David White L6-20 Meridian represents exceptional value at $299.47, delivering performance comparable to instruments costing hundreds of dollars more.

Key Specifications

• Magnification: 20x optical power for clear sighting at extended distances
• Accuracy: ±1/4 inch per 100 feet of leveling distance
• Objective Lens: 32mm diameter for superior light gathering and image brightness
• Compensator Range: ±15 minutes automatic self-leveling capability
• Minimum Focus Distance: 3 feet for close-range applications
• Leveling System: Four-screw base with circular bubble vial
• Horizontal Circle: 360-degree horizontal circle with 1-degree graduations
• Construction: Weather-resistant housing with protective lens coating
• Tripod Thread: Standard 5/8-inch x 11 mounting thread
• Weight: Approximately 3.5 lbs (instrument only)
• Warranty: Manufacturer's limited warranty included

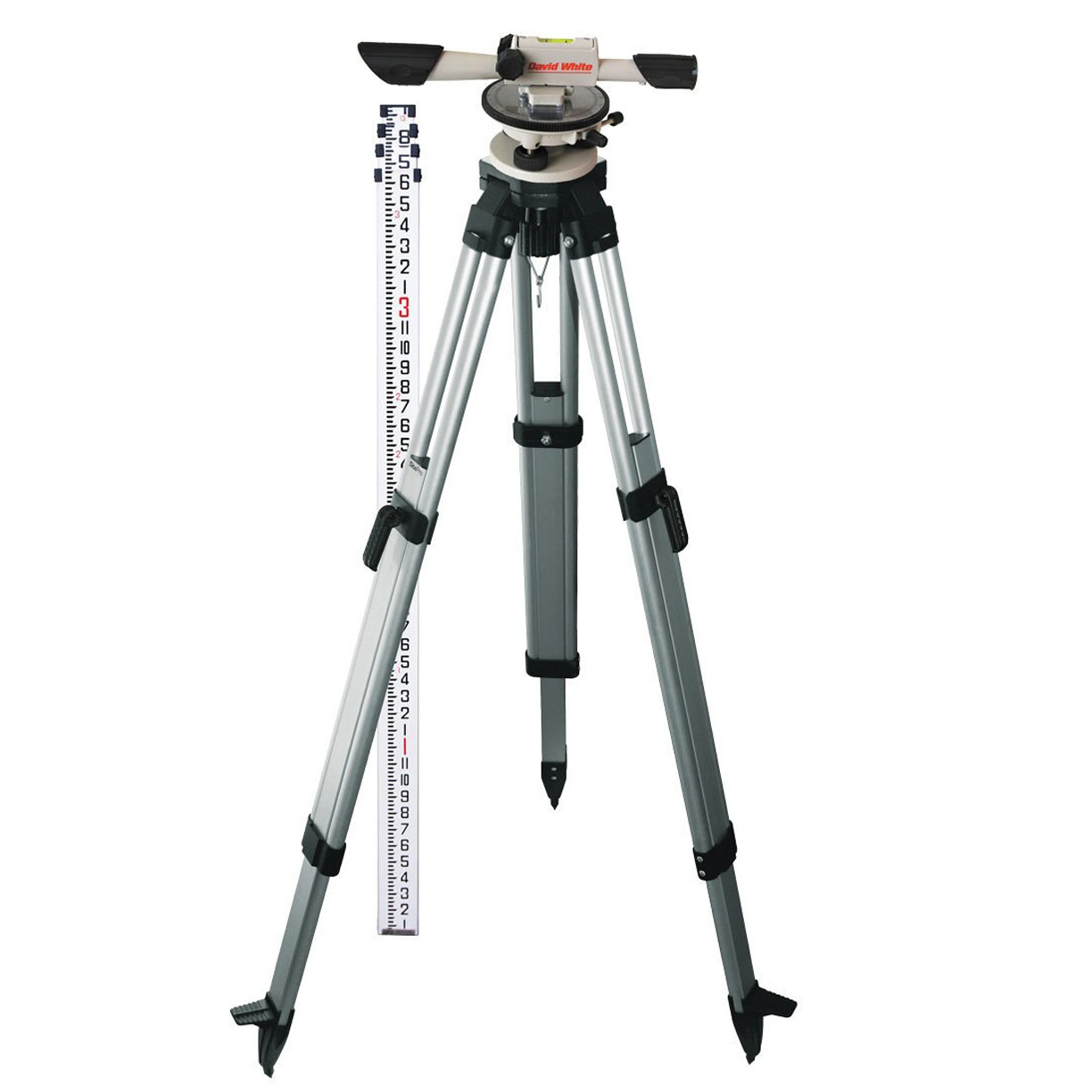

What's in the Kit

• David White L6-20 Meridian Optical Level: 20x magnification automatic level with compensator and four-screw leveling base
• 13-Foot Fiberglass Leveling Rod: Graduated in inches and eighths with high-visibility markings, extending in multiple sections for compact storage
• Aluminum Tripod: Adjustable-height tripod with quick-clamp legs, non-slip feet, and flat-head mounting platform
• Protective Carrying Case: Hard-shell case for instrument protection during transport and storage
• Adjustment Tools: Screwdriver and hex keys for calibration and maintenance
• Lens Cloth: Microfiber cleaning cloth for maintaining optical clarity
• Instruction Manual: Comprehensive user guide with setup instructions and maintenance procedures

Job Applications

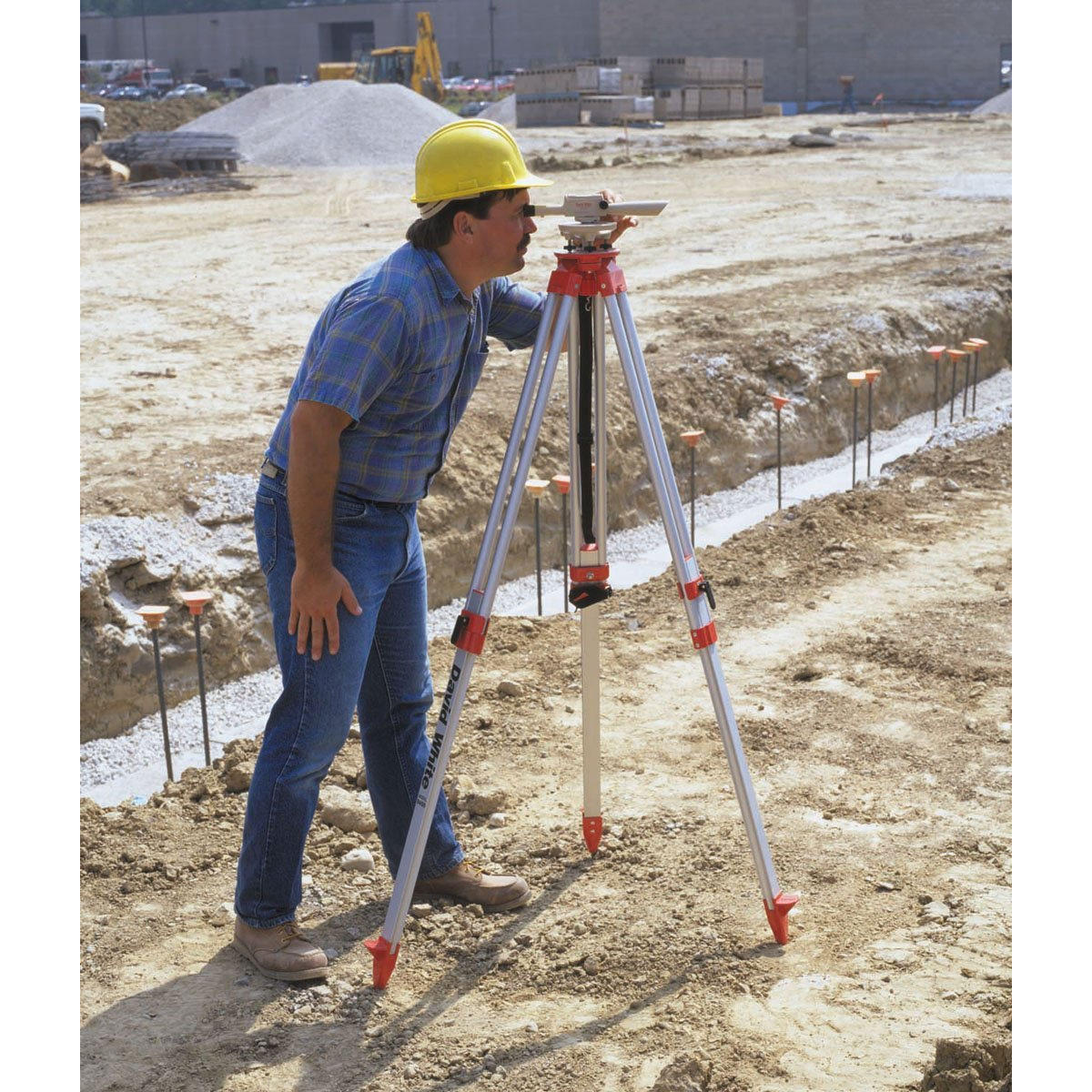

• Foundation and Footing Layout: Establishing level reference points for building foundations is critical to structural integrity. The L6-20's ±1/4 inch accuracy ensures footings are placed at precisely the correct elevation, preventing costly corrections and structural issues. The 20x magnification allows clear rod readings even across large foundation layouts, while the automatic compensator maintains accuracy despite minor ground vibrations from nearby equipment.
• Site Grading and Excavation: Landscapers and earthwork contractors rely on the L6-20 to establish grade stakes for proper drainage and site preparation. The instrument's durability withstands dusty, demanding conditions, while the included inches-graduated rod eliminates conversion calculations. Whether you're grading a residential lot or preparing a commercial site, this package provides the precision needed to meet engineering specifications and prevent drainage problems.
• Concrete Slab Preparation: Achieving proper slab elevation is essential for floor flatness and drainage. The L6-20 allows concrete contractors to set screeds and verify formwork height with confidence. The 13-foot rod height provides ample measurement range for most slab applications, and the instrument's quick setup means you can verify multiple points rapidly before concrete placement begins.
• Retaining Wall Installation: Building retaining walls requires precise elevation control to ensure proper alignment and structural performance. The L6-20's horizontal circle feature allows you to check both elevation and alignment from a single setup position. The robust tripod remains stable on uneven terrain typical of retaining wall projects, while the compensator ensures accurate readings despite less-than-perfect setup conditions.
• Deck and Patio Construction: Residential contractors use the L6-20 to establish proper slope for drainage on decks, patios, and walkways. The inches-and-eighths rod graduations align perfectly with standard construction practices, eliminating measurement conversion errors. The instrument's portability makes it ideal for moving between multiple deck post locations or patio screed points throughout the day.
• Drainage and Irrigation System Layout: Proper slope is critical for drainage systems and irrigation lines. The L6-20 enables landscapers and utilities contractors to verify trench depths and establish precise fall rates. The clear optics and magnification power remain effective even in bright outdoor conditions, while the complete package means you have all necessary equipment in one convenient kit.

Compatible Accessories

• David White Replacement Leveling Rods: Additional inches or metric-graduated rods for specialized applications or replacement
• Heavy-Duty Wood Tripods: Upgrade to wooden tripod for maximum stability in demanding conditions
• Rod Levels and Targets: Bubble levels that attach to rod for vertical alignment and sighting targets for long-distance measurements
• Optical Level Calibration Tools: Professional calibration equipment for field verification and adjustment
• Weatherproof Instrument Covers: Additional protection for extreme weather conditions
• Grade Stakes and Marking Supplies: Hub stakes, flagging, and marking paint for reference point identification
• Laser Detectors: For use with laser levels if upgrading your equipment arsenal

Related Guides

• How to Set Up and Use an Optical Level: Complete Tutorial
• Choosing the Right Surveying Instrument: Levels, Transits, and Total Stations Compared
• Reading Leveling Rods: Inches, Tenths, and Metric Graduations Explained
• Establishing and Maintaining Elevation Benchmarks on Construction Sites

FAQ

What's the difference between this inches package and metric packages?

This package (44-8824-1C) includes a leveling rod graduated in inches and eighths of an inch, which is standard for U.S. construction and surveying work. Metric packages include rods graduated in centimeters and millimeters. The L6-20 level instrument itself is identical across packages—only the rod graduations differ. Choose the inches package if you work primarily with imperial measurements and standard U.S. construction practices.

Does the L6-20 require batteries or power?

No, the David White L6-20 Meridian is a purely optical instrument that requires no batteries, power source, or electronic components. The automatic compensator operates mechanically using gravity-dampened pendulum technology. This makes the L6-20 extremely reliable in all conditions and eliminates concerns about battery life during long workdays or cold weather performance degradation.

Can this level be used for vertical measurements or just horizontal leveling?

The L6-20 is designed specifically for establishing horizontal level planes and measuring elevation differences. It cannot measure vertical angles like a transit or theodolite. However, the included 360-degree horizontal circle allows you to turn precise horizontal angles for basic layout work. For applications requiring vertical angle measurement, consider a builder's transit or digital theodolite.

How often does this instrument need professional calibration?

Under normal use conditions, the L6-20 should be checked for calibration every 6-12 months or if the instrument experiences impact or rough handling. You can perform basic two-peg calibration tests in the field using the included instruction manual. The instrument includes adjustment screws for field calibration, though professional calibration services are recommended annually for contractors depending on the instrument for critical measurements. The rugged construction and quality compensator system maintain accuracy well between calibrations.
