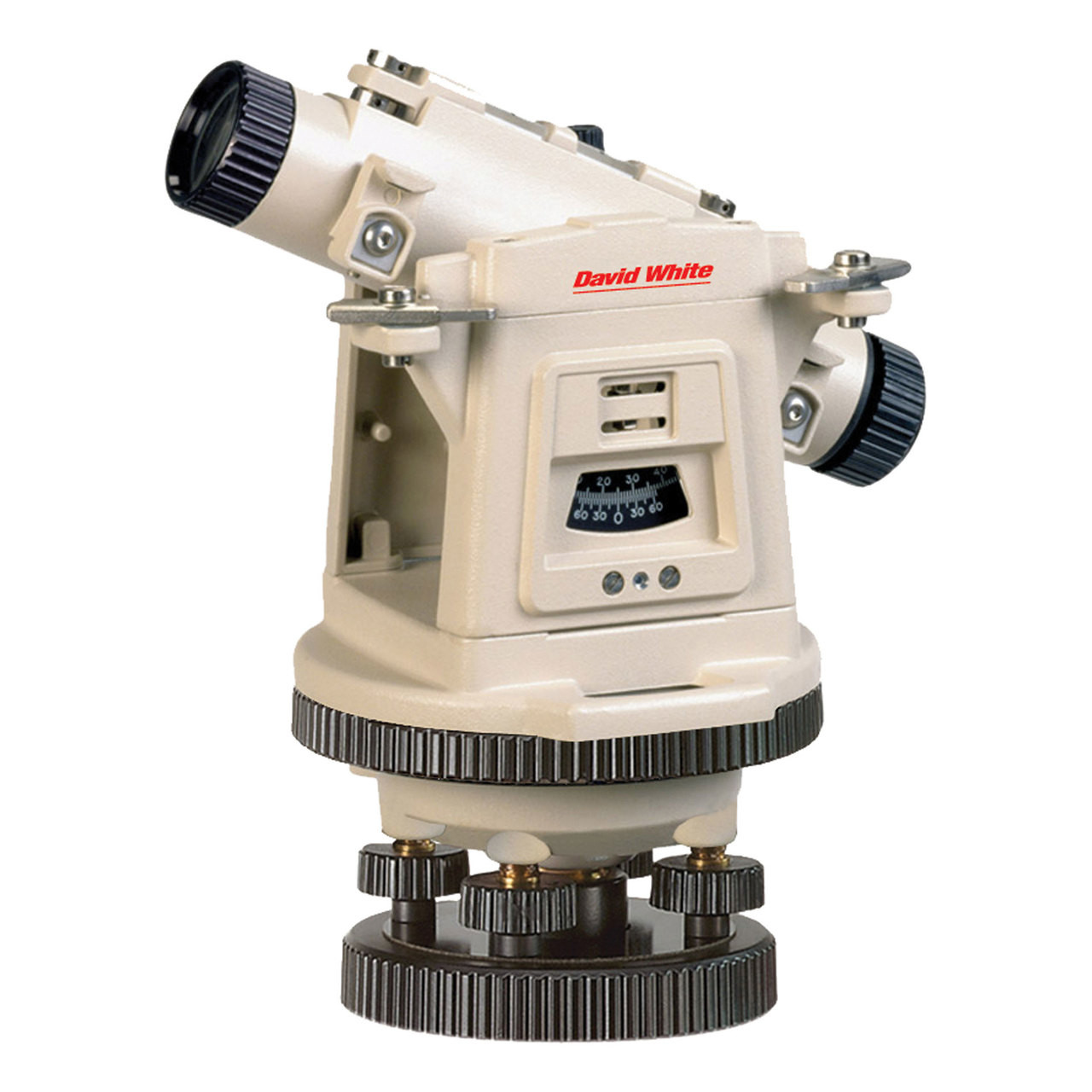

David White LT8-300P Universal Level-Transit with Optical Plummet 44-8871

Overview

The David White LT8-300P Universal Level-Transit with Optical Plummet (Model 44-8871) delivers professional-grade accuracy for contractors and survey teams who need versatile angle measurement and precision leveling in demanding field conditions. This five-minute instrument combines a builder's level and transit theodolite into one rugged platform, eliminating the need to carry multiple tools to the jobsite. The integrated optical plummet ensures fast, accurate setup over control points, while the telescope's 28× magnification and 300-foot focusing range provide clear sightings across construction sites, boundary surveys, and civil infrastructure projects. Built with a cast-aluminum body and stainless-steel components, the LT8-300P withstands the vibration, dust, and temperature swings typical of outdoor work environments. Whether you're establishing building corners, running differential levels, laying out roads, or setting formwork grades, this instrument offers the optical quality and mechanical stability that experienced operators expect at a price point that makes sense for growing businesses.

Key Specifications

• Accuracy: 5 minutes of arc (horizontal and vertical circles)
• Telescope Magnification: 28× with 40 mm objective lens diameter
• Minimum Focusing Distance: 5 feet (1.5 m)
• Field of View: 1°30' (1.5 degrees)

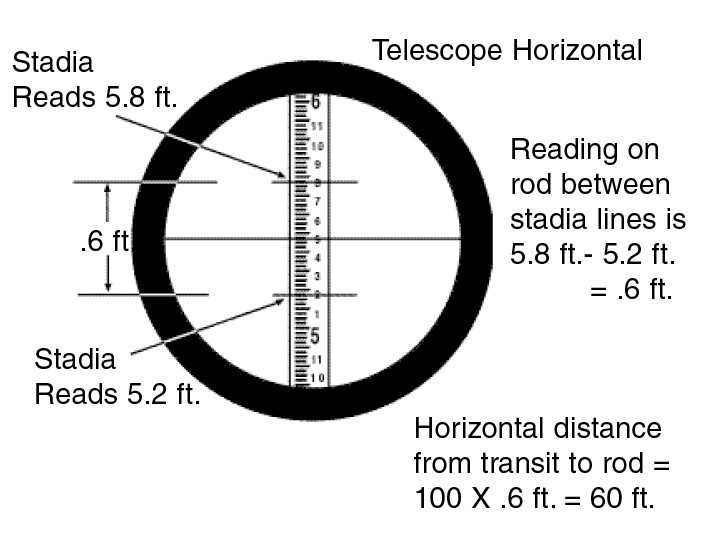

• Stadia Ratio: 100:1 for rapid distance measurement
• Leveling Sensitivity: 8 minutes per 2 mm bubble vial division
• Optical Plummet: Integrated for centering over points
• Horizontal Circle: 360° dual-graduated scale with vernier reading
• Vertical Arc: ±45° with automatic index compensation
• Telescope Image: Erect (right-side-up viewing)
• Tripod Thread: Standard 5/8" × 11 TPI mounting
• Weight: 9.5 lbs (4.3 kg) instrument only
• Operating Temperature: -4°F to 122°F (-20°C to 50°C)
• Warranty: Three-year manufacturer coverage

What's in the Kit

• David White LT8-300P Level-Transit instrument body
• Fitted hard-shell carrying case with foam insert
• Lens covers (objective and eyepiece)
• Adjustment pin set (3 pieces)
• Plumb bob with string
• Operator's manual with calibration procedures
• Manufacturer three-year warranty card
• Dust brush and lens cloth

Job Applications

• Foundation and Formwork Layout: Use the LT8-300P to establish building corners, transfer elevation benchmarks, and verify formwork grades before concrete pours. The optical plummet centers precisely over control stakes, while the vertical arc confirms that walls and columns rise plumb—critical for multi-story construction where small angular errors compound into costly rework.
• Site Grading and Drainage: Civil contractors rely on this instrument to set slope stakes, shoot grade elevations for parking lots and roadways, and verify positive drainage flows. The 28× telescope cuts through job-site dust for clear rod readings at 300 feet, and the 100:1 stadia ratio lets you calculate horizontal distances without breaking out a tape measure.
• Boundary and Topographic Surveys: Survey crews use the LT8-300P to run traverse lines, measure horizontal and vertical angles for property corners, and gather topographic data for site plans. The five-minute accuracy meets requirements for many cadastral and construction surveys, while the rugged housing survives the bumps and jolts of daily transport between survey stations.
• Pipeline and Utility Installation: Utility contractors depend on the transit function to align sewer lines, water mains, and conduit runs within grade and alignment tolerances. The erect telescope image simplifies communication with rod-holders and equipment operators, reducing setup errors when establishing line and grade for underground installations.
• Structural Steel Erection: Ironworkers employ the LT8-300P to verify plumbness of structural columns, confirm anchor bolt placement, and monitor deflection during beam installation. The instrument's dual-axis angle measurement documents critical alignment data for quality control records and helps avoid expensive field corrections after steel is bolted in place.
• Road and Parking Lot Striping: Paving contractors use this level-transit to project straight reference lines for pavement markings, establish control points for curb alignment, and verify cross-slopes for proper water runoff. The optical plummet ensures the instrument stations directly over layout nails embedded in asphalt, maintaining positional accuracy throughout the staking process.

Compatible Accessories

• Heavy-duty wooden or aluminum tripods with 5/8" × 11 heads
• Leveling rods (direct-reading and metric patterns, Philadelphia and SVR styles)
• Prism poles and targets for extended-range sightings
• Optical plumb bob for suspended-point transfers on bridge and high-rise work
• Tripod carrying cases and all-weather instrument covers
• Replacement bubble vials and adjustment tools

Related Guides

• How to Set Up and Level a Builder's Transit
• Differential Leveling Step-by-Step Tutorial
• Measuring Horizontal and Vertical Angles for Layout
• Caring for Optical Survey Instruments in the Field

FAQ

What's the difference between a level-transit and a theodolite?

A level-transit like the LT8-300P combines leveling and angle-measurement functions in one instrument, making it ideal for construction tasks that require both capabilities. Theodolites typically offer higher angular precision (one-second to one-minute accuracy) and are used for control surveys and precision engineering work. For most building layout, grading, and site work, the five-minute accuracy of this level-transit provides sufficient precision at a much lower cost.

Does this instrument include a tripod?

No, the LT8-300P is sold as an instrument-only package and requires a separate tripod with a standard 5/8" × 11 TPI mounting head. Express Tools offers a range of compatible wooden and aluminum tripods that pair well with this level-transit. Most operators prefer a heavy-duty tripod for stability during angle measurements and leveling work.

Can the LT8-300P be used for elevation surveys as well as angle work?

Yes, this universal instrument functions as both a builder's level for differential leveling and a transit for measuring horizontal and vertical angles. The telescope locks in the horizontal plane for running levels and rod shots, then unlocks to measure angles when you need to establish building lines, set slopes, or verify plumbness. This dual functionality makes it a versatile choice for contractors who perform varied layout tasks.

How often does the LT8-300P need calibration?

David White recommends checking the instrument's level vial, line-of-sight, and optical plummet alignment at the start of each project or whenever the unit experiences a significant impact. The included adjustment pins allow experienced operators to perform field calibrations, but annual professional calibration by a certified service center ensures the instrument maintains its five-minute accuracy specification for critical survey and layout work.
