Will the DD120 work with transmitters other than the Leica DA175?

The DD120 is compatible with Leica signal transmitters designed for its frequency range and will also detect radio frequency emissions from other compatible signal generators. We recommend verifying transmitter compatibility with our technical team to ensure optimal detection performance on your specific utility types.

Can the DD120 detect non-metallic utilities like plastic gas lines or PVC pipes?

The DD120 can detect non-metallic services if they contain conductive elements (like metal trace wires in gas lines) or if an active signal transmitter is clipped to the service. For pure non-conductive plastic pipes without tracing, active transmitter placement is essential for reliable location.

What's the maximum depth the DD120 can detect buried utilities at?

Depth capability varies by service type, burial conditions, and signal strength, but the DD120 provides depth estimation readings to guide your excavation decisions. Passive detection of energized power lines typically reaches deeper than active signal tracing; contact our team with your specific soil and utility details for realistic depth expectations on your job.

Is the 60Hz model suitable for my region, or do I need a different frequency?

The 60Hz model is standard for North American utility infrastructure (US, Canada, Mexico) where power distribution operates at 60 hertz. If your work spans multiple countries or includes industrial 50Hz systems, verify your operating region before purchase.

How do I confirm the DD120 is detecting the correct utility and not a false positive?

Cross-reference detections using multiple methods: scan from different angles, use active signal tracing with a transmitter clipped directly to the suspected service, and correlate findings with utility marking records from 811 notifications. The DD120's sensitivity and depth readings help confirm legitimate signals versus environmental RF noise.

Does the DD120 require calibration, and how often?

Regular calibration maintains accuracy and compliance with professional locating standards; we recommend annual factory calibration or after any equipment damage. Express Tools can arrange Leica-authorized calibration services and track your equipment history through Sitemark software.

Leica Detect DD120 Utility Locator Base Model (60Hz) 872939

← Drag to rotate →

Ships same day on in-stock orders before 2 PM CT

Authorized dealer · genuine, factory-fresh equipment

Compatibility & setup details on every product page

Leica GeosystemsDD120SKU LGS-872939New

Accessories →

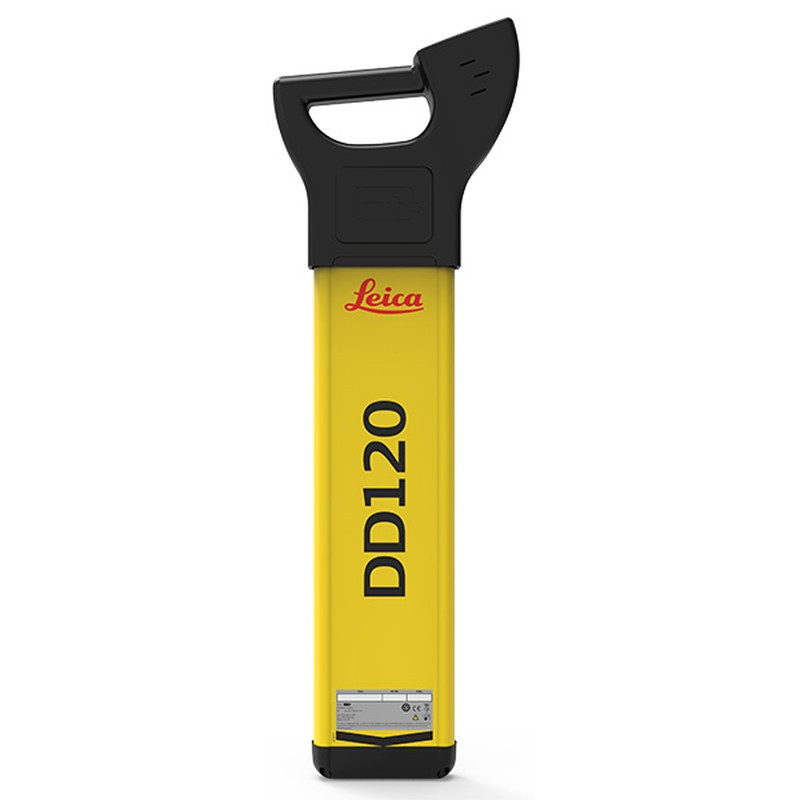

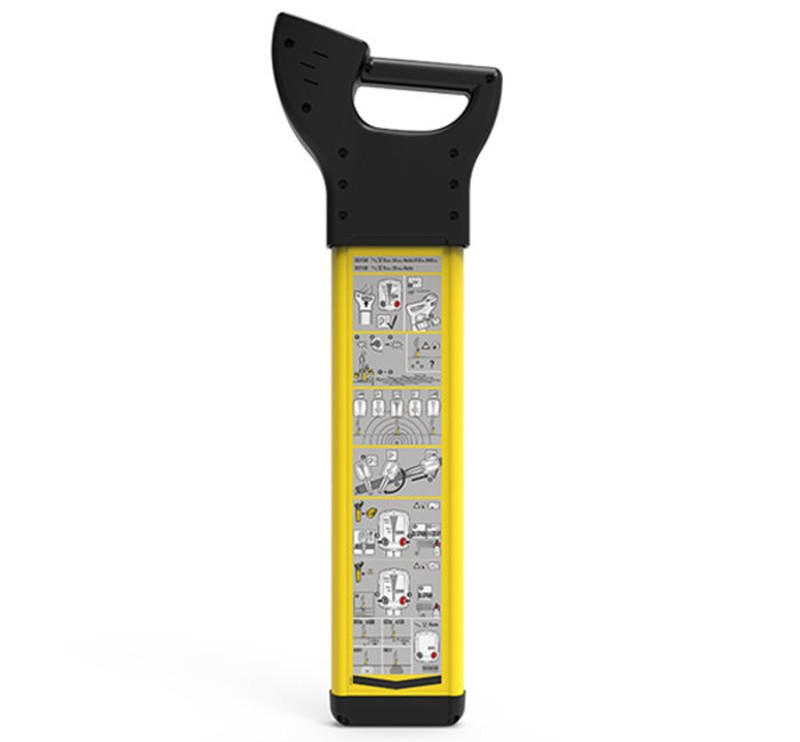

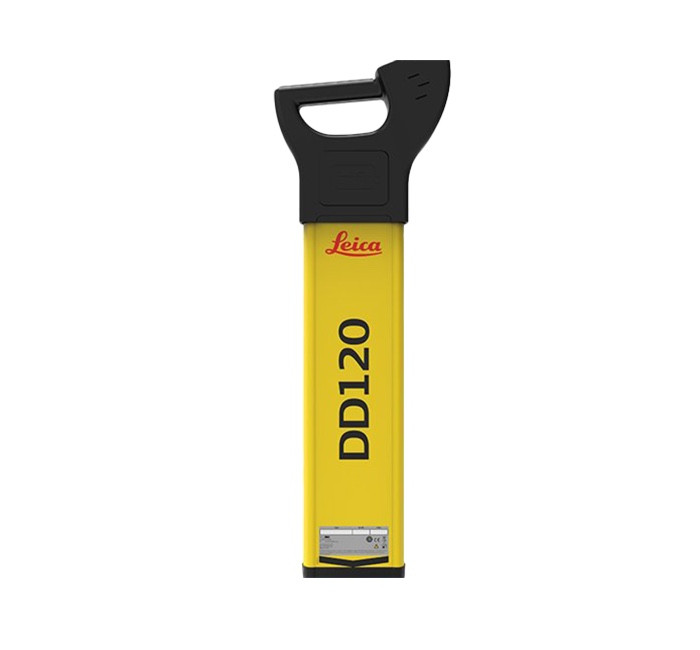

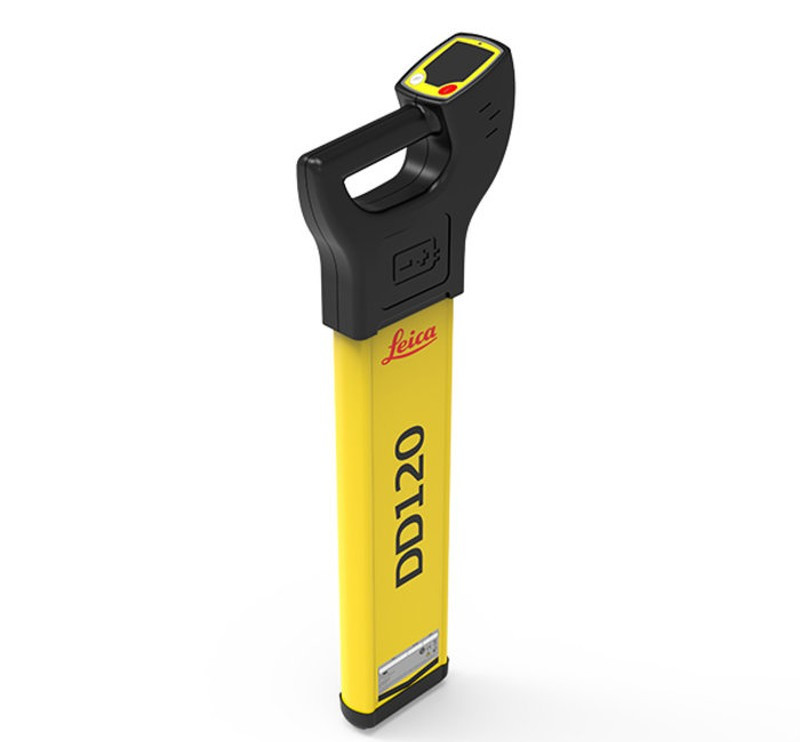

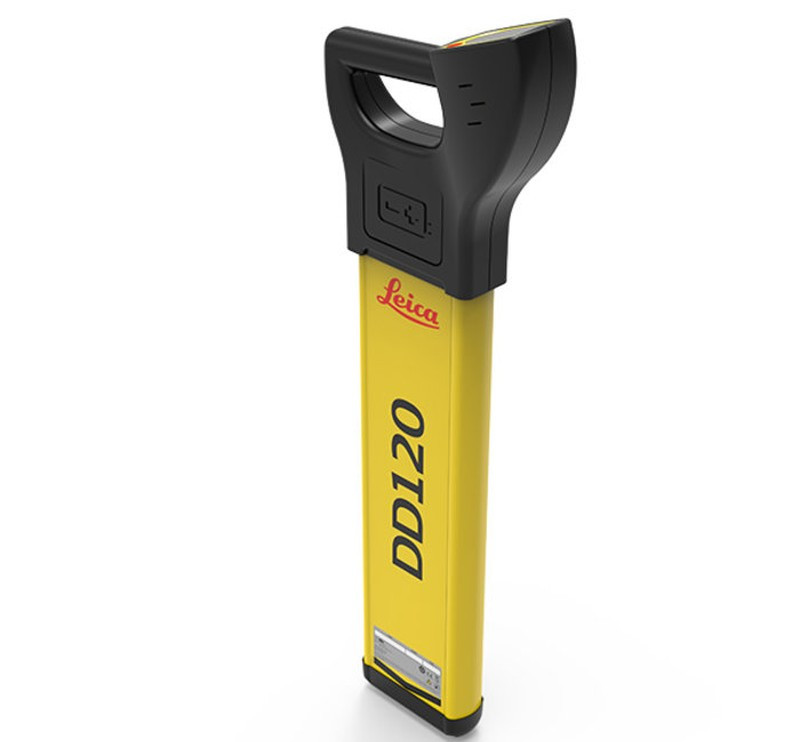

Leica Detect DD120 Utility Locator Base Model (60Hz)

$1620.00

Need 5+? Request volume pricing →

In Stock·Ships same day before 2 PM CT

Qty:

Authorized Leica Geosystems Dealer

Genuine, factory-fresh Leica Geosystems equipment with legitimate firmware and calibration documentation.

Same-Day Shipping

In-stock orders placed before 2 PM CT ship the same day.

Buy With Confidence

Compatibility and setup details on every product, plus our AI assistant for quick questions.

Ask the AI Assistant

Stock, compatibility, and ordering questions answered instantly

Authorized dealerGenuine, factory-fresh Leica Geosystems equipment

Same-day shippingOrders before 2 PM CT ship today

30-day returnsUnused equipment in original packaging

Authorized Dealer

Genuine equipment sourced straight from manufacturer partners.

Ships Same Day

Orders placed before 2 PM CT leave the dock today.

Genuine Gear

Factory-fresh, authentic units with legitimate firmware.

Best-Price Guarantee

Authorized-dealer pricing on every unit — request a quote anytime.

Kit Builder

Not sure what goes with this accessory?

Answer a few job questions and our Kit Builder assembles the full setup — receiver, rod, tripod, and case matched to your workflow.

Build your kit

Quick Answer

What is the Leica Geosystems DD120?

The Leica Detect DD120 Utility Locator Base Model (60Hz) is a professional electromagnetic cable and pipe locator manufactured by Leica Geosystems, designed for active and passive detection of buried utilities at 60Hz frequency. It detects energized power cables passively and traces signals from compatible transmitters, making it essential for 811 compliance and excavation site safety.

FIELD APPLICATIONS

What contractors use this accessories for

811 One-Call Compliance & Dig Safe Operations

Utility locators and excavation contractors use the DD120 to mark and verify buried utilities before breaking ground, ensuring compliance with One-Call notification systems and state/local dig-safe regulations. The passive 60Hz detection identifies energized power lines immediately, confirming service locations for safe, legal excavation.

Active Line Tracing with Signal Transmitter

When paired with a Leica DA175 transmitter or compatible signal generator, contractors use the DD120 to actively trace cable and pipe runs across job sites. This active method confirms service routing, identifies multiple parallel services, and determines approximate burial depth before potholing.

Horizontal Directional Drilling (HDD) Site Assessment

HDD contractors deploy the DD120 during bore path surveys to locate existing subsurface utilities and prevent collision during drilling operations. The locator maps utility corridors and identifies conflict zones, allowing crews to adjust drilling paths or request hand excavation of critical service areas.

Potholing & Vacuum Excavation Operations

Contractors performing potholing or vacuum excavation use the DD120 to confirm utility location in the exact dig area before breaking ground. The depth estimation feature guides safe excavation depth and prevents striking cables or pipes during precise subsurface exposure.

Private Utility Locating (PUL) & Subsurface Utility Engineering (SUE)

Civil engineers and private locating contractors use the DD120 for comprehensive utility mapping on complex sites, documenting service locations for design, planning, and risk assessment. The electromagnetic detection capability supports both metallic and energized services, providing complete subsurface utility profiles.

PRODUCT OVERVIEW

Product Description

Entry-level locator for detecting live power cables and metallic utilities. Simple to operate with automatic pinpointing and hazard zone alerts.

IP54 Rated 10 ft Depth 15-Hour Battery 1-Year Warranty CE / FCC Certified Art. 872939

The Locator Alone — For Professionals Who Already Have What They Need

The Leica Detect DD120 Device Only is the locator unit — nothing more, nothing less. If you're a contractor who already owns a DA175 signal transmitter, a Midi Sonde, or other locating accessories, this is the right buy. You get a fresh, professional-grade DD120 without paying for equipment you already have.

Out of the box, the DD120 performs passive detection in Power mode (detecting live 60Hz energized cables) and Radio mode (picking up signals already present on buried services) — no transmitter required for these modes. It's the everyday carry for utility crews who need a reliable CAT before they break ground.

Need full active locating capability? Pair it with a DA175 Signal Transmitter for depth estimation and route tracing, or add a Midi Sonde for non-metallic drain and sewer work. Both are available separately — or consider the Depth Package or Plumbers Package if you need the complete kit.

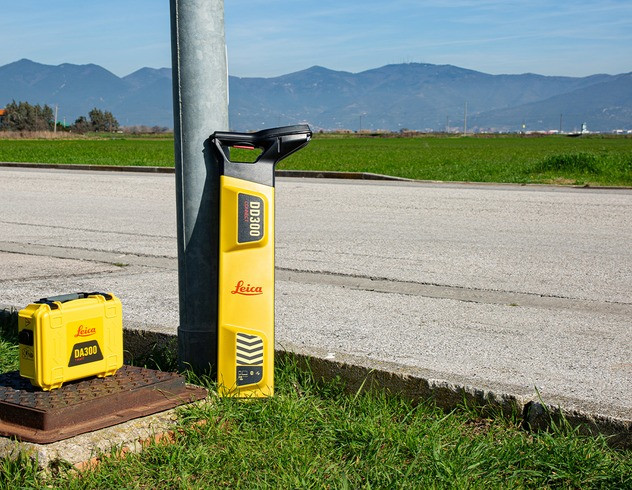

Leica utility locator detecting buried cables on job site

Active field use — tracing buried utilities before excavation

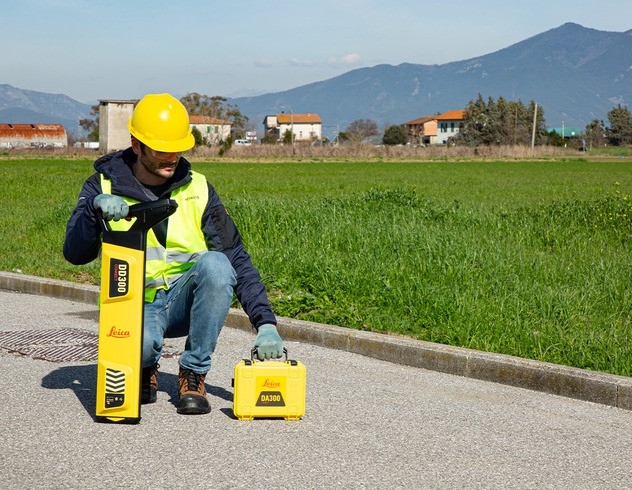

Leica DD locator underground utility detection tracing pipes

Precise depth and route detection of buried services

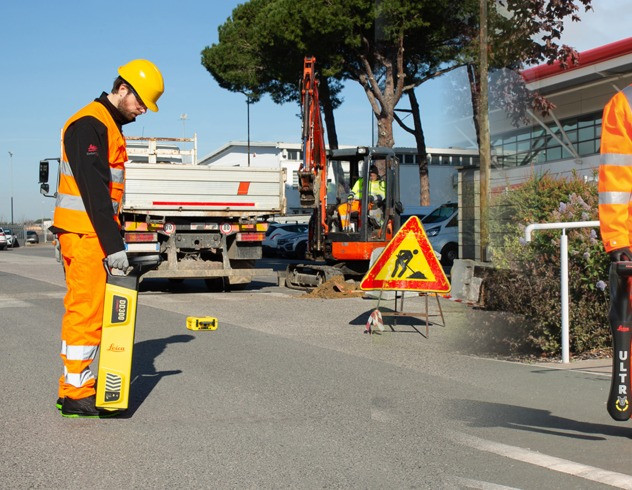

Leica DD utility locator professional field test construction site

Built for professional performance on demanding job sites

Key Features

Multiple Detection Modes

Auto, Power, Radio, and Transmitter modes detect a wide range of buried utilities without manual frequency selection.

Depth Estimation

Measure line and sonde depth from 0.3m to 3m (1–10 ft) with ±10% accuracy when used with a signal transmitter.

Hazard Zone Indicator

Visual alert warns the operator when the locator detects a buried utility in close proximity — before you dig.

Audio Guidance

85 dBA tone guidance at 30cm helps operators accurately trace buried utilities by sound in noisy site conditions.

15-Hour Battery Life

6× AA alkaline batteries deliver a full day of continuous operation without recharging. Standard batteries available anywhere.

IP54 Weatherproof

Protected against dust ingress and water splashes — designed and tested for demanding construction job site conditions.

Available Configurations

Device Only
Art. 872939
Leica DD120 Device Only

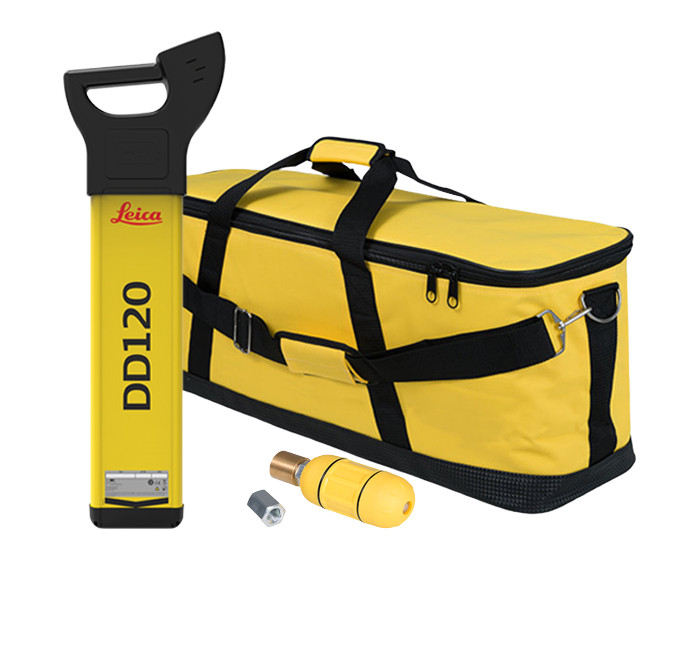

Plumbers Package
Art. 6014159
Leica DD120 Plumbers Package

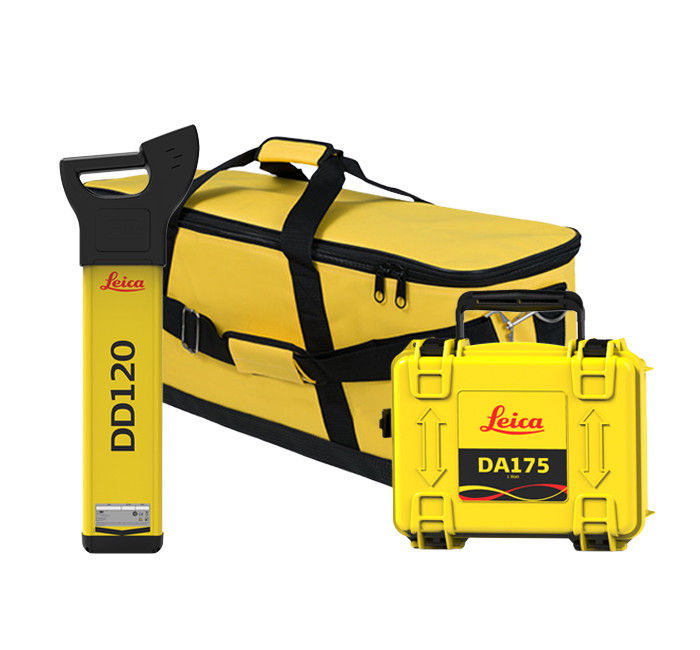

Depth Package
Art. 6014155
Leica DD120 Depth Package

What's In The Box

All packages include the same DD120 locator — the difference is the accessories included.

Included Item	Device Only Art. 872939	Plumbers Pkg Art. 6014159	Depth Pkg Art. 6014155
DD120 Utility Locator	✓	✓	✓
Batteries (6× AA)	✓	✓	✓
User Manual	✓	✓	✓
1-Year Warranty	✓	✓	✓
Midi Sonde 8/33kHz Non-metallic pipe tracing	—	✓	—
Locator Bag	—	✓	—
DA175 Signal Transmitter Depth estimation & tracing	—	—	✓
System Carry Bag Fits locator, transmitter	—	—	✓
Price	Add to Cart	—Add to Cart	—Add to Cart

Also available: Plumbers Pkg (Art. 6014159) | Depth Pkg (Art. 6014155)

Device Only What You Need to Know

The DD120 Device Only is the locator unit alone. It works as a standalone tool for passive detection — picking up signals from live, energized power cables and metallic utilities already carrying current (Power mode, 60Hz) or a signal (Radio mode). No additional equipment is required for this use.

However, for full utility locating capability, you will also need:

DA175 Signal Transmitter (Art. 949370) — Required for depth estimation, tracing dead/de-energized cables, and active route tracing. Included in the Depth Package.
Midi Sonde (Art. 850289) — Required to locate non-metallic and PVC pipes, drains, and sewers. Included in the Plumbers Package.
Carry Bag (Art. 850276 or 872942) — Recommended for safe transport and storage on the job site.

Already own a DA175? The Device Only is the right choice — you get a fresh DD120 locator that pairs directly with your existing transmitter and accessories. Not sure which package is right for your application? Call us at 1-877-866-5721 — we'll help you figure it out.

Technical Specifications

Power Detection	60Hz mains frequency
Radio Frequencies	15kHz – 60kHz
Active Transmitter Modes	8kHz, 33kHz
Auto Mode	Power, Radio, 33kHz
Line Depth Range	0.3m – 3m (1ft – 10ft)
Sonde Depth Range	0.3m – 3m (1ft – 10ft)
Depth Accuracy	±10% (to undistorted signal)
Audio Output	85 dBA at 30cm
Environmental Rating	IP54
Operating Temperature	-20°C to +50°C (-4°F to +122°F)
Battery	6× LR6 (AA) Alkaline
Battery Life	15 hours continuous at 20°C
Weight (with batteries)	2.7 kg / 5.95 lbs
Dimensions (H×W×D)	760 × 250 × 85 mm
Compatible Transmitter	DA175 Signal Transmitter (Art. 949370)
Certifications	CE, FCC
Warranty	1 Year
Article Number	872939

Compare DD Series Models

Feature	DD120 ← You Are Here	DD130	DD300 CONNECT
Detection Modes	Auto, Power, Radio, 8kHz, 33kHz	+ 512Hz, 640Hz	+ 83kHz, 131kHz
Max Detection Depth	10 ft (3m)	10 ft (3m)	23 ft (7m)
Depth Accuracy	±10%	±10%	±5%
Current Measurement	—	✓	✓
GPS / Data Logging	—	—	✓
Bluetooth	—	—	✓
Li-Ion Battery Option	—	—	Optional
Warranty	1 Year	1 Year	3 Years
Starting Price

See the Leica DD Series in Action
