Leica Detect DD130 (60Hz) Depth Package - 6014157

← Drag to rotate →

Ships same day on in-stock orders before 2 PM CT

Authorized dealer · genuine, factory-fresh equipment

Compatibility & setup details on every product page

At a Glance

SKU: 29-DL24
Type: Digital Box Level
Type: Digital Box Level
Display Type: Digital numerical readout
Display: Digital readout
Measuring Surfaces: 3

Leica GeosystemsDD130SKU LGS-6014157New

Accessories →

Leica Detect DD130 (60Hz) Depth Package

Name: Leica Detect DD130 (60Hz) Depth Package - 6014157
Brand: Leica Geosystems
SKU: LGS-6014157
Price: 3228.00 USD
Availability: InStock

$3228.00

Need 5+? Request volume pricing →

In Stock·Ships same day before 2 PM CT

Qty:

Authorized Leica Geosystems Dealer

Genuine, factory-fresh Leica Geosystems equipment with legitimate firmware and calibration documentation.

Same-Day Shipping

In-stock orders placed before 2 PM CT ship the same day.

Buy With Confidence

Compatibility and setup details on every product, plus our AI assistant for quick questions.

Ask the AI Assistant

Stock, compatibility, and ordering questions answered instantly

Authorized dealerGenuine, factory-fresh Leica Geosystems equipment

Same-day shippingOrders before 2 PM CT ship today

30-day returnsUnused equipment in original packaging

Authorized Dealer

Genuine equipment sourced straight from manufacturer partners.

Ships Same Day

Orders placed before 2 PM CT leave the dock today.

Genuine Gear

Factory-fresh, authentic units with legitimate firmware.

Best-Price Guarantee

Authorized-dealer pricing on every unit — request a quote anytime.

Kit Builder

Not sure what goes with this accessory?

Answer a few job questions and our Kit Builder assembles the full setup — receiver, rod, tripod, and case matched to your workflow.

Build your kit

Quick Answer

What is the Leica Geosystems DD130?

The Leica Detect DD130 (60Hz) Depth Package is a professional electromagnetic utility locating system by Leica Geosystems featuring active and passive detection modes, signal transmission capability, and depth estimation for buried cable and pipe location. It is the industry-standard CAT and genny solution for HDD contractors, excavation professionals, and one-call locating technicians performing dig-safe compliance and utility strike prevention.

FIELD APPLICATIONS

What contractors use this accessories for

Construction Layout

Precise positioning for structural and civil work

As-Built Documentation

Field-verified position records for project closeout

Grade Verification

Confirm elevations against design before pouring or paving

PRODUCT OVERVIEW

Product Description

The DD130 Depth Package is the complete active-tracing kit — the DD130 locator paired with the DA175 1-Watt Signal Transmitter and a system carry bag. With 512Hz and 640Hz for long-distance tracing, 33ft sonde depth, and current measurement built in, this package gives crews everything needed for professional-grade utility locating out of the box.

DD130 + DA175 Transmitter 33ft Sonde Depth 6 Detection Modes Current Measurement System Carry Bag Included 1-Year Warranty CE / FCC Certified Art. 6014157

The Complete DD130 Kit — Ready to Locate Anything

The DD130 Depth Package combines the DD130 locator with the DA175 1-Watt Signal Transmitter and a system carry bag in one ready-to-go kit. Everything you need for professional utility locating, active tracing, and deep drainage work is included from day one.

The DA175 transmitter unlocks the DD130's full capability: active tracing at 512Hz and 640Hz for long-distance cable runs, depth estimation on buried lines, and tracing de-energized utilities that the locator alone can't passively detect. Combined with the DD130's 33ft sonde depth range, this package is purpose-built for deep drain, sewer, and complex multi-utility environments.

The included system carry bag keeps the locator and transmitter organized and protected on the job site — everything packed, protected, and ready when you arrive.

Leica DD utility locator detecting buried cables on job site

Active field use — tracing buried utilities before excavation

Leica DD locator underground utility detection tracing pipes

Precise depth and route detection of buried services

Leica DD utility locator professional field test construction site

Built for professional performance on demanding job sites

Key Features

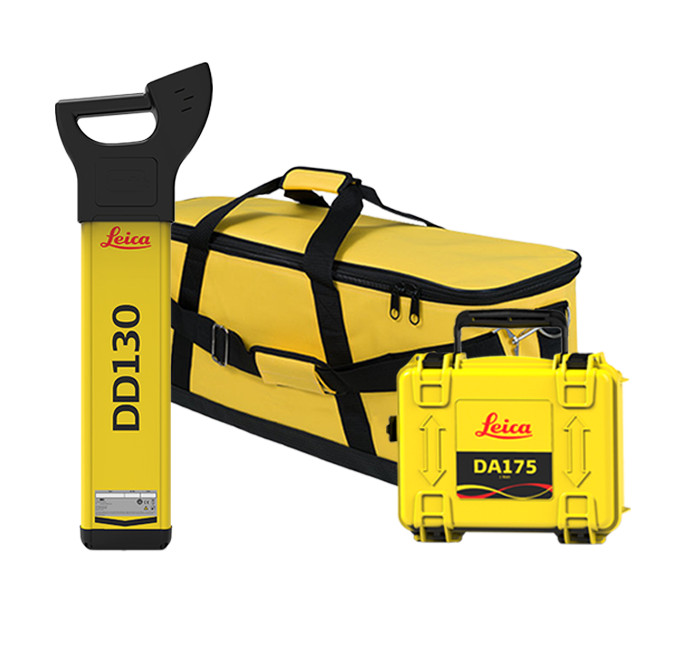

Leica Detect DD130 60Hz Depth Package — DD130 Locator + DA175 Transmitter + System Carry Bag

Complete Active-Tracing Kit

DD130 locator + DA175 1-Watt Signal Transmitter + System Carry Bag. Everything needed for full-capability utility locating, ready to deploy.

6 Detection Modes

Auto, Power, Radio, 8kHz, 33kHz, plus the DD130-exclusive 512Hz and 640Hz for tracing long cable runs across complex utility networks.

Extended Sonde Depth — 33ft

Sonde depth detection up to 9.99m (33ft) — three times deeper than the DD120. Ideal for deep drain tracing, sewer inspection, and duct location.

Current Measurement (mA)

Displays milliamp current flowing through the located service in real time — confirming signal strength and cable identification on the spot.

DA175 1-Watt Transmitter

Active signal injection for tracing dead/de-energized cables, depth estimation, and route tracing. Supports all 4 active frequencies including 512Hz and 640Hz.

System Carry Bag Included

Protective carry bag fits the DD130 locator and DA175 transmitter. Keep everything organized and protected between job sites.

Available Configurations

Device Only
Art. 872941
Leica DD130 Device Only

Depth Package
Art. 6014157
Leica DD130 Depth Package

What's In The Box

Both configurations include the same DD130 locator — the difference is the accessories.

Included Item	Depth Package Art. 6014157	Device Only Art. 872941
DD130 Utility Locator	✓	✓
Batteries (6× AA)	✓	✓
User Manual	✓	✓
1-Year Warranty	✓	✓
DA175 Signal Transmitter 1W active tracing & depth estimation	✓	—
System Carry Bag Fits DD130 + DA175 transmitter	✓	—
Price	Add to Cart	—Add to Cart

Also available: Device Only (Art. 872941)

Technical Specifications

Power Detection	60Hz mains frequency
Radio Frequencies	15kHz – 60kHz
Active Transmitter Modes	8kHz, 33kHz, 512Hz, 640Hz
Auto Mode	Power, Radio, 33kHz
Line Depth Range	0.3m – 3m (1ft – 10ft)
Sonde Depth Range	0.3m – 9.99m (1ft – 33ft)
Depth Accuracy	±10% (to undistorted signal)
Current Measurement	Yes (mA display)
Audio Output	85 dBA at 30cm
Environmental Rating	IP54
Operating Temperature	-20°C to +50°C (-4°F to +122°F)
Battery	6× LR6 (AA) Alkaline
Battery Life	15 hours continuous at 20°C
Weight (with batteries)	2.7 kg / 5.95 lbs
Dimensions (H×W×D)	760 × 250 × 85 mm
DA175 Transmitter	1-Watt output, Art. 949370 (included)
Compatible Transmitter	DA175 Signal Transmitter (Art. 949370)
Certifications	CE, FCC
Warranty	1 Year
Article Number (Depth Pkg)	6014157
Article Number (Locator)	872941

Compare DD Series Models

Feature	DD130 ← You Are Here	DD120	DD300 CONNECT
Detection Modes	+ 512Hz, 640Hz	Auto, Power, Radio, 8kHz, 33kHz	+ 83kHz, 131kHz
Max Line Depth	10ft (3m)	10ft (3m)	10ft (3m)
Max Sonde Depth	10ft (3m)	33ft (9.99m)	23ft (7m)
Depth Accuracy	±10%	±10%	±5%
Current Measurement	—	✓	✓
Long-Distance Frequencies	—	512Hz, 640Hz	✓
GPS / Data Logging	—	—	✓
Bluetooth	—	—	✓
Li-Ion Battery Option	—	—	Optional
Warranty	1 Year	1 Year	3 Years

See the Leica DD Series in Action
