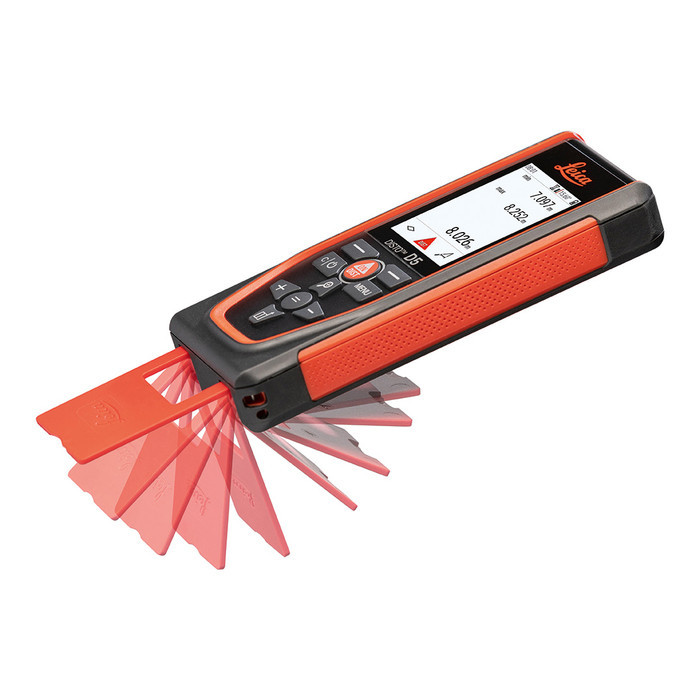

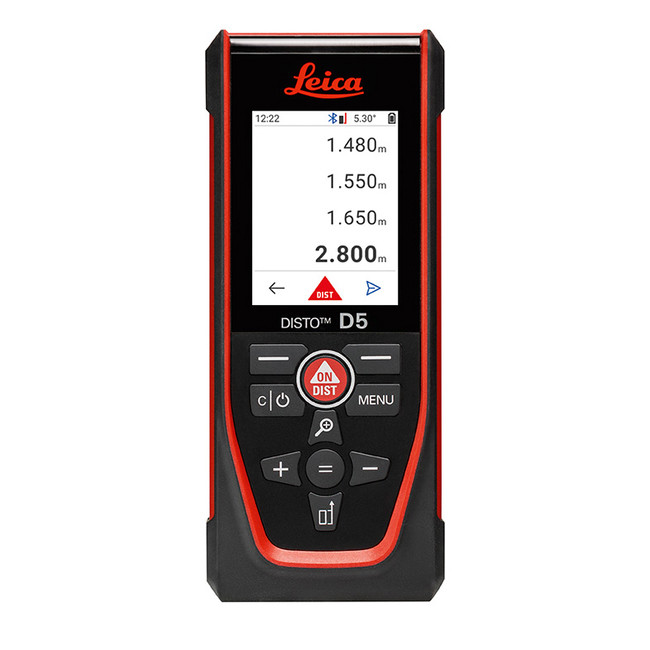

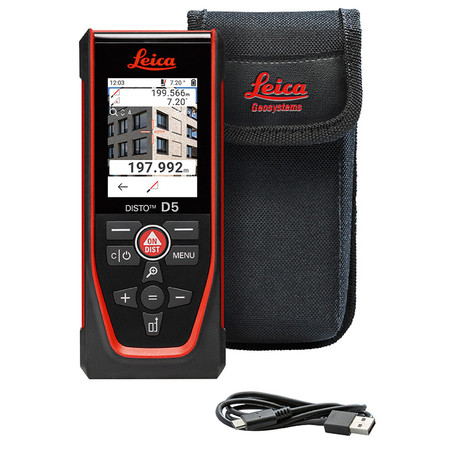

Leica 950908 DISTO D5 Laser Distance Quick Measuring Tool - up to 660 feet

The Leica DISTO D5 (Model 950908) is built for contractors who cannot afford measurement errors on large-scale commercial or residential projects. With a 660-foot range, integrated digital pointfinder camera, and Bluetooth connectivity, the DISTO D5 handles the distance, lighting, and workflow challenges that expose the limitations of basic laser measures. Whether you are measuring across a warehouse floor, calculating square footage on a multi-story building, or shooting distances outdoors in direct sunlight, this tool delivers the precision and reliability Leica is known for worldwide.

Overview and Jobsite Applications

The Leica DISTO D5 is engineered for demanding environments where accuracy is non-negotiable. The digital pointfinder with 4x zoom lets you see exactly where the laser dot lands on a target up to 660 feet away — even in bright outdoor conditions where the red dot would otherwise be invisible to the naked eye. Combined with an IP54 dust and splash protection rating, this meter survives real jobsite conditions. The built-in Bluetooth module transfers measurements directly to your tablet, smartphone, or laptop, eliminating transcription errors and saving time on documentation-heavy projects.

Key Specifications

• Measuring Range: 0.05 m to 200 m (0.16 ft to 660 ft)
• Accuracy: ±1.0 mm (±1/16 in) typical
• Display: Backlit LCD, 4-line readout

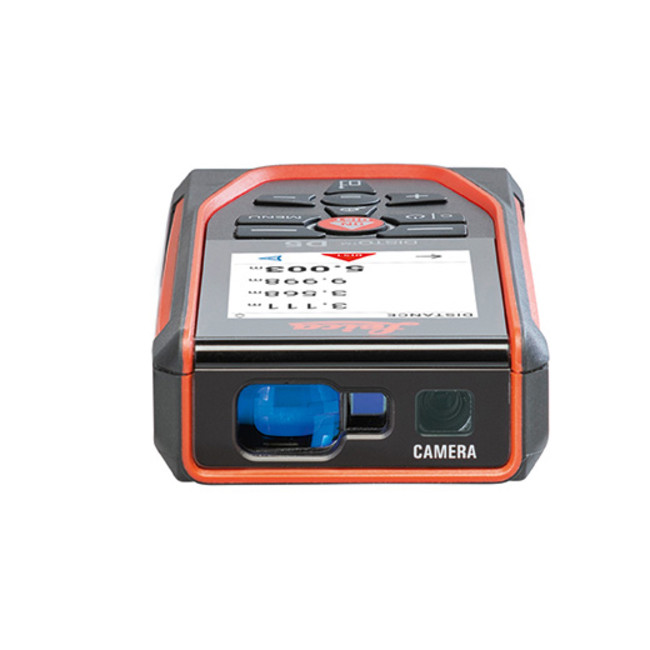

• Digital Pointfinder: 4x zoom integrated camera
• Bluetooth: 2.1 + EDR wireless data transfer
• Protection Rating: IP54 dust and splash resistant
• Battery Life: Up to 5,000 measurements per set of batteries
• Power Source: 2x AA batteries
• Dimensions: 135 x 54 x 28 mm
• Weight: 200 g (7.1 oz) including batteries

Key Features

• Digital pointfinder with 4x zoom for accurate targeting at long distances and in outdoor sunlight
• Bluetooth 2.1 connectivity for wireless data transfer to mobile devices and software
• IP54 rated against dust ingress and water splashing from any direction
• Multi-functional measuring modes: distance, continuous, area, volume, indirect (Pythagoras), stake-out, and min/max
• Tilt sensor with angle measurement function for indirect height and distance calculations
• Backlit 4-line display shows simultaneous readout of results and measurements used
• Smart horizontal mode locks measurements to true horizontal reference
• Memory stores last 30 measurements for quick reference on site

Job Applications

Commercial Construction and Pre-Construction: Verify room dimensions, ceiling heights, and structural spans during site walks before framing begins. The 660-foot range covers even large open-plan commercial floors in a single shot, and Bluetooth transfer logs readings directly into your estimating software without manual entry.

Exterior and Facade Measurement: The digital pointfinder is the key advantage when shooting exterior building heights, setback distances, or roof overhangs from ground level. You can confirm exactly where the laser lands on the target without walking the distance, reducing time and safety risk on active sites.

MEP Rough-In and Layout: Mechanical, electrical, and plumbing contractors use the DISTO D5 to establish precise centerlines, calculate duct run lengths, and confirm equipment clearances in tight mechanical rooms or large open ceilings. The tilt sensor supports indirect measurements where a straight line of sight is not available.

Property Management and Facility Assessment: Facility managers and inspectors use the DISTO D5 to rapidly measure room dimensions for space planning, lease documentation, or renovation scoping — all without a second person holding a tape measure.

Compatible Accessories

• Leica DISTO Tripod Adapter TRI 70 — Mounts DISTO D5 to standard 1/4" tripod for hands-free leveled measurements
• Leica FTA360 Flexible Tripod Adapter — Positions the DISTO at angles for inclined surface measurement
• Leica DISTO Bluetooth Smart Horizontal Module — Extends remote measurement capability
• Replacement AA Battery Pack — Keep a spare set on site for uninterrupted workflow

Related Guides

• How to Use a Digital Pointfinder Laser Measure Outdoors
• Leica DISTO Bluetooth Setup Guide for iOS and Android
• Choosing the Right Laser Distance Meter for Commercial Projects
• DISTO D5 vs DISTO D8: Which Model is Right for Your Work?

Frequently Asked Questions

Can the Leica DISTO D5 measure outdoors in direct sunlight?

Yes. The integrated 4x digital pointfinder camera allows you to see where the laser dot lands on the target even in bright outdoor conditions where the red dot is not visible to the naked eye. This is the primary advantage of the D5 over standard laser measures without a pointfinder.

What devices does the DISTO D5 Bluetooth connect to?

The DISTO D5 uses Bluetooth 2.1 + EDR, which is compatible with most Android and iOS smartphones and tablets running the free Leica DISTO sketch app. It also connects to Windows-based software and BIM tools that support Bluetooth data input, eliminating manual data entry on documentation-heavy projects.

Is the Leica DISTO D5 waterproof?

The DISTO D5 carries an IP54 protection rating, meaning it is fully protected against dust ingress and resistant to water splashing from any direction. It is not rated for submersion, but it handles rain, mud splatter, and typical outdoor jobsite moisture without issue.

What is the difference between the Leica DISTO D5 and the D2 or D3a models?

The D5 adds the digital pointfinder camera for outdoor long-distance targeting, Bluetooth connectivity, a tilt sensor for angle-based indirect measurements, and a longer 660-foot range compared to the shorter-range entry-level D2 and D3a models. The D5 is the preferred choice when outdoor use, long distances, or wireless data transfer are required on the job.
