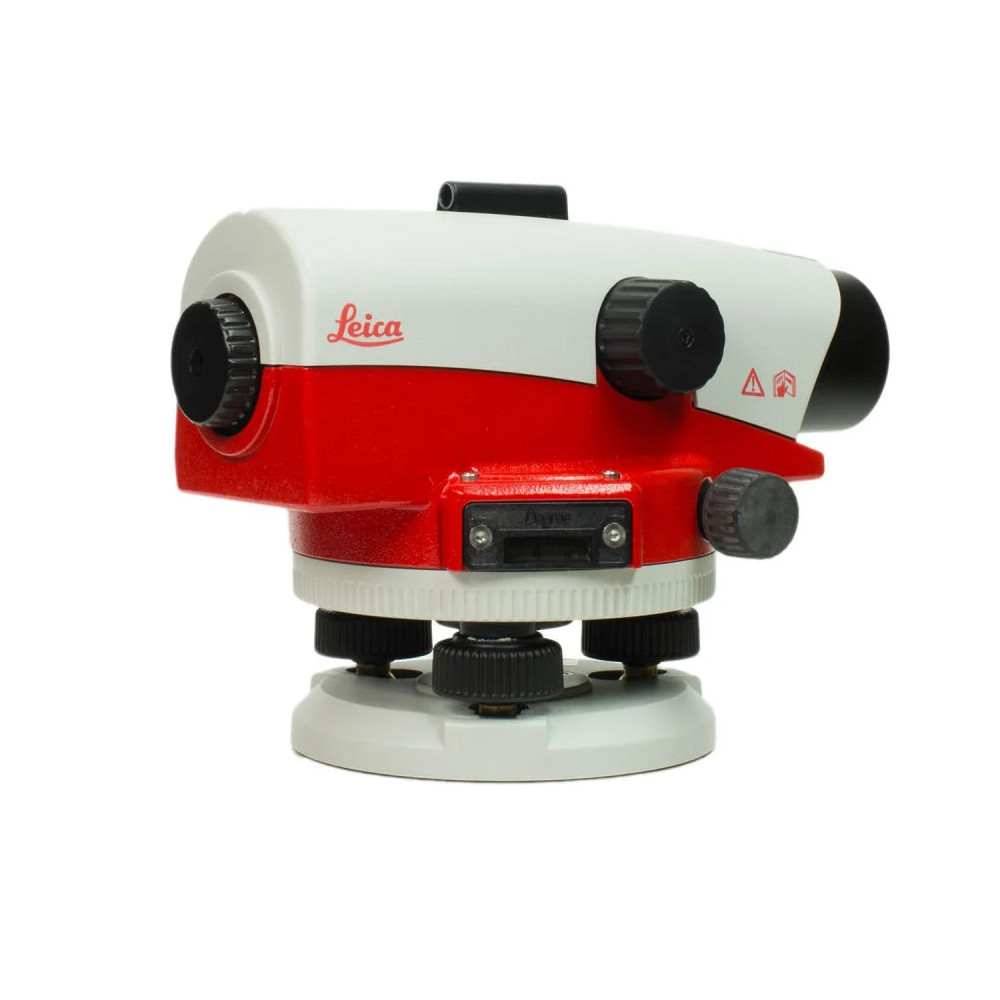

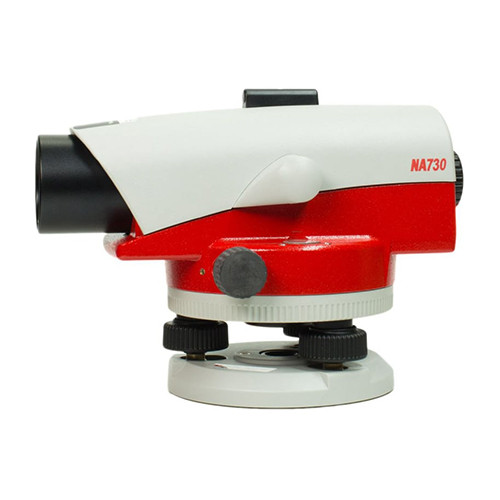

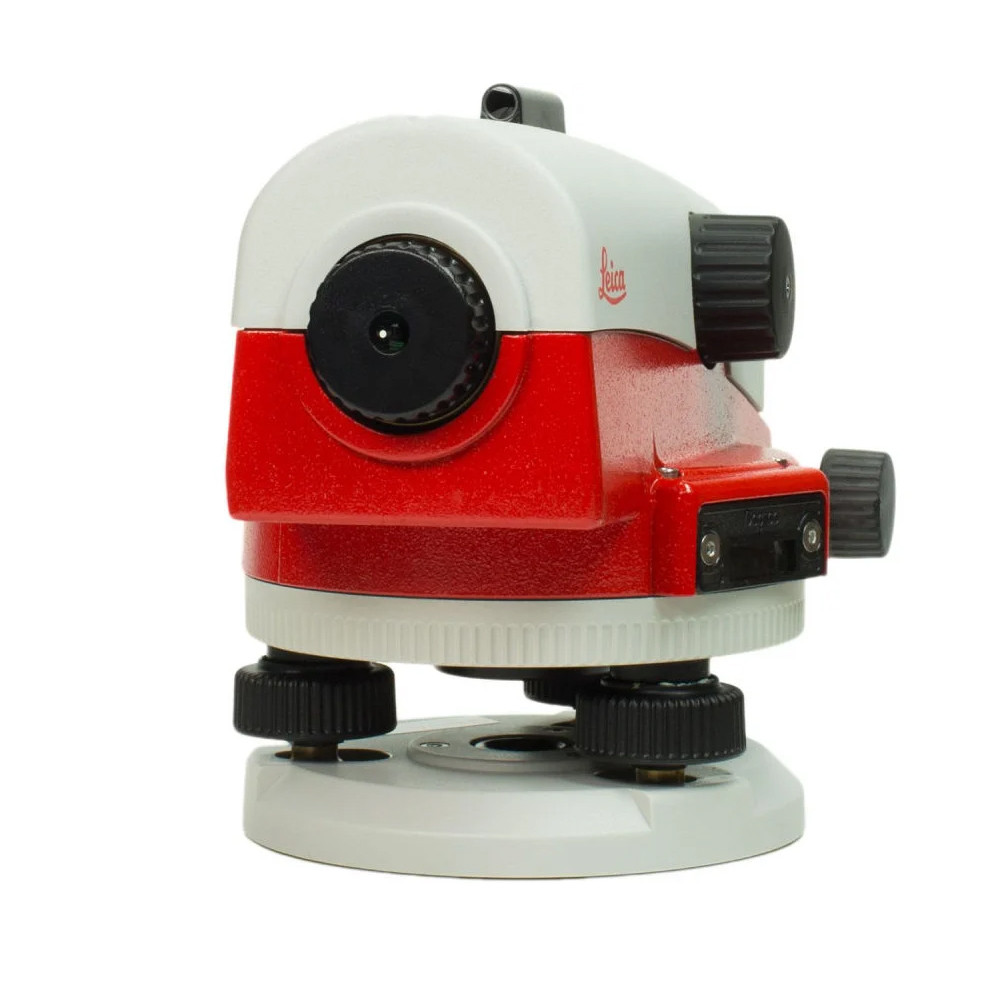

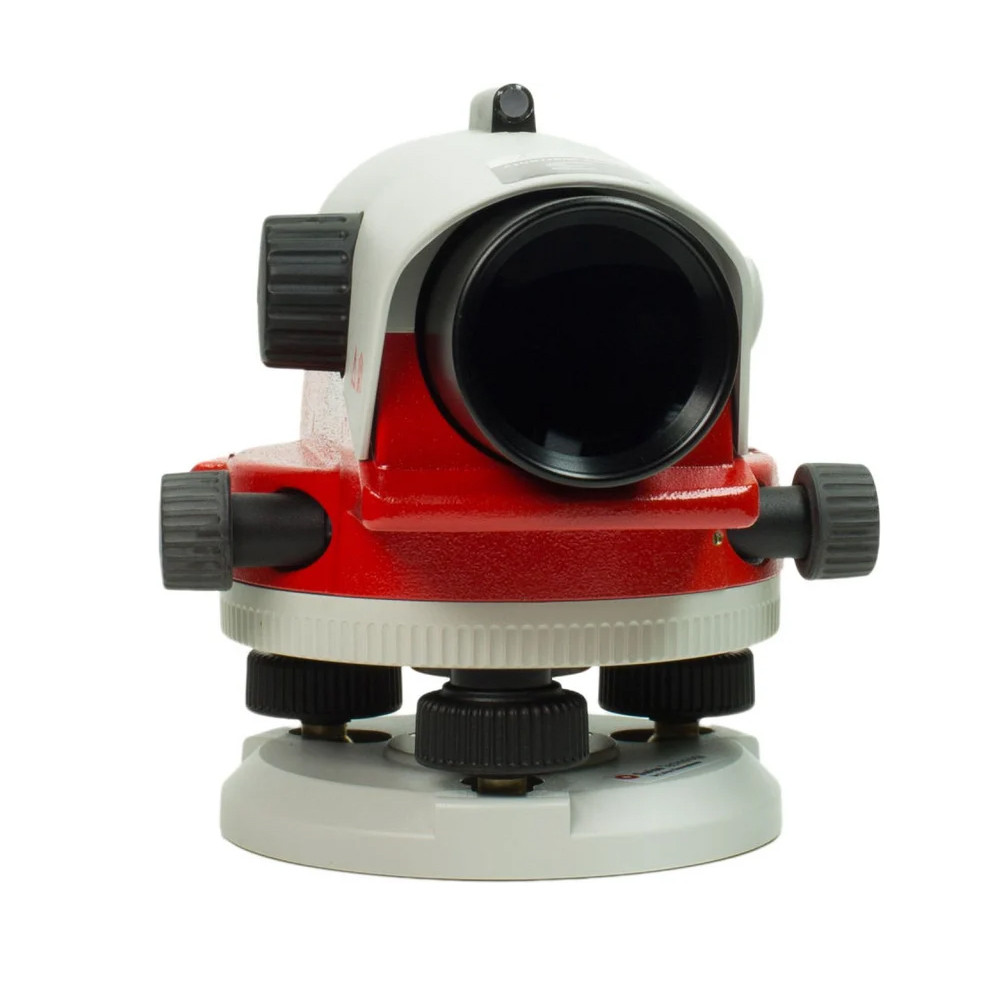

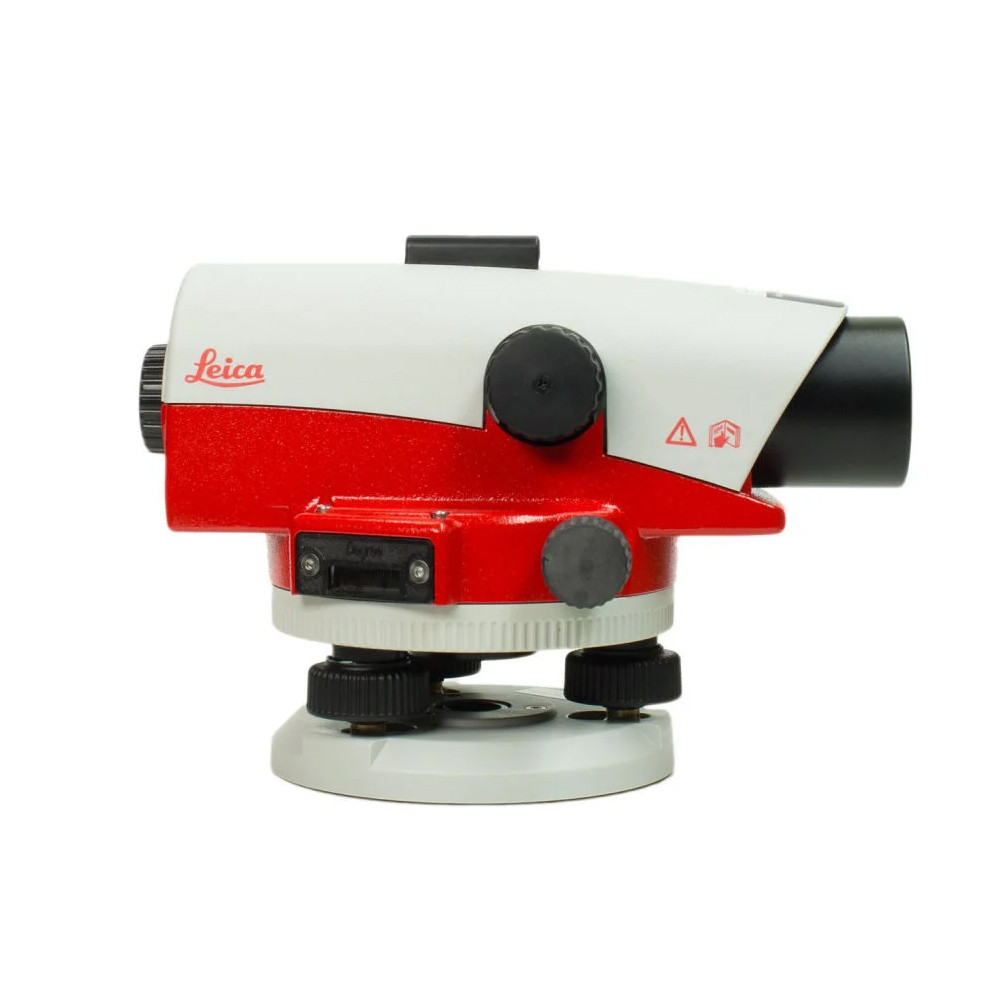

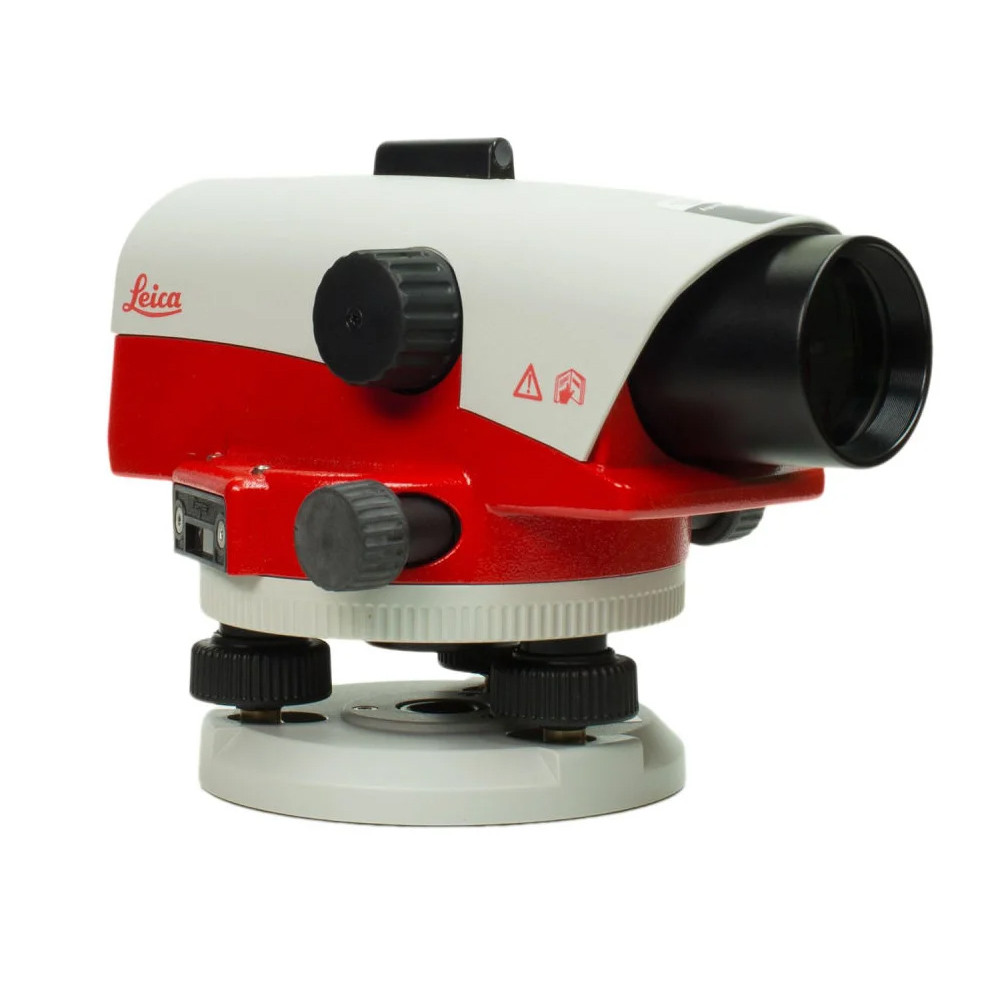

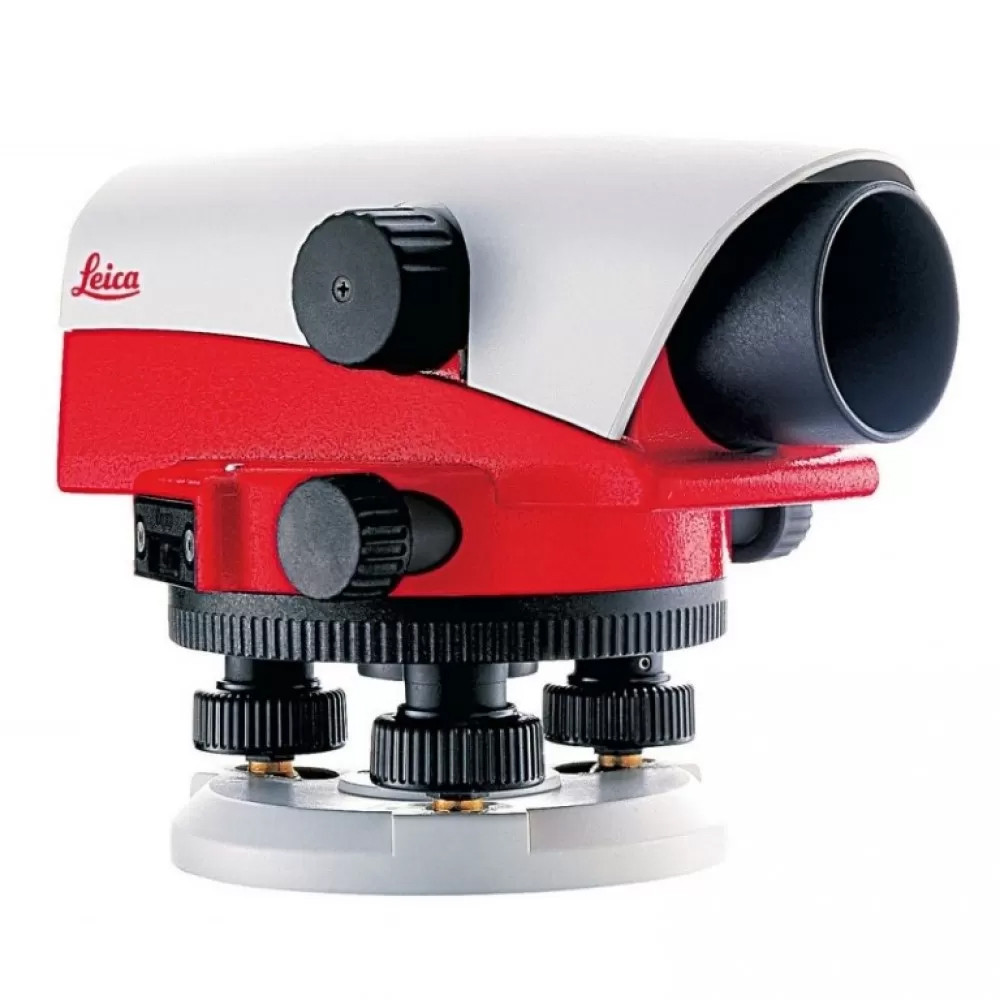

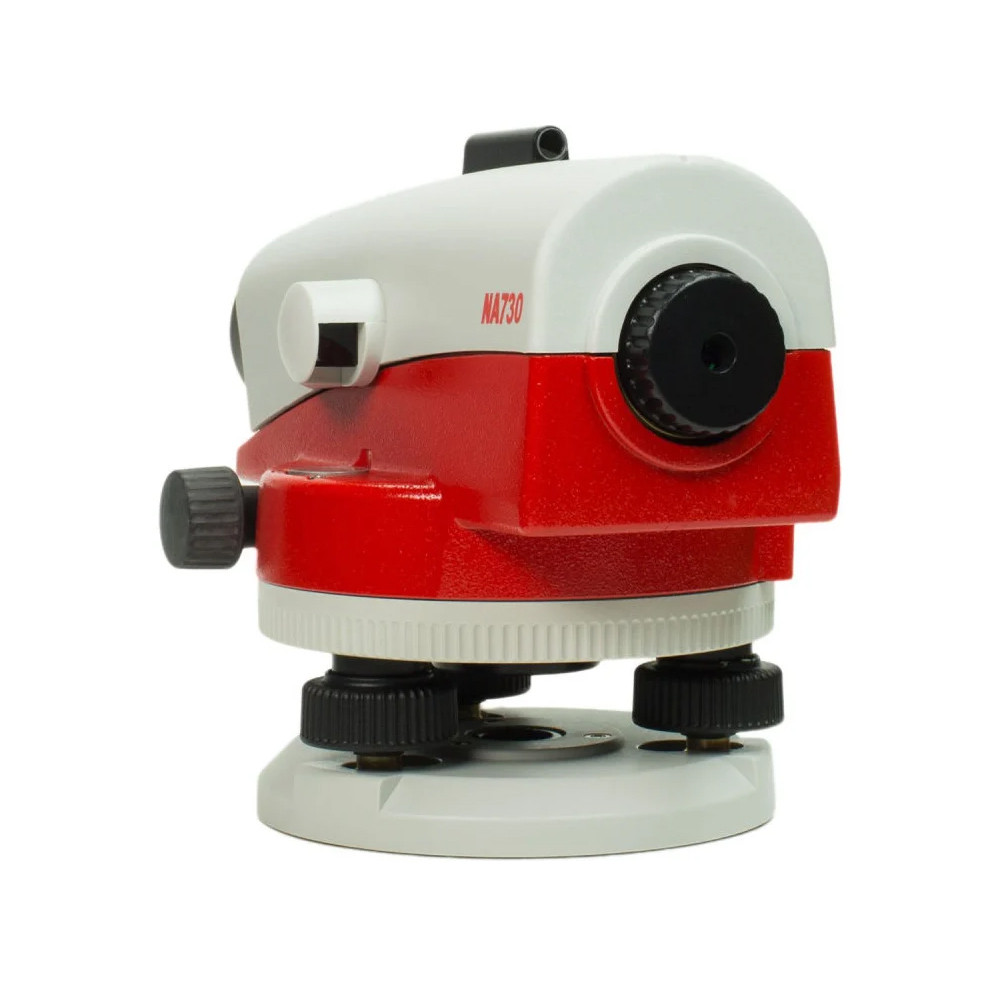

Leica NA730 Automatic Level 30 Power

The Leica NA730 is a professional-grade automatic level engineered for contractors who demand accuracy and durability on the job site. With 30x magnification and a compensator-based leveling system, this optical level delivers reliable elevation readings across a wide range of construction and surveying tasks. Whether you're setting foundations, checking grades, or controlling structural alignment, the NA730 performs consistently in the field conditions contractors actually face.

Overview: Built for the Job Site

The NA730 is part of Leica's trusted NA series of automatic levels, designed to combine optical performance with field-ready durability. The automatic compensator self-levels within the working range, eliminating the need for manual leveling adjustments during use and reducing setup time on busy sites. The instrument is suited for elevation control on commercial and residential construction, civil grading operations, utility installation, and topographic surveys where a reliable, no-frills optical level is the right tool for the task.

Key Specifications

• Magnification: 30x
• Objective Lens Diameter: 36 mm
• Shortest Focusing Distance: 0.5 m (1.6 ft)
• Compensator Type: Magnetic dampened pendulum compensator
• Compensator Working Range: ±15'
• Accuracy (Standard Deviation per km double-run): 2.0 mm
• Telescope Length: 149 mm
• Weight: 1.7 kg (3.75 lbs)
• Operating Temperature: -20°C to +50°C

Key Features

• 30x magnification for clear, detailed rod readings at extended distances
• Automatic compensator ensures fast, accurate setup without manual re-leveling
• High-quality optics with a bright, sharp field of view for precise crosshair alignment
• Compact and lightweight design reduces fatigue during all-day field use
• Robust housing built to withstand dust, moisture, and job site handling
• Circular vial for quick rough leveling before compensator takes over
• Standard tribrach mounting compatible with common surveying accessories
• Horizontal circle for angle reference and layout applications

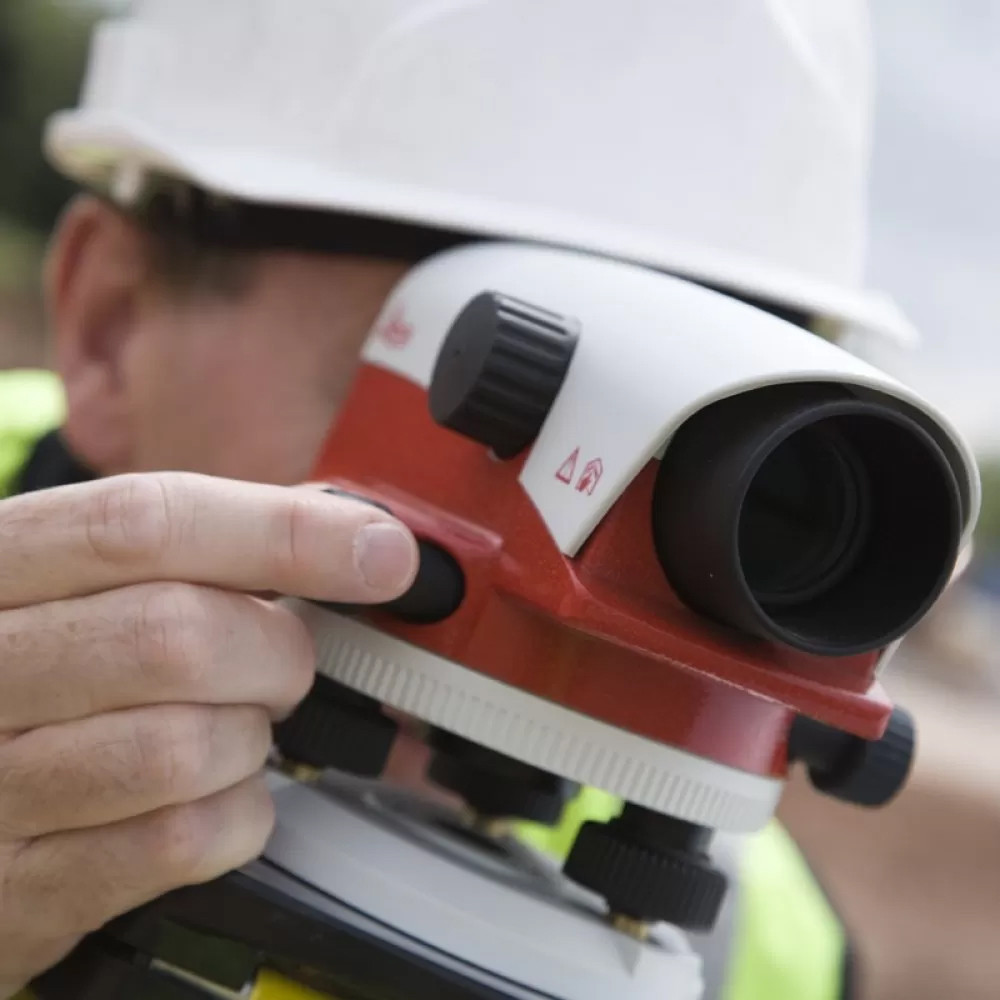

Job Site Applications

The NA730 is a versatile tool across multiple construction and survey disciplines:

• Foundation Layout: Set and verify elevation benchmarks for footings and slabs with the accuracy required for structural integrity.
• Site Grading and Earthwork: Control cut-and-fill operations and verify finish grades on road bases, parking lots, and drainage swales.
• Structural Alignment: Check floor elevations, beam heights, and column bases to ensure structures rise plumb and level from the ground up.
• Utility and Pipeline Installation: Maintain consistent invert elevations for gravity sewer, storm drain, and utility trench work where slope tolerances are tight.

Compatible Accessories

• Leica GST05 Aluminum Tripod — Stable, adjustable tripod for optical levels and total stations
• Leica GS18 Grade Rod — Fiberglass grade rod for precise leveling rod readings

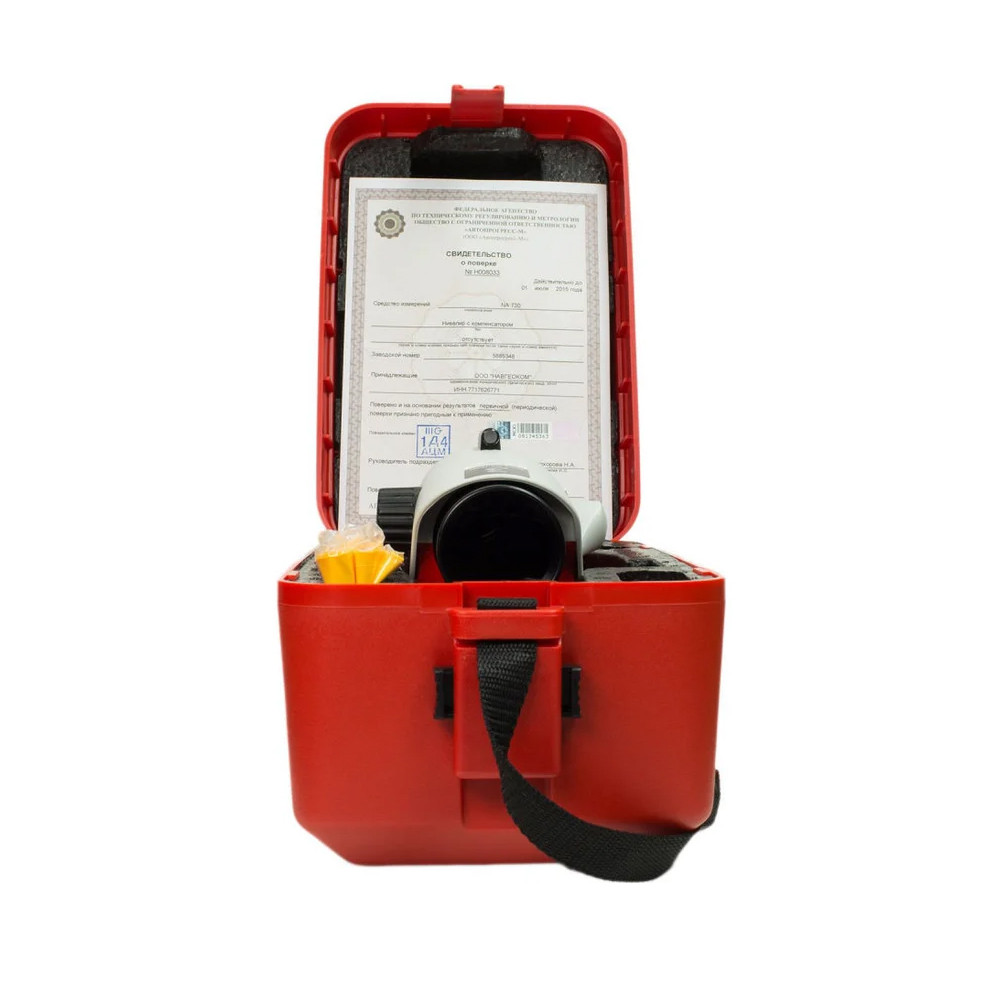

• Leica NA Carrying Case — Protective hard case for transport and storage of the NA730
• Leica Optical Plummet — For setups requiring precise centering over a point

Related Guides

• How to Set Up and Use an Automatic Level on a Construction Site
• Optical Level vs. Laser Level: Choosing the Right Tool for Your Project
• How to Read a Grade Rod Accurately at Distance
• Leica NA Series Automatic Levels: Buyer's Guide

Frequently Asked Questions

What is the accuracy of the Leica NA730?

The NA730 has a standard deviation of 2.0 mm per kilometer of double-run leveling, making it well suited for construction control, foundation work, and general site grading where high accuracy is required.

Does the NA730 require manual leveling before each shot?

No. The magnetic dampened pendulum compensator automatically levels the line of sight once the instrument is roughly leveled using the circular vial. This speeds up setup and reduces operator error during the workday.

What tripod does the Leica NA730 use?

The NA730 mounts on any standard 5/8-inch surveying tripod. Leica's GST05 aluminum tripod is a compatible and commonly recommended option for stable, accurate setups in field conditions.

Is the NA730 suitable for use in wet or dusty conditions?

The NA730 is built with a robust housing designed to handle typical job site exposure, including dust and light moisture. For extended use in heavy rain or fully wet conditions, appropriate protection or a weather-resistant cover is recommended.
