Leica Rugby 680 K2 Automatic Dual Slope Laser Package (6006010-K2) with Deluxe RE160 Receiver - Rechargeable, Tripod and Rod INCHES

Complete Dual-Axis Grading System Ready for Day-One Deployment

The Leica Rugby 680 K2 Package (6006010-K2) is a field-ready dual slope laser system built for contractors who need to work immediately without sourcing additional components. Bundling the Rugby 680 rotating laser, RE160 digital receiver, heavy-duty aluminum tripod, inch-graduated grade rod, and rechargeable batteries into a single shipment, the K2 configuration eliminates procurement delays and gets crews productive from the moment the equipment arrives on site. Whether you're outfitting a new crew, replacing stolen gear, or expanding capacity for a large-scale project, this turnkey package represents the most efficient path to dual-axis grading capability.

Overview and Jobsite Applications

The Leica Rugby 680 is engineered for demanding horizontal and dual-slope grading applications across civil construction, site development, and agricultural leveling. Its dual-axis slope capability allows independent grade control on both the X and Y axes simultaneously — a critical feature for establishing precise cross-slopes on roads, parking lots, drainage channels, and building pads. The instrument's self-leveling range and robust IP67-rated housing make it equally effective in dusty grading environments and wet weather conditions where lesser instruments fail. The RE160 digital receiver provides accurate grade reference at distances where the beam is invisible to the naked eye, giving rod operators reliable cut/fill feedback across large sites.

Key Specifications

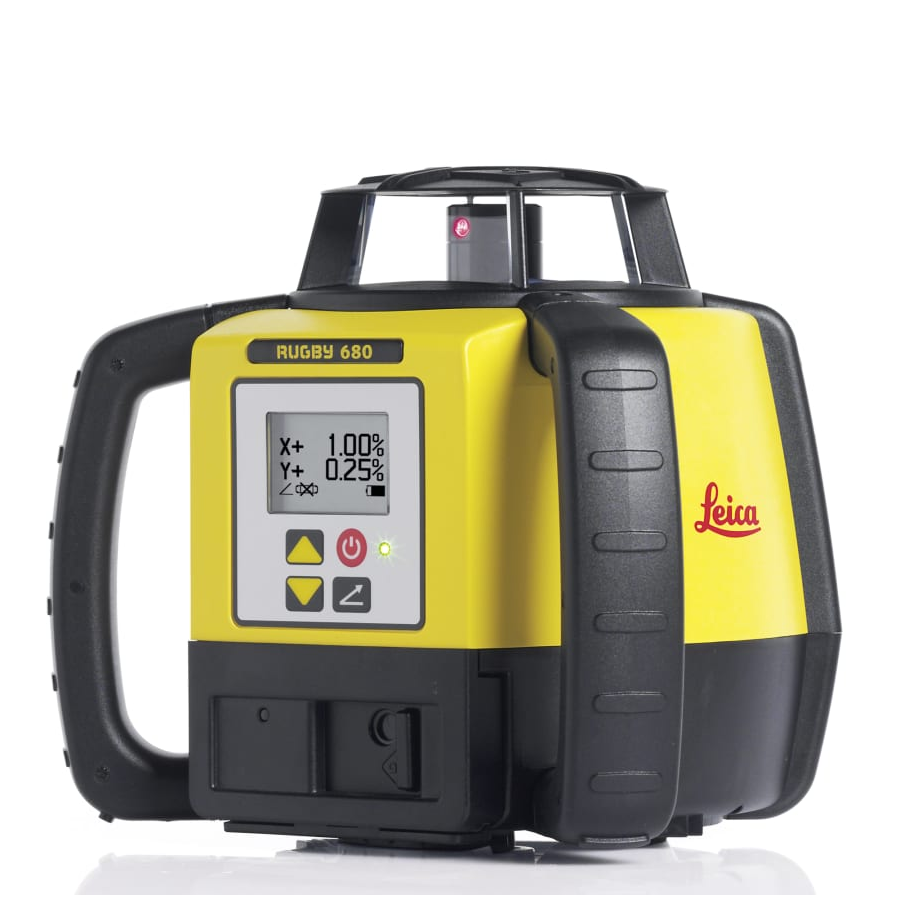

• Model: Leica Rugby 680 Rotating Laser (6006010)
• Dual-Axis Slope Range: ±10% on both X and Y axes simultaneously
• Self-Leveling Range: ±5°
• Accuracy: ±1.5mm at 30m (1/16" at 100 ft)
• Working Range: Up to 700m diameter with RE160 receiver
• Rotation Speed: 300 / 600 / 900 RPM selectable
• IP Rating: IP67 — fully dust-tight and waterproof to 1 meter
• Drop Protection: Survives 1-meter drop to concrete
• Battery: Rechargeable Li-Ion, 30+ hour runtime
• Operating Temperature: -20°C to +50°C (-4°F to 122°F)
• Receiver: Leica RE160 digital grade receiver

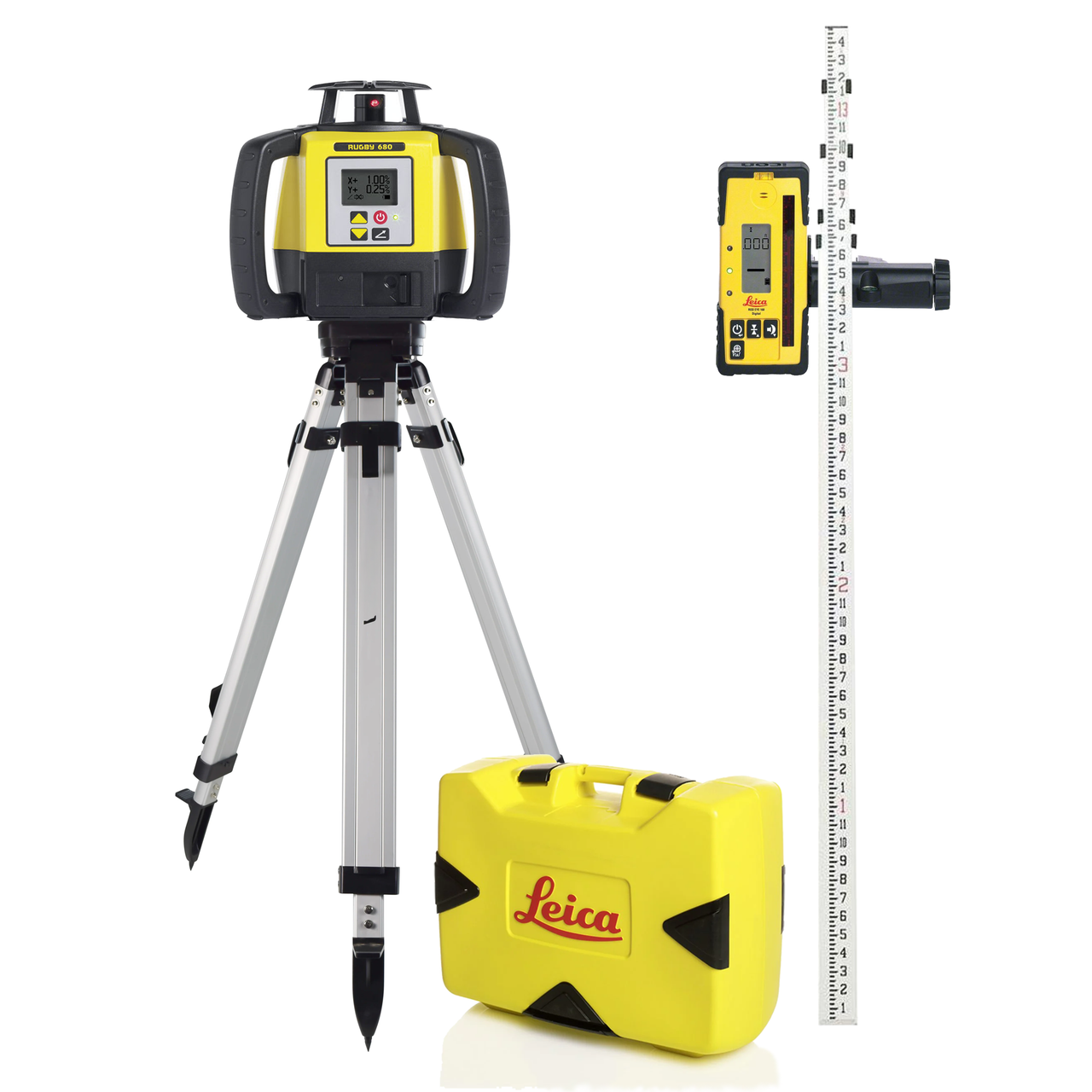

What's in the K2 Package

• Leica Rugby 680 dual slope rotating laser instrument
• Leica RE160 digital receiver with rod clamp and carrying pouch
• Heavy-duty aluminum contractor tripod
• Inch-graduated grade rod (compatible with RE160 display)
• Rechargeable Li-Ion battery pack
• 110V/220V battery charger
• Padded carrying case for the Rugby 680
• Leica certificate of conformance and operator documentation

Job Applications

Parking Lot and Road Subgrade: Establish simultaneous cross-slope and longitudinal grade in a single setup. The Rugby 680's independent dual-axis control eliminates the multiple instrument moves required with single-slope lasers, saving setup time on large paving projects.

Drainage and Retention Basin Grading: Program precise fall angles to direct stormwater flow toward inlets and retention areas. The ±10% slope range covers the steepest drainage gradients encountered in commercial site work.

Agricultural Land Leveling: The long working range and rugged IP67 housing make the Rugby 680 a proven choice for field leveling operations where equipment must survive dust, vibration, and field conditions for extended periods.

Building Pad and Foundation Layout: Verify finished subgrade elevations across large building footprints with consistent accuracy, ensuring flatness tolerances are met before concrete placement.

Compatible Accessories

• Leica RE160 Digital Receiver (standalone replacement)
• Leica Rugby Receiver Pole Clamp Kit
• Leica GHM007 Machine Control Mount
• Replacement Li-Ion Battery for Rugby 680
• Leica Rugby Heavy-Duty Carrying Case
• Aluminum Grade Rod Extensions (metric and imperial)

Related Guides

• How to Set Dual Slope with the Leica Rugby 680 — Step-by-Step
• Rugby 680 vs Rugby 640: Which Laser Is Right for Your Project?
• Choosing the Right Rotating Laser for Site Grading Work
• RE160 Receiver Setup and Calibration Guide

Frequently Asked Questions

Can the Rugby 680 control both slopes independently at the same time?

Yes. The Rugby 680 supports full dual-axis slope mode, allowing you to set different grade percentages on the X and Y axes simultaneously. This is the key advantage over single-slope models and is essential for applications like crowned road surfaces, ADA-compliant parking lots, and complex drainage pads.

What is the working range of the RE160 receiver included in the K2 package?

The Leica RE160 receiver has an effective working range of up to 700 meters in diameter (350m radius) when used with the Rugby 680. Signal reception at that range makes it well-suited for large site grading, airfield work, and agricultural leveling where the rod operator is far from the instrument.

Is the Rugby 680 compatible with machine control systems for dozers or graders?

The Rugby 680 is compatible with Leica and select third-party machine control receivers via the GHM007 and similar mounting systems. For dedicated machine control, verify compatibility with your specific blade control system before purchase. Contact our team for application-specific guidance.

What is included in the K2 package versus the standard 6006010 base kit?

The standard 6006010 base kit includes only the Rugby 680 instrument, RE160 receiver, and batteries. The K2 package (6006010-K2) adds a heavy-duty aluminum tripod and an inch-graduated grade rod, providing everything required for immediate field operation without additional purchases.
