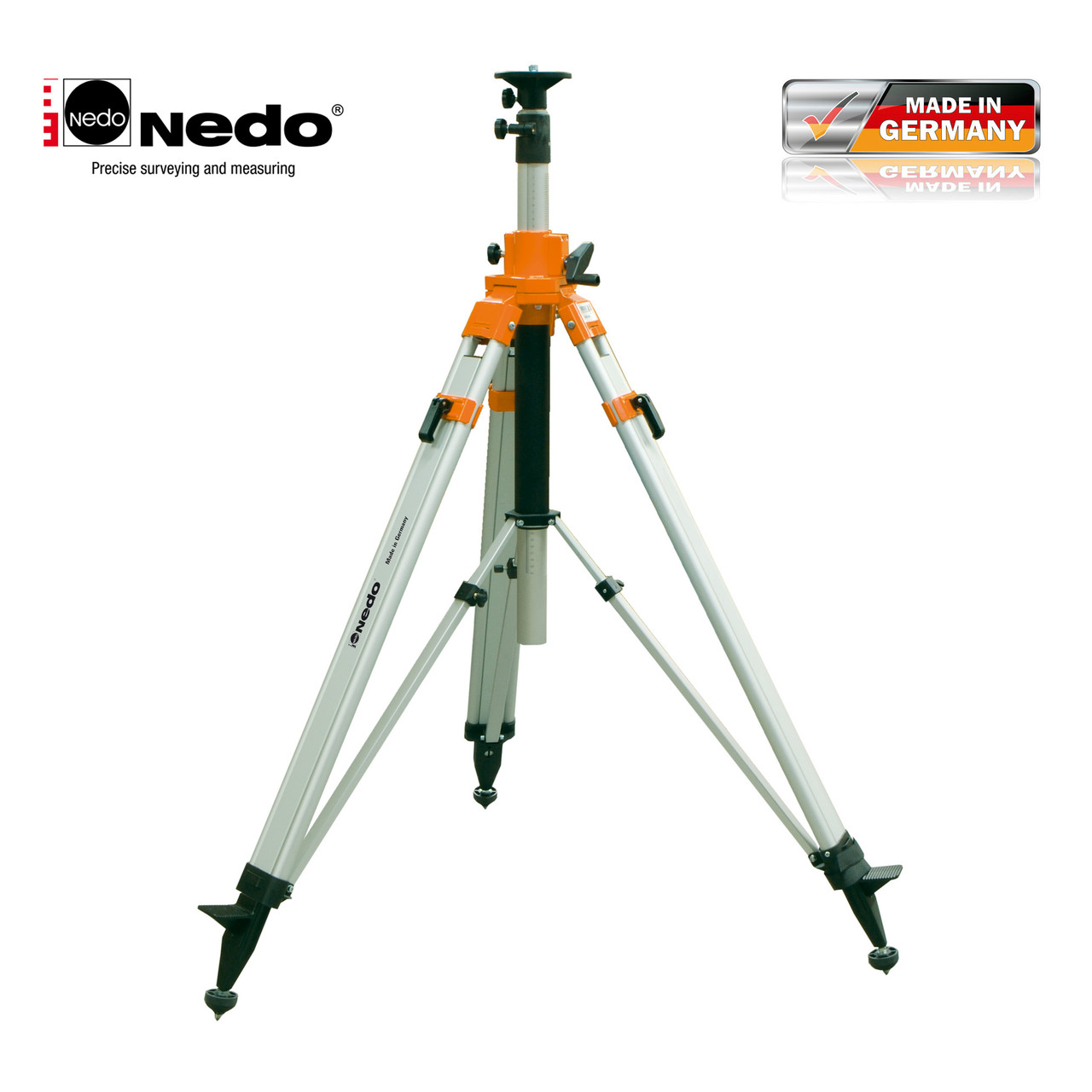

NEDO 210443-185 Extra Heavy-Duty Aluminum GIANT Elevating Tripod (70 to 157-inch)

The NEDO 210443-185 Giant Elevating Tripod is built for survey crews and construction professionals who need extreme working heights without sacrificing instrument stability. Spanning a working height range of 70 to 157 inches, this heavy-duty aluminum tripod lets you establish high control points, clear sightlines over equipment and terrain, and position total stations or GPS receivers at elevation — all without ladders, scaffolding, or temporary platforms. When the job demands precision at height, this is the tripod engineered to deliver it.

Overview & Jobsite Applications

Conventional tripods top out around 65 inches, leaving survey crews without a reliable solution when grade breaks, dense vegetation, stockpiles, or site obstructions block the instrument's line of sight. The NEDO Giant Elevating Tripod solves this with a crank-operated elevating center column that raises the instrument head smoothly and locks it rigidly at any point within its 87-inch extension range. The all-aluminum construction keeps the unit manageable in the field while providing the torsional stiffness required for arc-second-class instruments. Whether you're running a highway corridor, a large earthwork site, or a utility survey through heavy brush, this tripod keeps your crew moving without compromise.

Key Specifications

• Model: NEDO 210443-185
• Minimum Height: 70 inches (approximately 178 cm)
• Maximum Height: 157 inches (approximately 399 cm)
• Center Column Travel: Approximately 87 inches of elevating range
• Leg Material: Heavy-duty extruded aluminum
• Head Type: Flat aluminum instrument head
• Thread Mount: Standard 5/8" x 11 tribrach thread
• Leg Sections: Telescoping with positive locking clamps
• Leg Tips: Steel spike tips for ground penetration
• Elevation Mechanism: Crank-operated center column with locking collar

Key Features

• Extended Elevation Column: Crank-driven column rises well beyond standard tripod height for unobstructed instrument sightlines
• Rigid Aluminum Frame: Extruded aluminum legs resist flex and vibration even at full extension
• Standard 5/8" x 11 Mount: Compatible with tribrachs, adapters, and most professional survey instruments
• Positive Leg Lock Clamps: Each telescoping section locks independently for confident height setting on uneven terrain
• Wide Leg Stance: Broad footprint distributes load and resists tipping when column is at full extension
• Steel Spike Tips: Penetrate soft ground and provide secure anchoring on dirt, grass, and gravel surfaces
• Collapsible Design: Legs fold down for transport and storage despite the unit's extended reach

Job Applications

Highway & Corridor Surveys: Position total stations above guardrails, median barriers, and roadside equipment without closing lanes or erecting temporary platforms. The extended column clears most standard obstructions along road corridors.

Large Earthwork & Grading Sites: Active earthwork sites fill quickly with stockpiles, dozers, and haul trucks. The Giant Elevating Tripod lets instrument operators find clear lines of sight over moving equipment to maintain grade control across wide work areas.

GPS & GNSS Antenna Placement: Elevate GNSS antennas above dense tree canopy edges or urban building shadows to improve satellite geometry and reduce multipath error on challenging sites.

Utility & Pipeline Surveys: Establish high backsights through heavy brush and riparian vegetation without clearing corridors, saving time and reducing environmental impact on sensitive linear project routes.

Compatible Accessories

• NEDO Aluminum Tribrach with Optical Plummet
• NEDO Tribrach Adapter for GPS Antennas
• Universal Prism Pole Tripod Adapter
• Surveying Instrument Carrying Case
• Replacement Steel Spike Tripod Tips

Related Guides

• How to Select the Right Survey Tripod for Your Instrument
• Elevating Tripod Setup & Stability Best Practices
• Total Station Accessories Guide for Construction Crews
• GPS Survey Equipment Setup in Obstructed Environments

Frequently Asked Questions

What instruments are compatible with the NEDO 210443-185?

The tripod uses a standard 5/8" x 11 thread mount, which is compatible with the vast majority of professional survey tribrachs, total stations, theodolites, GPS/GNSS antennas, and optical levels. Always verify your instrument's base thread specification before mounting.

How stable is the tripod at full 157-inch extension?

NEDO engineers the Giant Elevating Tripod with a wide leg stance and rigid aluminum extrusions specifically to maintain stability at full column extension. For best results at maximum height, set the legs at their widest spread, ensure spike tips are firmly seated in the ground, and avoid operating in high wind conditions.

Does the center column elevation mechanism require tools to operate?

The center column is raised and lowered via a built-in crank handle and secured with a locking collar — no additional tools required. The locking collar should be firmly tightened before placing any instrument on the head.

Is this tripod suitable for laser levels as well as optical instruments?

Yes. The 5/8" x 11 mount and flat instrument head accommodate rotary laser levels, pipe lasers, and cross-line lasers equipped with standard tripod adapters, making this tripod versatile across survey, construction layout, and MEP applications.
