NEDO 200534-185 Heavy-Duty Wood Tripod with Dual Locking Clamps

The NEDO 200534-185 Heavy-Duty Wood Surveying Tripod is engineered for survey crews and layout professionals who demand maximum instrument stability on the jobsite. Built from seasoned hardwood legs and equipped with dual aluminum locking clamps, this tripod delivers the torsional rigidity and vibration-damping characteristics that precision instruments require. When micro-movements translate directly into measurement errors, the material properties of quality wood construction give experienced surveyors a measurable edge over standard aluminum alternatives.

Overview & Jobsite Applications

Designed for use with total stations, optical levels, laser levels, and theodolites, the NEDO 200534-185 is a workhorse tripod suited to grade work, boundary surveys, construction layout, and infrastructure projects. Its robust hardwood construction resists the flex and resonance that can compromise instrument readings on uneven or vibration-prone surfaces. The wide footprint and pointed steel shoes anchor firmly in soft ground, asphalt, and packed gravel alike, making this tripod equally at home on a highway corridor survey as it is on a commercial building layout.

Key Specifications

• Model: NEDO 200534-185
• Leg Material: Seasoned hardwood with protective lacquer finish
• Leg Locking Mechanism: Dual aluminum locking clamps per leg
• Mounting Thread: Standard 5/8" x 11 UNC tribrach thread
• Extended Height: Approximately 185 cm (approx. 72.8 in)
• Leg Adjustment: Telescoping with positive-lock aluminum clamps
• Tripod Head: Flat/horizontal hardwood platform head
• Shoe Type: Hardened steel-tipped points
• Construction: Heavy-duty professional grade

Key Features

• Seasoned hardwood legs provide superior torsional rigidity and natural vibration damping compared to aluminum
• Dual aluminum locking clamps on each leg deliver secure, repeatable height settings under field conditions
• Standard 5/8" x 11 tribrach thread accepts total stations, optical levels, laser levels, and theodolites
• Flat head platform ensures stable, level instrument mounting on sloped terrain
• Hardened steel-tipped shoes penetrate soft ground and resist wear on hard surfaces
• Protective lacquer finish seals hardwood legs against moisture, UV, and jobsite grime
• Heavy-duty build rated for professional daily use in demanding survey and construction environments

Job Applications

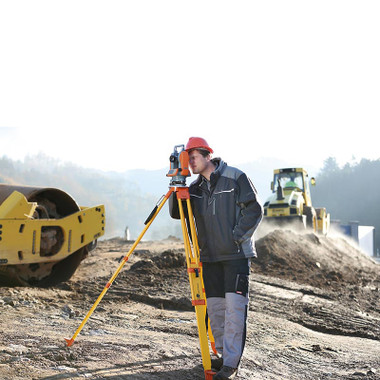

Construction Layout: Set total stations and optical levels with confidence on active construction sites where ground vibration from equipment can introduce instrument drift. The wood construction absorbs and dampens vibration so readings stay consistent throughout the workday.

Boundary & Topographic Surveys: Surveyors working long setups on uneven terrain benefit from the stability and torsional resistance of the hardwood legs, reducing setup time and repeat observations caused by instrument movement.

Infrastructure & Utility Projects: Road, bridge, and utility alignment work demands precise, repeatable instrument positioning. The NEDO 200534-185 holds grade and alignment setups securely even when crews are working around heavy machinery.

Laser Level Control: Rotating laser levels and pipe lasers mounted to this tripod benefit from reduced vibration transmission, extending the effective working range and accuracy of the laser beam across large floor slabs and open structures.

Compatible Accessories

• NEDO Tribrach with Optical Plummet
• NEDO Telescoping Aluminum Rod / Grade Rod
• 5/8" x 11 Adapter for Rotating Laser Levels
• Tripod Carrying Bag / Shoulder Strap
• NEDO Optical Level for Layout Work

Related Guides

• Wood vs. Aluminum Surveying Tripods: Which Is Right for Your Crew?
• How to Set Up and Level a Surveying Tripod for Total Stations
• Choosing the Right Tripod for Rotating Laser Levels
• Tripod Maintenance Guide: Keeping Wood Legs in Field-Ready Condition

Frequently Asked Questions

What instruments are compatible with the NEDO 200534-185 tripod?

The NEDO 200534-185 uses the industry-standard 5/8" x 11 UNC mounting thread, making it compatible with most total stations, optical levels, theodolites, rotating laser levels, and pipe lasers from major manufacturers including Leica, Topcon, Trimble, Spectra Precision, and NEDO.

Why choose a wood tripod over an aluminum tripod for survey work?

Wood construction naturally damps vibration and resists the torsional flex that can cause instrument drift during readings. On jobsites with ground vibration from compactors, generators, or traffic, a quality wood tripod like the NEDO 200534-185 provides more stable instrument support than comparably priced aluminum models.

How do the dual aluminum locking clamps work?

Each telescoping leg section is secured by a dual aluminum locking clamp that tightens against the inner leg with even clamping pressure. This design prevents leg creep under instrument load and allows fast height adjustments in the field without tools. The aluminum clamp hardware resists corrosion and maintains clamping force in wet conditions.

How should I maintain the wood legs on the NEDO 200534-185?

Wipe down the legs after use in wet or muddy conditions and allow them to dry fully before storage. Inspect the protective lacquer finish periodically and apply a wood sealant or outdoor-grade varnish to any areas where the finish has worn through. Store the tripod in a dry location and use a padded carrying bag to prevent impact damage to the leg joints and clamps during transport.
