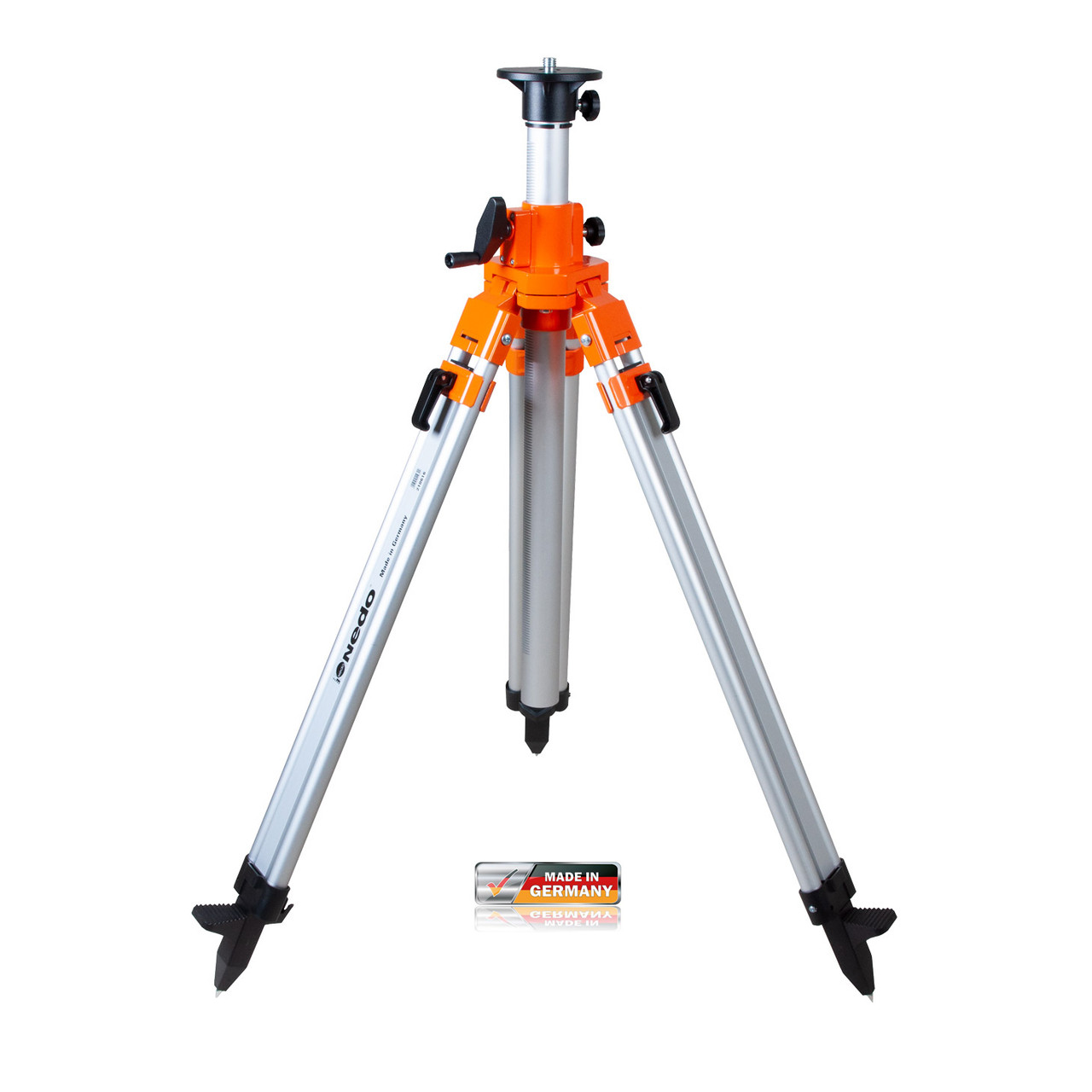

NEDO 210616-185 Medium Duty Aluminum Elevating Tripod (31 to 80-inch)

Professional-Grade Elevating Tripod Built for Precision Layout Work

The NEDO 210616-185 medium duty elevating tripod gives contractors and surveyors a rigid, reliable platform across a wide 31 to 80-inch height range. Whether you're shooting grades across a slope, setting up a laser level at chest height for interior layout, or running a total station on uneven ground, this aluminum tripod adapts without requiring a full re-setup. It's the kind of tool that stays on the truck because it earns its place on every job.

Tripod Overview and Jobsite Applications

Engineered for medium-duty professional use, the NEDO 210616-185 features an elevating center column that extends your working height without repositioning the legs. The aluminum construction keeps the unit manageable for a single operator while maintaining the structural rigidity needed for precision optical and laser instruments. The tripod's flat head accepts standard 5/8-inch x 11 threaded mounts, making it broadly compatible with professional survey and layout equipment. This is a go-to choice for layout crews, utility contractors, civil survey teams, and building trades professionals who need consistent instrument height across changing grade conditions.

Key Specifications

• Model Number: NEDO 210616-185
• Duty Rating: Medium Duty
• Minimum Height: 31 inches (collapsed)
• Maximum Height: 80 inches (fully elevated)
• Head Type: Flat / Elevator head with center column
• Thread Mount: Standard 5/8" x 11
• Construction Material: Aluminum
• Leg Style: Telescoping aluminum legs with quick-clamp locking
• Compatible Instruments: Laser levels, optical levels, theodolites, total stations, rotary lasers

Key Features

• Wide Height Range: 31 to 80 inches of working height covers seated, standing, and elevated instrument positions without relocating the tripod
• Elevating Center Column: Raise or lower your instrument precisely without disturbing leg position or level — critical when maintaining a fixed point during layout
• Aluminum Construction: Lightweight enough for solo transport across a jobsite while delivering the rigidity precision instruments demand
• Secure Leg Clamps: Positive-locking leg clamps hold adjustment under load and vibration — no slipping mid-shot
• Universal 5/8" x 11 Thread: Compatible with the full range of NEDO instruments and most professional survey equipment from other leading manufacturers
• Flat Instrument Head: Provides a stable, level mounting platform for instruments with flat bases, simplifying setup on varied terrain
• Durable Leg Tips: Hardened steel tips grip soil, concrete, and hard surfaces for secure footing in mixed site conditions

Job Applications

Site Layout and Grade Checking: Set instrument height to match your line of sight across grade changes without moving the tripod. The elevating column lets you dial in exact height as terrain shifts.

Interior Finish and MEP Layout: Use the low 31-inch collapsed height for confined spaces or the full 80-inch extension to shoot plumb and level lines across open floor plates or high bay interiors.

Utility and Civil Survey Work: Mount a total station or theodolite for control point work and boundary surveys. The stable aluminum platform holds steady under the weight of heavier optical instruments during extended field sessions.

Rotary Laser Setup: Position a rotary laser at optimum height to maximize coverage across a slab pour, grading operation, or column grid layout without building up makeshift platforms.

Compatible Accessories

• NEDO Aluminum Tripod Carrying Case
• 5/8" x 11 Tripod Adapter Plates
• NEDO Laser Level Receivers and Detectors
• Prism Poles and Rod Accessories
• NEDO Rotary and Line Laser Levels

Related Guides

• How to Choose the Right Tripod for Your Survey Instrument
• Setting Up a Laser Level for Accurate Site Layout
• Tripod Care and Maintenance for Jobsite Longevity
• Total Station Setup Best Practices for Contractors

Frequently Asked Questions

What instruments are compatible with the NEDO 210616-185 tripod?

The NEDO 210616-185 uses a standard 5/8-inch x 11 threaded mount, which is the industry-standard connection for most professional laser levels, rotary lasers, optical levels, theodolites, and total stations. Always verify your instrument's mounting thread before purchase.

What is the benefit of an elevating center column versus standard telescoping legs alone?

The elevating center column lets you raise or lower the instrument head in fine increments without repositioning or re-leveling the legs. This is particularly valuable when you need to maintain a precise setup point while adjusting for different operators, sight lines, or grade changes mid-job.

Is this tripod suitable for heavy total stations and theodolites?

The 210616-185 is rated as a medium duty tripod, making it well-suited for standard optical levels, laser levels, and lighter total stations. For very heavy total stations or robotic survey equipment, consider a NEDO heavy-duty tripod model to ensure maximum stability and longevity.

How do I maintain the tripod for long-term jobsite performance?

After each use, wipe down the aluminum legs and clamps to remove dirt, concrete dust, and moisture. Periodically inspect the leg clamps for wear and ensure the center column threads are clean and lightly lubricated. Store the tripod in a protective case when transporting to prevent leg and clamp damage.
