Will the SitePro Complete Traverse Adapter System work with my existing total station and prism assemblies?

The system is designed for diverse equipment compatibility across professional survey instruments. We recommend reviewing your specific total station model and prism assembly configuration against our equipment compatibility guide—contact our expert support team with your equipment details and we'll confirm compatibility and recommend any additional components before you order.

How do I maintain optical alignment across multiple survey stations using this system?

The system includes optical alignment verification tools and procedures documented in the compatibility guide. Best practice involves verifying alignment after each repositioning, using thread-locking compounds for critical connections, and maintaining detailed equipment compatibility charts for your specific setup. Our support team can walk you through initial setup to establish proper alignment methodology.

What's included in the complete system, and do I need to purchase additional adapter components?

The SitePro Complete Traverse Adapter System includes traverse adapter components, prism assembly integration hardware, total station connection adapters, optical alignment verification tools, and comprehensive documentation. Most professional surveying operations can complete multi-station work with the complete system; however, we recommend keeping spare adapter components on site and consulting our compatibility guide for your specific equipment configuration.

How does this adapter system reduce setup time between survey stations?

By providing all necessary adapters in one system rather than requiring crews to source, verify, and improvise connections, the SitePro system eliminates compatibility confusion and connection delays. Experienced surveyors document their adapter configurations for specific project setups, allowing crews to execute consistent, rapid transitions between measurement stations throughout the survey operation.

What field problems does this system prevent on multi-station surveying operations?

The system prevents optical misalignment caused by incompatible connections, connection loosening during field repositioning, and equipment configuration complexity that slows down crews. Professional-grade construction and thread-locking compound recommendations ensure connections remain stable across multiple setups, maintaining measurement accuracy from first station through final survey closure.

Do you offer technical support for equipment integration issues in the field?

Yes—Express Tools support team provides detailed guidance on equipment compatibility, setup procedures, alignment verification, and troubleshooting. Contact us before your project starts to confirm your specific total station and prism assembly compatibility, and reach out anytime during field operations if you encounter integration questions or need technical assistance.

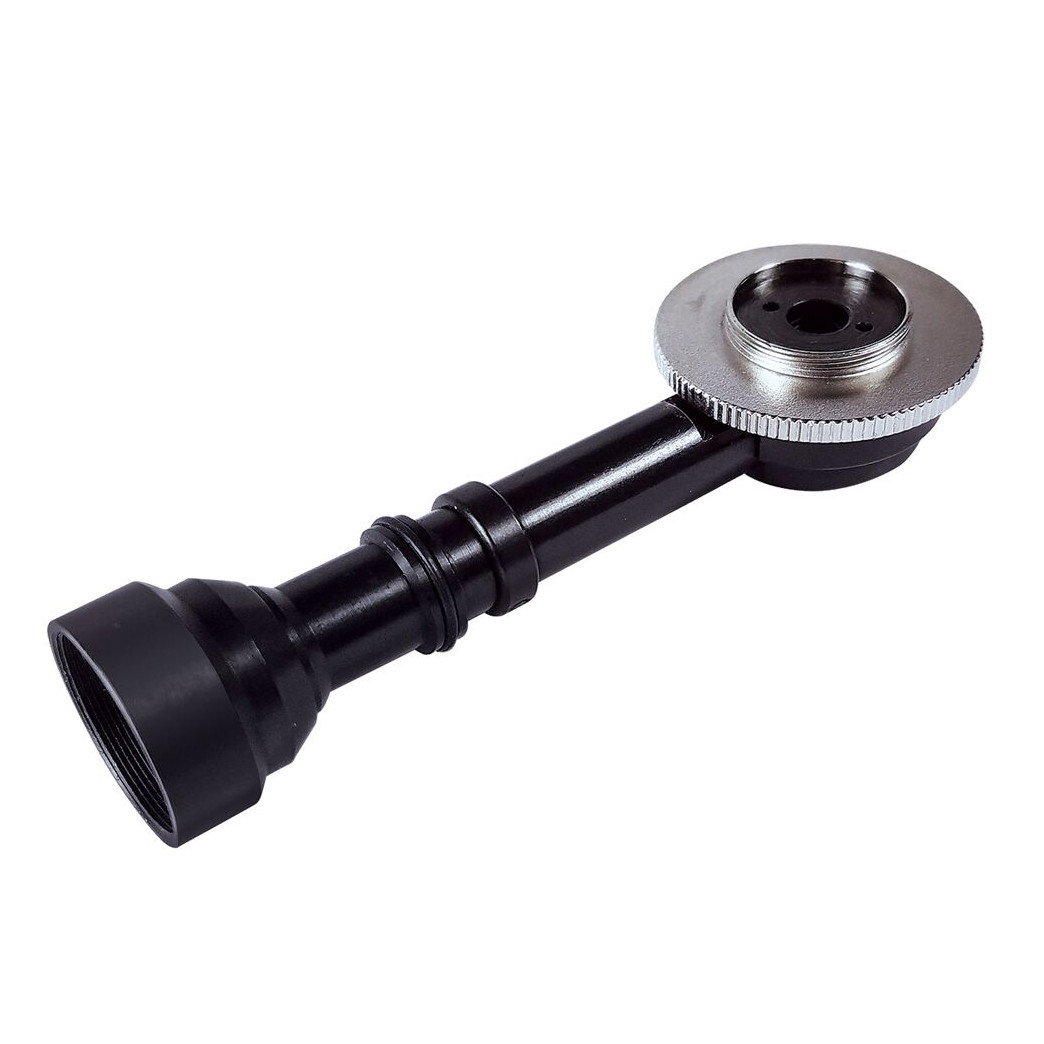

SitePro 26-DT8EP Diagonal Eyepiece for DT-205

← Drag to rotate →

Ships same day on in-stock orders before 2 PM CT

Authorized dealer · genuine, factory-fresh equipment

Compatibility & setup details on every product page

At a Glance

Knowledge Summary: The SitePro Complete Traverse Adapter System provides professional-grade connectivity solutions for multi-station surveying operations. Civil engineers, land surveyors, and construction crews depend on this system to integrate prism assemblies with diverse total station equipment and traverse methodologies. Traverse surveys form the backbone of professional land surveying and construction layout, requiring dependable adapters that maintain optical alignment and measurement accuracy across multiple setups. The system streamlines field operations across different equipment configurations, whether establishing control points, performing boundary verification, or documenting complex property boundaries. Investment-grade equipment ensures reliable connections and precise measurements in demanding professional surveying environments.
Type: Traverse adapter system
Product Type: Traverse adapter system
Application: Multi-station surveying operations
Primary Function: Integrating prism assemblies across multi-station surveying operations
Grade: Professional-grade

SitePro26-DT8EPSKU 05-3511-KNew

Accessories →

SitePro 26-DT8EP Diagonal Eyepiece for DT-205

$185.00

Need 5+? Request volume pricing →

In Stock·Ships same day before 2 PM CT

Qty:

Grade

Handles Professional-grade so crews can match design slopes.

Authorized SitePro Dealer

Genuine, factory-fresh SitePro equipment with legitimate firmware and calibration documentation.

Same-Day Shipping

In-stock orders placed before 2 PM CT ship the same day.

Buy With Confidence

Compatibility and setup details on every product, plus our AI assistant for quick questions.

Ask the AI Assistant

Stock, compatibility, and ordering questions answered instantly

Authorized dealerGenuine, factory-fresh SitePro equipment

Same-day shippingOrders before 2 PM CT ship today

30-day returnsUnused equipment in original packaging

Authorized Dealer

Genuine equipment sourced straight from manufacturer partners.

Ships Same Day

Orders placed before 2 PM CT leave the dock today.

Genuine Gear

Factory-fresh, authentic units with legitimate firmware.

Best-Price Guarantee

Authorized-dealer pricing on every unit — request a quote anytime.

Kit Builder

Not sure what goes with this accessory?

Answer a few job questions and our Kit Builder assembles the full setup — receiver, rod, tripod, and case matched to your workflow.

Build your kit

Quick Answer

What is the SitePro 26-DT8EP?

The SitePro 26-DT8EP Diagonal Eyepiece for DT-205 is a SitePro professional jobsite instrument. It's available from Express Tools as an authorized SitePro dealer with same-day shipping on in-stock orders.

FIELD APPLICATIONS

What contractors use this accessories for

Multi-Station Control Point Establishment

Surveying crews establish baseline control networks for large-scale construction sites by quickly connecting different total station equipment and prism assemblies across multiple setup points. The complete adapter system eliminates equipment compatibility issues, allowing crews to focus on precise measurements rather than troubleshooting connections.

Boundary Verification and Property Documentation

Land surveyors perform detailed property boundary surveys requiring seamless transitions between different measurement stations and equipment configurations. The system maintains optical alignment across multiple setups, ensuring consistent measurement accuracy throughout complex boundary documentation operations.

Complex Site Layout and Grading Documentation

Construction crews managing large-scale site documentation integrate diverse survey instruments across multiple locations without equipment configuration delays. The streamlined adapter system reduces setup time between stations, accelerating overall survey completion on demanding grading and layout projects.

Multi-Equipment Integration on Mixed Instrument Sites

Civil engineers coordinate surveying operations where total stations, laser instruments, and optical scopes from different manufacturers must work together seamlessly. The complete traverse adapter system provides unified connectivity that maintains measurement accuracy despite equipment diversity.

Field Operations Across Challenging Terrain

Survey teams working on complex terrain requiring frequent repositioning and equipment transitions rely on the system's reliable connections that withstand field vibration and movement. Professional-grade construction prevents optical misalignment and connection loosening during demanding multi-point operations.

PRODUCT OVERVIEW

Product Description

The SitePRO DT8EP Diagonal Eyepiece is a purpose-built optical accessory for the DT-205 5-inch digital transit theodolite series. When your work demands sighting steep vertical angles — think utility poles, cell towers, high-rise structural columns, or rooftop antenna arrays — the DT8EP rotates your viewing position by 90 degrees, letting you look straight down into the eyepiece instead of craning your neck skyward. The result is less operator fatigue, faster setups, and more accurate readings on the angles that matter most.

Overview & Jobsite Applications

Steep vertical angle measurements are a persistent challenge on construction and survey sites. Standard inline eyepieces force operators into awkward, neck-straining postures when targets are high overhead, increasing the likelihood of misreads and measurement errors. The DT8EP eliminates that problem entirely by deflecting the optical path 90 degrees. Whether you're setting batter boards on a multi-story structure, locating utility crossings on a vertical face, or performing as-built verification on a communications tower, the DT8EP keeps your body in a natural, stable stance so your readings stay consistent across a full shift.

Key Specifications

Model: DT8EP
Compatible Instrument: SitePRO / David White DT-205 5-inch Digital Transit Theodolite Series
Optical Deflection Angle: 90 degrees
Attachment Type: Direct-fit ocular thread mount — no adapter required
Optical Glass: Fully coated optics for maximum light transmission
Housing Material: Machined aluminum body with protective matte finish
Magnification: Matched to DT-205 objective for consistent focal performance
Weight: Lightweight design — minimal impact on instrument balance

Key Features

90-degree diagonal viewing angle eliminates neck strain on steep vertical shots
Direct ocular thread mount — installs and removes in seconds without tools
Fully coated optics maintain image clarity and brightness matching the standard eyepiece
Machined aluminum construction withstands daily field handling and temperature variation
Compact form factor — stores easily in the DT-205 instrument case
Compatible with existing DT-205 eyepiece diopter adjustment for operator-specific focus
Authorized SitePRO accessory — engineered to OEM optical alignment specifications

Job Applications

High-Rise Structural Layout: Plumbing columns, curtain wall anchor points, and elevation control marks on multi-story buildings requires repeated steep vertical sights. The DT8EP keeps your instrument operator comfortable and productive across a full concrete pour or steel erection sequence.

Utility & Telecommunications Tower Work: Locating attachment points, verifying plumb on guyed towers, and documenting as-built antenna positions all involve looking nearly straight up. The diagonal eyepiece makes these sights routine rather than physically demanding.

Topographic Survey on Steep Terrain: Hillside topo work often requires high-elevation backsights and foresights. The DT8EP reduces operator movement between instrument setups and keeps readings accurate even when ground conditions limit your positioning options.

Forensic & Legal Survey Documentation: When documenting overhead obstructions, encroachments, or rights-of-way on vertical structures, consistent and repeatable angle readings are critical. The ergonomic advantage of the DT8EP supports the precise, deliberate workflow that legal-grade survey documentation demands.

Compatible Accessories

Related Guides

Frequently Asked Questions

Will the DT8EP fit any other theodolite besides the DT-205?: The DT8EP is engineered specifically for the SitePRO / David White DT-205 5-inch digital transit theodolite series. The ocular thread dimensions and optical path are matched to that instrument family. It is not guaranteed to fit other brands or models without verification of thread compatibility.
Does the diagonal eyepiece affect magnification or image quality?: No. The DT8EP uses fully coated optical glass matched to the DT-205 objective, so magnification and image resolution remain consistent with the standard eyepiece. Light transmission is maintained through the prism deflection assembly for a clear, bright image.
How do I install and remove the DT8EP in the field?: Installation is straightforward — unthread your existing standard eyepiece from the ocular end of the DT-205 telescope, then thread the DT8EP into the same mount. No tools, adapters, or recalibration are required. The process takes under a minute, making it practical to swap back and forth as job conditions change.
Is the DT8EP covered under a warranty?: As an authorized SitePRO dealer, Express Tools carries the manufacturer's warranty on all SitePRO accessories including the DT8EP. Please contact our team for current warranty terms and any support needs after purchase.

Why This Equipment

Authorized Dealer

Genuine, factory-fresh inventory with legitimate firmware and calibration documentation.

Same-Day Shipping

In-stock orders placed before 2PM ship same day from our Texas warehouse.

Expert Support

Call or chat with a contractor equipment specialist before and after your purchase.

Free Shipping

Free ground shipping on orders $99+ to the continental US.

KIT CONTENTS

What's In The Box

Traverse Adapter Components
Prism Assembly Integration Hardware
Total Station Connection Adapters
Optical Alignment Verification Tools
System Documentation and Equipment Compatibility Guide

Why Buy This?

Professional-grade equipment, authorized dealer pricing.

The tools contractors trust on municipal infrastructure, commercial projects, and high-tolerance earthwork aren't available at hardware stores — and they shouldn't be. This equipment is engineered for professionals, and buying it through an authorized dealer means you get full manufacturer support when it matters.

Express Tools carries only factory-fresh inventory from brands contractors specify by name. No gray-market product, no import-spec units, just authentic gear with legitimate firmware and calibration documentation.

Same-day shipping on in-stock items, expert support before and after the sale, and a 30-day return window on most products. If you have questions about specs, compatibility, or applications, call us — we know this equipment.

TECHNICAL SPECS

Specifications

Technical Specs

Manufacturer data and field-verified measurements.

Knowledge Summary	The SitePro Complete Traverse Adapter System provides professional-grade connectivity solutions for multi-station surveying operations. Civil engineers, land surveyors, and construction crews depend on this system to integrate prism assemblies with diverse total station equipment and traverse methodologies. Traverse surveys form the backbone of professional land surveying and construction layout, requiring dependable adapters that maintain optical alignment and measurement accuracy across multiple setups. The system streamlines field operations across different equipment configurations, whether establishing control points, performing boundary verification, or documenting complex property boundaries. Investment-grade equipment ensures reliable connections and precise measurements in demanding professional surveying environments.
Type	Traverse adapter system
Product Type	Traverse adapter system
Application	Multi-station surveying operations
Primary Function	Integrating prism assemblies across multi-station surveying operations
Grade	Professional-grade
Grade	Professional-grade
SKU	05-3511-K
Key Feature 1	Professional-grade connectivity
Key Feature 2	Multi-station integration
Key Feature 3	Optical alignment maintenance
Key Feature 4	Measurement accuracy preservation
Key Feature 5	Diverse equipment compatibility
Key Feature 6	Streamlined field operations
Use Cases	Traverse survey establishment; Control point verification; Boundary documentation; Property boundary surveying; Multi-equipment integration; Complex site layout
Setup Steps	Identify equipment to be connected \| Select appropriate adapter components \| Connect prism assemblies to adapters \| Attach adapter system to total station \| Verify optical alignment \| Test connection integrity
Pro Tips	Document adapter configurations for each project setup \| Keep spare adapter components on site \| Verify alignment after each repositioning \| Use thread-locking compounds for critical connections \| Maintain detailed equipment compatibility charts
Compatible Equipment	Prism assemblies; Total stations; Traverse equipment; Optical scopes; Laser instruments; Various survey instruments
Common Issues	Adapter compatibility confusion \| Optical misalignment \| Connection loosening during field work \| Equipment configuration complexity
