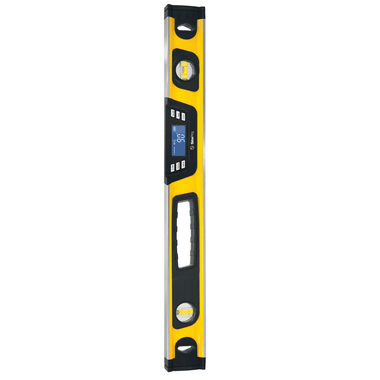

SitePRO 29-DL48 48-Inch Digital Smart Level / 48- Inch Digital Box Level

The SitePRO 29-DL48 48-Inch Digital Box Level combines the dependability of a traditional vial level with the precision of an electronic digital display, giving contractors a single tool capable of confirming level, plumb, and exact slope on virtually any jobsite. Built around a rugged extruded aluminum box frame and powered by an integrated LCD angle sensor, the 29-DL48 eliminates guesswork when grade tolerances matter — whether you're setting concrete forms, aligning structural steel, pitching HVAC ductwork, or finishing interior trim.

Digital Precision Meets Jobsite Durability

The 29-DL48 is engineered for the demands of professional contractors. Its full-length aluminum box frame resists flex and impact, while the sealed digital module protects internal electronics from dust and moisture on active construction sites. The large backlit LCD displays angle readings in both degrees and percent slope, so you can communicate grade to engineers and inspectors using the units they require — without conversion charts or extra tools. Dual precision vials remain fully functional as a backup, meaning you're never dependent on battery power to get work done.

Key Specifications

• Model: SitePRO 29-DL48
• Length: 48 inches (4 feet)
• Frame Material: Extruded aluminum box profile

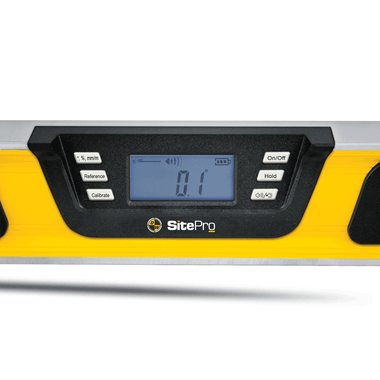

• Display: Backlit LCD, reads in degrees and percent slope
• Measurement Range: 0–90° in all four quadrants
• Accuracy: ±0.1° digital / standard vial accuracy
• Vials: Dual precision acrylic vials (level & plumb)
• Working Faces: Top, bottom, and side faces milled for accuracy
• Power: Standard batteries (included)
• Auto Power-Off: Yes, for battery conservation
• Hold Function: Freeze reading for hands-free transfer

Key Features

• Dual Measurement Modes: Switch between degree and percent slope readout instantly to match project specs
• Backlit LCD Display: Clearly readable in low-light conditions such as crawl spaces, attics, and framed wall cavities
• Hold/Freeze Function: Lock the current reading to record or transfer measurements without a second set of hands
• Milled Working Faces: Top, bottom, and both side faces precision-machined for accurate contact on any surface
• Rugged Aluminum Box Frame: Full-length box construction resists twisting and bending under field conditions
• Dual Acrylic Vials: Traditional level and plumb vials allow work to continue even if batteries are depleted
• Auto Shut-Off: Extends battery life during multi-stage layout work
• 48-Inch Working Length: Ideal for spanning studs, beams, and large panel surfaces for accurate single-pass readings

Jobsite Applications

Concrete Formwork: Set and verify precise grade on wall forms and slabs — dial in exact percent slope for drainage planes and confirm level pours with digital certainty before concrete is placed.

Steel Erection & Structural Work: Check column plumb and beam level on steel frames where degree-based tolerances are specified by engineering drawings. The 48-inch frame spans wide flange sections for stable, reliable contact.

HVAC & Mechanical Installations: Pitch ductwork, drainage lines, and equipment bases to exact slope specifications. Switching between degree and percent readout keeps you aligned with mechanical plans without manual conversion.

Finish Carpentry & Interior Trim: Install cabinets, countertops, stair stringers, and door frames to tight tolerances. The backlit display and hold function make solo installs faster and more accurate.

Compatible Accessories

• Replacement Batteries for SitePRO Digital Levels
• SitePRO Level Cases & Protective Bags
• SitePRO Magnetic Level Attachments
• Digital Level Calibration Tools

Related Guides

• How to Read Percent Slope vs. Degrees on a Digital Level
• Choosing the Right Level Length for Your Application
• Digital vs. Traditional Vial Levels: Which Should Contractors Use?
• How to Calibrate a Digital Box Level in the Field

Frequently Asked Questions

Can the SitePRO 29-DL48 display readings in both degrees and percent slope?

Yes. The 29-DL48 features selectable readout modes, allowing you to toggle between degree and percent slope display directly on the unit. This makes it easy to work from either engineering drawings or site grading plans without manual conversion.

Does the digital display work if the batteries die?

Yes. The 29-DL48 includes two precision acrylic vials — one for level and one for plumb — that operate independently of the digital module. If batteries run out mid-job, the traditional vials remain fully functional so work doesn't stop.

What does the Hold function do on the 29-DL48?

The Hold function freezes the current angle reading on the LCD display. This is useful when working in tight spaces where you can't easily read the display while the level is in position, or when transferring a reading to another location without a helper.

Is the SitePRO 29-DL48 accurate enough for structural steel and concrete work?

Yes. The digital sensor provides ±0.1° accuracy, and the precision-milled working faces ensure solid, accurate contact on structural members, forms, and flat surfaces. It is well-suited for formwork, steel erection, and mechanical installations where tight tolerances are specified.
