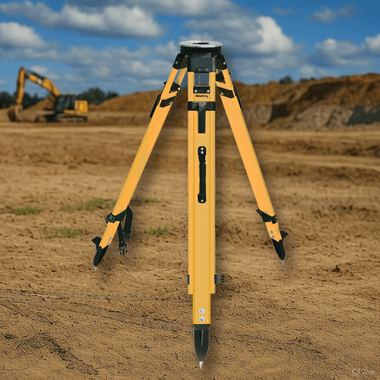

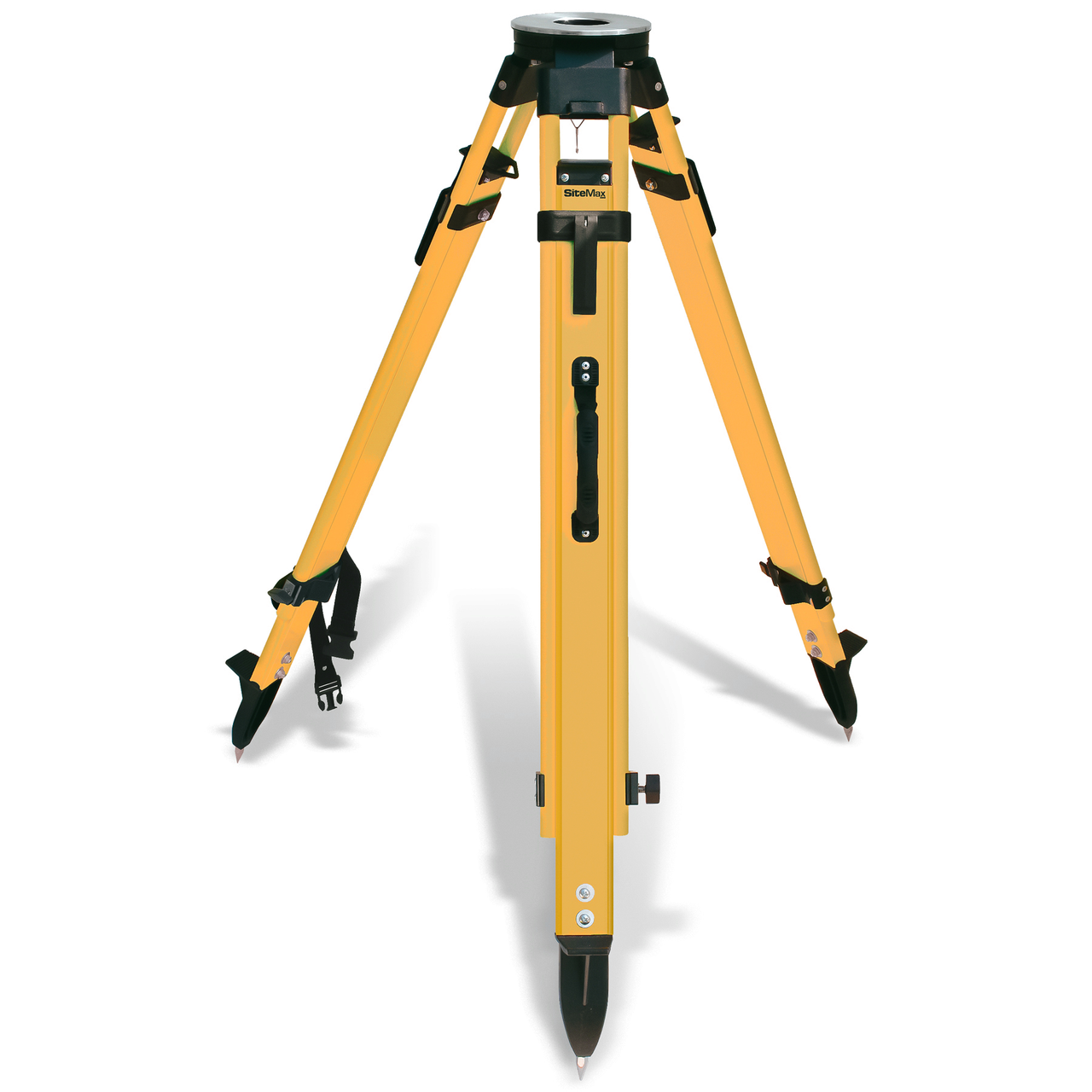

SitePro HVFG20-DCB SiteMax Heavy-Duty Fiberglass Dual Clamp Tripod Black Hardware

Overview

The SitePro HVFG20-DCB SiteMAX Heavy-Duty Fiberglass Dual-Clamp Tripod sets the industry benchmark for professional surveying equipment built to withstand the harshest job site conditions. Engineered for surveyors, civil engineers, and construction professionals who refuse to compromise on stability, this premium tripod delivers unwavering performance in high-vibration environments, extreme weather, and demanding terrain where standard equipment fails.

Featuring SitePro's proprietary dual-clamp leg locking system, this tripod provides twice the holding power of conventional single-clamp designs, eliminating drift during critical measurements and ensuring your total station, GPS receiver, or laser level remains precisely positioned throughout extended sessions. The reinforced fiberglass construction resists warping, moisture absorption, and thermal expansion—maintaining dimensional accuracy regardless of temperature fluctuations or humidity levels that compromise wooden or aluminum alternatives.

With heavy-duty black powder-coated hardware designed to resist corrosion in coastal and industrial environments, adjustable leg angles for uneven terrain, and a weight capacity that accommodates even the heaviest surveying instruments, the HVFG20-DCB represents the maximum durability tier in professional tripod engineering. This is the tripod serious professionals choose when instrument security and measurement integrity are non-negotiable.

Key Specifications

• Model Number: HVFG20-DCB
• Leg Material: Heavy-duty reinforced fiberglass with moisture-resistant coating
• Locking System: Dual-clamp design with independent lock mechanisms per leg section
• Hardware Finish: Black powder-coated steel for maximum corrosion resistance
• Extended Height: Approximately 72 inches (6 feet)

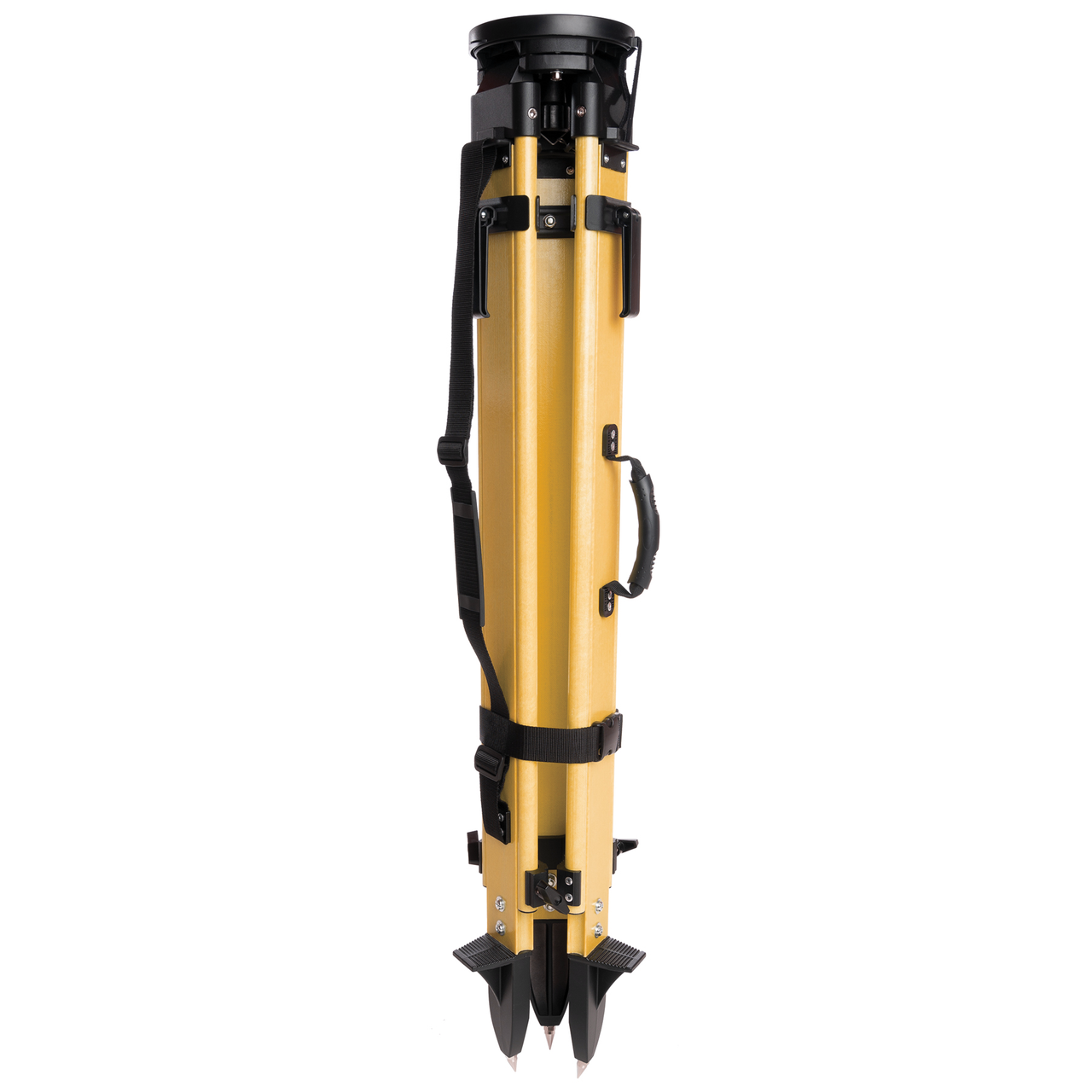

• Collapsed Height: Approximately 44 inches for transport and storage
• Head Thread: Standard 5/8 x 11 TPI mount (compatible with all industry-standard instruments)
• Weight Capacity: Supports instruments up to 35 pounds
• Tripod Weight: 14.5 pounds (robust enough for stability, portable enough for fieldwork)
• Leg Angle Settings: Multiple positions for terrain adaptation
• Point Type: Replaceable steel points with non-slip foot options
• Temperature Range: Rated for -20°F to 140°F operation without material degradation

What's in the Kit

• SitePro HVFG20-DCB heavy-duty fiberglass tripod with dual-clamp leg locks
• Powder-coated black hardware fully installed and calibrated

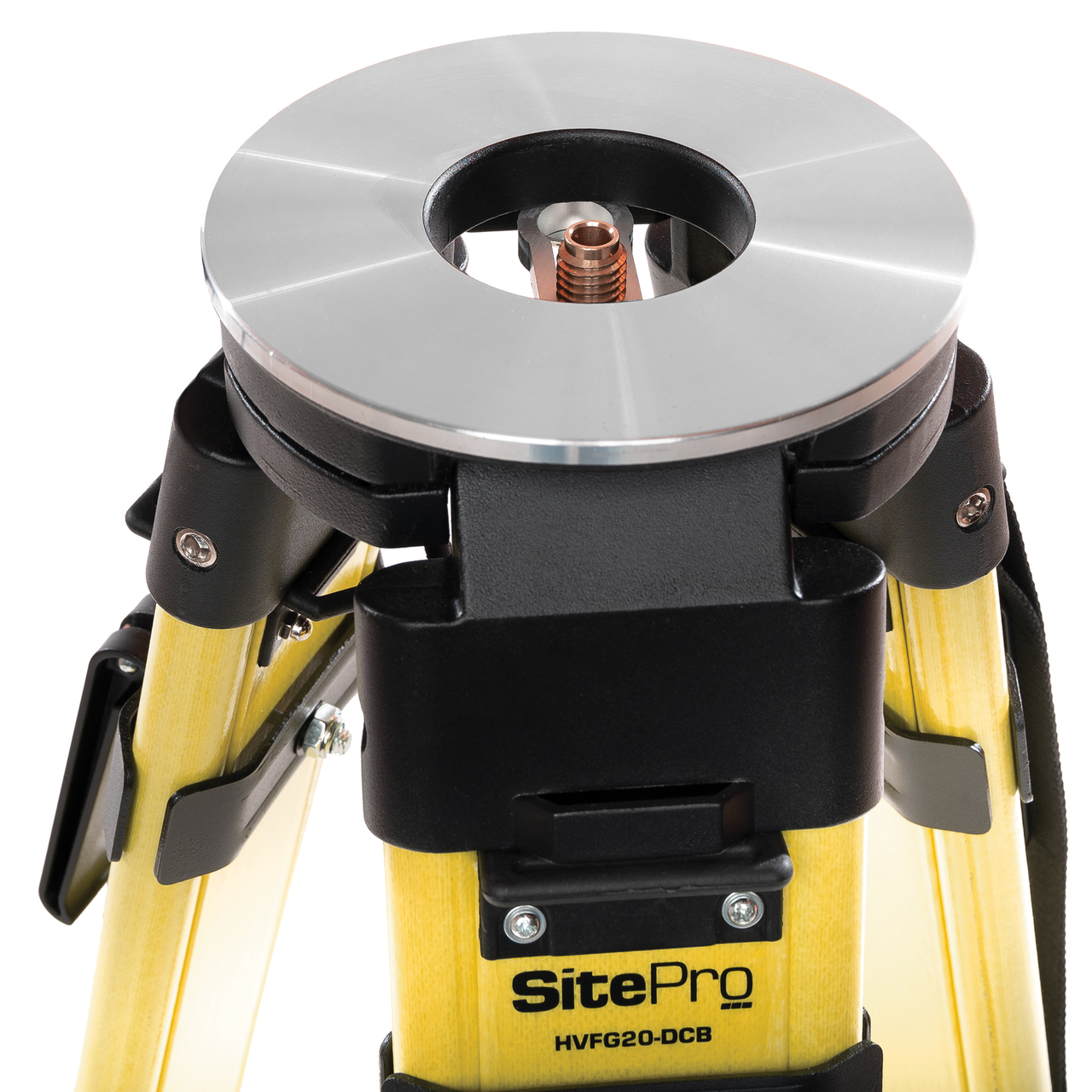

• Standard 5/8 x 11 mounting head with precision-machined threads
• Steel replacement points (set of 3)
• Protective shoulder strap for single-person transport
• Quick-reference setup guide with safety instructions
• SitePro manufacturer warranty documentation

Job Applications

• Heavy Equipment Construction Sites: The dual-clamp system eliminates instrument drift caused by pile driving, excavation, and vehicular traffic vibrations, ensuring layout accuracy even when dozers and excavators operate nearby—critical for maintaining grade control and as-built documentation without constant re-leveling.
• Coastal and Marine Surveying: Fiberglass construction won't corrode in salt-air environments where metal tripods deteriorate rapidly, while the moisture-resistant coating prevents water absorption that causes dimensional instability in traditional wooden tripods during tide monitoring, marina construction, and shoreline engineering projects.
• Highway and Bridge Projects: High-wind stability from the reinforced legs and dual locks keeps instruments secure during roadside surveying where passing trucks create constant air turbulence, protecting expensive equipment while maintaining positional accuracy for alignment stakeout and structural monitoring over multi-month projects.
• High-Precision Control Networks: The fiberglass material's thermal stability prevents expansion and contraction that introduces measurement errors in GPS base stations and static positioning sessions, making this tripod ideal for establishing geodetic control points and monitoring networks where millimeter-level accuracy is essential.
• Mining and Industrial Facilities: Black hardware resists chemical exposure and corrosive atmospheres in plants, refineries, and quarries, while the heavy-duty construction withstands the punishment of daily setup/teardown cycles in abrasive environments where equipment longevity directly impacts operational costs.
• Winter and Extreme Weather Surveying: The temperature-rated materials maintain structural integrity during snow removal surveys, winter construction monitoring, and cold-weather site development when other tripods become brittle or seize up, extending your productive season regardless of climate conditions.

Compatible Accessories

• SitePro heavy-duty tribrachs with optical plummets for total station mounting
• Quick-release tribrach systems for rapid instrument changes in production surveying
• GPS receiver mounts and adapter plates for GNSS base/rover configurations
• Rotating laser level mounts for construction grade control applications
• Tripod head adapters for photogrammetry and 3D scanning equipment
• Replacement steel points and foot pads for various surface conditions
• Carrying cases and protective covers sized for heavy-duty tripods
• Instrument lights and battery mounts for low-light operation
• Plumb bob hooks and accessories for conventional setup methods

Related Guides

• Complete Guide to Choosing the Right Survey Tripod for Your Application
• Tripod Maintenance Best Practices: Extending Equipment Lifespan in Harsh Conditions
• Fiberglass vs. Wood vs. Aluminum Tripods: Material Comparison for Professional Surveying
• Setting Up Rock-Solid Instrument Stations on Difficult Terrain

FAQ

What makes the dual-clamp system superior to standard single-clamp tripods?

The dual-clamp design features two independent locking mechanisms on each leg section rather than one, effectively doubling the holding force and eliminating the gradual leg slippage that occurs with single clamps under vibration or when supporting heavy instruments over extended periods. This translates to fewer re-levelings, maintained accuracy in active construction zones, and confidence that your instrument won't shift during critical measurements.

Why choose fiberglass over wood or aluminum for surveying tripods?

Fiberglass offers the ideal combination of dimensional stability, weather resistance, and durability. Unlike wood, it won't absorb moisture, swell, warp, or rot. Unlike aluminum, it won't corrode in salt air, doesn't conduct temperature extremes to your hands, and provides superior vibration damping. The thermal expansion coefficient of fiberglass is also significantly lower than aluminum, maintaining positional accuracy during temperature changes—essential for high-precision control work and long GPS observation sessions.

Can this tripod handle robotic total stations and heavy scanning equipment?

Absolutely. With a 35-pound weight capacity and reinforced construction specifically engineered for heavy instruments, the HVFG20-DCB easily supports modern robotic total stations, 3D laser scanners, and multi-head GNSS receivers that exceed the capabilities of standard tripods. The dual-clamp system provides the extra security needed when supporting expensive equipment worth tens of thousands of dollars.

How does the black hardware finish benefit field professionals?

The black powder-coated finish provides superior corrosion resistance compared to standard zinc plating or bare metal, essential for coastal environments, chemical plants, and humid climates where rust and oxidation degrade equipment. The finish also resists chipping and scratching better than painted surfaces, maintaining professional appearance and protecting the underlying metal throughout years of demanding field use. Additionally, the non-reflective black finish reduces glare during bright-sun operations.
