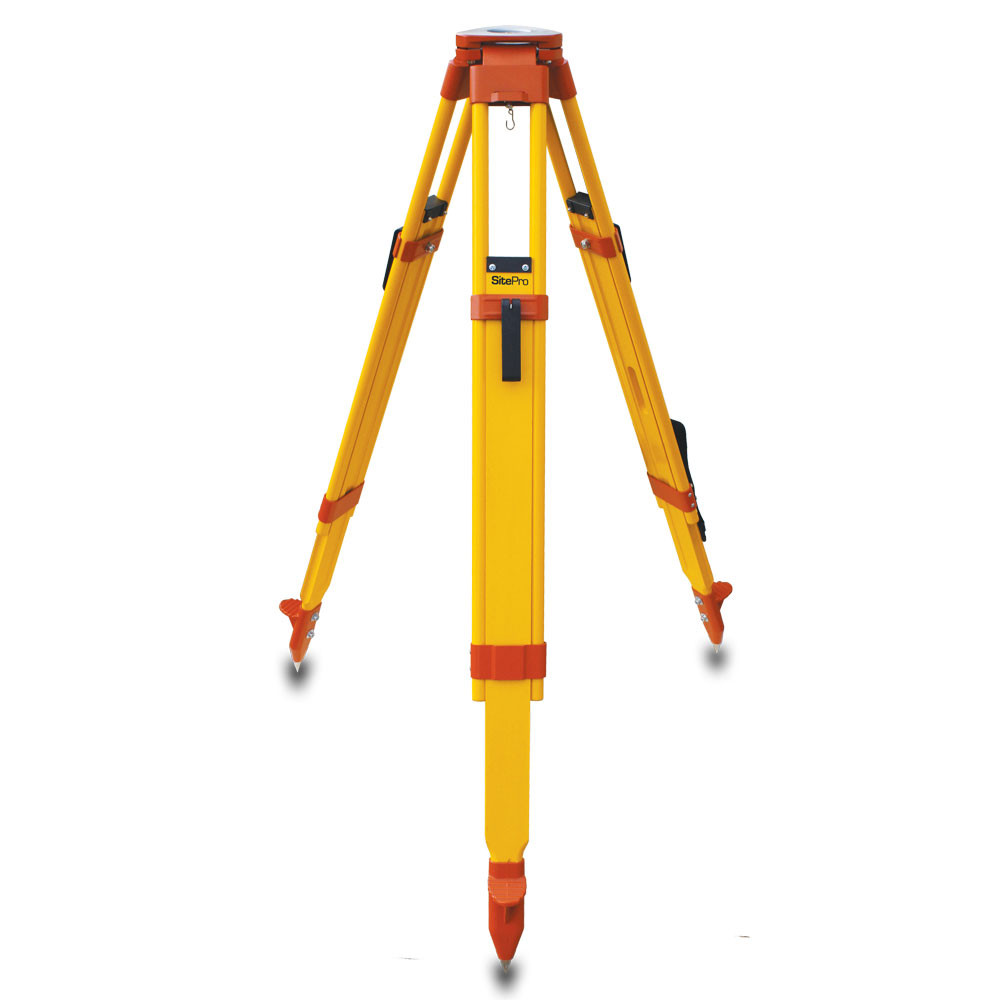

SitePro WDF20-O Wood and Fiberglass Tripod - Heavy Duty - Quick Clamp 42 to 72-inches Extended Orange

Overview

The SitePro WDF20-O Heavy Duty Wood and Fiberglass Tripod combines the trusted stability of traditional hardwood construction with modern fiberglass reinforcement and high-visibility safety orange finish. Engineered for demanding surveying, construction layout, and laser level applications, this professional-grade tripod extends from 42 to 72 inches, providing exceptional versatility across varied terrain and equipment mounting requirements. The quick-clamp leg locking mechanism delivers tool-free height adjustment that saves valuable time on every setup while maintaining rock-solid positioning even in challenging field conditions.

What sets the WDF20-O apart is its distinctive orange finish—a critical safety feature that dramatically reduces the risk of workers tripping over tripod legs in busy construction zones, staging areas, and roadway projects. This enhanced visibility also makes equipment easier to locate across sprawling job sites and helps prevent accidental damage from passing vehicles or machinery. The wood and fiberglass hybrid construction provides superior vibration damping compared to all-metal alternatives, ensuring accurate measurements and stable laser reference planes even near heavy equipment operation or traffic.

Built to withstand years of professional use, the WDF20-O features 1.5-inch diameter legs with pointed steel shoes that bite securely into soil, asphalt, or wooden surfaces. The precision-machined 5/8 x 11 threaded mounting platform accommodates virtually all surveying instruments, optical and laser levels, GPS receivers, and total stations. Whether you're establishing grade for a parking lot, setting foundation elevations, or conducting topographic surveys, this tripod delivers the dependable performance that keeps projects on schedule and within tolerance.

Key Specifications

• Model Number: WDF20-O
• Color: Safety Orange
• Construction: Hardwood with fiberglass reinforcement
• Height Range: 42 to 72 inches (fully adjustable)
• Leg Diameter: 1.5 inches
• Locking Mechanism: Quick-clamp leg locks (tool-free operation)
• Head Thread: 5/8 x 11 (industry standard)
• Leg Tips: Replaceable pointed steel shoes
• Weight: Approximately 11 pounds
• Duty Rating: Heavy Duty
• Maximum Load Capacity: Suitable for all standard surveying instruments and laser levels
• Shoulder Strap: Included for easy transport

What's in the Kit

• SitePro WDF20-O Orange Wood/Fiberglass Tripod
• Padded carrying strap
• Pointed steel leg shoes (factory installed)

Job Applications

• Highway and Roadway Construction: The high-visibility orange finish is essential for DOT projects and roadside work zones where crew safety is paramount. The tripod remains clearly visible to equipment operators and passing traffic, reducing accident risks while providing stable mounting for grade lasers and surveying equipment throughout paving, grading, and drainage installation operations.
• Commercial Site Development: Foundation layout, building elevation transfer, and site grading require a tripod that won't walk or settle during extended setups. The wood/fiberglass construction absorbs vibration from nearby excavation and compaction equipment while the 42-72 inch range accommodates everything from basement excavations to elevated deck surveys without repositioning.
• Concrete Flatwork and Formwork: Setting screeds, establishing floor elevations, and checking formwork alignment demands repeatable accuracy. The quick-clamp legs enable rapid height adjustment as you move between foundation walls and slab positions, while the pointed steel shoes anchor firmly in disturbed soil and gravel base materials common around concrete work areas.
• Municipal Infrastructure Projects: Water and sewer line installation, storm drain grading, and utility trenching benefit from the tripod's superior stability when positioning pipe lasers and slope monitoring equipment. The orange color meets many municipal safety requirements and remains visible in trenches, excavations, and around underground utility work where trip hazards are a constant concern.
• Landscaping and Irrigation Layout: Professional landscapers rely on the WDF20-O for establishing drainage grades, setting sprinkler head elevations, and creating level surfaces for hardscaping. The lightweight wood construction is easier to transport across finished turf than heavier metal tripods, while the vibration-damping properties ensure accurate readings even when mowers or other equipment operate nearby.
• Interior Construction and Fit-Out: Dropped ceiling installation, floor leveling assessments, and wall plumb verification require a tripod that sets up quickly in confined spaces. The adjustable height range works perfectly for everything from crawl space surveys to high-ceiling commercial interiors, while the stable platform ensures your rotary laser maintains accurate reference planes throughout the workday.

Compatible Accessories

• SitePro Laser Levels: Rotary and line lasers with 5/8 x 11 mounting threads
• Optical Levels: Builder's levels, automatic levels, and digital levels
• Total Stations: Reflectorless and prism-based surveying instruments
• GPS Receivers: Survey-grade GNSS equipment and machine control receivers
• Tribrach Adapters: For mounting theodolites and specialized surveying instruments
• Flat Tripod Shoes: Replacement tips for use on finished concrete, asphalt, or wooden decks
• Instrument Mounting Brackets: Quick-release systems and specialty adapters
• Tripod Bags: Heavy-duty nylon carrying cases for transportation and storage protection

Related Guides

• Choosing the Right Tripod for Construction Lasers and Levels
• Tripod Setup Best Practices for Maximum Stability and Accuracy
• Essential Safety Equipment for Construction Layout and Surveying
• Maintaining Wood and Fiberglass Tripods for Long-Term Performance

FAQ

What's the advantage of orange versus standard black tripods?

The high-visibility orange finish significantly reduces trip hazards on active job sites by making the tripod legs clearly visible to all workers, equipment operators, and site visitors. This is especially important in high-traffic construction zones, roadway projects, and areas with multiple trades working simultaneously. The orange color is often required or strongly recommended for DOT projects and municipal work. Beyond safety, the bright color makes your equipment easier to spot across large sites, reducing the chances of leaving it behind or having it damaged by passing machinery.

Can this tripod handle rotary lasers and heavier surveying instruments?

Absolutely. The WDF20-O is rated as heavy-duty and easily supports all standard rotary lasers, optical levels, total stations, and GPS receivers used in construction and surveying. The wood and fiberglass construction actually provides better vibration damping than aluminum tripods, which improves accuracy when working near traffic, heavy equipment, or other vibration sources. The 5/8 x 11 threaded head is the industry standard mounting interface, ensuring compatibility with virtually all professional leveling and positioning instruments.

How does the quick-clamp system work, and is it reliable?

The quick-clamp leg locks feature a simple flip-lever mechanism that tightens around each leg segment without requiring thumb screws or tools. To adjust height, you simply flip open the clamp, slide the leg to your desired extension, and flip the clamp closed—the entire process takes just seconds per leg. Despite the speed and convenience, these clamps provide exceptional holding power and won't slip during use. They're particularly valuable when you need to make frequent height adjustments throughout the day or when working in cold weather with gloves on.

What maintenance does a wood and fiberglass tripod require?

Wood/fiberglass tripods are remarkably low-maintenance. Keep the leg channels clean and free of dirt and debris that could interfere with smooth extension and locking. Periodically check that the quick-clamp mechanisms are tight and functioning properly. The pointed steel shoes are replaceable—swap them for flat shoes when working on finished surfaces to prevent damage. Store the tripod in a dry location when not in use, and avoid leaving it extended in direct sunlight for prolonged periods. The orange finish is durable and requires no special treatment, though you can wipe down the legs to maintain maximum visibility. With basic care, this tripod will provide many years of reliable field service.
