Spectra Precision 0956-0730 Target Frame for DG613 or DG813, SF601 and SF803 Spot Finder

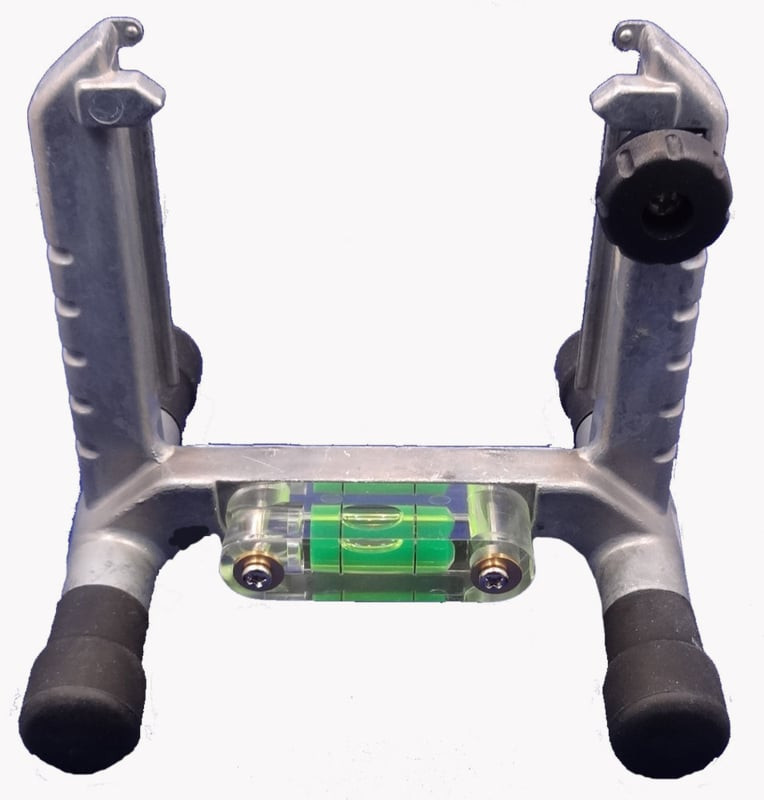

The Spectra Precision 0956-0730 is a purpose-built adjustable target frame designed for underground and horizontal directional drilling contractors running DG613 or DG813 pipe lasers with SF601 or SF803 spot finder receivers. Engineered to work seamlessly with Spectra's proprietary spot finder technology, this target frame speeds up beam acquisition in large-diameter pipe installations and keeps your crew working efficiently from the manhole to the receiving pit.

Overview & Jobsite Applications

Pipe laser accuracy is only as good as the target system reading the beam. The 0956-0730 eliminates improvised targets and guesswork by providing a rigid, repeatable mounting platform that positions the spot finder receiver at the exact center of the pipe bore. Whether you're laying 6-inch sewer laterals or pushing 21-inch storm drain pipe, this frame adjusts to fit and locks in place securely. Two interchangeable inserts are included, allowing fast swaps between pipe sizes without returning to the truck. Field crews on municipal sewer, stormwater, and industrial drainage projects will find this frame cuts setup time and reduces re-checks caused by target movement or misalignment.

Key Specifications

• Model Number: 0956-0730
• Compatible Pipe Lasers: Spectra Precision DG613, DG813
• Compatible Spot Finders: SF601, SF803
• Pipe Diameter Range: 6 inches to 21 inches
• Included Inserts: 2 interchangeable inserts
• Frame Type: Adjustable target frame
• Manufacturer: Spectra Precision (Trimble)

Key Features

• Adjustable design spans 6" to 21" pipe diameters — one frame handles most municipal and commercial pipe sizes
• Integrates directly with SF601 and SF803 spot finder receivers for fast, accurate beam detection in dark or dusty bore conditions
• Two included inserts allow quick configuration changes between pipe sizes on multi-size jobs
• Rigid frame construction resists shifting from pipe movement, water, or debris during drive operations
• Designed exclusively for DG613/DG813 laser systems, ensuring proper receiver positioning and grade verification accuracy
• Reduces setup time versus improvised or universal targets that require manual centering

Job Applications

Municipal Sewer Installation: Set grade on new 8" to 15" PVC sewer mains with the SF601 spot finder locked into the 0956-0730 frame. The adjustable fit holds the receiver centered through multiple pipe joints without repositioning.

Storm Drain Construction: For larger 18" to 21" RCP storm drain runs, the full range of this frame provides a stable target platform where oversized or improvised targets typically fail to stay centered.

Contractor Pipe Jacking & Boring: In pipe jacking operations where the target must stay aligned inside a moving casing, the rigid frame construction and secure insert lock prevent target drift that would compromise grade readings mid-drive.

Utility Corridor Multi-Size Projects: On projects that require laying multiple pipe sizes in sequence, the two included inserts and tool-free adjustment let crews reconfigure the target between runs without hunting for adapters or losing time.

Compatible Accessories

• Spectra Precision DG613 Pipe Laser
• Spectra Precision DG813 Pipe Laser
• Spectra Precision SF601 Spot Finder Receiver
• Spectra Precision SF803 Spot Finder Receiver
• Spectra Precision Pipe Laser Carrying Cases & Accessories

Related Guides

• How to Set Up a Pipe Laser Target Frame for Accurate Grade
• DG613 vs DG813 Pipe Laser: Which Is Right for Your Project?
• Understanding Spot Finder Technology for Underground Pipe Installation
• Pipe Laser Accessories Buying Guide for Underground Contractors

Frequently Asked Questions

What pipe lasers is the 0956-0730 target frame compatible with?

The Spectra Precision 0956-0730 is designed specifically for use with the DG613 and DG813 pipe laser models. It is engineered to work with these systems in conjunction with the SF601 and SF803 spot finder receivers for accurate grade alignment.

What pipe sizes does the 0956-0730 adjustable frame accommodate?

This target frame adjusts to fit pipe diameters ranging from 6 inches to 21 inches, covering the most common sizes used in municipal sewer, storm drain, and utility pipe installations.

How many inserts are included with the 0956-0730 target frame?

The frame ships with two interchangeable inserts, allowing crews to quickly configure the target for different pipe sizes without purchasing additional components for standard diameter ranges.

Can the 0956-0730 be used with spot finder receivers other than the SF601 and SF803?

The 0956-0730 is specifically designed to integrate with Spectra Precision's SF601 and SF803 spot finder receivers. Use with other receiver models is not recommended, as fit and beam alignment may not meet accuracy requirements for grade-critical pipe installations.
