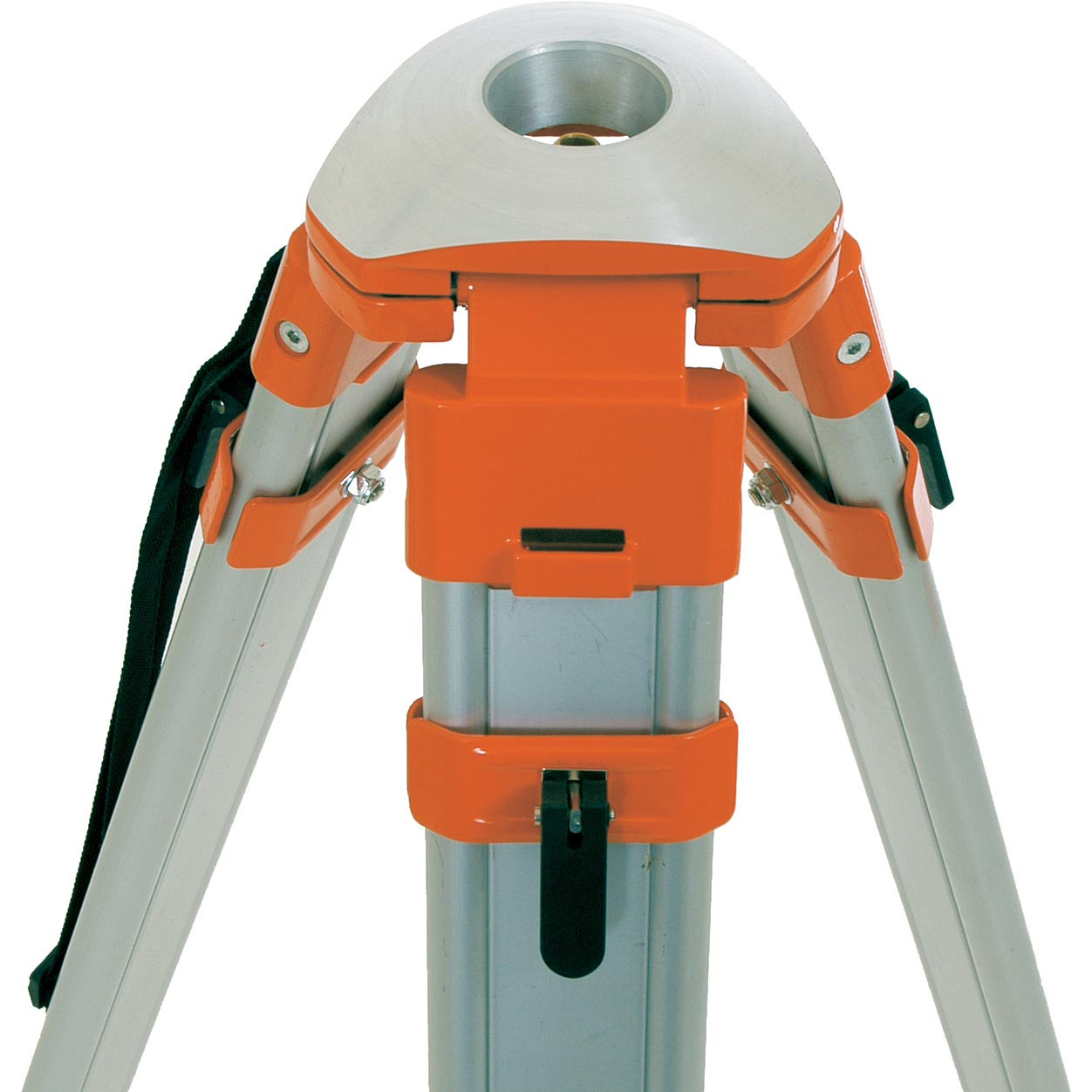

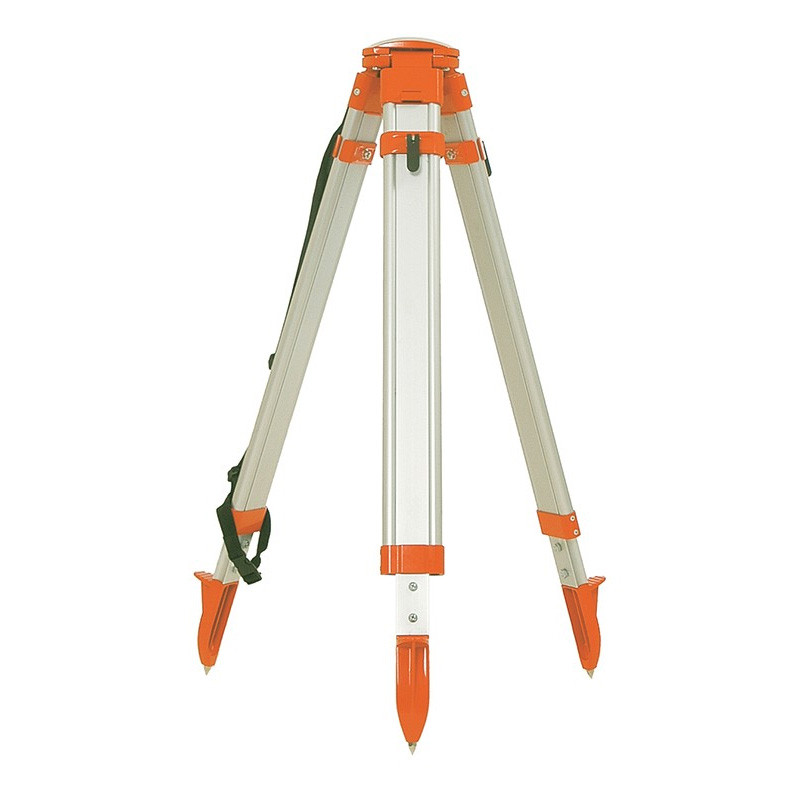

Spectra Precision 5311-20-ORG-L Heavy-Duty DOME Head Aluminum Tripod with Quick Clamps

Overview

The Spectra Precision 5311-20-ORG-L heavy-duty aluminum tripod is purpose-built for field crews managing multiple instrument changes and frequent relocations. Its lightweight aluminum construction combined with rigid dome-head design delivers the stability required for laser levels, total stations, and GPS receivers in demanding construction and surveying environments. Weighing just 11 pounds yet supporting instruments up to 40 pounds, this tripod strikes the optimal balance between portability and rock-solid performance.

What sets the 5311-20-ORG-L apart is its quick-clamp leg locking system that enables setup in under 30 seconds—critical when you're moving between grade shots or layout points throughout the day. The high-visibility orange finish ensures the tripod remains visible on active job sites, reducing trip hazards and preventing accidental equipment damage. Professional crews appreciate the dual-purpose design that accommodates both 5/8 x 11 threaded instruments and flat-base equipment with the included adapter plate.

Built to withstand years of jobsite abuse, this tripod features reinforced leg hinges, replaceable metal pointed feet with retractable spurs for uneven terrain, and corrosion-resistant hardware throughout. Whether you're establishing control points on a highway project, performing topographic surveys in rough terrain, or setting grade for a commercial foundation pour, the Spectra Precision 5311-20-ORG-L delivers repeatable accuracy shot after shot.

Key Specifications

• Model Number: 5311-20-ORG-L
• Head Type: Dome head with 5/8 x 11 threaded center mount
• Material: Heavy-duty aluminum construction
• Weight: 11 lbs (4.99 kg)
• Load Capacity: 40 lbs (18.14 kg)
• Extended Height: 66 inches (167.6 cm)
• Collapsed Height: 42 inches (106.7 cm)
• Leg Lock System: Quick-release clamp locks (2 per leg)
• Foot Type: Replaceable metal pointed feet with retractable spurs
• Color: High-visibility orange
• Thread Standard: 5/8 x 11 TPI (standard surveying thread)
• Warranty: 1-year manufacturer's warranty

What's in the Kit

• Spectra Precision 5311-20-ORG-L Heavy-Duty Aluminum Tripod
• Dome Head with 5/8 x 11 threaded center mount
• Quick-clamp leg locking mechanisms (factory-installed)
• Replaceable metal pointed feet with retractable spurs
• Carrying strap for field transport
• Manufacturer's documentation and warranty card

Job Applications

• Site Layout and Grade Control: The quick-clamp system allows survey crews to rapidly reposition rotating laser levels for continuous grade verification on grading projects, keeping dozers and scrapers working efficiently without waiting for instrument setup.
• Topographic Surveying: The pointed metal feet with retractable spurs provide secure placement on hillsides, wooded areas, and uneven terrain where conventional tripod feet would slip, ensuring accurate topo shots in challenging environments.
• Construction Stakeout: High-visibility orange construction prevents accidental collisions with equipment or workers on busy sites, while the dome head accommodates rapid total station setup for building corner stakeout and foundation layout work.
• GPS/GNSS Base Station Setup: The 40-pound load capacity safely supports GPS receivers with extended antenna masts and batteries for RTK base station applications requiring hours of stationary operation in exposed locations.
• As-Built Documentation: Lightweight 11-pound design reduces fatigue when crews must carry the tripod throughout multi-level structures or across large industrial facilities for as-built measurements and verification surveys.
• Highway and Infrastructure Projects: The rigid aluminum construction maintains instrument stability near heavy traffic and equipment vibration, critical for maintaining tolerance on DOT projects requiring sub-centimeter accuracy over long control networks.

Compatible Accessories

• Spectra Precision Laser Levels: LL100, LL300, LL400 Series rotating laser levels with 5/8 x 11 threaded mounts
• Total Stations: Focus and Ranger Series total stations, third-party instruments with standard survey thread
• GPS/GNSS Receivers: SP80, SP85 GNSS receivers and comparable base/rover systems
• Optical Levels: AL-Series automatic levels and digital levels with 5/8 x 11 mounting thread
• Tribrach Adapters: Universal tribrachs for forced-centering applications and instrument interchange
• Replacement Parts: Pointed foot assemblies, leg lock clamp replacements, carrying straps
• Tripod Accessories: Instrument hooks, bubble levels, plumb bob holders for specialized applications

Related Guides

• Complete Guide to Choosing the Right Surveying Tripod for Your Application
• Tripod Maintenance and Care: Extending Service Life in Harsh Environments
• Proper Laser Level Setup Techniques for Maximum Accuracy
• Aluminum vs. Wood vs. Fiberglass Tripods: Material Comparison

FAQ

What's the difference between a dome head and flat head tripod?

Dome head tripods like the 5311-20-ORG-L feature a rounded top surface with a threaded center mount, designed primarily for rotating laser levels and instruments with direct 5/8 x 11 threaded connections. Flat head tripods provide a level platform for tribrachs and optical plummets, common in precision surveying. The dome head design allows faster setup when using instruments that don't require forced centering over specific points.

Can this tripod support my total station that weighs 15 pounds with battery?

Yes, absolutely. The 5311-20-ORG-L is rated for instruments up to 40 pounds, providing a substantial safety margin for your 15-pound total station. The rigid aluminum construction and dome head design will provide excellent stability for precision angle and distance measurements. Just ensure your total station has either a 5/8 x 11 threaded mount or uses a tribrach that connects to the standard survey thread.

How do the quick clamps compare to twist-lock leg systems?

Quick clamps offer significantly faster setup and breakdown—typically 30 seconds versus 60-90 seconds for twist locks. They're easier to operate with gloves in cold weather and require less maintenance than threaded systems. The trade-off is slightly more bulk at the leg sections, but for crews making frequent moves throughout the day, the time savings easily justify this. Quick clamps also provide more positive locking with less chance of legs slipping during use.

Is the orange color just for visibility or does it serve other purposes?

While high-visibility orange primarily serves as a safety feature on construction sites—reducing trip hazards and preventing equipment collisions—it also helps with equipment accountability. The distinctive color makes tripods easier to locate in tall grass or brush, simplifies equipment inventory checks, and clearly identifies surveying work zones to equipment operators. Some contractors also prefer orange to match their company safety color standards or to differentiate from other trades using yellow equipment.
