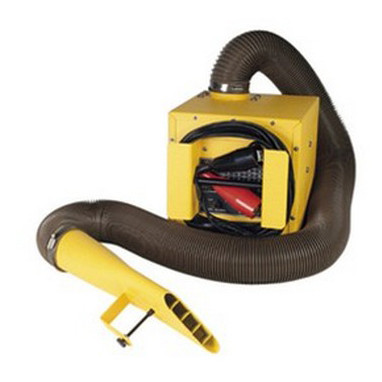

Spectra Precision 929 Heavy-Duty Blower — $949
Eliminate beam wander in large-diameter pipe installations. The Spectra Precision 929 Heavy-Duty Blower delivers consistent airflow to stabilize laser beams in gravity sewer and culvert projects where thermal layering and air density variations compromise grade accuracy. Purpose-built for 24"+ diameter pipes on long runs where even 1/8" deviation creates costly rework.
Overview
Large-diameter pipe installations face a critical challenge: temperature differentials create air density layers that bend laser beams, causing grade errors that don't show up until final inspection. The Spectra 929 solves this by maintaining constant air circulation inside the pipe, homogenizing temperature and density throughout the beam path.
This isn't a repurposed HVAC fan—it's engineered specifically for pipe laser environments. The 929 mounts directly at the laser position, drawing ambient air through the pipe to eliminate thermal stratification before it affects your beam. On 600-foot storm drain runs or 36" sanitary trunk lines, it's the difference between holding ±1/8" grade and chasing phantom errors all day.
Contractors running Spectra 1242/1282 or DG813 systems in municipal sewer work, large commercial sites, or highway culvert installations rely on the 929 when pipe diameter and run length make atmospheric control non-negotiable. It integrates into your existing laser setup without additional calibration—mount it, power it on, and your beam stays true from manhole to manhole.
Key Specifications
- Motor Power: 1/3 HP heavy-duty blower motor
- Airflow Volume: 850 CFM continuous output
- Power Requirements: 115V AC, 8.5A draw
- Mounting System: Adjustable bracket fits Spectra laser tripods/pipe stands
- Pipe Diameter Range: Optimized for 24" to 72" diameter applications
- Cord Length: 25-foot power cord with GFCI protection
- Intake Configuration: 360° ambient air draw design
- Operating Temperature: 0°F to 120°F (-18°C to 49°C)
- Housing Material: Impact-resistant polymer with steel motor guard
- Weight: 28 lbs (12.7 kg)
- Dimensions: 18" × 14" × 12" (45.7 × 35.6 × 30.5 cm)
- Warranty: 2-year manufacturer coverage
What's in the Kit
- Spectra Precision 929 blower unit with motor assembly
- Universal laser mounting bracket (Spectra tripod/stand compatible)
- 25-foot GFCI power cord
- Intake filter screen (washable)
- Mounting hardware kit (bolts, wing nuts, washers)
- Operator's manual with airflow setup guidelines
- Heavy-duty storage/transport case with foam insert
Job Applications
- Municipal Sanitary Sewers (30"–60" Mains): Trunk line installations where grade tolerance is ±0.02 ft/100 ft require stable beam paths—the 929 eliminates thermal refraction in long manhole-to-manhole runs that would otherwise create false readings requiring re-shots and delays.
- Highway Storm Drain Systems (36"+ RCP): Multi-section culvert installations under roadways see extreme temperature swings between sun-heated and shaded segments—continuous airflow prevents the density gradients that cause beam sag or rise mid-run.
- Large Commercial Site Utilities (24"–48" Lines): Shopping center or industrial park trunk systems with 400+ foot runs between structures benefit from atmospheric homogenization that keeps your DG813 on-grade through the entire placement cycle.
- River/Stream Culvert Replacements (48"–72" Diameter): Environmental projects with limited shot windows and strict grade specs can't afford laser instability—the 929 ensures first-time accuracy in high-stakes applications with regulatory oversight.
- Tunnel Form Sewer Rehabilitation: Controlled air movement prevents humidity condensation on laser optics during cured-in-place pipe (CIPP) liner installations where steam and temperature changes would normally shut down laser operations.
- Deep Manhole Excavations (15+ Feet): Vertical temperature stratification in deep structures creates beam deflection as you shoot from the surface—the 929 circulates air column to maintain consistent atmospheric conditions top to bottom.
Compatible Accessories
- Spectra Precision 1242 Pipe Laser — Dual-grade system this blower was designed to support
- Spectra Precision 1282 Pipe Laser — Single-grade laser for atmospheric-controlled installations
- Spectra DG813 Pipe Laser — Digital grade laser maximizes accuracy with 929 airflow stabilization
- Spectra Precision Laser Targets — Bullseye and grid targets for receiving stabilized beam
- 5500W Portable Generators — Job-site power for blower + laser systems in remote locations
- Heavy-Duty Laser Tripods — Stable mounting platform for combined laser/blower weight
Related Guides
- 5 Environmental Factors That Destroy Pipe Laser Accuracy
- Large-Diameter Sewer Installation: Grade Control Best Practices
- Troubleshooting Laser Beam Wander in Long-Run Applications
- Complete Setup Guide: Spectra Pipe Laser Systems
FAQ
- At what pipe diameter does the 929 blower become necessary versus optional?
- In controlled environments, most contractors don't see atmospheric interference below 24" diameter. Once you're running 30"+ pipe with lengths exceeding 300 feet, or working in conditions with sun exposure on one end and shade on the other, thermal gradients become measurable. The 929 becomes essential (not optional) on 36"+ diameter projects with runs over 400 feet, or any application where your spec tolerance is tighter than ±1/4" over the run length. If you've ever had to re-shoot a laser setup three times on the same run because readings won't stabilize, you've experienced the exact problem this solves.
- Can I use a standard construction fan instead of the 929 to save money?
- Standard fans create turbulence rather than laminar flow, which actually worsens beam stability by introducing chaotic air movement across the beam path. The 929's design pulls ambient air uniformly through the pipe cross-section without creating eddies or directional currents that deflect the beam. Additionally, it mounts at the laser position (not mid-pipe), integrates with your tripod setup, and provides consistent CFM output calibrated to pipe volumes. Contractors who've tried box fans typically abandon them after the first full day when they realize they're re-introducing variables instead of eliminating them.
- How does the 929 mount to my existing Spectra laser setup?
- The included universal bracket attaches directly to Spectra laser tripods and pipe stands using the same mounting points your laser occupies. You position the blower unit adjacent to (not behind) your laser head so intake airflow enters from the sides and exhausts along the pipe axis. Setup takes 3–5 minutes: secure bracket to tripod, mount blower, position laser alongside, connect power. The blower doesn't interfere with laser leveling or grade adjustment—it simply occupies space on your existing platform. Weight distribution is designed for standard tripod stability; no additional counterweights needed up to 48" pipe diameters.
- What's the power consumption impact of running the 929 all day on a generator?
- At 8.5A draw on 115V, the 929 consumes roughly 980 watts continuous. On a typical 5500W generator already powering your laser (negligible draw) and maybe a grinder or small saw intermittently, you're still well within capacity. Full-day runtime (8 hours) equals about 7.8 kWh—on a 6-gallon generator tank, you're looking at one refuel mid-day. The accuracy insurance it provides (eliminating re-grades that cost 2+ hours of crew time) pays for the fuel cost 10x over on the first run where it prevents a rework situation. Most crews factor it as a standard fuel line item once they've experienced the cost of chasing phantom grades without it.
