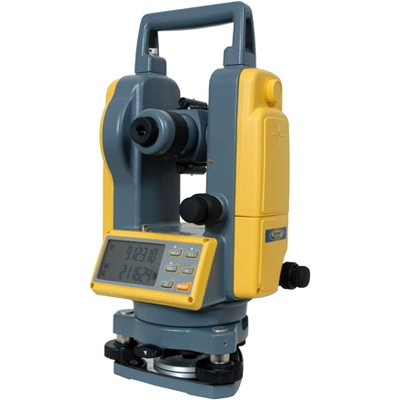

Spectra Precision DET-2 Theodolite 2-Second Accuracy - Digital Transit

Overview

The Spectra Precision DET-2 Digital Electronic Theodolite delivers professional-grade 2-second angular accuracy in a user-friendly package designed for construction professionals who need precision without complexity. This versatile digital transit bridges the gap between traditional optical instruments and advanced total stations, offering immediate digital readouts for horizontal and vertical angles while maintaining the reliability contractors expect from Spectra Precision. The DET-2 features a 30x magnification telescope with superior light-gathering capability, dual-axis compensation for precise leveling, and an intuitive keypad interface that reduces training time for new operators. Whether you're laying out building foundations, setting structural steel, or establishing control points, this theodolite provides the accuracy and durability needed for demanding jobsite conditions. Built with weather-resistant construction and backed by Spectra's reputation for optical excellence, the DET-2 represents exceptional value for contractors, surveyors, and engineers who require dependable angular measurement without the premium cost of robotic systems.

Key Specifications

• Angle Accuracy: 2 seconds (0.6 mgon)
• Telescope Magnification: 30x
• Objective Aperture: 45mm
• Minimum Focus Distance: 1.3 meters (4.3 feet)
• Display Resolution: 1 second / 0.2 mgon selectable
• Horizontal Circle Reading: Absolute encoder
• Vertical Circle Reading: Absolute encoder
• Dual-Axis Compensation: Yes, ±3 arcminutes range
• Display Type: Dual-sided LCD with backlight
• Plummet Type: Optical, 3x magnification
• Battery Life: 20+ hours on 4 AA alkaline batteries
• Operating Temperature: -20°C to +50°C (-4°F to +122°F)
• IP Rating: IP66 dust and water resistant
• Weight: 5.0 kg (11 lbs) with batteries
• Data Output: RS-232C serial port

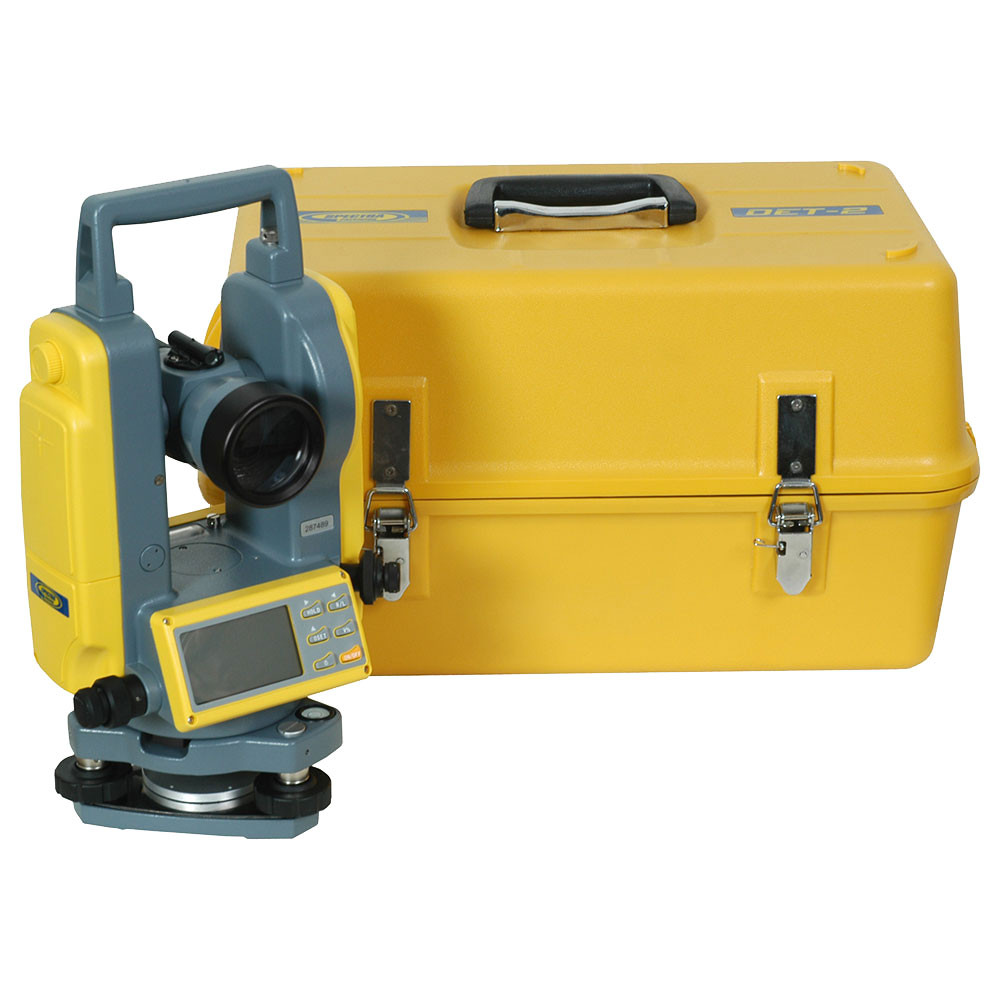

What's in the Kit

• Spectra Precision DET-2 Digital Theodolite
• Protective Hard-Shell Carrying Case
• Tool Kit with adjustment pins and hex keys
• Lens Covers (objective and eyepiece)
• Plumb Bob with string
• Adjustment Pin Set
• Dust Cover
• Operator's Manual and Quick Start Guide
• Battery Pack (4 AA batteries included)
• Shoulder Strap for carrying case
• Manufacturer's Warranty Documentation

Job Applications

• Building Layout & Foundation Work: The DET-2's 2-second accuracy ensures foundation corners, column centerlines, and wall alignments meet architectural tolerances, while the dual-sided display lets you read angles from either side of the instrument for efficient solo operation during property line stakeouts.
• Structural Steel Erection: Digital angle readouts eliminate reading errors when setting anchor bolts and verifying plumbness of steel columns, while the 30x telescope provides clear target acquisition at extended distances across large industrial construction sites.
• Bridge & Highway Construction: Establish and verify horizontal and vertical control points for roadway alignments, bridge abutments, and drainage structures where precision angular measurements are critical for grade control and as-built documentation.
• Mechanical & Industrial Installation: The compensator-assisted leveling and precise vertical angle measurement make the DET-2 ideal for aligning conveyor systems, setting turbine pedestals, and installing process piping where equipment must meet strict alignment specifications.
• Tower & Monopole Plumbness Verification: Measure deflection and verify vertical alignment of communication towers, light poles, and utility structures with repeatable angular accuracy that meets engineering certification requirements for critical infrastructure.
• Mining & Tunneling Projects: Rugged IP66 construction withstands harsh underground environments while providing the angular precision needed for tunnel alignment, shaft layout, and ventilation system installation in confined spaces with limited sight lines.

Compatible Accessories

• Heavy-Duty Wood Tripod with Quick-Clamp System - Stable platform for vibration-free measurements
• Aluminum Flat-Head Tripod - Lightweight alternative for frequent transport
• Prism Poles & Targets - Sighting targets for accurate angular measurements
• Precision Tribrach with Optical Plummet - Quick-release mounting system
• Field Data Collectors - Record and process angle measurements digitally
• Rechargeable AA Battery Kit with Charger - Extended runtime solution
• Weather-Resistant Transit Cover - Additional protection during transport
• Precision Plumb Bobs - Enhanced setup accuracy over control points

Related Guides

• Complete Guide to Theodolite Setup and Leveling Procedures
• Understanding Angular Measurement Accuracy: Seconds vs. Minutes Explained
• Theodolite vs. Total Station: Choosing the Right Instrument for Your Project
• Construction Layout Techniques Using Digital Theodolites

FAQ

What's the difference between 2-second and 5-second theodolite accuracy?

A 2-second theodolite like the DET-2 provides angular measurements accurate to within 2 arcseconds, which translates to approximately 1mm deviation per 100 meters of distance. This is roughly 2.5 times more precise than a 5-second instrument, making the DET-2 suitable for applications requiring tighter tolerances such as structural steel placement, control network establishment, and precision industrial alignment. For general building layout and routine construction stakeout, 5-second accuracy is often sufficient, but the DET-2's 2-second precision provides confidence for critical measurements and professional surveying applications.

Can the DET-2 measure distances, or only angles?

The Spectra Precision DET-2 is a theodolite designed specifically for angular measurement (horizontal and vertical angles) and does not include distance measurement capability. If your work requires both angle and distance measurements, you would need to use traditional taping methods, a separate laser distance meter, or consider upgrading to a total station which combines both functions. However, for applications focused on alignment, plumbness verification, angle layout, and control point establishment, the DET-2's specialized angle measurement delivers superior accuracy at a significantly lower cost than total station alternatives.

How long does it take to set up and level the DET-2 on a jobsite?

Experienced operators can typically set up and level the DET-2 in 3-5 minutes. The process involves mounting the theodolite to a tripod over the desired point using the optical plummet, rough leveling with the tribrach leveling screws, and fine-leveling using the instrument's built-in dual-axis compensator. The compensator automatically corrects for minor leveling errors within a ±3 arcminute range, which speeds up the setup process and maintains accuracy even if the tripod settles slightly during use. The optical plummet's 3x magnification makes accurate positioning straightforward even in windy conditions or on uneven terrain.

Is the DET-2 suitable for use in extreme weather conditions?

Yes, the DET-2 is built for demanding jobsite conditions with IP66 dust and water resistance, meaning it's completely dust-tight and protected against powerful water jets from any direction. The operating temperature range of -20°C to +50°C (-4°F to +122°F) covers most construction environments from cold weather concrete work to desert highway projects. However, while the instrument can withstand rain and dust exposure, it's still recommended to use the included dust cover during transport and provide shade during extended use in direct sunlight to prevent heat buildup. The sealed optical system prevents internal fogging and maintains accuracy across temperature changes throughout the workday.
