Spectra Precision HV1305C-19S Horiz/Vert - Interior/Exterior RED Beam Laser Package with HL760 Receiver, Remote, TENTHS Rod, Heavy Duty Aluminu Tripod Small Case - Rechargeable

Everything You Need for Grade and Layout — Right Out of the Box

The Spectra Precision HV1305C-19S is a turnkey rotating laser package engineered for crews who need a dependable, full-featured system without hunting down compatible accessories separately. Bundled with the HL760 digital grade receiver, RC1402N remote control, GR151 15-foot grade rod in tenths, heavy-duty aluminum tripod, and a rechargeable NiMH battery system, this kit is ready for the jobsite the moment it arrives. Whether you're grading a parking lot, setting forms, or laying out building footprints, the HV1305C-19S gives your crew the tools to work accurately and efficiently from the first day forward.

System Overview and Jobsite Applications

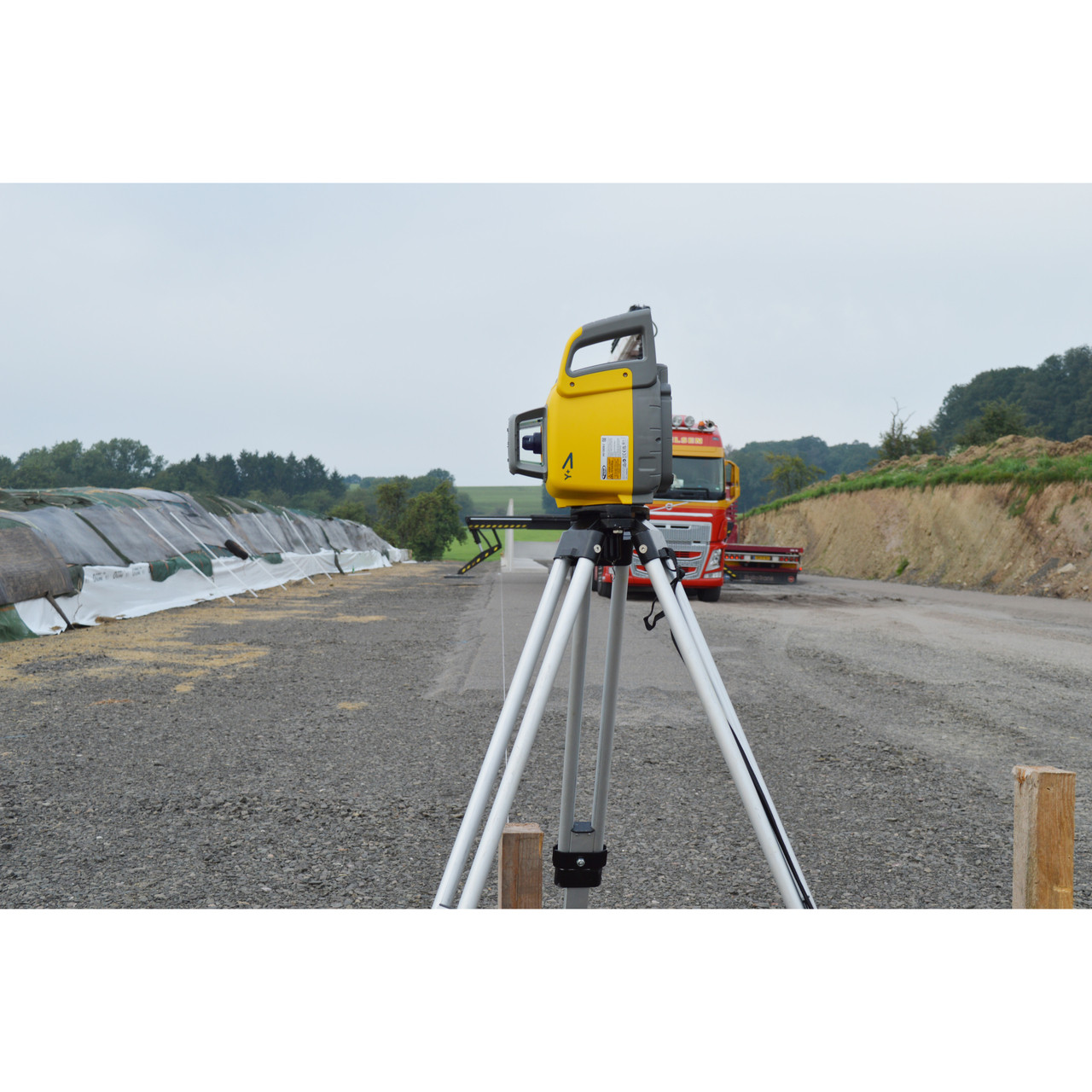

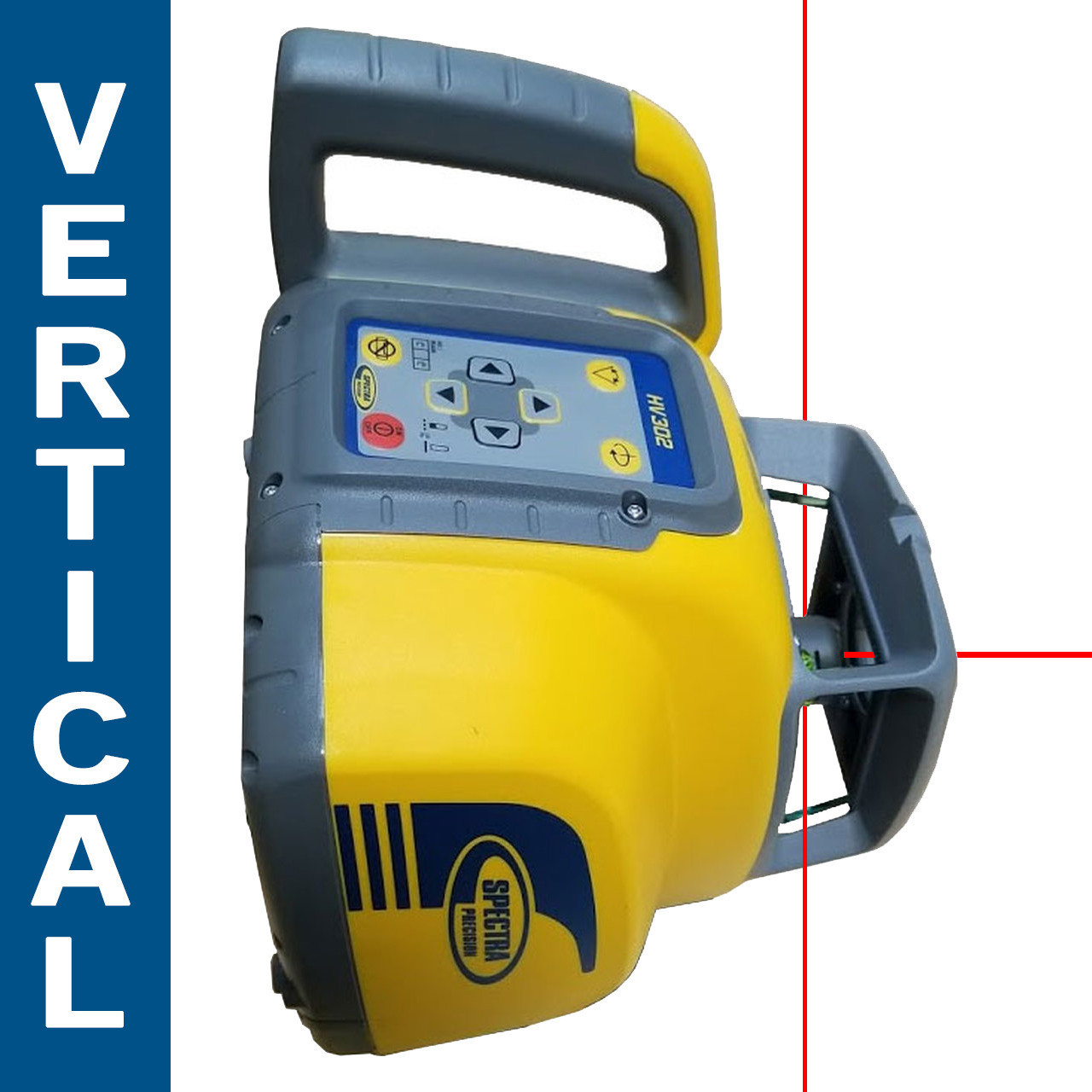

The HV1305C rotating laser operates in both interior and exterior environments, making it a versatile addition to any contractor's fleet. The red beam laser is fully self-leveling and delivers reliable horizontal and vertical plane coverage across a wide working radius. Combined with the HL760 digital receiver — which offers a large, easy-to-read display and audible grade indication — field crews can quickly dial in elevation without stopping to verify readings manually. The RC1402N remote allows the instrument to be adjusted from up to 200 feet away, cutting down on wasted trips back to the laser and keeping production moving on larger sites.

Key Specifications

• Laser Type: Red beam, self-leveling rotating laser
• Accuracy: ±1/16 inch at 100 feet (±1.5mm at 30m)
• Operating Range: Up to 2,000-foot diameter with receiver
• Self-Leveling Range: ±5 degrees
• Remote Control Range: Up to 200 feet (RC1402N)
• Receiver: HL760 digital grade receiver
• Grade Rod: GR151 15-foot fiberglass rod, tenths graduation
• Power: Rechargeable NiMH battery pack; approx. 20-hour runtime
• IP Rating: Weather-resistant for outdoor use
• Tripod: Heavy-duty aluminum construction, included

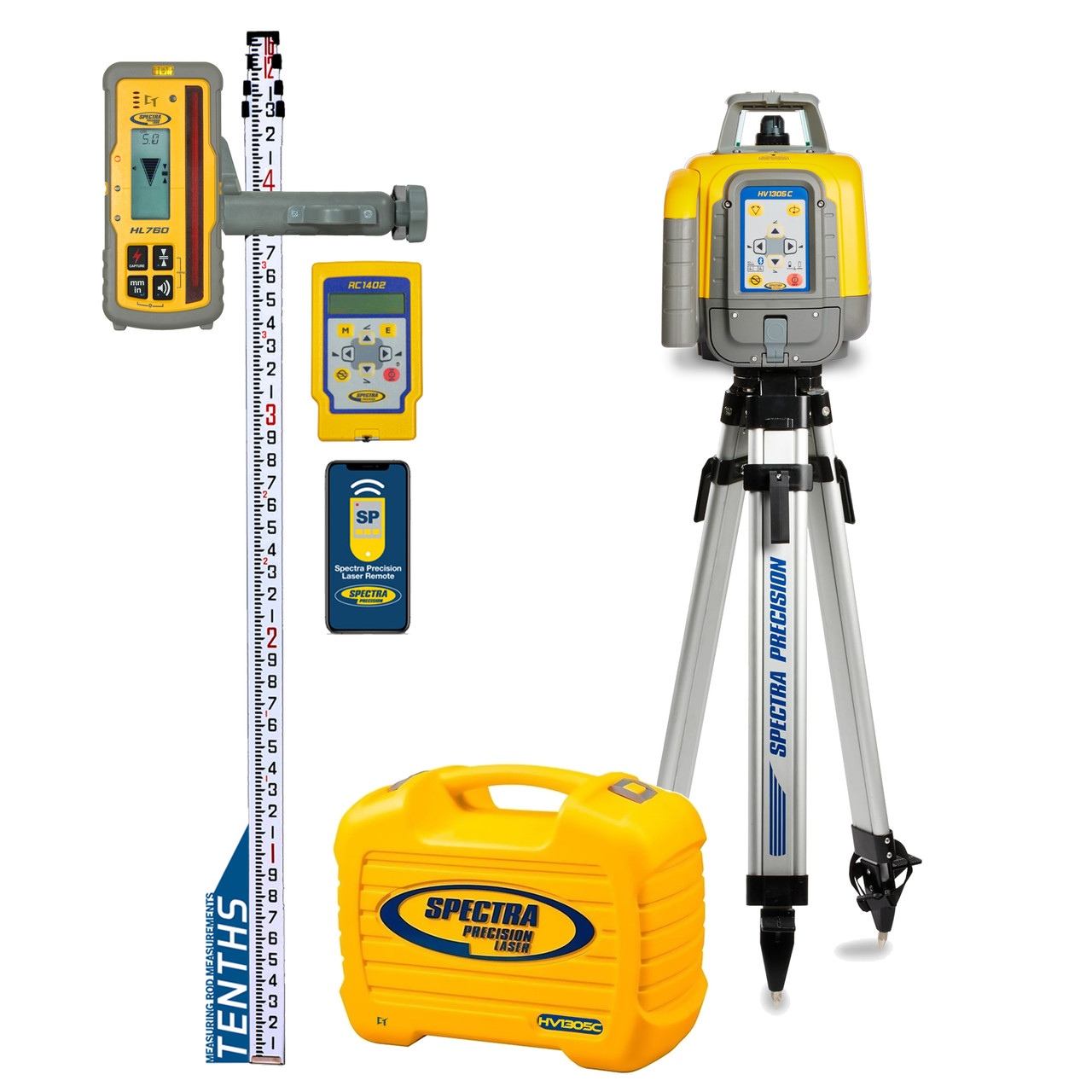

What's in the Kit

• HV1305C Red Beam Self-Leveling Rotating Laser

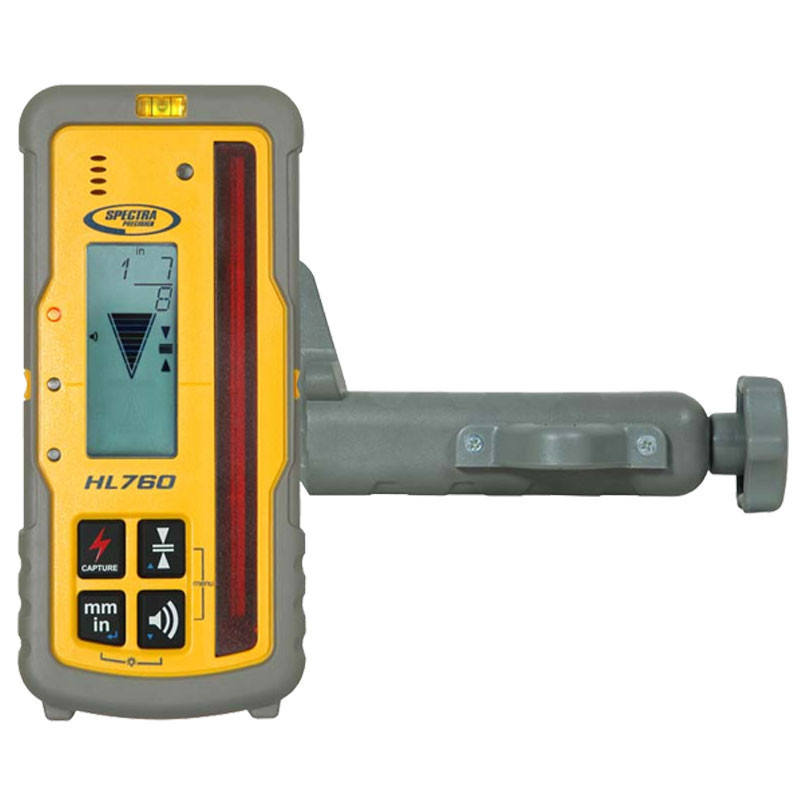

• HL760 Digital Grade Receiver with clamp

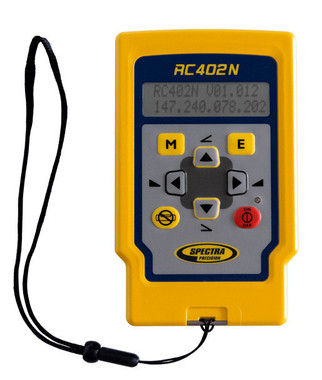

• RC1402N Wireless Remote Control
• GR151 15-Foot Fiberglass Grade Rod (tenths)
• Heavy-Duty Aluminum Tripod
• Rechargeable NiMH Battery Pack and Charger
• Carrying Case
• Operator's Manual

Job Applications

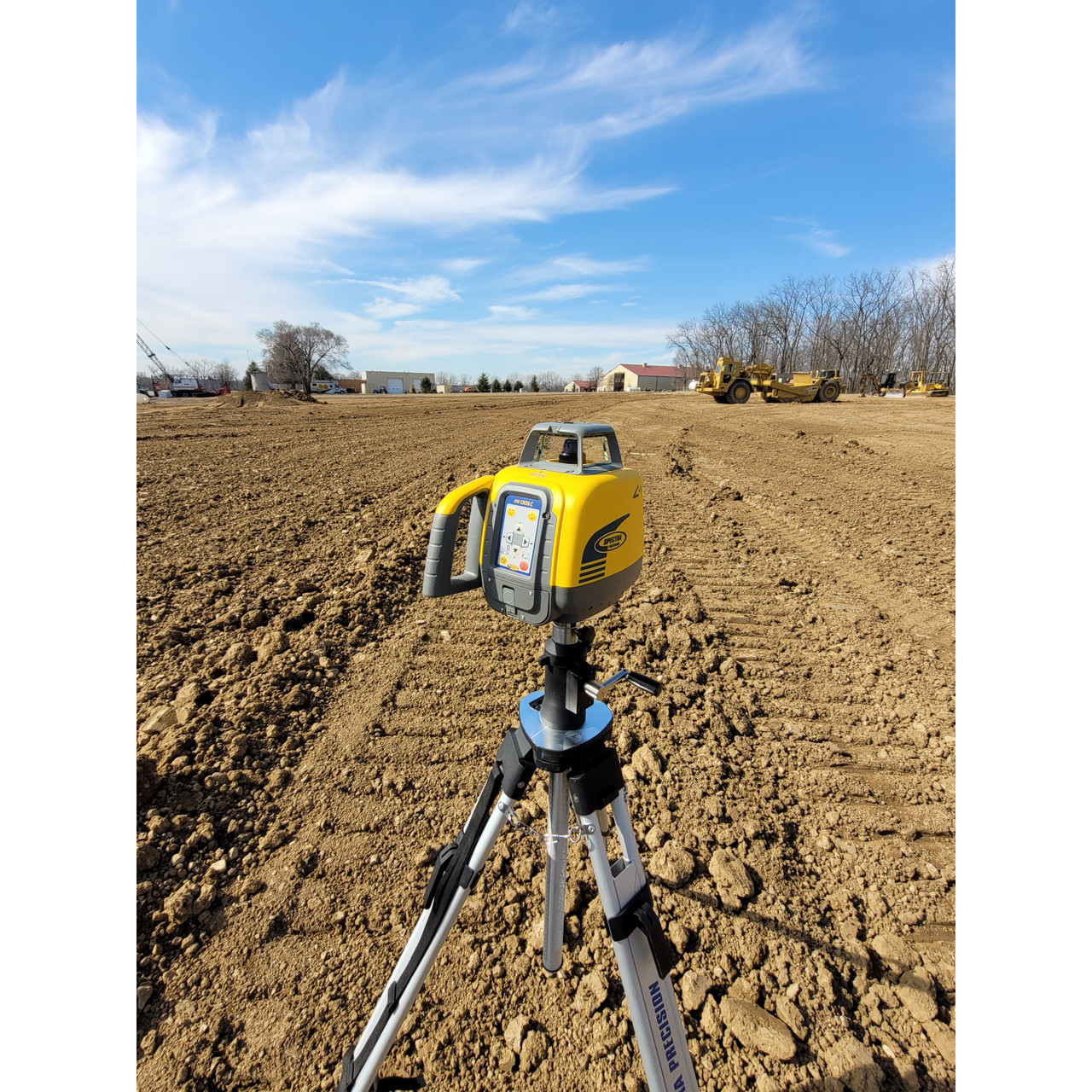

Site Grading and Earthwork: The HV1305C's long-range capability and reliable self-leveling make it a natural fit for rough and finish grading operations. Machine operators can use the HL760 receiver to verify cut-and-fill elevations without waiting on a grade checker.

Concrete Flatwork and Form Setting: Set forms to precise elevations on slabs, footings, and foundations. The digital receiver's fine-mode detection ensures accuracy when tolerances are tight and rework is not an option.

Building Layout and Elevation Transfer: Establish consistent benchmark elevations across a structure's perimeter. The RC1402N remote keeps one operator in control without relocating the instrument between layout points.

Utility and Pipeline Grade: Verify pipe slope and invert elevations during utility installation. The tenths-graduated GR151 rod pairs directly with the HL760 for fast, readable elevation checks in trenches and open cuts.

Compatible Accessories

• Spectra HL760 Replacement Receiver
• Spectra RC1402N Remote Control
• GR151 Replacement Grade Rod
• Spectra NiMH Replacement Battery Pack
• Heavy-Duty Laser Tripod
• Spectra Laser Carrying Case

Related Guides

• How to Set Up a Rotating Laser for Site Grading
• Red Beam vs. Green Beam Lasers: Which Do You Need?
• Using a Laser Receiver for Long-Range Grade Work
• Rotating Laser Maintenance Tips for Contractors

Frequently Asked Questions

Is the HV1305C-19S suitable for outdoor daylight use?

Yes. While the red beam is best suited for lower-light conditions, the included HL760 digital receiver extends the working range and usability in bright outdoor environments by detecting the beam electronically rather than visually.

What is the maximum working range of this laser package?

With the HL760 receiver, the HV1305C operates effectively up to a 2,000-foot diameter working area, making it appropriate for large site grading and layout applications.

Can the remote control adjust grade settings on the laser?

The RC1402N remote is designed to control basic functions such as on/off and rotation speed adjustments from up to 200 feet away. Refer to the operator's manual for the full list of remote-accessible functions on the HV1305C.

Does this package include everything needed to start working on day one?

Yes. The HV1305C-19S kit includes the laser, receiver, remote, grade rod, tripod, rechargeable battery system, and carrying case — no additional purchases are required to begin grade and layout work immediately.
