Spectra Precision HV301G-2 Rugged Green Beam Laser System for Interior Construction

Overview

The Spectra Precision HV301G-2 Rugged Green Beam Laser System delivers professional-grade interior alignment for finish carpenters, electricians, drywall contractors, and MEP installers working in commercial buildings, residential renovations, and multi-unit construction. This complete kit pairs Spectra's proven green beam laser technology with the HR320 laser receiver and RC402N remote control, enabling accurate horizontal and vertical layout in ambient-light conditions where red lasers become difficult to track. The green wavelength provides up to 4× better visibility than traditional red beams when working near windows, under skylights, or in brightly lit spaces. Built for jobsite durability with drop protection and dust resistance, this system handles the demanding environments of interior construction while maintaining ±1/8-inch accuracy at 100 feet. The package includes mounting hardware and a rugged carrying case, making it ideal for contractors who need reliable reference lines for ceiling grid installation, door and window alignment, partition framing, electrical conduit runs, and HVAC layout across multiple floors or large open spaces.

Key Specifications

• Beam Color: Green (532nm wavelength) for enhanced visibility in bright conditions
• Leveling Range: Self-levels within ±5 degrees; manual mode available beyond auto-leveling range
• Accuracy: ±1/8 inch at 100 feet (±1.5mm at 30m) for precision interior work
• Working Range: Up to 300 feet diameter with HR320 receiver; 100 feet visibility with naked eye
• Beam Configuration: Horizontal 360°, vertical 360° (2 planes), plus plumb points (up/down)
• Self-Leveling: Automatic pendulum system with out-of-level alert
• Remote Control: RC402N with 300-foot range for one-person operation
• Power Source: Rechargeable Li-ion battery; up to 20 hours runtime on single charge
• Durability Rating: IP54 dust and water resistance; survives 3-foot drops to concrete
• Mounting: 5/8"-11 threaded mount; compatible with tripods, wall mounts, and magnetic brackets
• Operating Temperature: 14°F to 122°F (-10°C to 50°C) for year-round use
• Weight: 4.8 lbs (laser unit); complete system weight 18 lbs with case

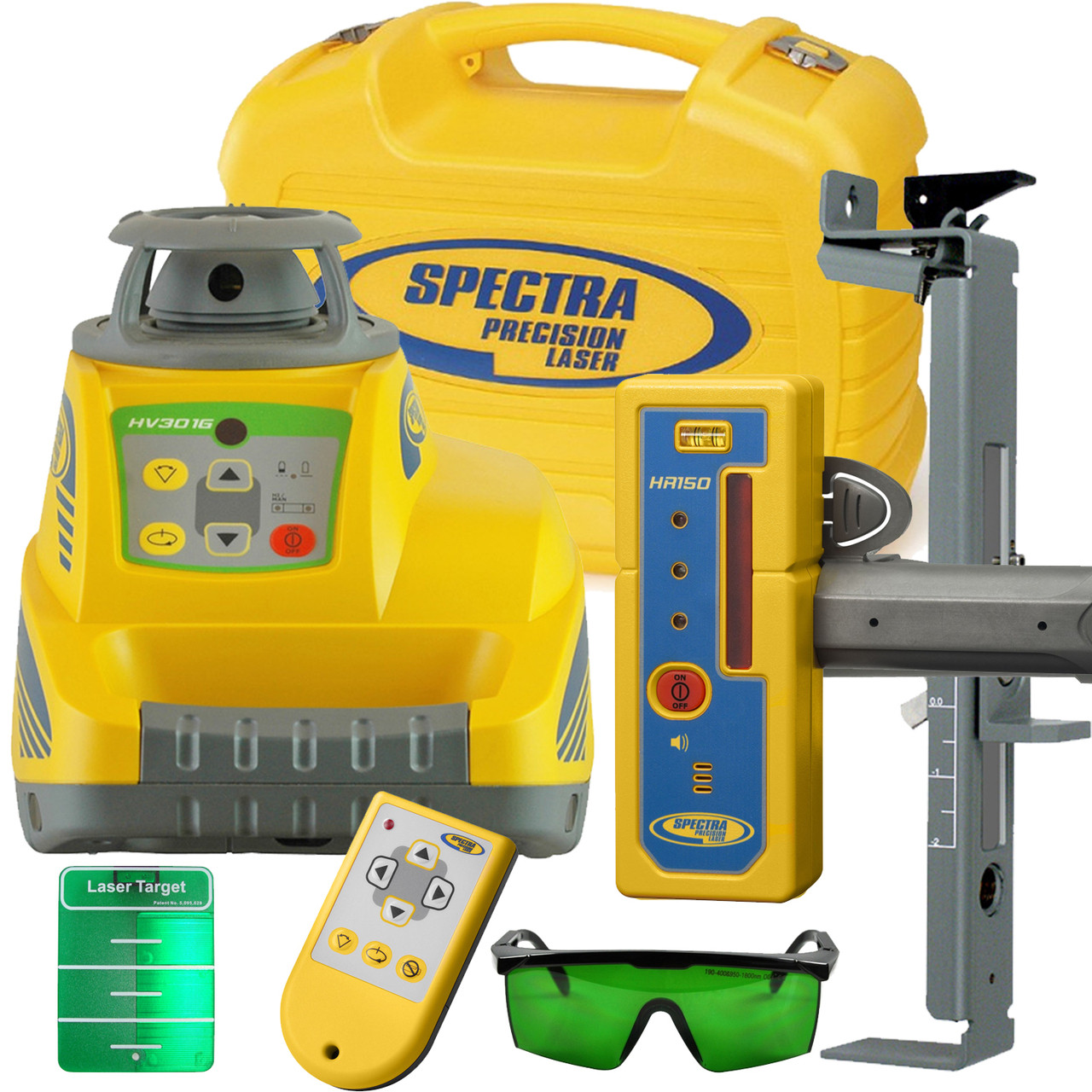

What's in the Kit

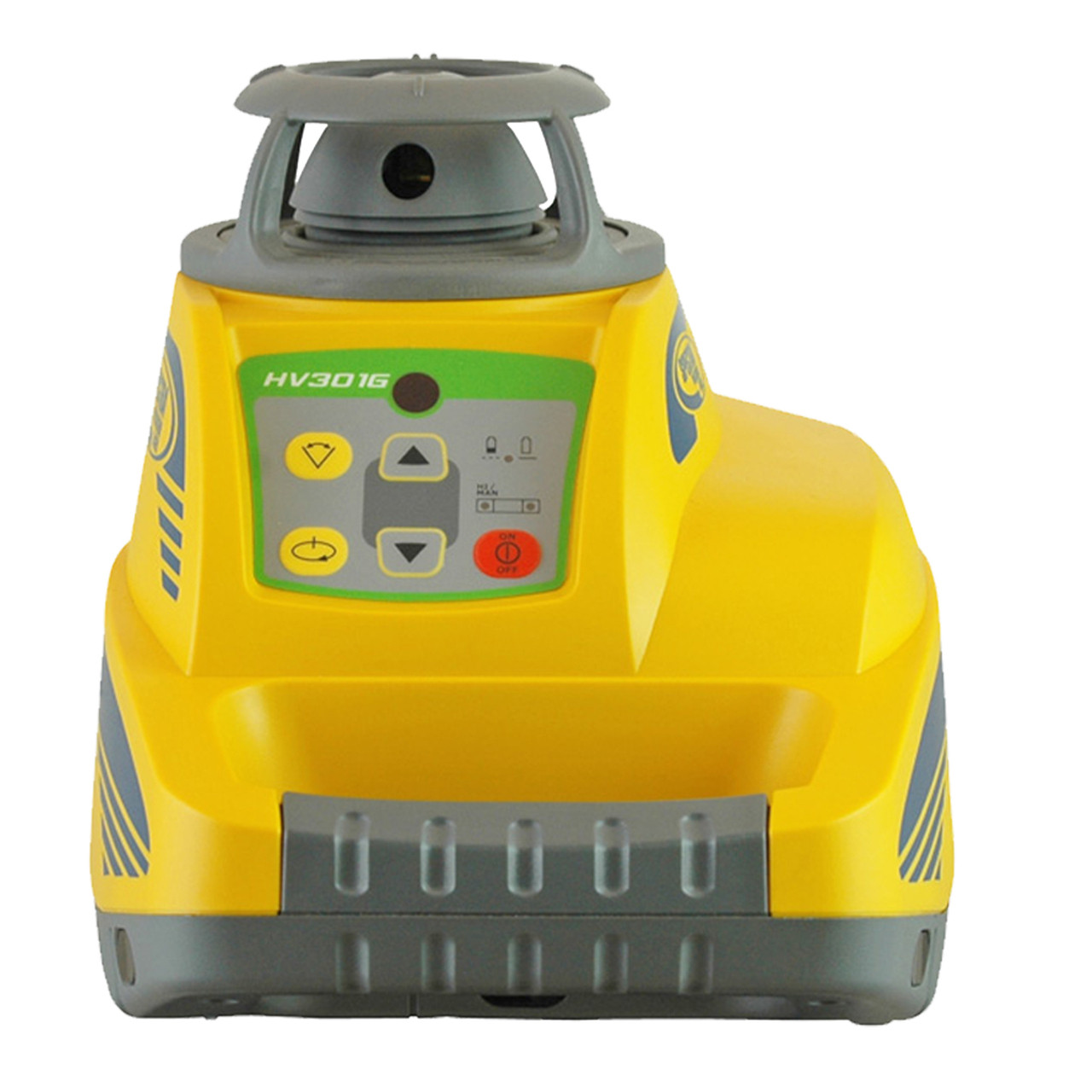

• HV301G Green Beam Laser Level with horizontal, vertical, and plumb beam functions
• HR320 Laser Receiver with LCD display and accuracy indicators

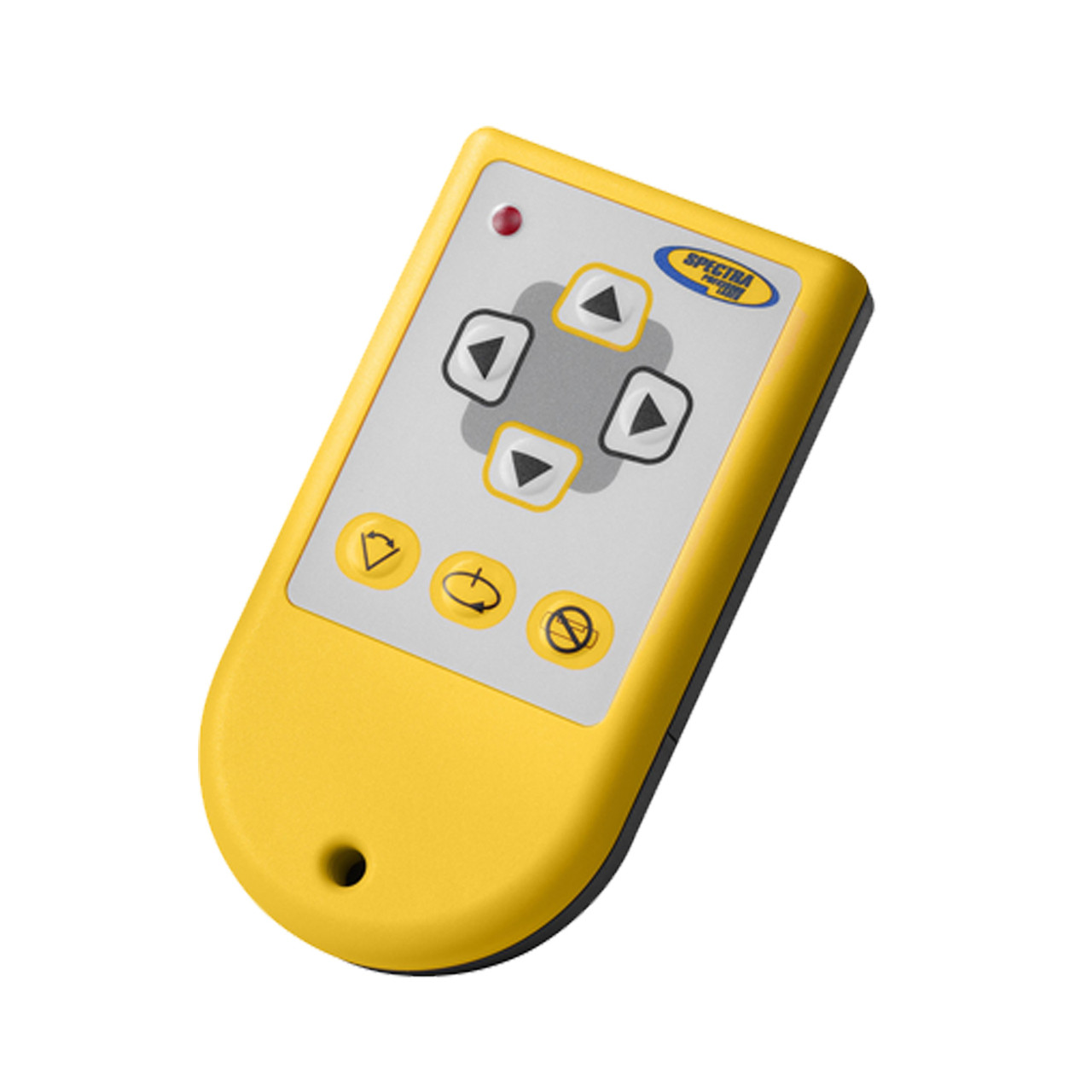

• RC402N Remote Control for beam selection and rotation speed adjustment
• Rechargeable Li-ion Battery Pack with charging cradle and AC adapter
• Receiver Clamp for secure attachment to grade rods, poles, or studs

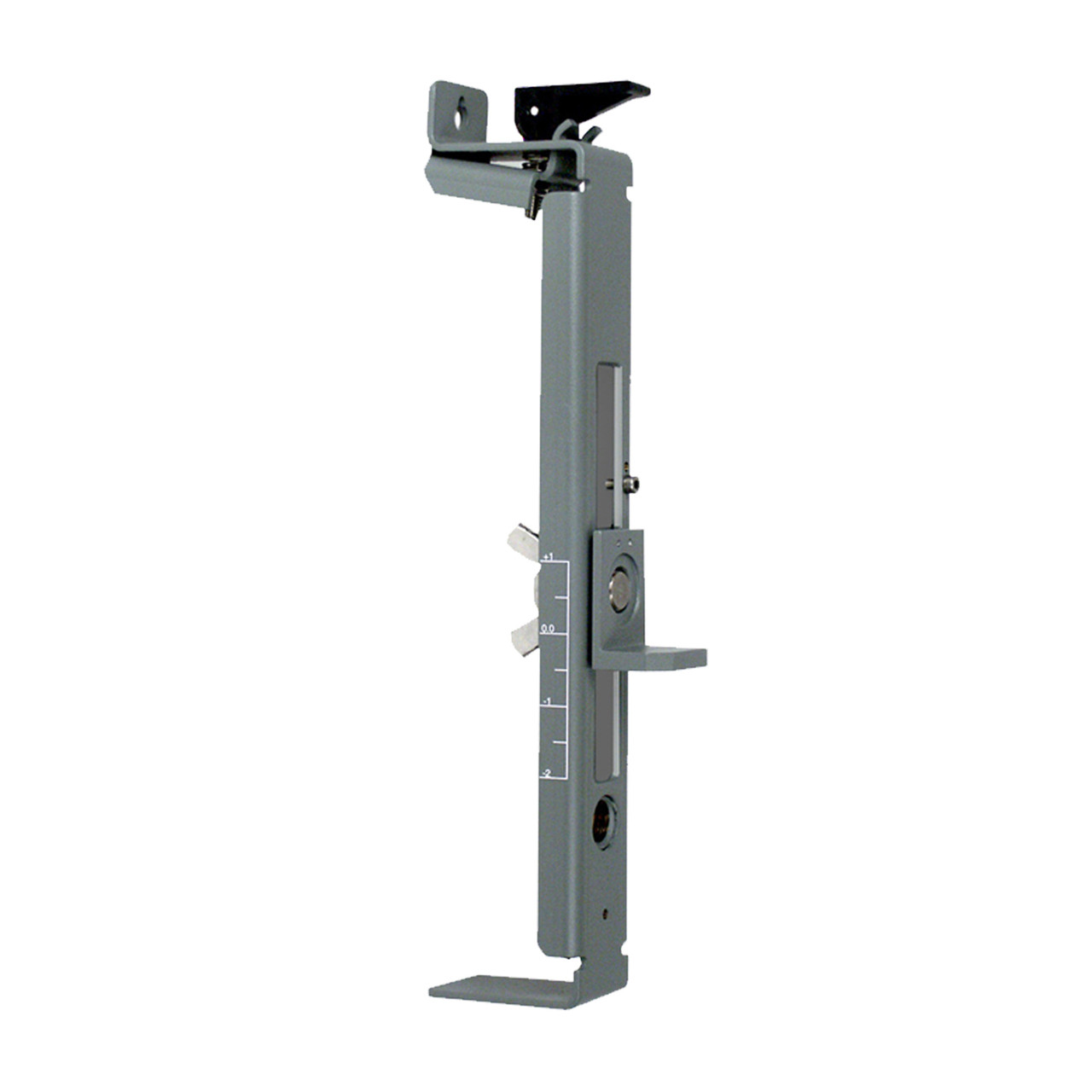

• Magnetic Wall Mount Bracket for quick positioning on steel studs and beams

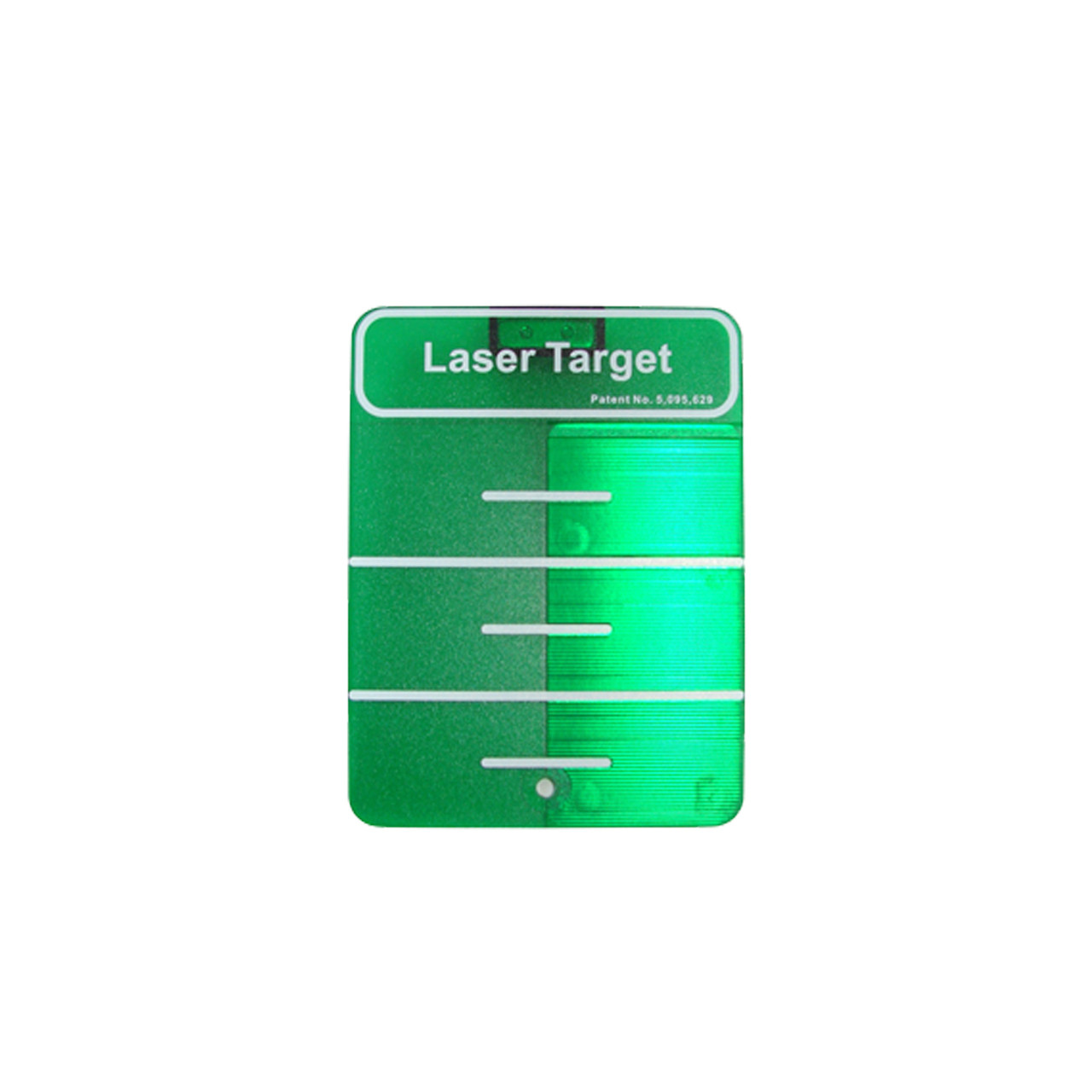

• Laser Target Card for short-range alignment verification
• Hard-Shell Carrying Case with custom foam inserts for all components
• Quick Start Guide and calibration certificate

Job Applications

• Suspended Ceiling Grid Installation: Project level horizontal reference around entire room perimeter simultaneously, eliminating the need to move a transit between setups. The green beam remains visible across long commercial spaces even with overhead fluorescent lighting, and the 360° coverage lets multiple crew members work from the same reference line while installing main runners and cross tees.
• Electrical Conduit and Device Box Layout: Establish consistent height references for switch boxes, receptacles, and junction boxes across multiple rooms. The vertical beam provides true plumb reference for conduit runs between floors, while the remote control allows electricians to adjust beam orientation without returning to the laser when working in adjacent spaces or different rooms.
• Door and Window Frame Alignment: Verify that rough openings are plumb and that finished frames install true before securing. The dual plumb points (floor and ceiling) help align jambs accurately in tall openings, and the horizontal beam confirms head heights match across multiple openings—critical for achieving clean sightlines in hallways and open floor plans.
• Drywall and Partition Framing: Set accurate track elevations for metal stud walls and confirm plumb for vertical framing members. The green beam penetrates through dusty drywall cutting environments better than red lasers, and the receiver extends range in long corridors or large rooms where the naked-eye beam visibility isn't sufficient for layout work.
• Cabinet and Millwork Installation: Create level reference lines for upper cabinet installation and confirm base cabinet heights match throughout kitchen or bathroom runs. The enhanced visibility helps finish carpenters see the line clearly when working in tight spaces under existing cabinets or in poorly lit corners where precision alignment determines the quality of the finished installation.
• HVAC Duct and Pipe Hanger Layout: Establish slope references for drain lines and maintain consistent elevation for duct runs and pipe racks across mechanical rooms or throughout ceiling spaces. The receiver with audible beep allows mechanical contractors to position hangers accurately even when the laser unit is out of sight behind existing structure or equipment.

Compatible Accessories

Heavy-Duty Laser Tripods | Replacement Receivers and Clamps | Telescoping Detector Poles | Magnetic Mounting Accessories | Replacement Battery Packs | Laser Target Plates | Grade Rods and Leveling Rods

Related Guides

Green vs. Red Laser Levels: Visibility and Application Comparison

Interior Laser System Comparison: Spectra vs. Leica vs. Topcon

How to Use a Laser Receiver for Long-Range Layout

Laser Level Calibration and Accuracy Verification

Frequently Asked Questions

What's the actual advantage of green beam over red for interior work?

Green laser wavelength (532nm) appears significantly brighter to the human eye than red (635nm) in ambient light conditions—up to four times more visible in practical jobsite environments. This matters most when working near windows, under skylights, in spaces with LED or fluorescent lighting, or in large rooms where the beam travels long distances. Red lasers work fine in dim conditions or basements, but green beams let you see the reference line clearly without dimming lights or closing blinds, which speeds up layout work and reduces errors from losing track of the beam position. The trade-off is shorter battery life (green diodes consume more power) and slightly higher cost, but for contractors working primarily in commercial spaces or day-lit residential projects, the visibility advantage pays for itself in efficiency.

Can I use this system outdoors or only inside buildings?

The HV301G-2 is designed and optimized for interior construction applications. While the HR320 receiver theoretically allows outdoor detection of the beam, this laser lacks the enhanced range and brightness of dedicated outdoor models, and Spectra doesn't rate it for exterior site work. The IP54 dust/water resistance protects against incidental exposure but isn't intended for wet outdoor conditions. For projects requiring both interior finish work and outdoor site layout, consider maintaining separate dedicated systems rather than compromising performance in either environment. If you occasionally need outdoor capability, look at Spectra's HV302G or dual-purpose models specifically rated for exterior use.

How does the receiver extend the working range beyond naked-eye visibility?

The HR320 receiver uses a sensor array to electronically detect the laser beam even when ambient light makes it invisible to your eye. In bright conditions where you might only see the green beam clearly to 60-80 feet, the receiver picks up the signal reliably to 300 feet diameter (150-foot radius). The receiver's LCD display shows when you're on-line, above, or below the beam, with accuracy indicators that narrow as you approach the exact beam center. This allows you to position outlet boxes, transfer elevations, or set ceiling heights in long corridors, large open areas, or across multiple rooms where the laser unit might be around corners or behind temporary partitions. The audible beep confirmation means you don't need line-of-sight to the display—useful when working on ladders or lifts.

What's the functional difference between auto-leveling and manual mode?

Auto-leveling mode (the default) uses an internal pendulum that self-levels the beam within ±5 degrees of level, then locks onto true horizontal or vertical plane. If the laser gets bumped or the surface shifts beyond that 5-degree range, it alerts you (flashing beam) that it's out of level and needs attention—this prevents you from working to an incorrect reference. Manual mode disables the pendulum, allowing you to intentionally project the beam at an angle for tasks like stairway layout, sloped ceiling reference, or ramp construction. Most interior finish work uses auto-leveling for accuracy and the peace of mind that any significant movement triggers an alert. Manual mode is specialized for the occasional job requiring non-level references—you sacrifice the automatic accuracy protection but gain flexibility for angled layout work.
