Spectra Precision HV301G Rugged Green Beam Laser System for Interior Construction

Overview

The Spectra Precision HV301G Rugged Green Beam Laser System is engineered for professional contractors, interior specialists, and remodeling crews who demand maximum visibility in challenging lighting conditions. This complete interior construction kit combines a high-visibility green beam rotary laser with the HR320 laser receiver, HL700 wall mount, and RC301 remote control for full-room layout capability. Green beam technology offers up to 4x better visibility than traditional red lasers in bright ambient light, reducing eye strain during extended layout sessions while maintaining ±1/8-inch accuracy at 100 feet. Whether you're installing drop ceilings, leveling cabinets, setting wall frames, or establishing elevation benchmarks, this rugged system delivers the precision and versatility demanded by commercial and residential interior projects.

Key Specifications

• Laser Type: Green beam rotary laser (540nm wavelength)
• Accuracy: ±1/8 inch at 100 feet (±3mm at 30m)
• Working Range: Up to 1,300 feet diameter with receiver (400m)
• Self-Leveling Range: ±5 degrees with automatic alert
• Rotation Speed: 0, 60, 120, 300, 600 RPM (selectable)
• Operating Modes: Horizontal, vertical, dual-slope, manual mode
• Power Source: Rechargeable Li-ion battery (16-20 hours runtime)
• Environmental Rating: IP56 dust and water resistance
• Drop Resistance: Tripod height (5 feet/1.5m)
• Operating Temperature: 14°F to 122°F (-10°C to 50°C)
• Receiver Detection Range: 1,300 feet diameter (HR320 included)
• Remote Control Range: 300 feet (RC301 included)

What's in the Kit

• HV301G Green Beam Rotary Laser
• HR320 Laser Receiver/Detector with clamp

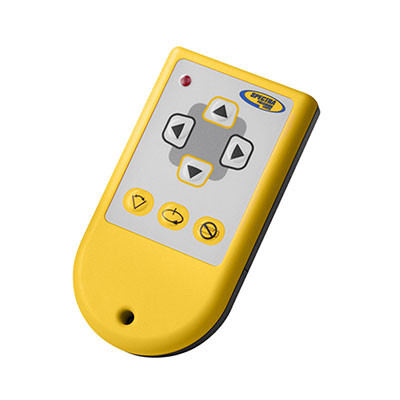

• RC301 Multi-Function Remote Control

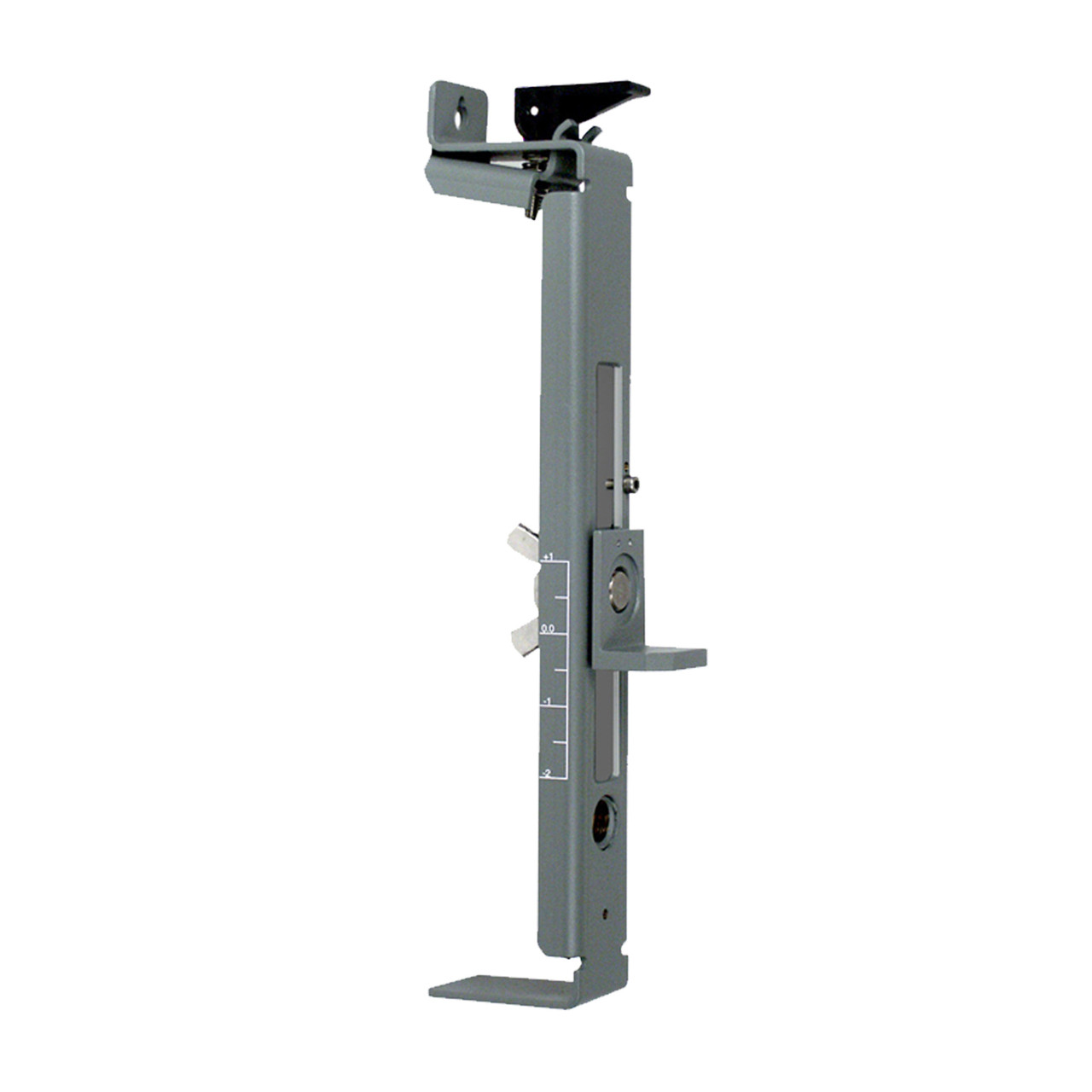

• HL700 Adjustable Wall Mount Bracket
• Rechargeable Li-ion Battery Pack
• Battery Charger with AC adapter
• Soft Carrying Case

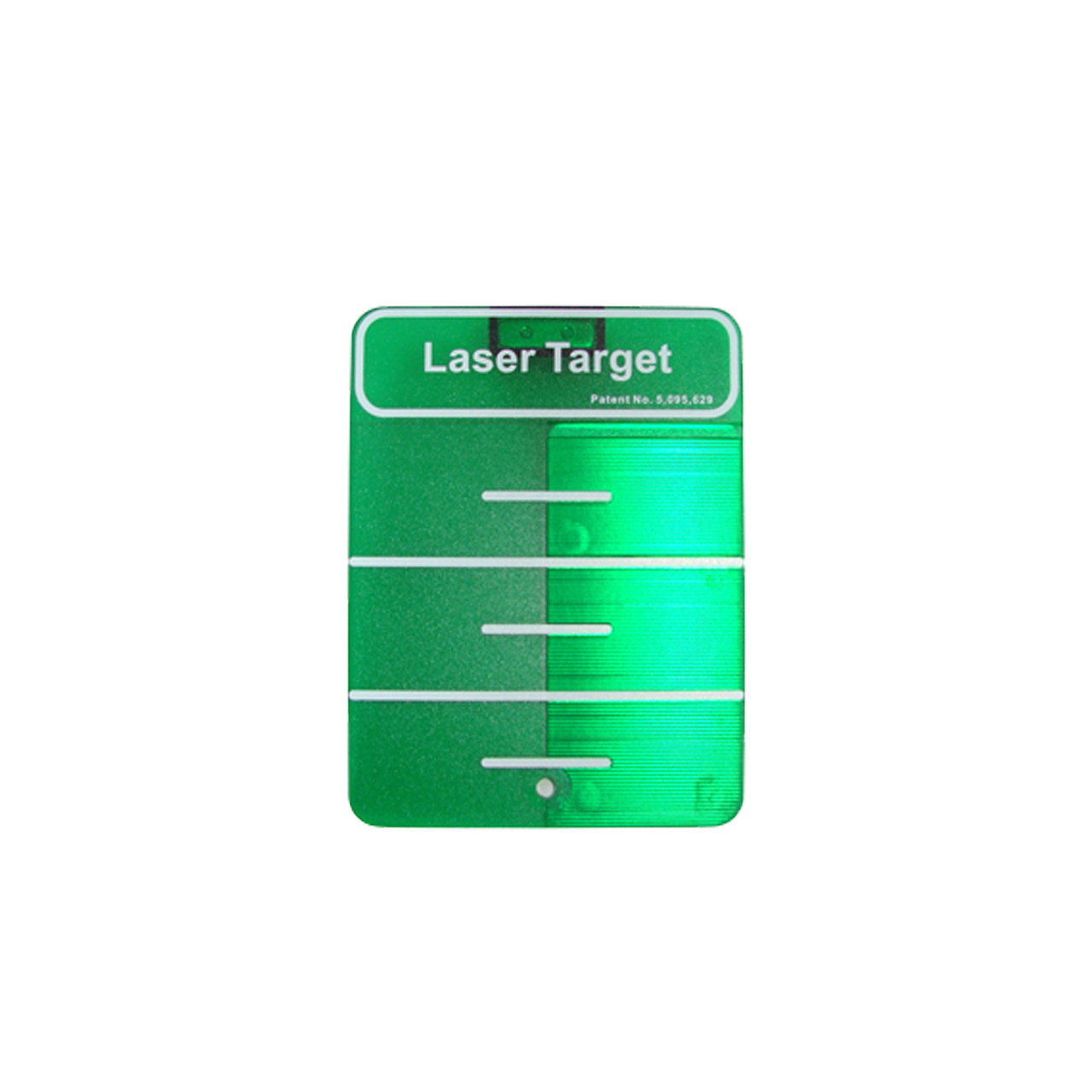

• Target Plate for Point-to-Point Transfer
• Quick Start Guide and Documentation
• 3-Year Manufacturer Warranty

Job Applications

• Drop Ceiling and Grid Installation: The horizontal plane mode with 360-degree coverage establishes consistent ceiling height across entire rooms, while the HR320 receiver provides audible confirmation when mounted on T-bar supports, ensuring grid systems remain perfectly level even in spaces with challenging ambient light from windows or skylights.
• Cabinet and Millwork Leveling: Green beam visibility excels in kitchens and bathrooms with natural light, allowing precise alignment of upper and lower cabinet runs without darkening the workspace; the HL700 wall mount positions the reference line at any height without occupying floor space needed for materials.
• Partition Framing and Drywall Layout: Vertical beam mode projects plumb lines for stud placement and door/window openings, while dual-slope capability handles angled walls or specialty framing; remote control operation lets one person establish layout points without returning to the laser between measurements.
• Tile and Flooring Installation: The rotating horizontal line creates a continuous reference around the entire room perimeter for establishing tile layout lines, baseboard positioning, and floor elevation benchmarks; superior green visibility maintains line clarity even when competing with reflective surfaces and task lighting.
• Electrical and Plumbing Rough-In: Horizontal and vertical modes simultaneously establish outlet heights, switch locations, and fixture centers with consistent elevation throughout multi-room installations; the receiver extends range outdoors for underground utility layout and site grading adjacent to building foundations.
• Commercial Build-Out and Tenant Improvements: Rugged construction withstands active job sites while green beam technology cuts through fluorescent lighting and daylight common in retail and office environments; long battery runtime supports full-day operation without mid-shift recharging on time-sensitive commercial projects.

Compatible Accessories

Spectra Laser Receivers and Detectors | Heavy-Duty Laser Tripods | Telescoping Grade Rods | Laser Enhancement Glasses | Replacement Battery Packs | Magnetic Laser Targets

Related Guides

Green vs Red Laser Levels: Visibility and Application Guide | Interior Rotary Laser Comparison: Spectra HV301G vs Topcon RL-H5A | Laser Level Accuracy Requirements by Trade | Rotary Laser Calibration and Maintenance Schedule

Frequently Asked Questions

What makes green beam lasers better for interior work than red beam models?

Green laser light at 540nm wavelength is significantly more visible to the human eye than red at 635nm, particularly in ambient lighting conditions common on interior job sites. This translates to clearer line visibility near windows, under fluorescent lighting, and in well-lit commercial spaces without requiring room darkening. The HV301G's green beam reduces eye strain during extended layout work and allows crews to maintain normal site lighting for safety and productivity.

Can this laser be used outdoors, and what is the realistic working range?

The HV301G can be used outdoors with the included HR320 receiver, which extends detection range up to 1,300 feet diameter. However, green lasers perform best indoors or in shaded outdoor conditions; direct sunlight significantly reduces visibility compared to indoor use. For outdoor grading and site work, red beam lasers with longer receiver range are typically more appropriate, while the HV301G excels in its intended interior construction applications.

How long does the battery last, and can I use it while charging?

The rechargeable Li-ion battery provides 16-20 hours of continuous operation depending on rotation speed and environmental conditions. The system cannot operate while charging, so Spectra recommends having a second battery pack for extended projects or situations where overnight charging isn't practical. The included charger fully recharges a depleted battery in approximately 4 hours.

What is the self-leveling range, and what happens if the laser is bumped?

The HV301G automatically self-levels within ±5 degrees of level. If the laser is disturbed beyond this range, it emits an audible alert and the beam begins flashing to indicate out-of-level condition. This prevents unknowingly working from an inaccurate reference. Once returned within the self-leveling range, the laser automatically re-levels and resumes normal operation. For slopes exceeding 5 degrees, manual mode allows intentional grade settings.
