Spectra Precision LL100N-2 Laser Package (8ths)

Overview

The Spectra Precision LL100N-2 Laser Package delivers self-leveling rotary laser accuracy calibrated for the imperial measurement system, making it the go-to choice for residential contractors, site grading crews, and concrete finishers who work exclusively in inches and fractions. Unlike dual-unit lasers that require mental conversion or display switching, this dedicated 8ths-inch system eliminates measurement translation errors on jobsites where speed and precision determine profitability. The LL100N-2 combines field-proven durability with straightforward operation—no complex menus, no metric/imperial toggle confusion, just reliable grade reference for foundation work, concrete pours, erosion control, and landscape installation. This package includes the HL450 digital receiver with 8ths-inch LCD readout, rod clamp, and all mounting hardware needed for single-operator leveling tasks up to 1,000 feet diameter. Whether you're setting forms for a residential slab, establishing drainage slope across a commercial parking pad, or grading a athletic field, the LL100N-2 provides consistent horizontal reference without the need for additional crew members or repeated instrument checks.

Key Specifications

• Leveling System: Automatic self-leveling, ±5° compensation range
• Accuracy: ±1/8 inch at 100 feet (±3 mm at 30 m)
• Beam Type: Single-slope horizontal with manual grade adjustment
• Working Range: 1,000-foot diameter (300 m) with HL450 receiver
• Rotation Speed: 600 RPM (standard); variable speed not available on this model
• Measurement Display: 8ths-inch increments (imperial only, no metric capability)
• Power Source: Rechargeable NiMH battery pack; 40+ hours runtime per charge
• Operating Temperature: 14°F to 122°F (-10°C to 50°C)
• IP Rating: IP66 dust-tight and water-resistant
• Drop Survival: 1-meter onto hard surface
• Receiver Type: HL450 digital LCD with 8ths-inch readout, audible tones, and visual indicators
• Dimensions (Laser Head): 8.7" × 7.9" × 6.7" (220 × 200 × 170 mm)
• Weight (Laser Unit): 6.6 lbs (3.0 kg) with battery
• Warranty: 3-year manufacturer warranty on laser; 1-year on receiver and accessories

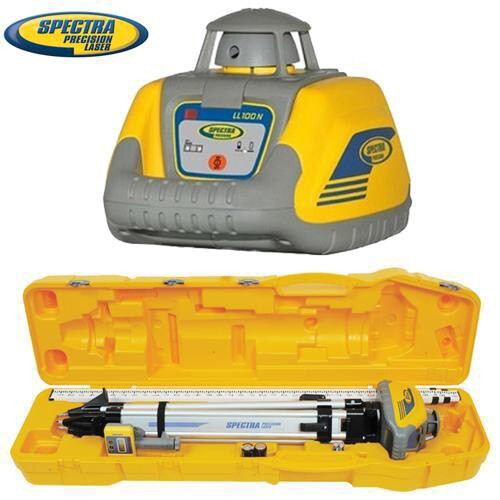

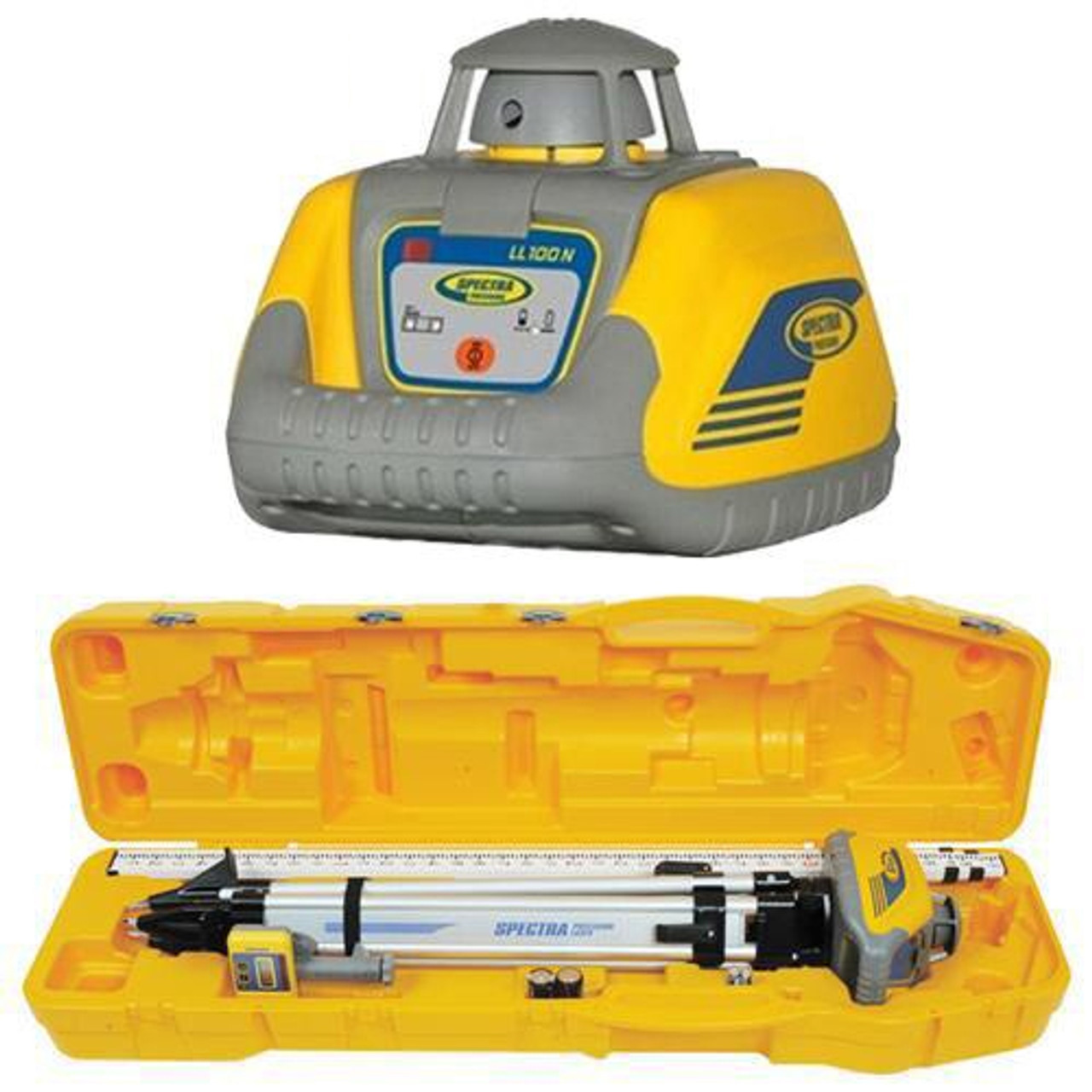

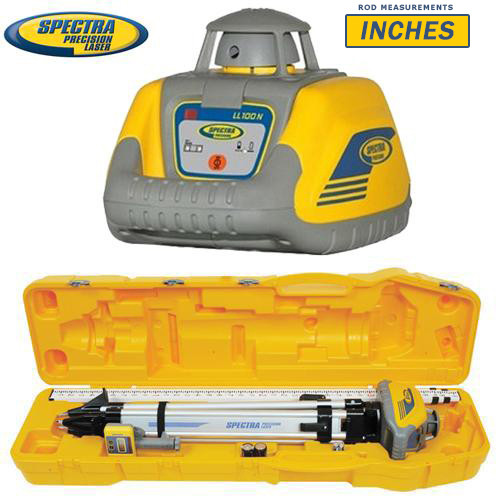

What's in the Kit

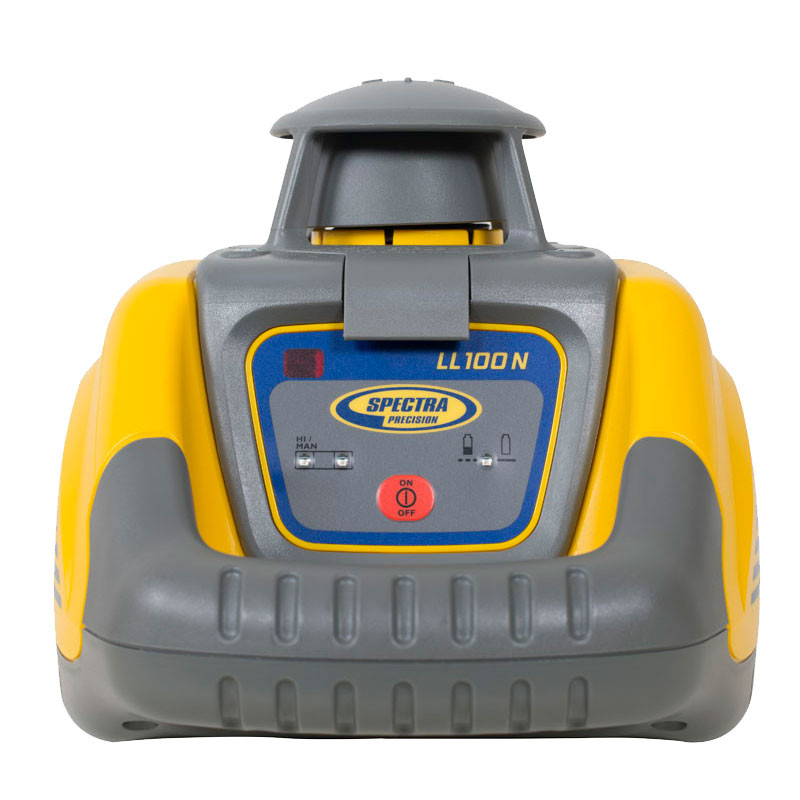

• LL100N-2 self-leveling rotary laser transmitter with integrated carrying handle
• HL450 digital laser receiver with 8ths-inch imperial readout and rod clamp
• Rechargeable NiMH battery pack with AC wall charger (110V)
• Remote control (RC402N) for slope adjustment and rotation speed from up to 300 feet
• Hard-shell carrying case with custom foam insert for all components
• Ceiling/wall mounting bracket for interior applications
• Target card for short-range visual alignment without receiver
• Quick-start guide and full operation manual
• Calibration certificate with serialized test data

Job Applications

• Residential Foundation and Slab Work: The 8ths-inch display matches standard blueprint dimensioning for footing excavation, form setting, and slab screeding without unit conversion. Eliminates the guesswork when matching architect elevations specified in fractional inches rather than decimal feet.
• Site Grading and Drainage Installations: Manual slope adjustment enables single-operator control of positive drainage grades from 1/8" per foot to steeper slopes for swales, French drains, and surface runoff management. Receiver tone alerts keep hands free for grading rake or screed operation.
• Concrete Finishing and Flatwork: 600 RPM rotation speed provides continuous reference for bull float operation, power screed guidance, and final trowel checks on garage floors, basement slabs, and commercial flatwork where ±1/8" tolerances are contractually specified.
• Deck and Patio Construction: Compact footprint allows setup in tight residential backyards while maintaining 1,000-foot working diameter for large composite deck frames, stamped concrete patios, and paver installations where consistent slope away from structures prevents water intrusion.
• Landscape and Hardscape Installation: IP66 rating withstands dust from soil excavation and overspray from irrigation testing during athletic field grading, retention pond shaping, and terraced garden construction where measured grade transitions prevent erosion.
• Drop Ceiling and Soffit Installation: Wall-mount bracket enables interior use for suspended ceiling grid leveling, kitchen soffit framing, and waffle-slab formwork where the horizontal beam establishes consistent elevation across spaces up to 80 feet wide.

Compatible Accessories

HR320 Machine Receiver (for dozer and grader blade control systems), HL700 Extended-Range Receiver (1,500-foot diameter capability), Five-Section Aluminum Grade Rod (extends to 16 feet with 8ths-inch graduations), Heavy-Duty Flat-Head Tripod (5/8"-11 thread with quick-release platform), Alkaline Battery Tray (backup power using four D-cell batteries), RC402N Replacement Remote Control, 12V Vehicle Charger (charges battery pack from truck cigarette lighter)

Related Guides

Rotary Laser Setup and Calibration Guide, LL100N vs. LL300N Feature Comparison, Troubleshooting: Laser Won't Self-Level, Calculating Proper Drainage Slope for Site Work

Frequently Asked Questions

Can this laser display measurements in metric or decimal feet, or is it locked to 8ths-inch?

The LL100N-2 is a dedicated imperial system with receiver display locked to 8ths-inch fractions. There is no metric mode, decimal-foot mode, or unit conversion capability. If you need dual-unit functionality or metric-only readout, consider the LL100N (metric) or LL300N series which offers switchable display modes. This single-unit design prevents field errors on jobs where all plans, elevations, and measurements are specified in fractional inches.

What's the practical working range for the HL450 receiver in bright sunlight conditions?

Effective detection range depends on ambient light. In overcast conditions or shaded areas, expect reliable reception to the full 1,000-foot diameter (500-foot radius). In direct sunlight, working range typically reduces to 600–700 feet diameter. For extended-range work or consistently bright environments, upgrade to the HL700 receiver which extends detection to 1,500 feet and includes a narrower detection window for better sunlight rejection.

How often does this laser require recalibration, and can I verify accuracy on site?

Spectra recommends annual recalibration or after any drop/impact event. For field verification, set up the laser and mark a reference point at 100 feet, rotate the laser 180°, and verify the elevation matches within 1/4 inch (twice the ±1/8" spec allows for measurement tolerance). If deviation exceeds this, return the unit for factory calibration. The included calibration certificate provides baseline test data for your specific serial number.

Will this system work with machine control receivers for excavator or dozer grade control?

Yes, the LL100N-2 is compatible with Spectra machine-mount receivers like the HR320 and HR350, allowing integration with excavator blade control systems and dozer GPS setups. However, note that machine control software typically operates in decimal feet or metric, so you'll need to ensure your control system can interpret the laser's grade reference properly. The laser transmits a standard rotating beam; the measurement unit limitation applies only to the handheld HL450 receiver included in this package.
