Spectra Precision LL1505C-26 Laser level Package with CR700 Multi-Use Receiver, Rod INCHES, Tripod and Large SYSTEM Case

← Drag to rotate →

Ships same day on in-stock orders before 2 PM CT

Authorized dealer · genuine, factory-fresh equipment

Compatibility & setup details on every product page

At a Glance

Model: Spectra Precision LL1505C-26
Self-leveling Range: ±5°
Grade Range: 0% to ±25% (single axis)
Rotation Speed: 150, 300, or 600 RPM
Working Diameter: Up to 2,000 ft with CR700 receiver
Accuracy: ±1/16 in at 100 ft

Spectra PrecisionLL1505C-26SKU Spectra 1239New

Rotary Lasers →

Spectra Precision LL1505C-26 Laser level Package with CR700 Multi-Use Receiver, Rod INCHES, Tripod and Large SYSTEM Case

Name: Spectra Precision LL1505C-26 Laser level Package with CR700 Multi-Use Receiver, Rod INCHES, Tripod and Large SYSTEM Case
Brand: Spectra Precision
SKU: Spectra 1239
Price: 1545.00 USD
Availability: InStock

$1545.00

Need 5+? Request volume pricing →

In Stock·Ships same day before 2 PM CT

Qty:

±5° Range

Cover large layout jobs with a ±5° working reach.

±1/16 in at 100 ft Accuracy

Hold grade with a ±1/16 in at 100 ft accuracy rating.

Grade Range

Handles 0% to ±25% (single axis) so crews can match design slopes.

Battery Life

Runs on Up to 70 hours (alkaline batteries) for jobsite flexibility.

Ask the AI Assistant

Stock, compatibility, and ordering questions answered instantly

Authorized dealerGenuine, factory-fresh Spectra Precision equipment

Same-day shippingOrders before 2 PM CT ship today

30-day returnsUnused equipment in original packaging

Eliminates the grade checker

Grade checkers cost $600-800/day. A rotary laser setup pays for itself in weeks and works indefinitely.

Authorized Dealer

Genuine equipment sourced straight from manufacturer partners.

Ships Same Day

Orders placed before 2 PM CT leave the dock today.

Genuine Gear

Factory-fresh, authentic units with legitimate firmware.

Best-Price Guarantee

Authorized-dealer pricing on every unit — request a quote anytime.

Kit Builder

Not sure what goes with this rotary laser?

Answer a few job questions and our Kit Builder assembles the full setup — receiver, rod, tripod, and case matched to your workflow.

Build your kit

Quick Answer

What is the Spectra Precision LL1505C-26?

The Spectra Precision LL1505C-26 is a professional laser level package designed for construction and surveying contractors. This complete system delivers accuracy of ±1/16 in at 100 ft with a working diameter up to 2,000 ft when paired with the included CR700 Multi-Use Receiver, making it ideal for grading, leveling, and layout applications on job sites. It's available from Express Tools.

FIELD APPLICATIONS

What contractors use this rotary lasers for

Site Grading

Cut/fill earthwork, building pad preparation, base compaction

Concrete Flatwork

Slab pours, floor leveling, tilt-up panel layout

Machine Control

Grade control reference for motor graders and scrapers

Foundation Layout

Benchmark elevation transfer, footing forms, stem walls

PRODUCT OVERVIEW

Product Description

The Spectra Precision LL1505C-26 Complete System Package delivers a fully field-ready elevation and grading solution without the hassle of sourcing individual components. Whether you are setting up a new crew or replacing aging equipment, this all-in-one kit contains every tool needed to begin accurate level and grade work the moment you arrive on the jobsite. As an authorized Spectra Precision dealer, Express Tools supplies this package with full manufacturer warranty support and free shipping.

System Overview and Jobsite Applications

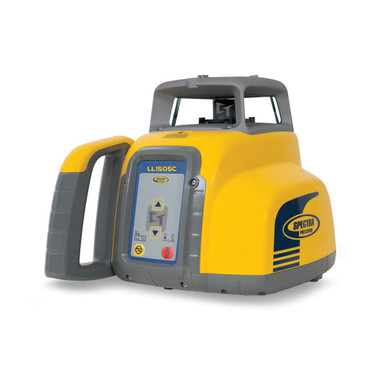

Built around the rugged Spectra Precision LL1505C rotary laser, this package is engineered for horizontal leveling and single-axis grade work across a wide range of construction environments. The LL1505C operates at 600 RPM with self-leveling capability and a working range up to 2,000 feet in diameter when paired with the included CR700 receiver. The soft app remote control lets operators adjust grade and power settings from ground level without touching the instrument, improving workflow efficiency on active jobsites. The large system carrying case organizes and protects all components during transport and storage, keeping the kit intact and ready for the next deployment.

Key Specifications

Model: Spectra Precision LL1505C-26
Self-Leveling Range: ±5°
Grade Range: 0% to ±25% (single axis)
Rotation Speed: 150, 300, or 600 RPM
Working Diameter: Up to 2,000 ft with CR700 receiver
Accuracy: ±1/16 in at 100 ft
IP Rating: IP66 — dust-tight and water-jet resistant
Battery Life: Up to 70 hours (alkaline batteries)
Operating Temperature: -4°F to +131°F

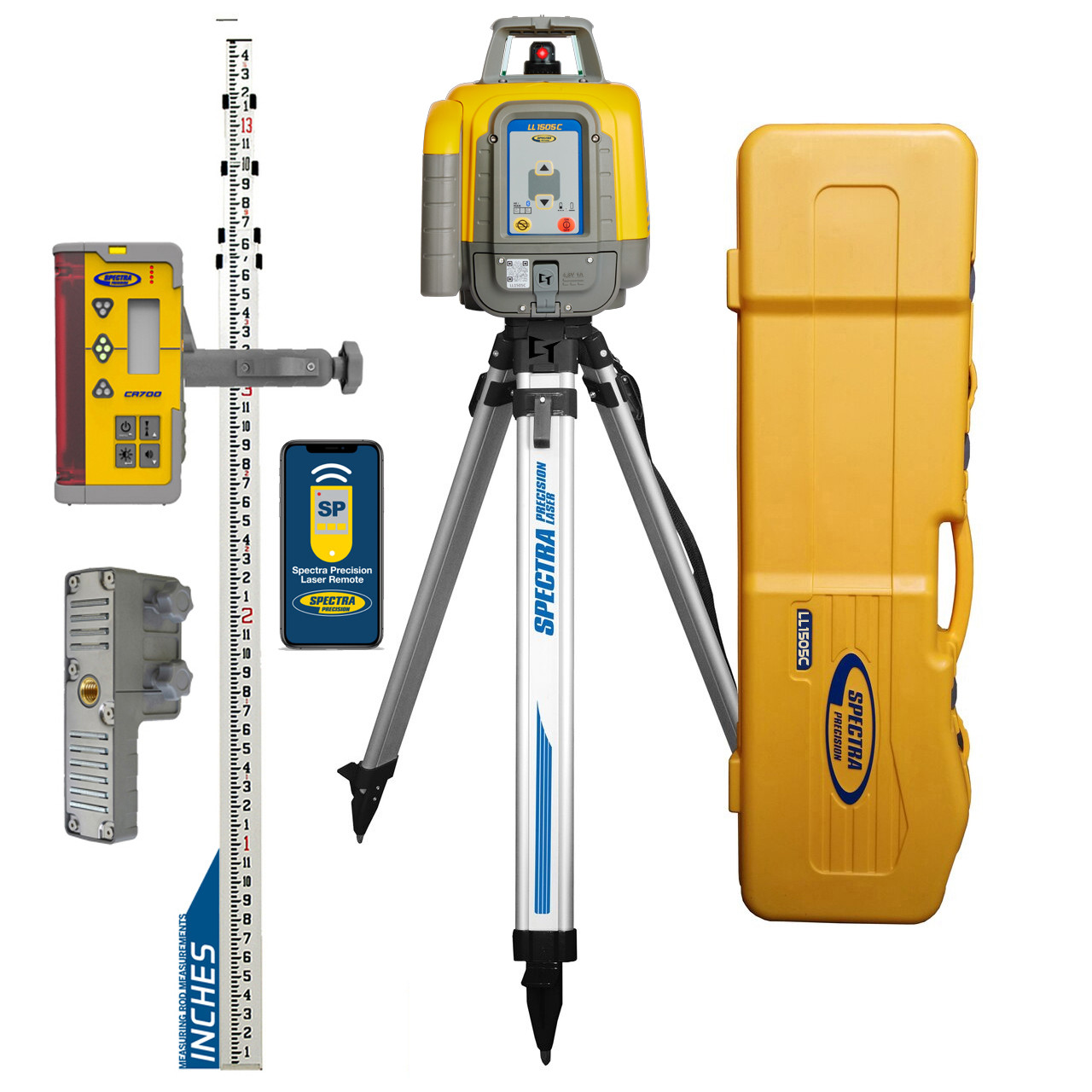

What's Included in the Kit

Spectra Precision LL1505C rotary laser level
CR700 Multi-Use Receiver with LCD display and audible indicator
Aluminum Tripod — adjustable, jobsite-rated
Grade Rod — inches graduation, compatible with CR700
Soft App Remote Control — wireless grade and power adjustment
System Carrying Case — holds the complete kit for organized transport
Operator's manual and manufacturer documentation

Job Applications

Site Grading and Earthwork: The LL1505C-26 single-axis grade capability makes it a direct fit for drainage slope work, road base preparation, and lot grading where consistent fall across a wide area must be maintained accurately.

Foundation Layout and Footing Elevation: Use the system to establish and verify footing elevations across large residential and commercial foundation pours, reducing rework caused by high or low spots.

Interior Finish and Drop Ceiling Work: The CR700 receiver paired with a grade rod allows finish carpenters and ceiling installers to transfer elevation benchmarks quickly across floors and walls without resetting the instrument.

Utility and Pipeline Slope Work: Set precise fall rates for drainage pipe, irrigation lines, or utility trenches using the grade function and remote control to adjust slope without stopping work at the instrument head.

Compatible Accessories

Related Guides

Frequently Asked Questions

Does the LL1505C-26 work outdoors in direct sunlight?: Yes. The LL1505C is designed for outdoor use and works reliably in direct sunlight when used with the included CR700 receiver, which detects the laser beam even in bright conditions where the naked eye cannot see the dot.
What is the difference between the LL1505C and the LL1505C-26 package?: The LL1505C refers to the laser instrument itself. The LL1505C-26 is the complete system package that bundles the LL1505C laser with the CR700 receiver, aluminum tripod, grade rod, remote control, and carrying case — everything needed for immediate field use.
Can the LL1505C do dual-axis grade?: No. The LL1505C supports single-axis grade only, with a range of 0% to ±25%. For dual-axis grade applications, consider the Spectra LL500 series. Contact Express Tools for a recommendation based on your jobsite requirements.
Is this package covered by a manufacturer warranty?: Yes. As an authorized Spectra Precision dealer, Express Tools sells the LL1505C-26 with the full Trimble/Spectra Precision manufacturer warranty. Warranty terms apply to the laser instrument and accessories as specified in the included documentation.

Why This Equipment

Auto Self-Leveling

Compensates for job site movement and setups — no manual leveling required.

Long Range

Reach 2,600+ ft with a receiver — covers large pads and site-wide grading without moving.

IP55+ Protection

Dust-tight and water jet resistant — built for outdoor construction in any weather.

Radio Remote

Change grade or elevation from the cab or anywhere on site without walking back.

Why Buy This?

The right rotary laser pays for itself in weeks.

A grade checker costs $600–800 per day. A quality rotary laser setup eliminates that cost indefinitely — and works faster. One operator with a good laser and receiver can cover ground that used to take a two-person crew.

The gap between a budget unit and a professional-grade one shows up in the field: self-leveling range on uneven pads, IP55+ protection through rain and dust, and radio remote control so you're not walking back to the instrument every time the job moves.

Express Tools is an authorized dealer with genuine, factory-fresh inventory and same-day shipping on in-stock units. We know this equipment and can answer spec questions before you order.

TECHNICAL SPECS

Specifications

Technical Specs

Manufacturer data and field-verified measurements.

Model	Spectra Precision LL1505C-26
Self-leveling Range	±5°
Grade Range	0% to ±25% (single axis)
Rotation Speed	150, 300, or 600 RPM
Working Diameter	Up to 2,000 ft with CR700 receiver
Accuracy	±1/16 in at 100 ft
IP Rating	IP66 — dust-tight and water-jet resistant
Battery Life	Up to 70 hours (alkaline batteries)
Operating Temperature	-4°F to +131°F
Working Range	Up to 2,000 ft with CR700 receiver
Remote Control	— wireless grade and power adjustment
