Spectra Precision LL1505C-BL

Built for the Jobsite: Spectra Precision LL1505C-BL Horizontal Rotary Laser

The Spectra Precision LL1505C-BL is a professional-grade self-leveling rotary laser engineered for contractors who demand accuracy, reliability, and long-range performance across demanding work environments. This laser-only unit gives you the flexibility to pair it with your existing compatible receiver or build out a custom kit. From open-air site grading to precision interior ceiling work, the LL1505C-BL delivers consistent results on every pour, every layout, and every elevation transfer.

Jobsite Overview and Applications

Designed around the needs of working contractors, the LL1505C-BL operates at ranges up to 4,000 feet in diameter when used with a compatible machine control or grade receiver. Its IP66-rated housing stands up to dust, water spray, and the everyday abuse of an active construction site. The automatic self-leveling system compensates within ±10 inches of plumb, getting you to work faster with less setup time. Whether you're running a crew on a large commercial pad or finishing interior framing on a residential build, this laser stays level and stays on the job.

Key Specifications

• Model: Spectra Precision LL1505C-BL
• Laser Class: Class II, 635nm visible red beam
• Self-Leveling Range: ±10 inches (±25 cm)
• Working Range: Up to 4,000 ft diameter (with compatible receiver)
• Accuracy: ±1/16 in at 100 ft (±1.5mm at 30m)
• Rotation Speed: 100, 300, or 600 RPM selectable
• Battery Life: Up to 100 hours on 4 D-cell alkaline batteries
• IP Rating: IP66 dust and water resistant
• Operating Temperature: -4°F to 122°F (-20°C to 50°C)
• Tripod Mount: Standard 5/8 in x 11 thread

Key Features

• Automatic self-leveling with out-of-level alarm and shutoff
• Selectable rotation speeds for scanning or precision alignment work
• Long-life battery system — up to 100 hours on standard D-cells
• IP66-rated housing resists dust, rain, and job site wash-down
• Rugged over-molded body absorbs impact and vibration
• Compatible with Spectra Precision HR320, HR550, and HL450 receivers

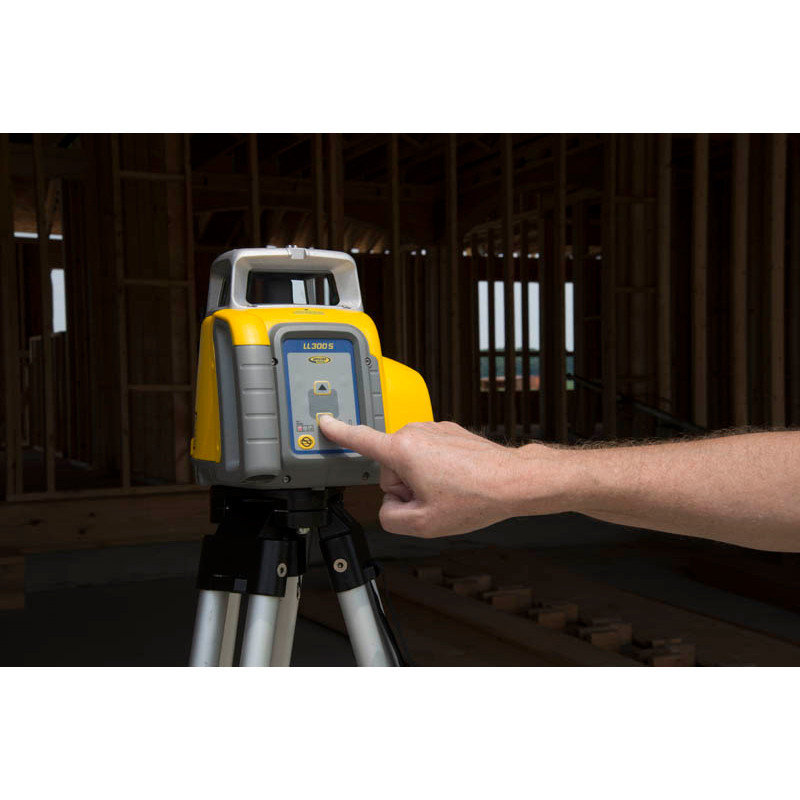

• Intuitive single-dial control panel reduces operator error
• Laser-only unit — build your own package with preferred accessories

Job Applications

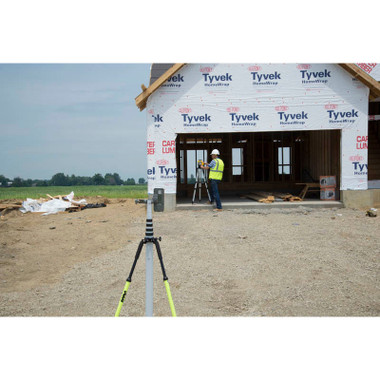

Site Grading and Earthwork: Set up the LL1505C-BL on a tripod or grade rod and use it with a compatible machine control receiver to manage cut-and-fill operations across large sites. The 4,000 ft working diameter keeps your grade crew on the same reference plane from one end of the pad to the other.

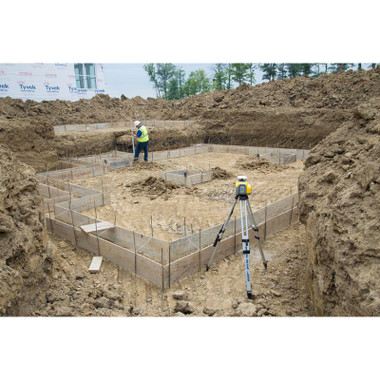

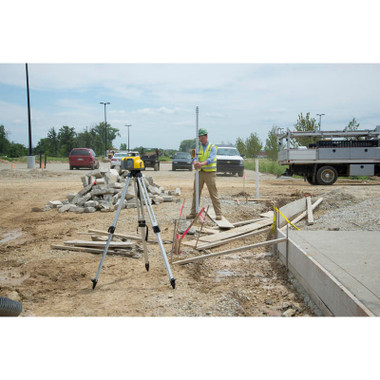

Foundation and Concrete Flatwork: Establish elevation benchmarks for slab pours and foundation walls. The ±1/16 in accuracy at 100 ft keeps your forms and screed rails dialed in to spec, reducing rework and material waste.

Interior Framing and Ceiling Layout: Run the laser at 300 RPM for drop ceiling grid layout, wall track installation, and partition framing. The visible red beam makes interior reference lines easy to identify without a receiver in finished or enclosed spaces.

Utility and Pipeline Installation: Use the LL1505C-BL to establish consistent invert elevations for drainage, sewer, and conduit runs. Pair it with a grade rod and receiver for hands-free elevation checks along the trench.

Compatible Accessories

• Spectra Precision HR320 Laser Receiver — Compact rod-mounted receiver for general grading
• Spectra Precision HR550 Laser Receiver — Long-range receiver for large open sites
• Spectra Precision HL450 Receiver — Machine control compatible receiver
• Spectra Precision FR300 Flat Rod — Direct-reading grade rod for receiver use
• Heavy-Duty Aluminum Tripod — Stable platform for outdoor laser setup
• Laser Target Card — Improves beam visibility for manual sighting

Related Guides

• How to Set Grade with a Rotary Laser Level
• Choosing the Right Laser Receiver for Your Spectra Laser
• Rotary Laser vs. Line Laser: Which Do You Need?
• Setting Up a Laser Level on a Construction Site: Best Practices

Frequently Asked Questions

Does the LL1505C-BL come with a receiver?

No. The LL1505C-BL is a laser-only unit and does not include a receiver. It is compatible with Spectra Precision HR320, HR550, and HL450 receivers, which are available separately. This configuration is ideal for contractors who already own a compatible receiver or prefer to select their own.

What is the maximum working range of the LL1505C-BL?

The LL1505C-BL has a working range of up to 4,000 feet in diameter when paired with a compatible laser receiver. Without a receiver, the visible red beam is usable for manual sighting at shorter interior distances, typically up to 100–150 feet depending on lighting conditions.

Is the LL1505C-BL suitable for outdoor use in wet conditions?

Yes. The LL1505C-BL carries an IP66 rating, meaning it is fully protected against dust ingress and against powerful water jets from any direction. It is designed to operate through rain, job site wash-down, and dusty grading environments without compromising performance.

What batteries does the LL1505C-BL use and how long do they last?

The LL1505C-BL runs on four standard D-cell alkaline batteries and delivers up to 100 hours of runtime on a single set. This extended battery life reduces downtime and means fewer mid-job battery changes on long or multi-day projects.
