Spectra Precision LL1505C-X2A Laser Level Package with HL450 Receiver, Rod INCHES, Tripod and Small Case - Alkaline

The Spectra Precision LL1505C-X2A is a complete, job-ready rotating laser level package designed for contractors who need accurate, dependable horizontal leveling right out of the box. Whether you're grading a site, setting foundations, or installing suspended ceilings, this kit delivers everything required to get to work immediately — no sourcing accessories separately, no delays. Powered by standard alkaline batteries, the LL1505C keeps you productive even on remote jobsites without access to power outlets or charging stations.

Package Overview & Jobsite Applications

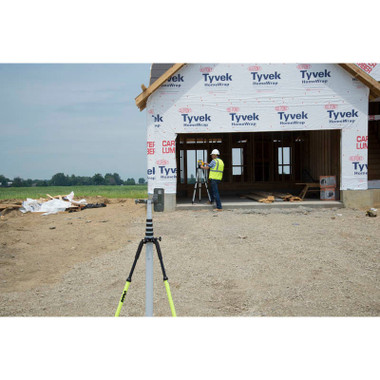

Built around Spectra Precision's proven LL1505C self-leveling rotating laser, this package is engineered for general construction, civil grading, concrete flatwork, and interior finish work. The HL450 digital receiver extends your working range significantly beyond unaided visibility, and its remote control functionality lets a single operator adjust the laser from a distance — reducing crew requirements and keeping your project on schedule. The included inch-graduated leveling rod, heavy-duty tripod, and protective carrying case round out a system that travels well and sets up fast on any site.

Key Specifications

• Model: Spectra Precision LL1505C-X2A
• Self-Leveling Range: ±5°
• Accuracy: ±1/16 in. at 100 ft (±1.5 mm at 30 m)
• Working Range (with HL450): Up to 2,000 ft (600 m) diameter
• Rotation Speed: 150 / 300 / 600 RPM selectable
• Power Source: 4 x D-cell alkaline batteries
• Battery Life: Up to 100 hours
• IP Rating: IP66 — dust-tight and water-resistant
• Operating Temperature: -4°F to 122°F (-20°C to 50°C)
• Laser Class: Class II, 635 nm red visible laser

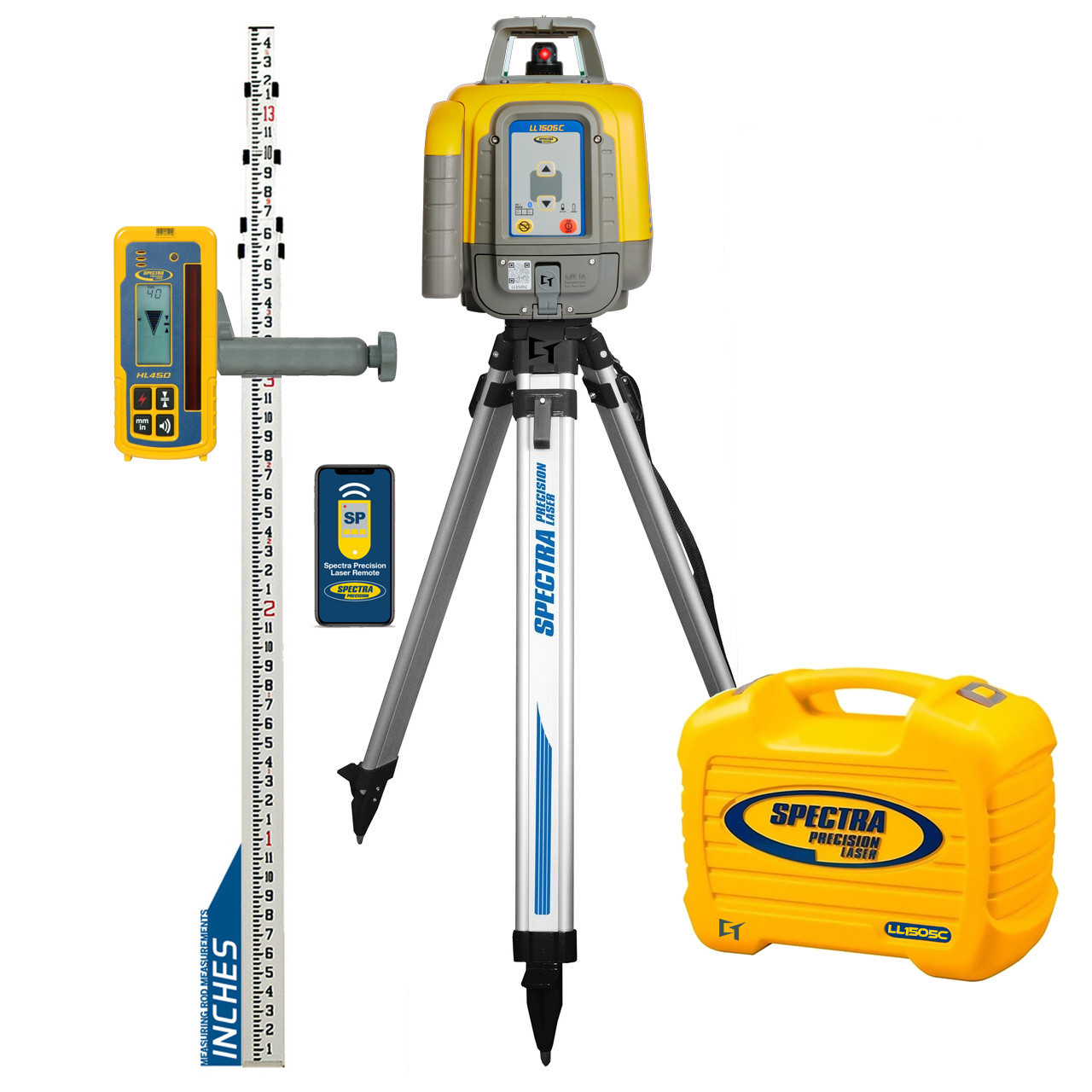

What's in the Kit

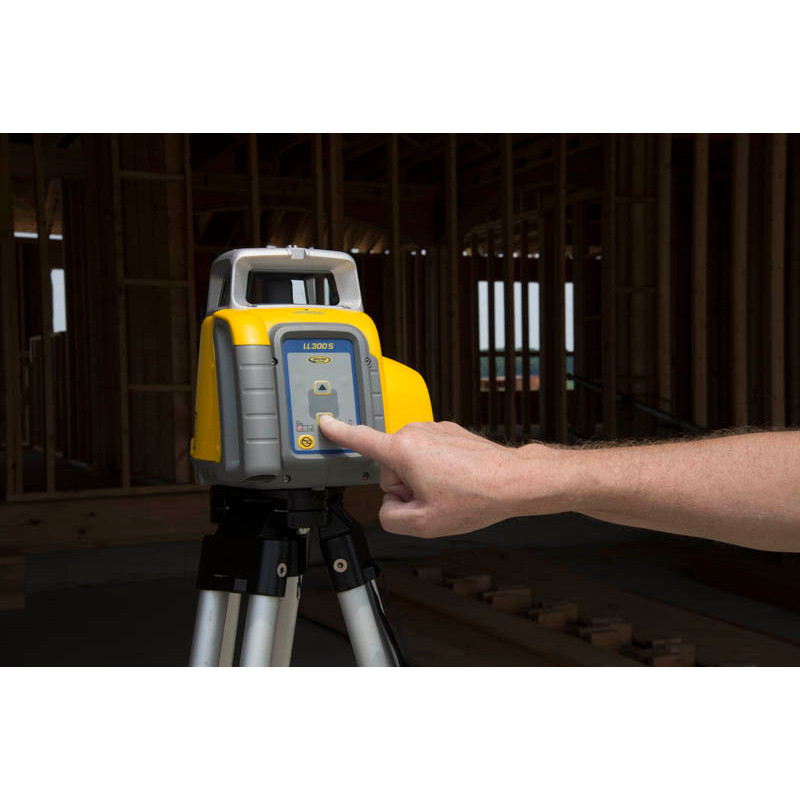

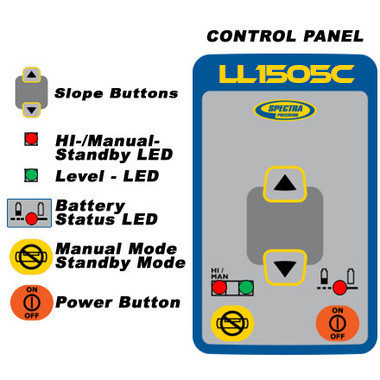

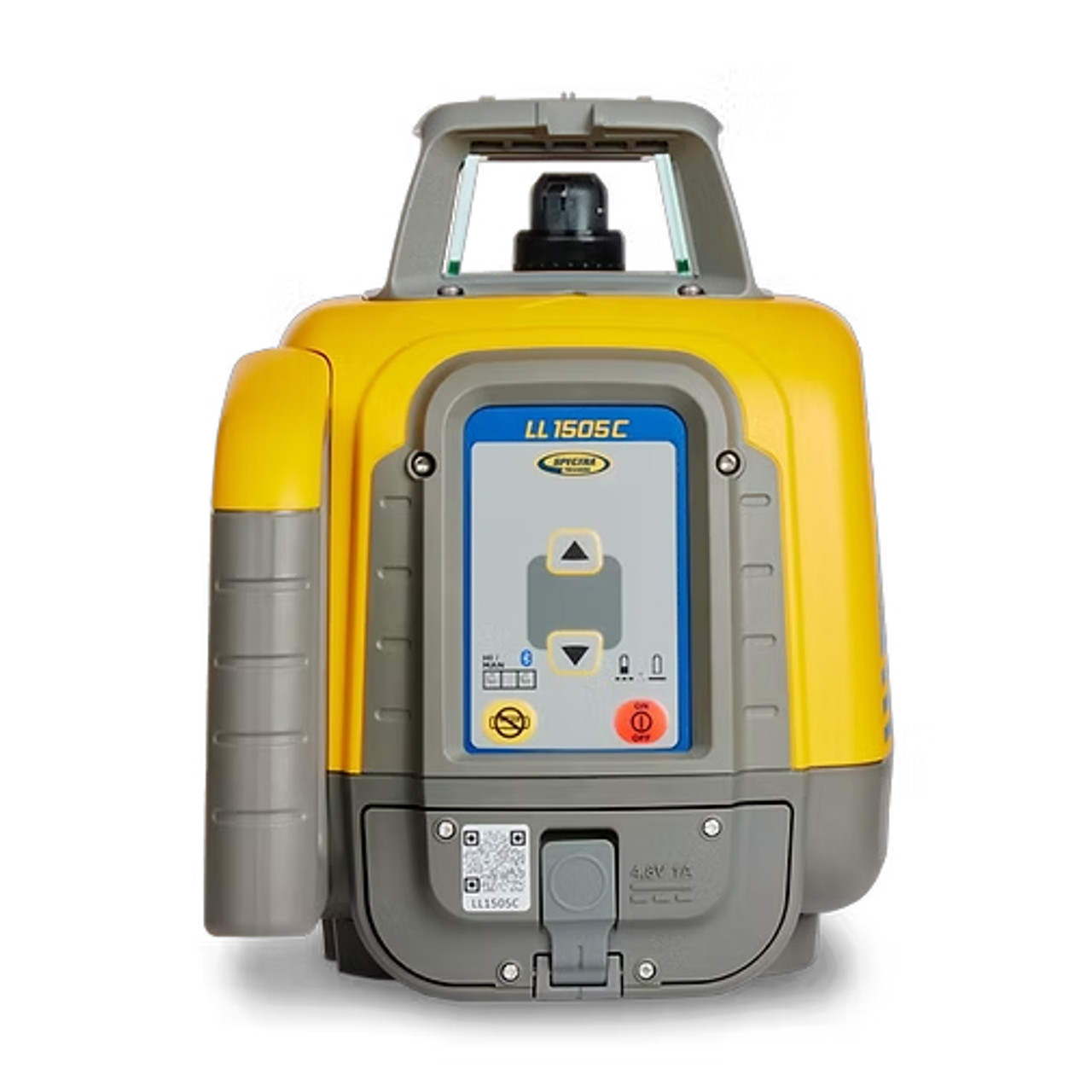

• Spectra Precision LL1505C — self-leveling horizontal rotating laser with out-of-level alarm

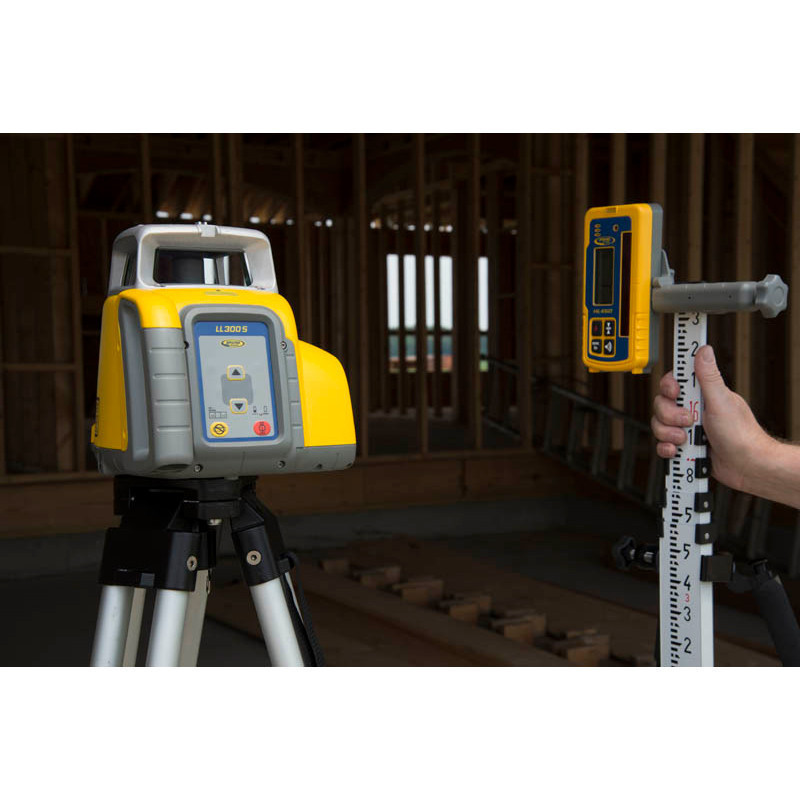

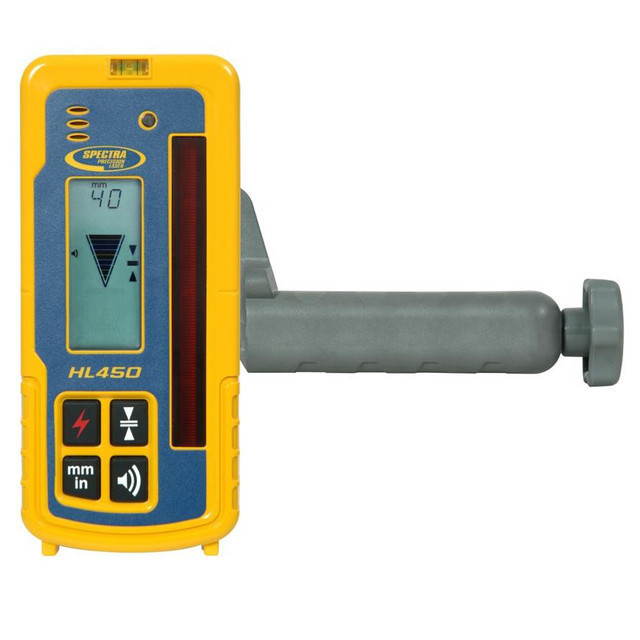

• HL450 Digital Receiver — wide-range receiver with audible/visual grade indication and remote control capability

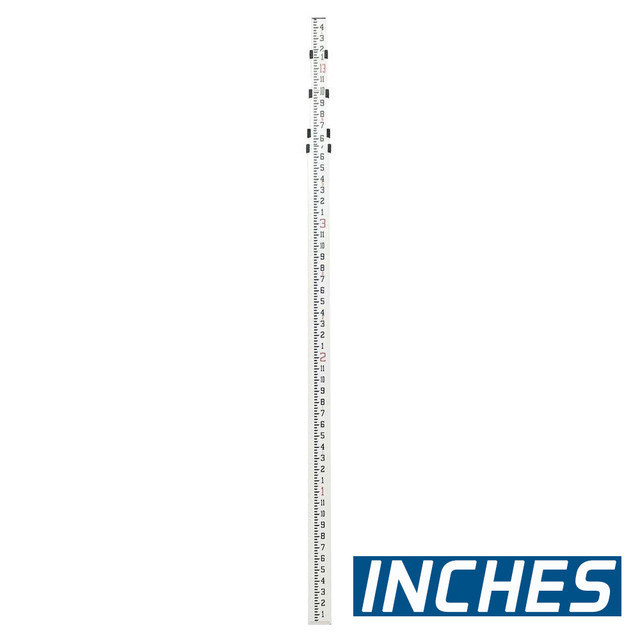

• Inch-Graduated Leveling Rod — direct-read rod for fast elevation checks
• Heavy-Duty Tripod — stable aluminum tripod for consistent setups
• Protective Carrying Case — foam-lined hard case keeps all components organized and protected during transport
• Operator's manual and batteries included

Job Applications

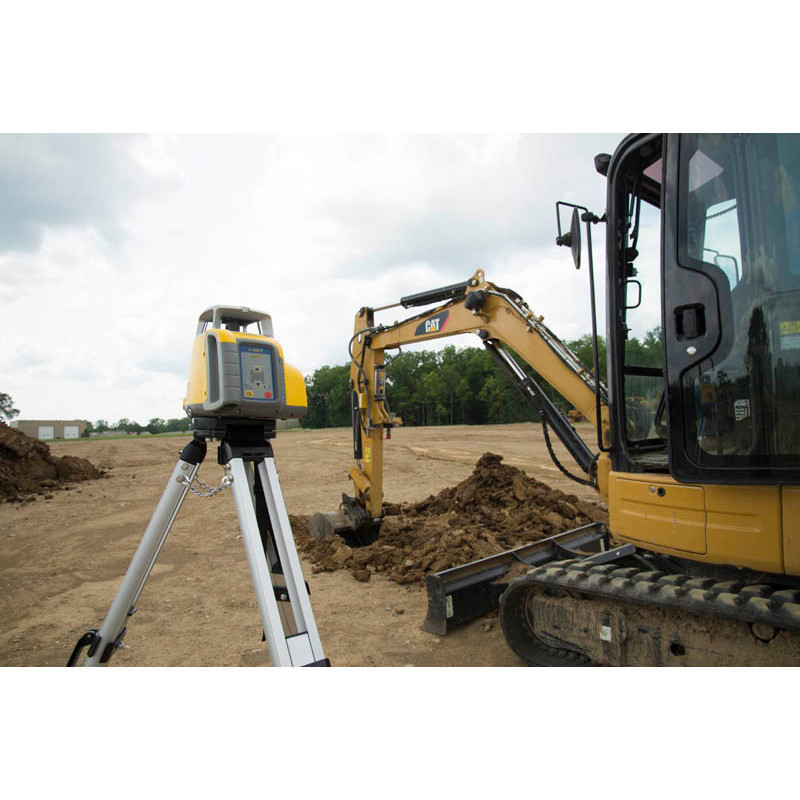

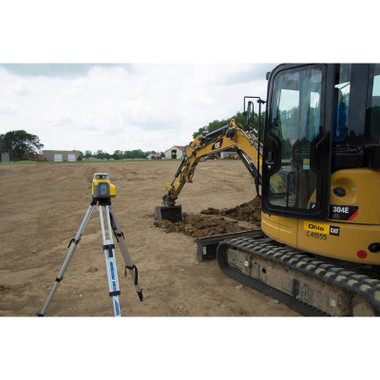

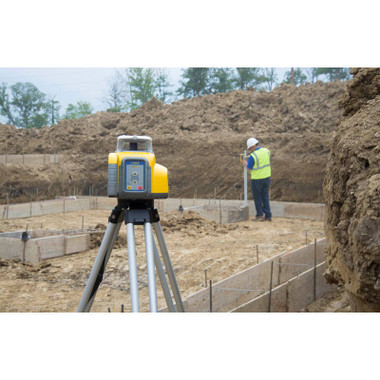

Site Grading & Earthwork: Use the long-range HL450 receiver across large open cuts to maintain consistent grade elevation, reducing machine passes and material waste.

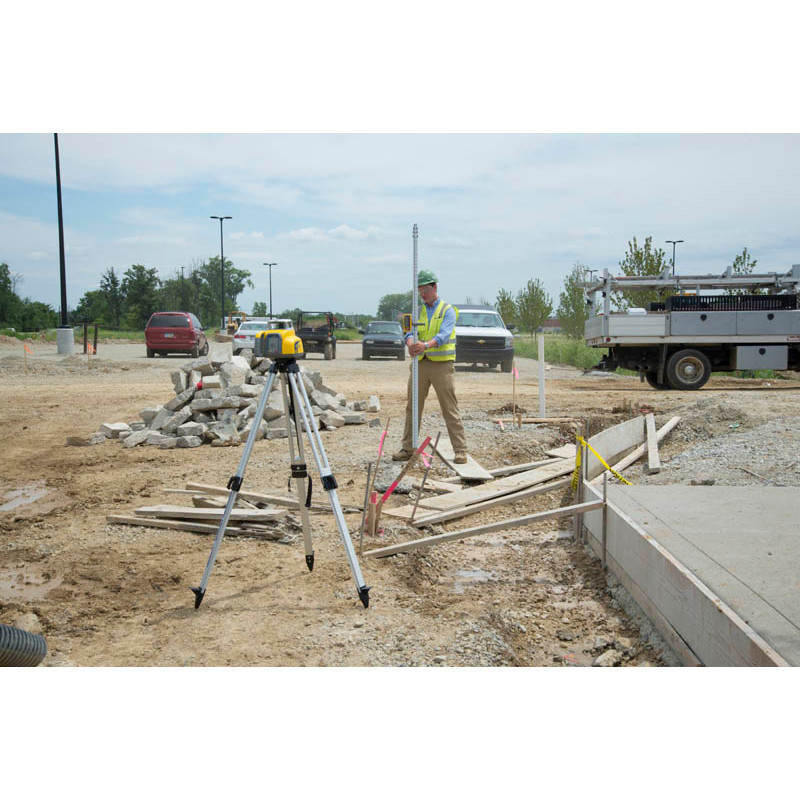

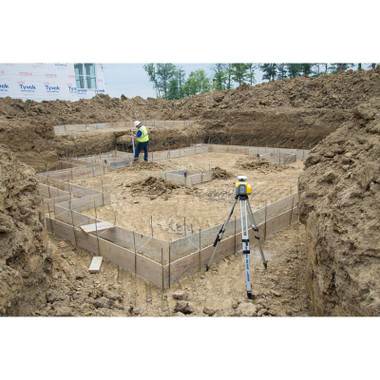

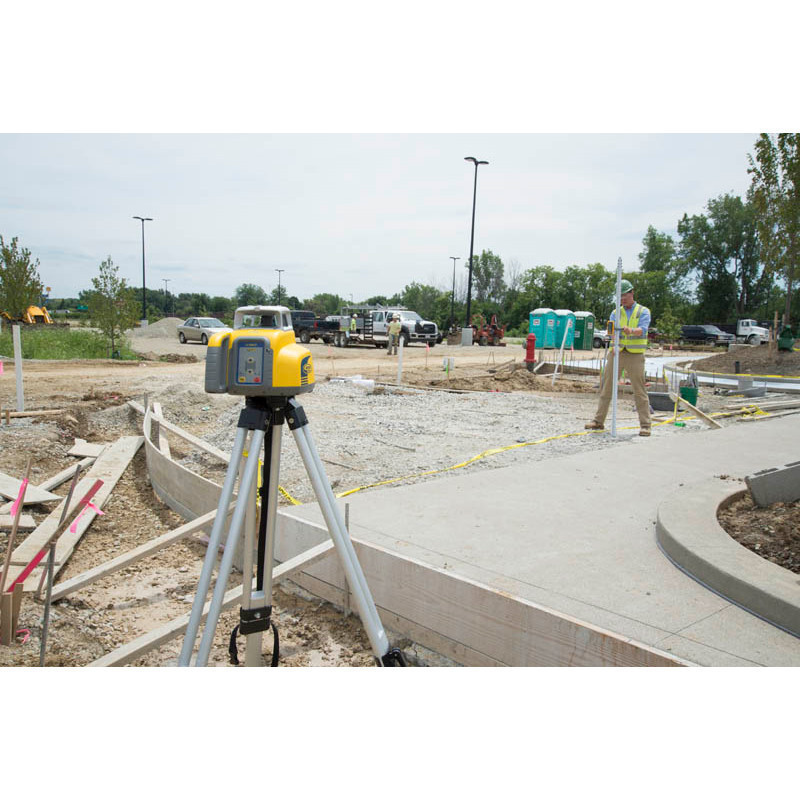

Concrete Flatwork & Foundations: Set precise elevation benchmarks for slab pours, footings, and stem walls. The ±1/16 in. accuracy at 100 ft keeps concrete crews on spec.

Interior Finish Work: Drop rotation speed for slower, more visible beam sweeps when hanging suspended ceilings, setting partition walls, or leveling cabinetry in commercial interiors.

Landscape & Drainage: Establish positive drainage slopes and check finished grades on landscaping projects where a long battery life and outdoor durability are essential.

Compatible Accessories

• Spectra Precision HL450 Replacement Receiver
• Spectra Precision FR12 Flat Rod — Metric & Imperial
• Heavy-Duty Grade Rod Target Bracket
• Spectra Precision Laser Level Replacement Carrying Case
• Heavy-Duty Aluminum Tripod with Quick-Clamp

Related Guides

• How to Set Up a Rotating Laser Level on a Jobsite
• Rotating Laser vs. Line Laser: Which Do You Need?
• How to Use a Laser Receiver for Long-Range Grading
• Alkaline vs. Rechargeable Laser Levels: Pros and Cons for Contractors

Frequently Asked Questions

What is the working range of the LL1505C-X2A package?

When used with the included HL450 digital receiver, the LL1505C has a working range of up to 2,000 feet (600 m) in diameter, making it suitable for large open construction sites and grading applications.

Does the LL1505C work with rechargeable batteries?

The LL1505C is designed for standard D-cell alkaline batteries, which provide up to 100 hours of runtime. While some users run NiMH rechargeable D-cells, Spectra Precision rates performance using alkaline batteries and battery life figures are based on alkaline use.

Can I use the HL450 receiver with other Spectra or Trimble lasers?

Yes. The HL450 receiver is compatible with most Spectra Precision and Trimble rotating laser levels that operate on a standard 635 nm red laser frequency, making it a versatile receiver for mixed-fleet jobsites.

Is the LL1505C suitable for outdoor use in wet conditions?

Yes. The LL1505C carries an IP66 rating, meaning it is fully dust-tight and protected against powerful water jets. It can be used in rain and dusty outdoor environments without compromising the instrument.
