Spectra LL300N-2 comes standard with 4 D-Cell Alkaline Batteries

← Drag to rotate →

Ships same day on in-stock orders before 2 PM CT

Authorized dealer · genuine, factory-fresh equipment

Compatibility & setup details on every product page

At a Glance

Model: Spectra Precision LL300N-X2
Operating Range: 300 meters (diameter) in clear conditions
Self-leveling Range: ±15 arc minutes (approximately 4.4 meters per 100 meters)
Accuracy: ±1/8 inch at 100 feet (±3 mm at 30 m)
Rotation Speed: 150, 300, or 600 RPM selectable
Laser Class: Class II (635 nm visible red diode)

Spectra PrecisionLL300N-X2SKU Spectra Precision GL622-1New

Rotary Lasers →

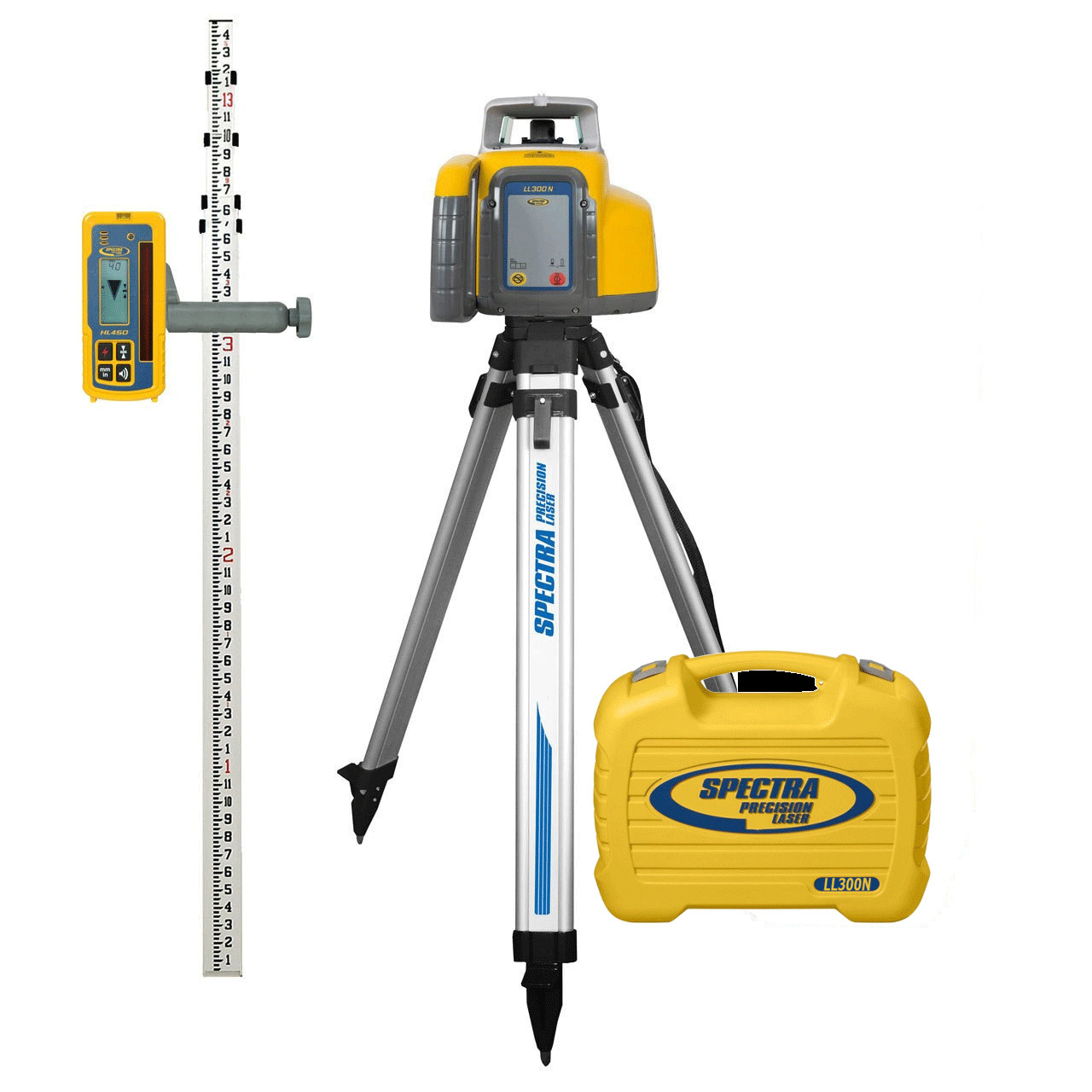

Spectra Precision LL300N-X2 Laser Package INCHES-Rod, HD Tripod and Small Case

Name: Spectra Precision LL300N-X2 Laser Package INCHES-Rod, HD Tripod and Small Case
Brand: Spectra Precision
SKU: Spectra Precision GL622-1
Price: 1095.00 USD
Availability: InStock

$1095.00

Need 5+? Request volume pricing →

In Stock·Ships same day before 2 PM CT

Qty:

300 meters (diameter) in clear conditions Range

Cover large layout jobs with a 300 meters (diameter) in clear conditions working reach.

±1/8 inch at 100 feet (±3 mm at 30 m) Accuracy

Hold grade with a ±1/8 inch at 100 feet (±3 mm at 30 m) accuracy rating.

Battery Life

Runs on Up to 100 hours on D-cell batteries for jobsite flexibility.

Authorized Spectra Precision Dealer

Genuine, factory-fresh Spectra Precision equipment with legitimate firmware and calibration documentation.

Ask the AI Assistant

Stock, compatibility, and ordering questions answered instantly

Authorized dealerGenuine, factory-fresh Spectra Precision equipment

Same-day shippingOrders before 2 PM CT ship today

30-day returnsUnused equipment in original packaging

Eliminates the grade checker

Grade checkers cost $600-800/day. A rotary laser setup pays for itself in weeks and works indefinitely.

Authorized Dealer

Genuine equipment sourced straight from manufacturer partners.

Ships Same Day

Orders placed before 2 PM CT leave the dock today.

Genuine Gear

Factory-fresh, authentic units with legitimate firmware.

Best-Price Guarantee

Authorized-dealer pricing on every unit — request a quote anytime.

Kit Builder

Not sure what goes with this rotary laser?

Answer a few job questions and our Kit Builder assembles the full setup — receiver, rod, tripod, and case matched to your workflow.

Build your kit

Quick Answer

What is the Spectra Precision LL300N-X2?

The Spectra Precision LL300N-X2 Laser Package INCHES-Rod, HD Tripod and Small Case is a professional rotary laser level designed for construction and surveying applications. This complete kit delivers 300-meter operating range, ±1/8 inch accuracy at 100 feet, and self-leveling performance up to ±15 arc minutes—making it ideal for grading, leveling, and layout work on job sites. It's available from Express Tools.

FIELD APPLICATIONS

What contractors use this rotary lasers for

Site Grading

Cut/fill earthwork, building pad preparation, base compaction

Concrete Flatwork

Slab pours, floor leveling, tilt-up panel layout

Machine Control

Grade control reference for motor graders and scrapers

Foundation Layout

Benchmark elevation transfer, footing forms, stem walls

PRODUCT OVERVIEW

Product Description

The Spectra Precision LL300N-X2 is a contractor-grade rotary laser kit built for crews who need dependable single-grade performance on demanding job sites. Combining the field-proven LL300N laser head with an inches-graduated grade rod and a heavy-duty HD tripod, this package gives you everything required to hit the ground running on grading, drainage, and foundation layout work. Whether you're setting cut-and-fill stakes on a commercial pad or fine-grading for a residential slab, the LL300N-X2 delivers the accuracy and durability that professional contractors rely on every day.

Built for Real Job Sites

The LL300N-X2 is at home on a wide range of civil and residential construction tasks. Its 300-meter operating range covers large pads, parking lots, and open grading areas without repositioning. The automatic self-leveling system compensates within a 15-meter range on most uneven ground, getting you set up fast even when terrain is less than ideal. The rugged housing is designed to withstand the vibration, dust, and moisture exposure that come standard on any active site. Because this kit ships with an inches-graduated rod, it integrates directly into imperial workflows without any unit conversion—ideal for U.S.-based crews working in feet and inches.

Key Specifications

Model: Spectra Precision LL300N-X2
Operating Range: 300 meters (diameter) in clear conditions
Self-Leveling Range: ±15 arc minutes (approximately 4.4 meters per 100 meters)
Accuracy: ±1/8 inch at 100 feet (±3 mm at 30 m)
Rotation Speed: 150, 300, or 600 RPM selectable
Laser Class: Class II (635 nm visible red diode)
Battery Life: Up to 100 hours on D-cell batteries
IP Rating: IP66 — dust-tight and water-resistant
Operating Temperature: -20°C to +50°C (-4°F to +122°F)
Kit Includes: LL300N laser head, HD heavy-duty tripod, inches-graduated grade rod

What's in the Kit

LL300N Rotary Laser Head: Self-leveling single-grade rotary laser with selectable spin speeds and long battery life

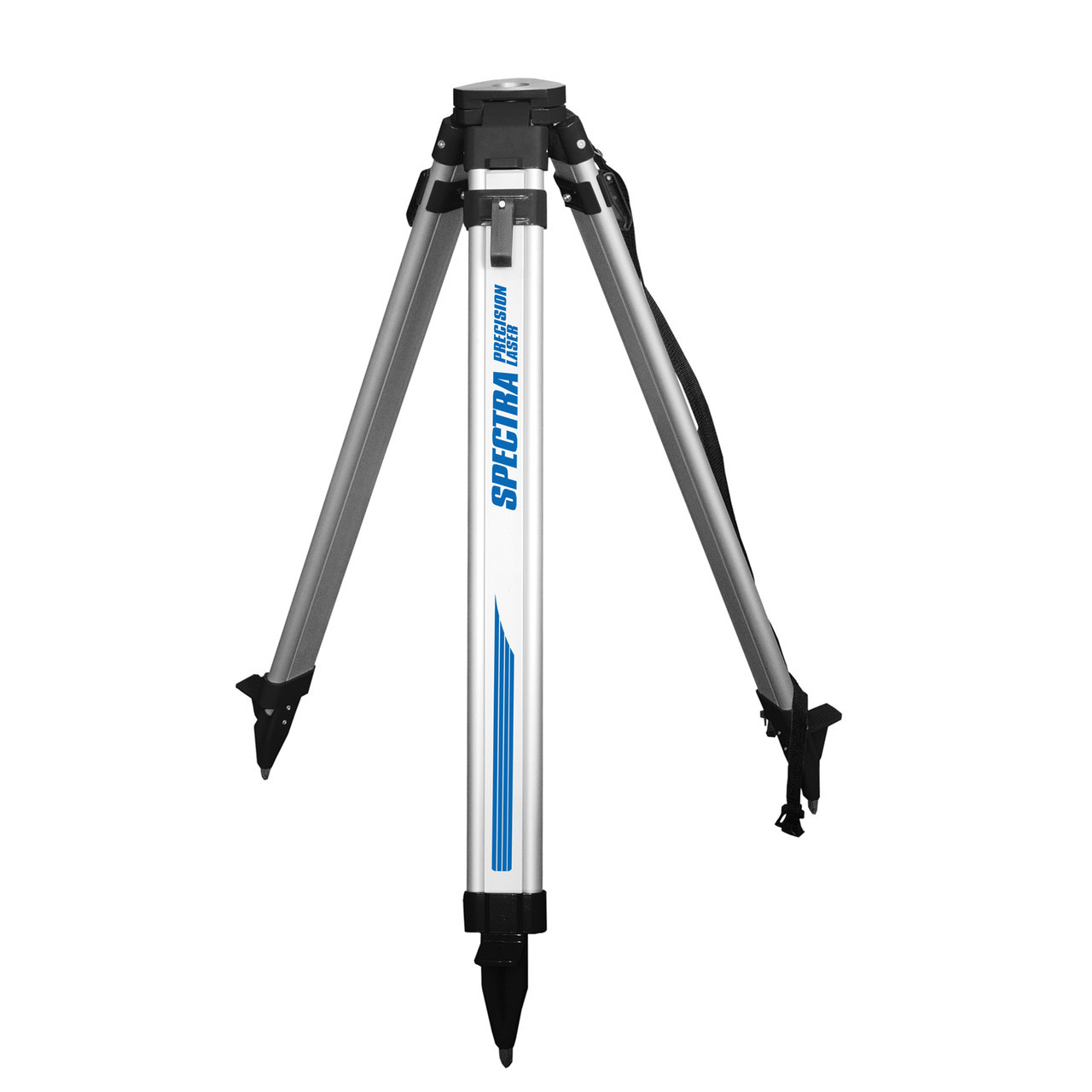

Heavy-Duty HD Tripod: Sturdy aluminum tripod with wide leg spread for stable setup on soft or uneven ground
Inches-Graduated Grade Rod: Imperial-measurement rod for direct reading in feet and inches—no conversion required
Battery Compartment: Standard D-cell batteries for easy field replacement without proprietary packs
Carrying Case: Protective storage case keeps components organized and protected during transport

Job Site Applications

Site Grading and Earthwork: Set and verify cut-and-fill elevations across large commercial and residential pads with a single instrument setup
Foundation Layout: Establish consistent reference elevations for footings, stem walls, and slabs to hit ±1/8" tolerances required by most specs
Drainage and Slope Work: Dial in positive drainage grades on parking lots, driveways, and retention areas where standing water is a code or warranty concern
Utility and Pipeline Grade: Provide elevation control for trenching crews installing gravity-flow drainage or sewer lines requiring consistent slope

Compatible Accessories

Spectra Precision HR320 Laser Detector — Extends working range and enables outdoor use in bright conditions
Spectra Precision HL760 Laser Detector — Digital grade display for machine control and grade checking on the rod
Spectra Precision CR600 Remote Control — Wireless remote for rotating and stopping the beam without returning to the instrument
Replacement D-Cell Battery Pack — Keep spares on hand for uninterrupted all-day operation
Spectra Precision Carrying Case — Replacement or additional protective transport case

Frequently Asked Questions

Does the LL300N-X2 work outdoors in direct sunlight?: The LL300N uses a visible red beam, which can be difficult to see with the naked eye in bright sunlight. For outdoor use, pair it with a compatible laser detector such as the Spectra HR320 or HL760, which picks up the beam at full operating range regardless of ambient light conditions.
Can I use the LL300N-X2 for slope or grade work?: The LL300N is a single-grade laser, meaning the beam rotates on a self-leveled horizontal plane. It does not project a sloped plane natively. For applications requiring a set percentage grade (such as a pitched parking lot or sloped slab), you would need a dual-grade laser such as the Spectra LL500.
What batteries does the LL300N use, and how long do they last?: The LL300N runs on standard D-cell batteries, which are available at any hardware or big-box store—no proprietary packs required. Battery life is rated at up to 100 hours under normal operating conditions, making this one of the longest-running rotary lasers in its class.
Is the LL300N-X2 covered by a warranty?: Spectra Precision backs the LL300N with a standard manufacturer's warranty covering defects in materials and workmanship. As an authorized Spectra Precision dealer, Express Tools supports warranty claims and service coordination. Contact our team for current warranty terms and service center information.

Why This Equipment

Auto Self-Leveling

Compensates for job site movement and setups — no manual leveling required.

Long Range

Reach 2,600+ ft with a receiver — covers large pads and site-wide grading without moving.

IP55+ Protection

Dust-tight and water jet resistant — built for outdoor construction in any weather.

Radio Remote

Change grade or elevation from the cab or anywhere on site without walking back.

Why Buy This?

The right rotary laser pays for itself in weeks.

A grade checker costs $600–800 per day. A quality rotary laser setup eliminates that cost indefinitely — and works faster. One operator with a good laser and receiver can cover ground that used to take a two-person crew.

The gap between a budget unit and a professional-grade one shows up in the field: self-leveling range on uneven pads, IP55+ protection through rain and dust, and radio remote control so you're not walking back to the instrument every time the job moves.

Express Tools is an authorized dealer with genuine, factory-fresh inventory and same-day shipping on in-stock units. We know this equipment and can answer spec questions before you order.

TECHNICAL SPECS

Specifications

Technical Specs

Manufacturer data and field-verified measurements.

Model	Spectra Precision LL300N-X2
Operating Range	300 meters (diameter) in clear conditions
Self-leveling Range	±15 arc minutes (approximately 4.4 meters per 100 meters)
Accuracy	±1/8 inch at 100 feet (±3 mm at 30 m)
Rotation Speed	150, 300, or 600 RPM selectable
Laser Class	Class II (635 nm visible red diode)
Battery Life	Up to 100 hours on D-cell batteries
IP Rating	IP66 — dust-tight and water-resistant
Operating Temperature	-20°C to +50°C (-4°F to +122°F)
Kit Includes	LL300N laser head, HD heavy-duty tripod, inches-graduated grade rod
