Spectra Precision LL400HV-1 Laser Package with HL760 Receiver, Tripod and Tenths Rod

Overview

The Spectra Precision LL400HV-1 Laser Package delivers professional-grade horizontal and vertical leveling for contractors, landscapers, and site preparation crews who need reliable accuracy across residential and light commercial projects. This complete kit combines the LL400 single-slope laser with the HL760 digital receiver, adjustable tripod, and telescoping tenths rod—everything required for immediate deployment on grading, foundation layout, drainage installation, and interior alignment tasks. General contractors choose this package for its durability in dusty outdoor environments, simple one-person operation, and the precision needed for flatwork, retaining walls, and deck construction. The HL760 receiver extends working range in bright conditions and provides visual plus audible grade confirmation, while the tripod and rod enable quick setups at variable heights without additional equipment purchases.

Key Specifications

• Accuracy: ±3/16" at 100 feet (±2.5mm at 30m)
• Working Range: 1,300 feet diameter with receiver (400m)
• Self-Leveling Range: ±5 degrees
• Rotation Speed: 600 RPM
• Operating Modes: Horizontal, vertical, and single-slope (manual slope on one axis)
• Laser Class: Class 2 visible red beam (635nm)
• Power Source: Rechargeable NiMH battery or alkaline D-cells
• Environmental Rating: IP66 dust/water resistance
• Operating Temperature: -4°F to 122°F (-20°C to 50°C)

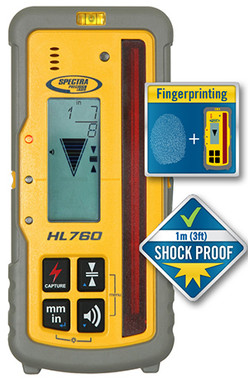

• Receiver Accuracy: ±1/16" (±1.5mm) digital LCD display
• Tripod Height Range: 40" to 67" adjustable
• Rod Length: Extends to 8 feet with 0.01' graduations

What's in the Kit

• LL400 laser level transmitter head
• HL760 digital laser receiver with clamp
• Adjustable aluminum tripod (40-67")
• Telescoping tenths rod (extends to 8')
• Rechargeable NiMH battery pack
• AC battery charger
• Soft carry case for laser
• Operator's manual and quick reference guide

Job Applications

• Foundation and Footing Layout: Establish consistent elevation benchmarks around building perimeters for accurate formwork height, ensuring level concrete pours that meet structural specifications without costly corrections after curing.
• Exterior Grading and Drainage: Set proper slopes away from structures for stormwater management, using the manual slope function to create the 2% minimum grade required by code while the receiver confirms exact elevation at catch basins and swales.
• Concrete Flatwork and Slabs: Guide screed rails and laser screed systems for warehouse floors, sidewalks, patios, and driveways, maintaining consistent thickness and eliminating low spots that trap water or create trip hazards.
• Deck and Patio Construction: Transfer level reference points to multiple pier locations simultaneously, ensuring ledger boards attach at proper height and finished deck surfaces drain correctly without measuring from unstable string lines.
• Retaining Wall Installation: Verify course-by-course level across long segmental block or timber walls where traditional levels prove impractical, catching alignment errors before they compound into visible deviations at upper courses.
• Interior Ceiling Grid and Soffit Framing: Rotate the laser vertically to project level lines around room perimeters for suspended ceiling installations, cabinet hanging, and chair rail trim without repeatedly repositioning a spirit level.

Compatible Accessories

Spectra Precision Laser Receivers | Detector Clamps and Rod Mounts | Lenker-Style Grade Rods | Heavy-Duty Laser Tripods | Replacement Battery Packs | Magnetic Laser Targets

Related Guides

How to Set Slope with Single-Grade Lasers | Spectra LL300 vs LL400 Comparison | Laser Receiver Setup for Excavation Work | Troubleshooting Self-Leveling Laser Problems

Frequently Asked Questions

Can the LL400HV-1 create dual slopes for complex drainage projects?

No, the LL400 offers single-axis manual slope only—it can tilt in one direction at a time while maintaining level perpendicular to that axis. For dual-slope applications like V-ditches or complex site grading, consider dual-grade models like the Spectra LL500 or total station-based solutions for projects requiring compound slopes.

What's the maximum slope percentage I can set with this laser?

The LL400 supports slopes up to approximately 10% (6 degrees) using the manual slope adjustment, which covers typical drainage requirements (minimum 2% for flatwork, 0.5% for large paved areas). The integrated slope vial and fine-adjustment knob allow precise setting, though for steeper applications you'll need to verify with a digital inclinometer or upgrade to lasers with electronic slope displays.

How does the HL760 receiver perform in direct sunlight compared to basic models?

The HL760 features a larger detection window and enhanced filtering compared to entry-level receivers, extending usable range to approximately 800-1,000 feet in bright midday conditions versus 1,300 feet in overcast or indoor environments. For maximum sunny-day performance, consider adding a machine-mounted receiver with narrower acceptance angles, or plan elevation work during early morning and late afternoon hours when possible.

Will this package work for building interior finish work like tile and flooring?

Yes, the LL400 excels at interior applications where its horizontal rotation creates a level reference plane around entire rooms. For tile layout, the laser establishes consistent height for starting courses, while the vertical mode projects plumb lines for shower wall alignment and wainscoting. The ±3/16" at 100 feet accuracy meets residential finish standards, though commercial tile contractors working to tighter flatness specifications may prefer grade lasers with ±1/16" accuracy ratings.
