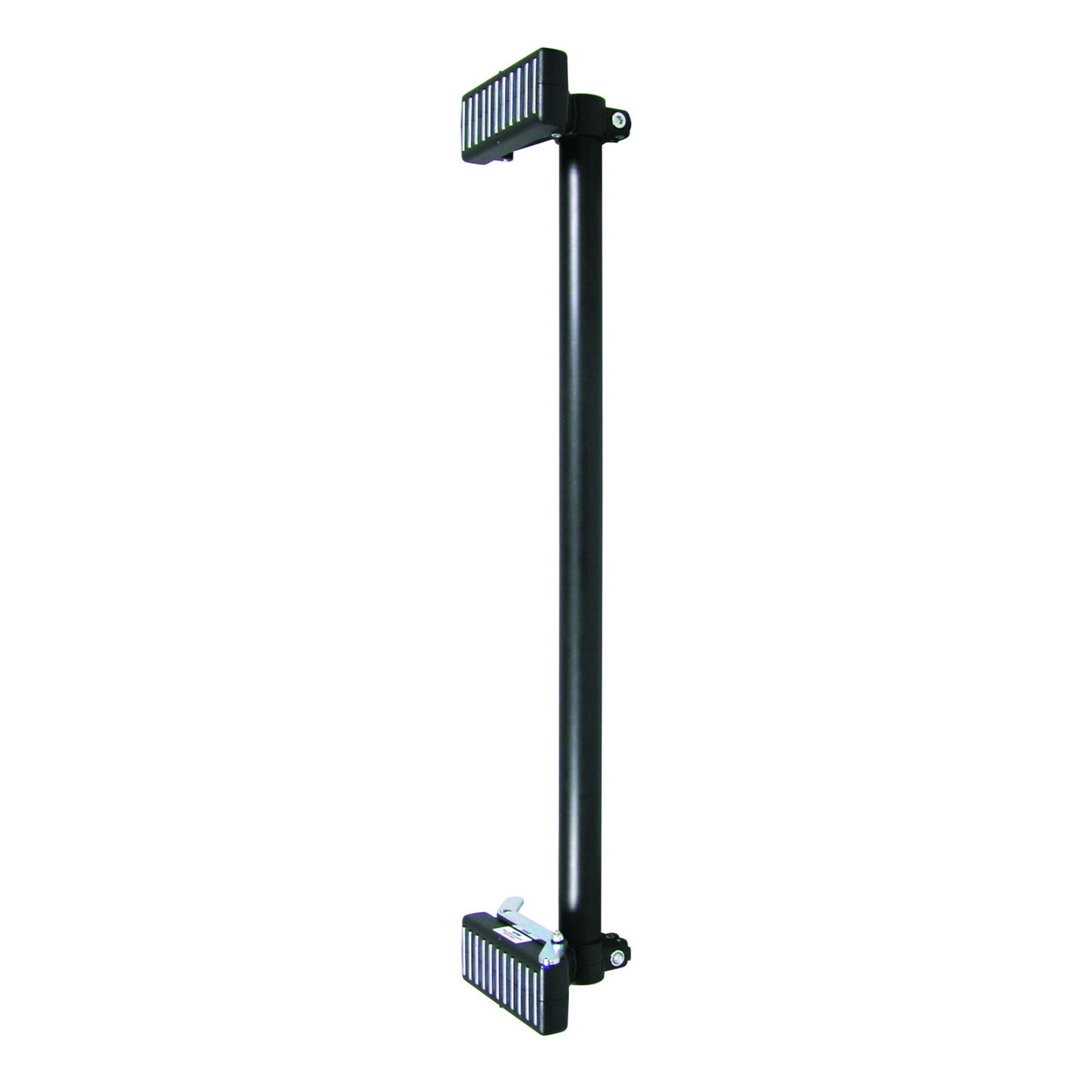

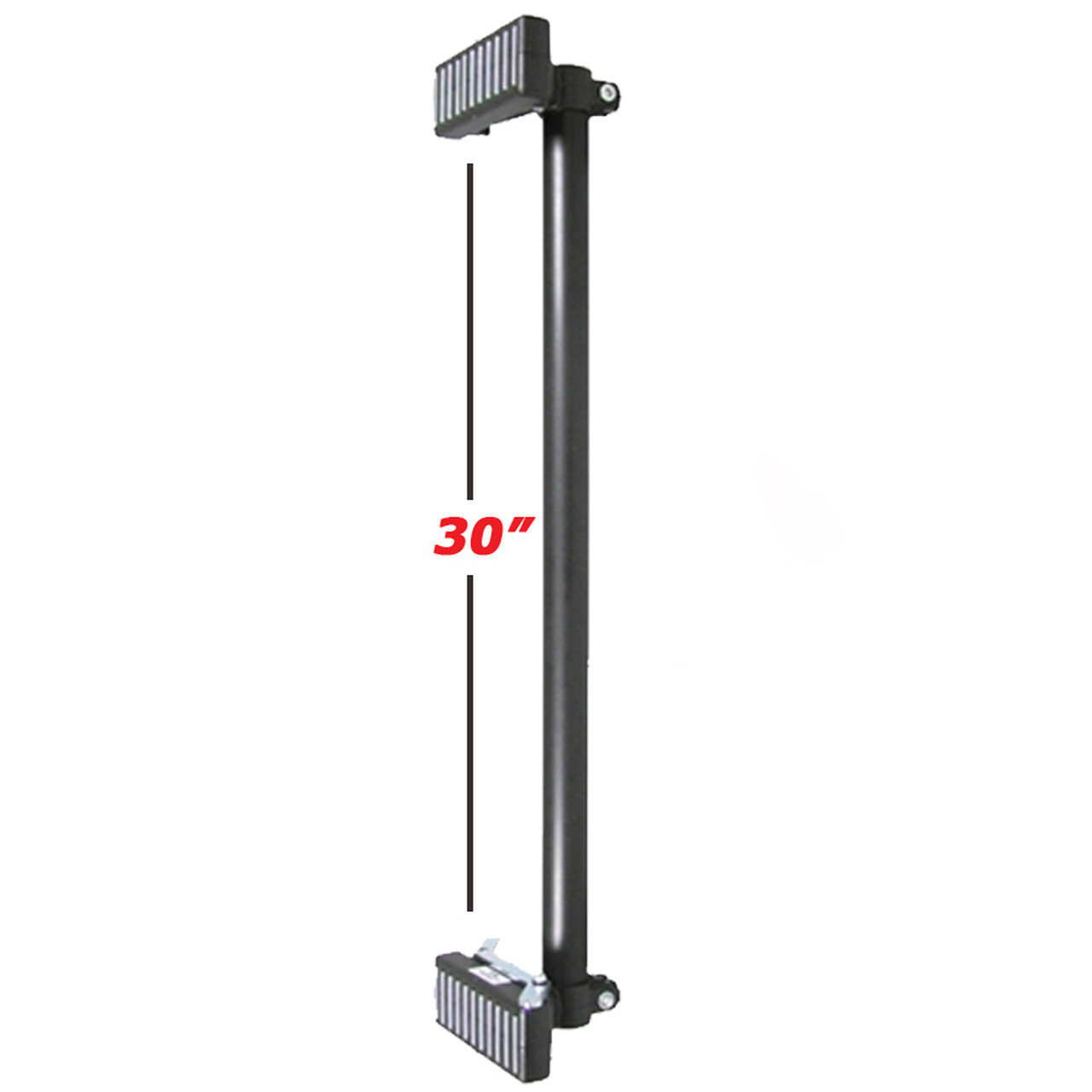

Spectra Precision MM-1 Magnetic Mount for Laser Receivers

Overview

The Spectra Precision MM-1 Magnetic Mount is the excavation contractor's solution for precision digging operations where elevation control is critical. Engineered specifically for dipper arms on excavators and backhoes, this specialized magnetic mount secures laser receivers in the optimal position for accurate grade reference during utility installation, trenching, and precision excavation work.

Unlike bulldozer-specific mounts that assume a fixed blade geometry, the MM-1 addresses the unique challenges of articulated excavation equipment. Its thoughtful design accommodates the constant angular variation and multi-axis movement inherent to hydraulic dipper arms, ensuring your laser receiver maintains proper orientation throughout the full range of boom, stick, and bucket motion. This means consistent, reliable grade information whether you're reaching forward at full extension or working close to the machine.

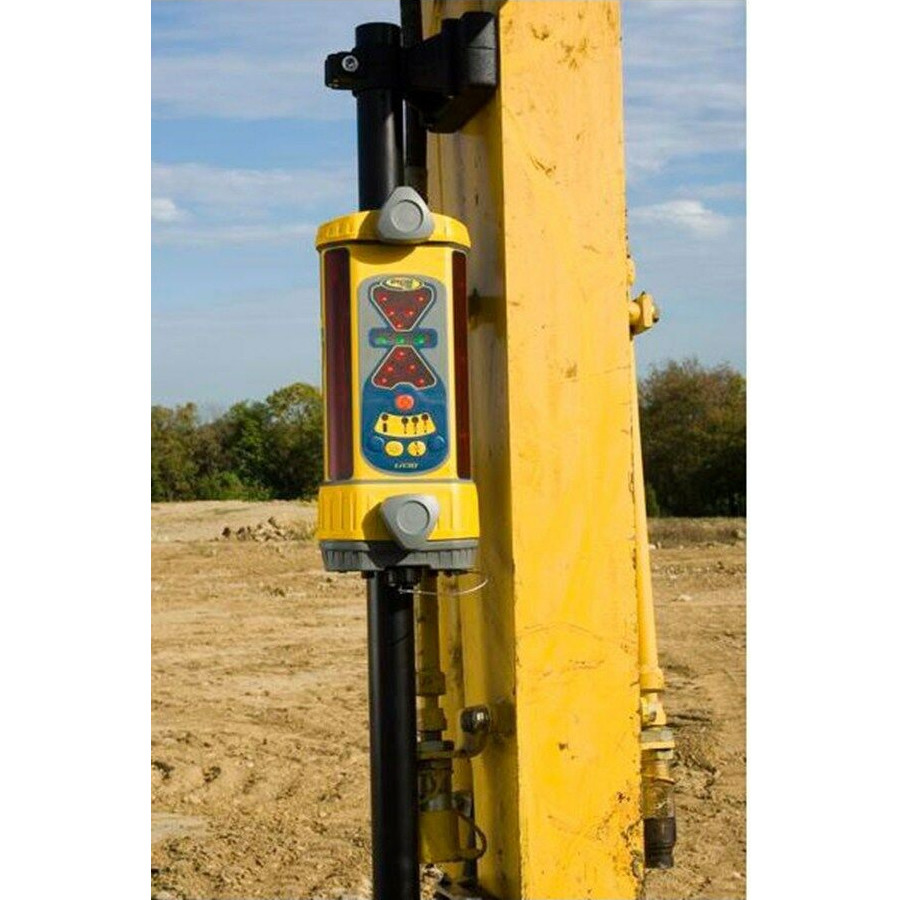

The MM-1 features industrial-strength rare earth magnets that create an immediate, rock-solid connection to steel dipper arms without requiring clamps, straps, or mechanical fasteners that can loosen during operation. This magnetic attachment system allows operators to reposition the mount quickly between different working angles or transfer it between machines in seconds—a significant productivity advantage on multi-machine job sites or when switching between excavation tasks.

Built to withstand the punishing vibration, impact, and environmental exposure of excavation work, the MM-1 protects your investment in precision laser receivers while ensuring they remain exactly where you need them. The mount's geometry positions receivers at the optimal height and angle for intercepting rotating laser beams, providing the accurate depth and elevation feedback essential for staying on grade during critical utility and drainage installations.

Key Specifications

• Mounting Method: High-strength rare earth magnetic attachment
• Compatible Equipment: Excavator and backhoe dipper arms (steel)
• Receiver Compatibility: Spectra Precision laser receivers with standard mounting brackets
• Construction: Durable composite housing with reinforced mounting platform
• Magnetic Pull Strength: Industrial-grade holding force for secure attachment during operation
• Adjustment Range: Multi-angle positioning to accommodate varying dipper arm geometries
• Weight: Lightweight design for easy handling and repositioning
• Operating Conditions: All-weather construction for jobsite durability
• Attachment Points: Standardized receiver mounting interface
• Manufacturer: Spectra Precision (Trimble)

What's in the Kit

• MM-1 Magnetic Mount base unit with integrated rare earth magnets
• Receiver mounting bracket with adjustment mechanism
• Hardware kit for secure receiver attachment
• Protective carrying case for transport and storage
• Quick reference setup guide
• Manufacturer's documentation and warranty information

Job Applications

• Utility Trenching: Maintain precise depth control when excavating for water, sewer, gas, and electrical lines where elevation tolerances are strictly specified and costly mistakes must be avoided—the MM-1 keeps your receiver positioned for continuous grade feedback throughout the trench run.
• Foundation Excavation: Achieve accurate dig depths for building footings, basement excavations, and structural foundations where over-excavation means expensive fill material and under-excavation requires costly re-mobilization—real-time elevation data helps operators hit grade the first time.
• Drainage Installation: Execute proper slope and invert elevations for storm drains, French drains, and subsurface drainage systems where water flow depends on precise gradients—the MM-1 ensures your receiver tracks the laser plane accurately as you establish critical fall rates.
• Site Grading Prep: Rough-cut building pads, parking areas, and site features to design elevations before fine grading, reducing the back-and-forth between excavator and dozer work—faster bulk excavation with grade awareness minimizes material handling and project duration.
• Pipeline Installation: Control trench depth and grade for gravity-flow pipelines where consistent slope is essential for system performance—whether installing sanitary sewer, storm pipe, or culverts, the MM-1 keeps elevation reference visible to the operator during pipe laying operations.
• Pond and Detention Basin Construction: Shape basin floors and side slopes to engineered elevations for proper storage capacity and drainage function—accurate depth control during excavation ensures basins meet design volumes without requiring expensive surveys and rework.

Compatible Accessories

• Spectra Precision LR60W Wireless Machine Laser Receiver with remote display capability
• Spectra Precision LR50 Rod-Eye Laser Receiver for excavation applications
• Spectra Precision LR30 Basic Laser Receiver with LED display
• Spectra Precision LL500 Rotating Laser Level for long-range grade control
• Spectra Precision HV302 Horizontal/Vertical Rotating Laser
• Spectra Precision HL750 Dual Grade Laser for complex slope work
• RC803 Wireless Remote Control for hands-free laser adjustment
• Laser receiver replacement brackets and mounting hardware
• Protective receiver soft cases for storage between jobs

Related Guides

• Complete Guide to Laser Receiver Setup on Excavation Equipment
• Excavation Grade Control: Best Practices for Accurate Digging
• How to Select the Right Rotating Laser System for Excavation Work
• Magnetic Mount Maintenance: Maximizing Lifespan and Performance

FAQ

Will the MM-1 magnetic mount work on aluminum excavator dipper arms?

No, the MM-1 requires ferrous (steel) material for magnetic attachment. Aluminum dipper arms lack the magnetic properties necessary for the mount to adhere. For aluminum equipment components, consider strap-based or clamp-style mounting solutions designed for non-magnetic materials. Most excavator dipper arms are steel construction, but verify your specific equipment before ordering.

How do I know if the magnetic hold is strong enough for safe operation?

The MM-1 uses industrial-grade rare earth magnets engineered specifically for the vibration and movement of excavation equipment. When properly placed on a clean, flat steel surface, you'll feel substantial resistance when attempting to slide or remove the mount. Before beginning work, test the attachment by applying firm manual pressure from multiple angles—the mount should remain solidly in place. Always clean the dipper arm surface of dirt, mud, and debris before attaching to ensure maximum magnetic contact and holding strength.

Can the MM-1 be used with laser receivers from manufacturers other than Spectra Precision?

The MM-1 is designed primarily for Spectra Precision receivers, but may accommodate receivers from other manufacturers if they use standard mounting bracket configurations. Compatibility depends on the specific receiver model and its mounting interface. Check the receiver mounting hole pattern and bracket style—if it matches Spectra's standard geometry, the MM-1 will likely work. For non-standard receivers, contact our product specialists to verify fitment before purchasing.

What's the advantage of a magnetic mount versus a strap or clamp-based mounting system?

Magnetic mounting offers significant time savings and positioning flexibility compared to mechanical attachment systems. The MM-1 attaches and detaches in seconds without tools, allowing operators to quickly reposition the receiver for different working angles or transfer it between machines during multi-equipment operations. There are no straps to loosen, tighten, or replace, and no clamps that can vibrate loose during operation. The instant on-off capability means faster setup at each job and easier daily removal for secure overnight storage—important for protecting expensive laser receivers from theft or weather exposure.
