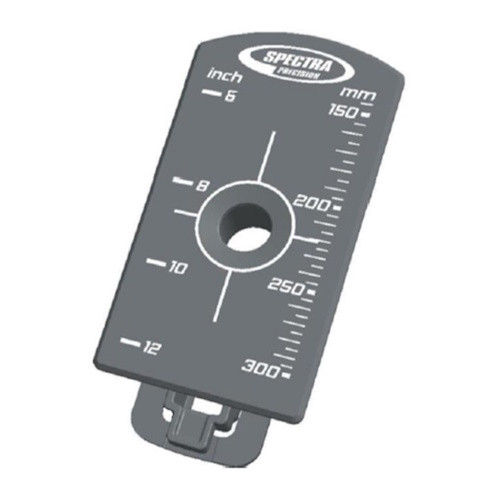

Spectra Precision P27 Target Plate for DG613 or DG813 and SF601 Spot Finder

The Spectra Precision P27 Target Plate is a purpose-engineered alignment reference designed for underground utility and drainage crews operating the DG613 or DG813 pipe lasers with the SF601 Spot Finder. When every fraction of an inch matters on long grade runs, the P27 gives your crew a reliable physical aiming surface that eliminates guesswork during initial setup and mid-run verification checks. Built to Spectra Precision's exacting tolerances, this metal target plate is a low-cost addition that protects the accuracy of every pipe installation you complete.

Overview & Jobsite Applications

Underground utility work demands consistent grade accuracy from manhole to manhole. The P27 target plate slots directly into your existing DG613 or DG813 workflow, giving the SF601 Spot Finder a high-contrast, calibrated surface to lock onto. Whether you're laying sewer mains, storm drain laterals, or conduit runs in congested urban trenches, the P27 speeds up initial instrument setup and provides a go-to verification reference when you need to confirm grade hasn't shifted mid-job. It's equally useful on long straight runs where heat shimmer or trench depth makes it difficult to visually acquire the laser dot without a dedicated target surface.

Key Specifications

• Model: P27
• Manufacturer: Spectra Precision
• Compatible Instruments: DG613, DG813 Pipe Lasers
• Compatible Detector: SF601 Spot Finder
• Material: Durable metal construction
• Application: Underground pipe laser alignment and grade verification
• Part Type: Replacement / Accessory target plate

Key Features

• High-contrast target surface optimized for pipe laser spot acquisition
• Precise physical reference point for initial laser beam alignment
• Simplifies grade setup on extended runs where laser dot is difficult to acquire unaided
• Compatible with SF601 Spot Finder for electronic target detection
• Rugged metal construction withstands trench and manhole environments
• Direct OEM replacement — maintains factory accuracy specifications
• Compact and lightweight for easy transport in your instrument case

Job Applications

Sewer Main Installation: Set the P27 at the downstream manhole to establish your initial beam alignment before driving pipe. The SF601 reads the plate cleanly even in low-light manhole conditions, locking in your grade before the first joint is made.

Storm Drain Lateral Runs: On shorter lateral runs where grade tolerance is tight, the P27 provides a quick visual and electronic check point at the inlet end, letting your crew verify alignment without pulling the laser from the pipe.

Conduit and Duct Bank Boring: When working in conjunction with directional boring or guided boring equipment paired with a pipe laser, the P27 serves as a fixed reference target at the entry pit to confirm bore trajectory before and during the shot.

Grade Verification Mid-Run: On runs exceeding 200 feet, use the P27 as a mid-point verification target to confirm the laser beam has not shifted due to vibration, ground movement, or instrument settling — catching problems before pipe is already in the ground.

Compatible Accessories

• Spectra Precision DG613 Pipe Laser
• Spectra Precision DG813 Pipe Laser
• Spectra Precision SF601 Spot Finder Detector
• Spectra Precision Pipe Laser Carrying Case
• Spectra Precision Pipe Laser Tripod & Accessories

Related Guides

• How to Set Up a Pipe Laser for Sewer Grade — Step-by-Step Guide
• DG613 vs DG813 Pipe Laser — Which Is Right for Your Crew?
• Using the SF601 Spot Finder with Spectra Precision Pipe Lasers
• Underground Utility Laser Accessories Buying Guide

Frequently Asked Questions

What pipe lasers is the P27 target plate compatible with?

The Spectra Precision P27 is designed specifically for use with the DG613 and DG813 pipe lasers. It is intended to be used in conjunction with the SF601 Spot Finder detector for best results. Use with other pipe laser models is not recommended as compatibility has not been verified.

Do I need the SF601 Spot Finder to use the P27 target plate?

The P27 can function as a visual alignment target without the SF601, but it is optimized for use with the SF601 Spot Finder, which provides electronic grade indication off the plate surface. For maximum accuracy and efficiency — especially in low-light or deep trench conditions — pairing the P27 with the SF601 is strongly recommended.

Is the P27 an OEM Spectra Precision part?

Yes. The P27 is a genuine Spectra Precision accessory sold by Express Tools as an authorized dealer. Using OEM accessories ensures your pipe laser system maintains its factory accuracy specifications and does not void any existing warranty on your instruments.

Can the P27 be used as a replacement if my original target plate is lost or damaged?

Absolutely. The P27 is commonly purchased as a direct replacement target plate for crews whose original plate has been lost, damaged, or left at a previous job site. Keeping a spare P27 in your instrument case is a low-cost way to avoid setup delays on the next job.
