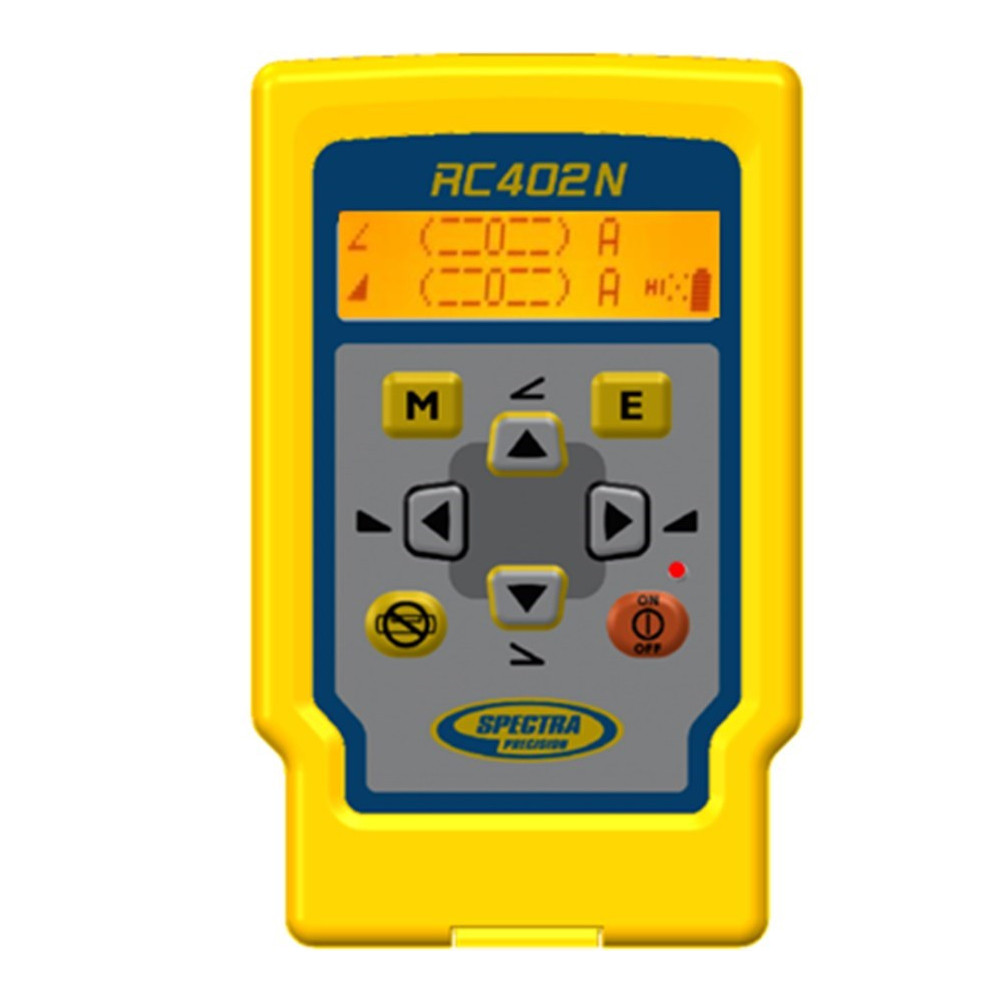

Spectra RC402N Radio Remote Control for Spectra Self Leveling Lasers

Overview

The Spectra RC402N Radio Remote Control is built for excavation contractors, concrete crews, and grading professionals who need hands-free laser control across large-scale sites. When your Spectra self-leveling laser is positioned at a fixed control point—locked on grade for a parking lot, building pad, or concrete pour—this remote eliminates constant trips back to the laser head. Operating on radio frequencies up to 330 feet away, the RC402N delivers full-function wireless control including grade adjustments, axis selection, slope configuration, and rotation speed changes. For single-operator efficiency on commercial grading projects, highway work, and large concrete pours where the laser must remain stationary while you work distant grade stakes, this remote transforms workflow by keeping you at the work face instead of shuttling between control points.

Key Specifications

• Operating Range: Up to 330 feet (100 meters) line-of-sight radio transmission
• Communication Type: Radio frequency (RF) wireless control
• Control Functions: Full laser operation including grade adjust, axis select, slope enable/disable, rotation speed, manual mode
• Compatibility: Spectra Precision LL300N, LL400, LL500, GL600N series self-leveling lasers with radio receiver capability
• Power: Standard alkaline batteries (included)
• Display: LCD readout showing active settings and battery status
• Housing: Impact-resistant ABS construction with rubberized grip surfaces
• Environmental Rating: IP55 dust and water resistance for jobsite durability
• Operating Temperature: -4°F to 122°F (-20°C to 50°C)
• Weight: 0.44 lbs (200 g) with batteries
• Dimensions: 6.3" × 2.8" × 1.3" (160 × 71 × 33 mm)

What's in the Kit

• RC402N Radio Remote Control unit
• Alkaline batteries (pre-installed)
• Protective carrying pouch with belt clip
• Quick reference operation card
• Operator's manual with pairing instructions

Job Applications

• Building Pad Excavation: Control laser elevation and slope settings from the excavator cab or grade stake positions without walking back to centrally-positioned laser on large commercial pads.
• Parking Lot Grading: Adjust dual-axis slopes for drainage while checking grade at catch basins and perimeter stakes across multi-acre asphalt sites where laser remains at center control point.
• Concrete Slab Pours: Make real-time elevation corrections during screed operations on warehouse floors, tilt-ups, and commercial slabs without contaminating the laser setup with concrete splash.
• Highway and Road Construction: Modify grade settings while checking offset stakes along long roadway sections where moving the laser would require complete re-setup of benchmark ties.
• Site Development Rough Grading: Switch between single-slope and dual-slope modes while cutting building pads, swales, and drainage channels on residential subdivision mass grading.
• Agricultural Land Leveling: Adjust laser plane elevations from tractor positions across large field grading operations where centralized laser positioning minimizes setup time and maintains survey control.

Compatible Accessories

Enhance your Spectra laser system with these professional-grade accessories:

• Spectra LR50 Machine Receiver — Rod-mounted receiver with dual digital displays
• Spectra HR550 Laser Receiver — Heavy-duty excavator receiver with wireless rod-eye capability
• Spectra HL700 Laser Receiver — High-accuracy machine receiver for dozer and excavator applications
• Spectra GL600N Series Grade Lasers — Dual-slope rotating lasers compatible with RC402N control
• Spectra LL500 Rotary Laser — High-precision self-leveling laser with radio remote capability
• Heavy-Duty Aluminum Grade Rods — Telescoping rods for use with laser receivers

Related Guides

• Complete Guide to Rotating Laser Setup and Field Calibration
• Spectra Laser Receivers Compared: LR50 vs HR550 vs HL700
• Dual-Slope Laser Grading: Applications and Best Practices
• Troubleshooting Radio Remote Control Connection Problems

Frequently Asked Questions

What Spectra laser models work with the RC402N remote control?

The RC402N is compatible with Spectra Precision LL300N, LL400, LL500, GL600N, GL700N, and other Spectra self-leveling lasers equipped with radio receiver functionality. Your laser must have the radio receiver module installed (standard on most current models, optional upgrade on older units). Verify your specific laser model includes "radio remote capable" in specifications or check the operator's manual for RC402N compatibility confirmation before ordering.

How far can I operate my laser with this remote on a typical construction site?

The RC402N provides reliable radio control up to 330 feet (100 meters) in open line-of-sight conditions. Real-world range depends on environmental interference—expect 200-250 feet in areas with heavy equipment, metal structures, or radio interference from other wireless devices. Dense building materials, earth berms, and physical obstructions between remote and laser will reduce effective range. For maximum distance, maintain clear sight lines and elevated laser positioning when possible.

Can multiple remotes control the same laser, or can one remote operate multiple lasers?

Each RC402N remote pairs to a single laser receiver at a time through a unique radio channel assignment during the pairing process. You cannot simultaneously control multiple lasers with one remote. However, you can pair multiple RC402N remotes to the same laser, allowing different crew members to share control responsibilities—useful when multiple operators check grade across large sites. Re-pairing takes approximately 30 seconds following the synchronization procedure in the operator's manual.

Does the remote need to be pointed directly at the laser to work, or is it omnidirectional?

The RC402N uses omnidirectional radio frequency transmission, not infrared line-of-sight technology, so you don't need to aim the remote at the laser. Radio signals transmit in all directions, allowing you to operate the laser from behind obstructions, inside equipment cabs, around corners, and without direct visual alignment. This is the key advantage over older infrared remotes that required direct pointing and failed when dust, equipment, or workers blocked the signal path between remote and receiver.
