Overview

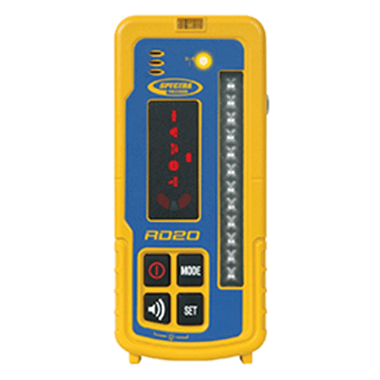

The Spectra Precision RD20 Wireless Remote Display brings grade control information directly to your cab, transforming how you operate grading equipment. This wireless display eliminates the constant need to monitor external masts or rely on ground crew communication, allowing you to stay focused on the work at hand.
Designed for contractors running laser-guided excavators, dozers, and motor graders, the RD20 wirelessly receives grade data from your Spectra receiver and displays it clearly within arm's reach. You'll see real-time cut/fill information, elevation status, and grade position without taking your eyes off the blade or bucket—dramatically improving accuracy while reducing operator fatigue.

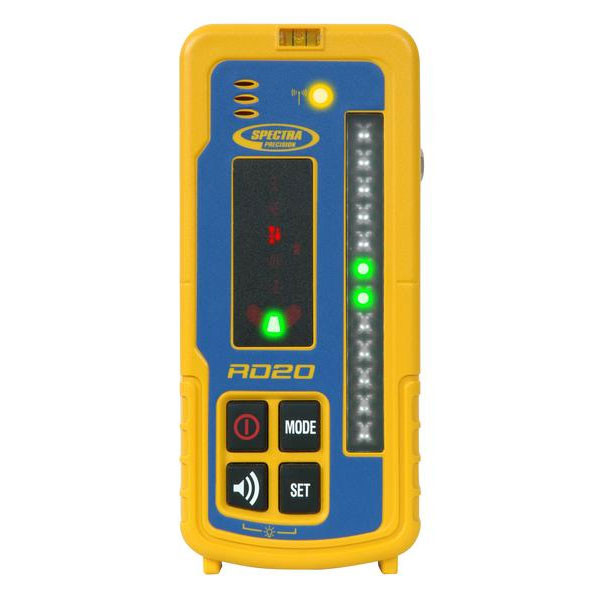

The rugged display mounts securely inside any cab and pairs instantly with compatible Spectra receivers up to 100 feet away. Its high-contrast LED display remains visible in bright sunlight and features intuitive graphics that any operator can read at a glance. Whether you're finish grading a parking lot or excavating trenches to grade, the RD20 keeps you on elevation and on schedule.
Key Specifications
- Display Type: High-intensity LED with numeric and graphic indicators
- Wireless Range: Up to 100 feet (30 meters) from receiver
- Operating Frequency: 2.4 GHz wireless technology
- Accuracy Display: 1/8-inch (3mm) resolution on-grade indication
- Power Supply: 12V DC vehicle power with included adapter
- Mounting Options: Adjustable bracket for dashboard or overhead mounting
- Operating Temperature: -4°F to 140°F (-20°C to 60°C)
- Ingress Protection: IP65-rated sealed electronics for dust and water resistance
- Display Size: 4.5-inch diagonal viewing area
- Compatible Receivers: Spectra RC601, RC402, RC402N, RC501, RC601N, HL700, HL750, and select other Spectra laser receivers
- Weight: 1.2 lbs (0.54 kg) with mounting bracket
- Warranty: 2-year manufacturer's warranty
What's in the Kit
- RD20 Wireless Remote Display unit
- Adjustable mounting bracket with suction cup and bolt-down options
- 12V DC power cable (10 feet)
- Vehicle power adapter (cigarette lighter plug)
- Quick-start guide and instruction manual
- Protective carry case
Job Applications
- Excavator Grade Control: Monitor bucket elevation in real-time while digging basements, ponds, or trenches, eliminating the need to exit the cab for grade checks and reducing costly over-excavation by keeping precise depth information constantly visible.
- Dozer Finish Grading: Achieve smoother final grades on parking lots, building pads, and sports fields by viewing exact cut/fill data without watching mast-mounted receivers, allowing you to focus entirely on blade position and ground conditions for superior results.
- Utility Trenching: Maintain consistent trench depths for sewer, water, and drainage installations where grade precision is critical, reducing callbacks and inspection failures by displaying slope and elevation data directly where you need it most.
- Motor Grader Operations: Control road subgrade and base course elevations from inside the cab on long highway and street projects, increasing productivity by eliminating the delays of radio communication with ground crew while maintaining spec-compliant grades.
- Site Development Rough Grading: Move dirt efficiently on large-scale developments by seeing grade information while operating at maximum speed, reducing surveyor staking requirements and minimizing passes by providing continuous feedback on your current elevation versus target grade.
- Agricultural Land Leveling: Create precise drainage slopes for farmland and irrigation projects where consistent fall is essential, preventing crop waterlogging and improving yields by maintaining accurate elevations across large areas without constant reference to external indicators.
Compatible Accessories
- Spectra Precision RC601 Wireless Machine Receiver — Most popular pairing for excavator and dozer applications
- Spectra Precision RC402N Dual Grade Receiver — For dual-slope grading operations
- Spectra Precision HL700 Slope Laser — Red-beam rotating laser with built-in RC receiver compatibility
- Spectra Precision HL750 Dual Grade Laser — For complex dual-slope applications
- Heavy-Duty Receiver Rod Clamps — Secure mounting hardware for mast installation
- Machine Control Mounting Kits — Universal brackets for various equipment types
Related Guides
- Complete Guide to Wireless Grade Control Setup for Excavators
- Improving Grading Accuracy: Best Practices for Laser-Guided Equipment
- Choosing the Right Machine Control System for Your Fleet
- Troubleshooting Common Laser Receiver and Display Issues
FAQ
- What's the effective wireless range of the RD20, and will metal cabs interfere with the signal?
-
The RD20 maintains reliable wireless communication up to 100 feet from compatible Spectra receivers. In practice, this means it works flawlessly inside any equipment cab, even with metal construction. The 2.4 GHz wireless technology penetrates cab materials effectively. We recommend mounting the external receiver mast where it has clear line-of-sight to the laser and isn't completely blocked by thick steel components. In rare cases with extremely heavy cab shielding, positioning the receiver on the same side of the machine as the display optimizes signal strength.
- Can I use one RD20 display with multiple receivers or multiple machines?
-
The RD20 pairs with one receiver at a time, but you can easily switch between different compatible Spectra receivers as needed. This makes it convenient to move the display between machines in your fleet—just mount it in the new cab, power it up, and it will automatically connect to the receiver on that machine. For contractors running multiple pieces of equipment simultaneously on grade control, you'll want a dedicated RD20 for each operator to avoid the time lost moving displays between cabs during the workday.
- How does the RD20 handle bright sunlight conditions, and is it visible enough for outdoor cab use?
-
The RD20 features high-intensity LED indicators specifically designed for bright jobsite conditions, including direct sunlight through cab windows. The large, bold graphics and numeric displays remain clearly visible even in full summer sun. Many operators actually prefer the LED display over LCD screens because there's no glare or washout. The display shows distinct on-grade, cut, and fill indicators with color-coded lights and easy-to-read elevation numbers that are legible from normal operating position without squinting or repositioning.
- Will the RD20 work with my existing laser level and receiver setup, or do I need specific Spectra equipment?
-
The RD20 is designed specifically for Spectra Precision wireless receivers including the RC601, RC501, RC402, RC402N, RC601N, HL700, and HL750 models. It won't communicate with receivers from other manufacturers due to proprietary wireless protocols. However, your laser level itself doesn't need to be a Spectra brand—the RD20 works with any rotating laser (Topcon, Leica, Hilti, Johnson, etc.) as long as it's paired with a compatible Spectra receiver. If you're currently using a different brand's receiver system, you'd need to switch to a Spectra receiver to use the RD20 display.
