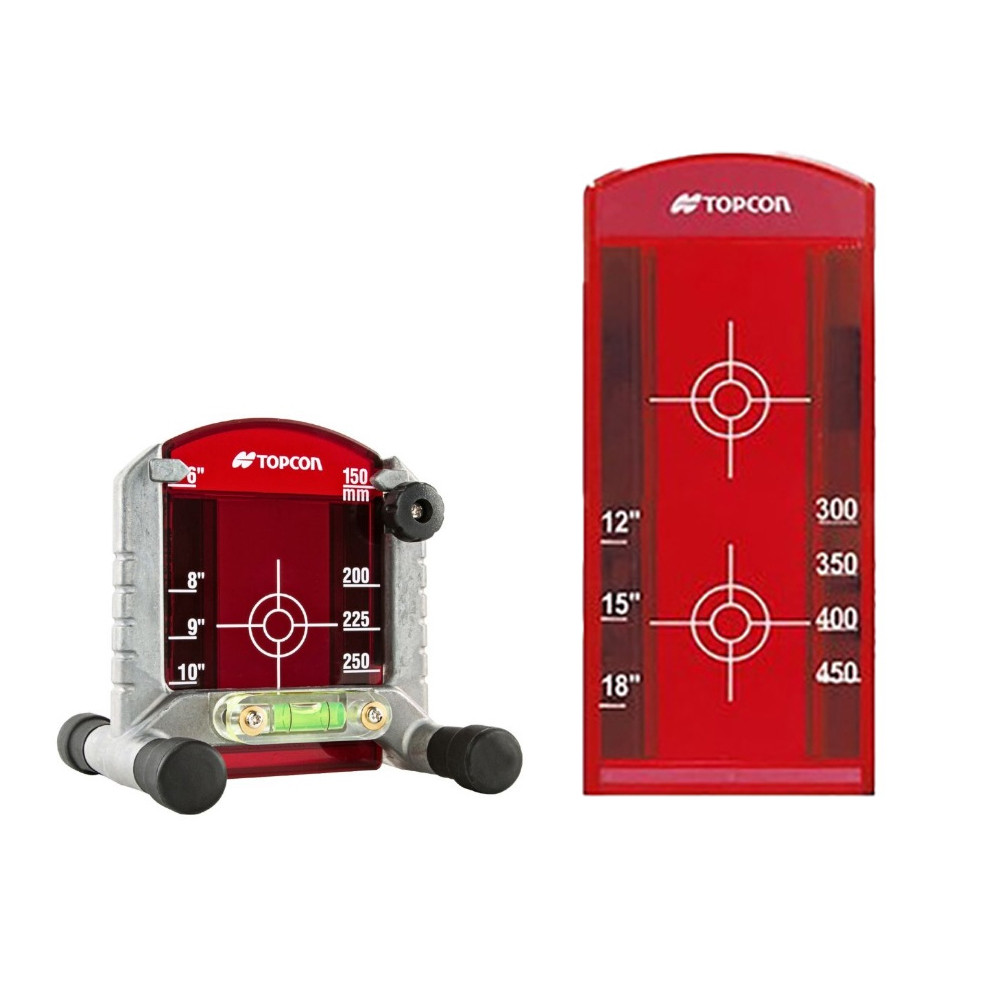

Topcon 56928 In-Pipe Target Optically Enhanced Small / Large for Pipe Laser

The Topcon 56928 is a professional-grade optically enhanced adjustable in-pipe target built for precision alignment with red beam pipe lasers during underground utility installation and pipe laying operations. Designed for working contractors and underground utility crews, this dual-insert system covers pipe diameters from 6 inches to 21 inches, eliminating the need to swap equipment mid-job and keeping your crew moving efficiently from one pipe size to the next.

Overview & Jobsite Applications

Whether you are laying gravity sewer mains, installing storm drain systems, or setting up force main runs, the 56928 delivers repeatable, high-visibility laser reception in demanding field conditions. The optically enhanced target face amplifies the red beam dot for sharper detection at extended distances inside dark pipe runs, giving grade checkers a clear, unambiguous read every time. The rugged adjustable frame locks firmly inside the pipe bell or spigot end and stays put even when crews are moving and setting pipe around it.

Key Specifications

• Model: Topcon 56928
• Compatible Beam Type: Red beam pipe lasers
• Pipe Diameter Range: 6 in. to 21 in.
• Insert Options: Small insert and large insert included
• Target Type: Optically enhanced adjustable in-pipe target
• Compatibility: Topcon red beam pipe laser series
• Mounting Style: Adjustable friction-fit in-pipe mount

Key Features

• Dual-insert system — ships with both small and large inserts for full 6"-21" pipe range coverage
• Optically enhanced target face — amplifies red laser beam dot for maximum visibility at distance inside dark pipe barrels
• Adjustable frame design — tool-free adjustment locks securely into pipe ends without slipping during active installation
• Durable field construction — built to withstand the daily abuse of underground utility worksites
• Quick changeover — swap inserts in seconds when transitioning between pipe sizes on the same job
• Authorized Topcon accessory — engineered and tested to work precisely with Topcon pipe laser optics

Job Applications

Gravity Sewer Installation: Maintain precise grade and alignment through long sewer runs where deviation is not an option. The enhanced target face gives the instrument operator a sharp signal even at the limits of pipe laser range.

Storm Drain Systems: Quickly adapt from smaller catch basin laterals to larger trunk line pipe diameters using the included small and large inserts without stopping work to source a different target.

Municipal Water & Force Main Projects: Supports alignment verification on larger diameter pipe runs up to 21 inches, keeping grade checks fast and reliable on high-stakes municipal contracts.

Trenchless & Open-Cut Utility Work: Works across both open-cut trenching and guided boring setups where a reliable, high-contrast laser reception point is critical for accurate pipe placement.

Compatible Accessories

• Topcon TP-L6 Red Beam Pipe Laser
• Topcon Pipe Laser Carrying Case
• Replacement Pipe Target Inserts
• Topcon Grade Rod & Adapter Set

Related Guides

• How to Set Up a Pipe Laser for Sewer Installation
• Choosing the Right Pipe Target for Your Laser
• Underground Utility Layout Best Practices

Frequently Asked Questions

What pipe sizes does the Topcon 56928 target fit?

The 56928 adjustable pipe target covers pipe diameters from 6 inches to 21 inches. It ships with two inserts — a small insert and a large insert — so you have the right fit for a wide range of common utility pipe sizes without purchasing additional accessories.

Is the Topcon 56928 compatible with all pipe lasers or only Topcon models?

The 56928 is specifically engineered for use with Topcon red beam pipe lasers. While the physical target may fit inside a pipe regardless of laser brand, the optical enhancement is optimized for Topcon red beam wavelengths and optics for best performance and accuracy.

Does the target stay secure inside the pipe during active pipe laying?

Yes. The adjustable friction-fit frame is designed to lock firmly against the interior pipe wall. Once adjusted to the correct pipe diameter, the target holds its position even as crews work around it, reducing the risk of accidental displacement during installation.

Does the Topcon 56928 come with both inserts included?

Yes. The 56928 ships as a complete kit with both the small and large diameter inserts included, giving you immediate coverage from 6" to 21" pipe right out of the box at no additional cost.
