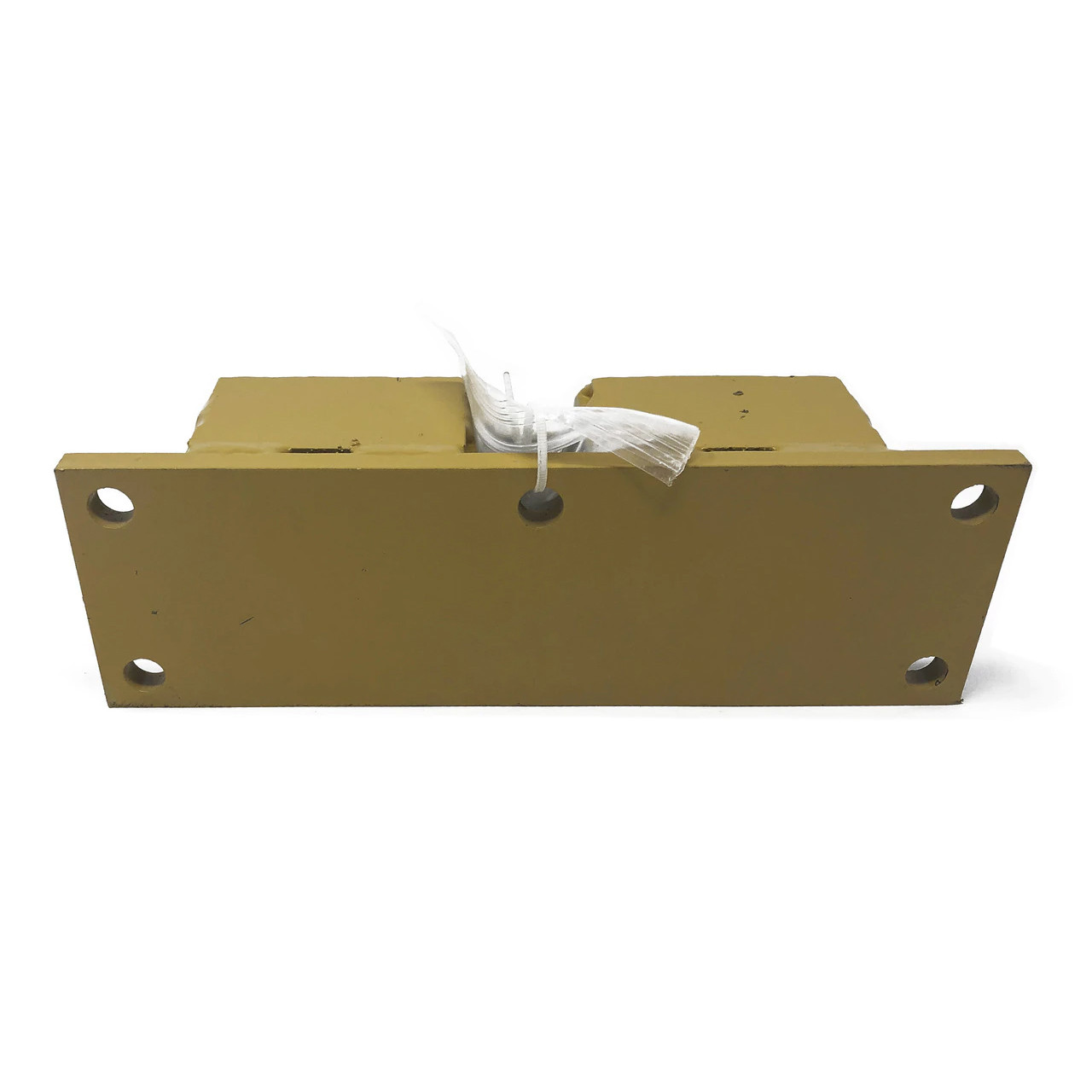

Topcon 9060-1576 3-Bolt Mounting Plate Clamp

Topcon 9060-1576 3-Bolt Mounting Plate Clamp

The Topcon 9060-1576 3-Bolt Mounting Plate Clamp is a purpose-built receiver mounting solution designed for contractors who need reliable, secure laser receiver positioning on motor graders, dozers, and other earthmoving equipment where L-Bar or permanent bracket mounting is not practical. Using a rugged 3-bolt clamping configuration, this plate clamp delivers fast, tool-friendly installation without drilling, welding, or permanent structural modifications to expensive equipment. It is the go-to hardware choice for grade and paving crews running Topcon machine control systems who demand a dependable connection between the mast and the equipment structure across demanding jobsite conditions.

Product Overview

When machine control setups need to move between multiple pieces of equipment on a single jobsite, or when equipment geometry simply does not accommodate standard mounting hardware, the 9060-1576 solves the problem cleanly. The 3-bolt plate design distributes clamping force across a wider contact area than single-bolt or pin-style mounts, reducing vibration-induced loosening during grading, trimming, and fine-finish passes. This makes it especially well-suited for high-vibration applications like motor grader blade control and dozer track-frame mounting, where a loose receiver can introduce costly grade errors and rework. Authorized Topcon dealers and experienced machine control technicians rely on this clamp as a trusted OEM accessory for both new system installations and field retrofits.

Key Specifications

• Part Number: 9060-1576
• Configuration: 3-bolt mounting plate clamp
• Mounting Style: Plate-style clamp with 3-bolt attachment pattern
• Compatibility: Designed for use with Topcon laser receivers and machine control mast systems
• Installation: No drilling or welding required; bolt-on attachment to existing equipment structure
• Construction: Heavy-duty metal construction rated for outdoor, high-vibration jobsite environments
• Application: Motor graders, dozers, and earthmoving equipment where L-Bar mounting is impractical
• Brand: Topcon

Key Features

• 3-Bolt Attachment System: Three-point clamping delivers superior holding strength and vibration resistance compared to single-bolt alternatives, keeping your receiver locked in position through rough grading passes and equipment travel
• No Permanent Modifications Required: Bolt-on installation means zero drilling or welding into equipment frames, protecting your machines and simplifying removal when the system moves to another unit
• Broad Equipment Compatibility: Plate clamp geometry accommodates a wide range of structural members and equipment body profiles found on common motor graders and earthmoving machines
• OEM Topcon Quality: Manufactured to Topcon specifications and sold through authorized dealers, ensuring fit, finish, and durability consistent with the rest of your machine control system
• Fast Field Installation: Straightforward 3-bolt configuration means crews can mount or relocate receivers quickly without specialized tools or extended downtime
• Reduced Rework Risk: Secure, vibration-resistant mounting keeps the receiver in the correct position throughout the work cycle, supporting accurate grade control and minimizing costly finish passes

Job Applications

The Topcon 9060-1576 is built for real-world contractor demands across a range of machine control applications:

• Motor Grader Blade Control: Grading crews running Topcon 3D or laser-based blade control systems use this clamp to mount receivers on grader frames where standard L-Bar mounts cannot attach cleanly. The 3-bolt design holds firm through continuous back-and-forth passes on road base and sub-grade work.
• Dozer Track Frame Mounting: On dozers where mast placement options are limited by equipment geometry, the plate clamp provides a secure attachment point that withstands the high vibration and shock loads generated during push-and-spread earthmoving operations.
• Equipment Rotation Between Jobs: Contractors who share machine control components across multiple machines use the 9060-1576 to relocate receivers quickly without leaving behind permanent hardware or damaging equipment surfaces, keeping fleet assets protected.
• Field Retrofits and System Upgrades: When upgrading an older machine to a Topcon machine control system, the 3-bolt mounting plate clamp offers a clean, professional installation on equipment that was never factory-prepped for laser or GPS grade control.

Compatible Accessories

Pair the Topcon 9060-1576 with these related machine control mounting and receiver accessories:

• Topcon Machine Control Masts
• Topcon Laser Receivers
• Topcon L-Bar Mounting Systems
• Topcon Machine Control Accessories
• Topcon 3D-MC2 Machine Control Systems

Related Guides

• Choosing the Right Laser Receiver Mount for Your Equipment
• Machine Control Setup Tips for Motor Graders
• Topcon Machine Control System Overview
• Grade Control Fundamentals for Earthmoving Contractors

Frequently Asked Questions

What equipment is the Topcon 9060-1576 compatible with?

The 9060-1576 3-bolt mounting plate clamp is designed primarily for use on motor graders, dozers, and similar earthmoving equipment. It is intended for applications where standard L-Bar permanent mounting is impractical due to equipment geometry or the need to relocate components between machines. Always verify fitment with your Topcon dealer or machine control installer before purchasing.

Does the 9060-1576 clamp require drilling or welding for installation?

No. The 9060-1576 is designed as a bolt-on mounting solution that attaches to existing equipment structural members without drilling, welding, or any permanent modification to the machine. This protects your equipment's value and simplifies relocation of the receiver to other units in your fleet.

Which Topcon laser receivers work with this mounting clamp?

The 9060-1576 is a Topcon OEM accessory designed to work within Topcon's machine control mounting ecosystem. It is compatible with Topcon mast and receiver configurations used in laser-based and 3D machine control systems. Contact Express Tools or your Topcon representative to confirm compatibility with your specific receiver model.

Why choose a 3-bolt clamp over a single-bolt or pin-style mount?

A 3-bolt plate clamp distributes clamping force over a larger contact area, which significantly improves resistance to vibration-induced loosening. On high-vibration equipment like motor graders and dozers, single-bolt mounts can work loose during operation, causing receiver movement that introduces grade errors. The 3-bolt configuration keeps the receiver securely positioned through demanding work cycles, reducing the risk of costly rework.
