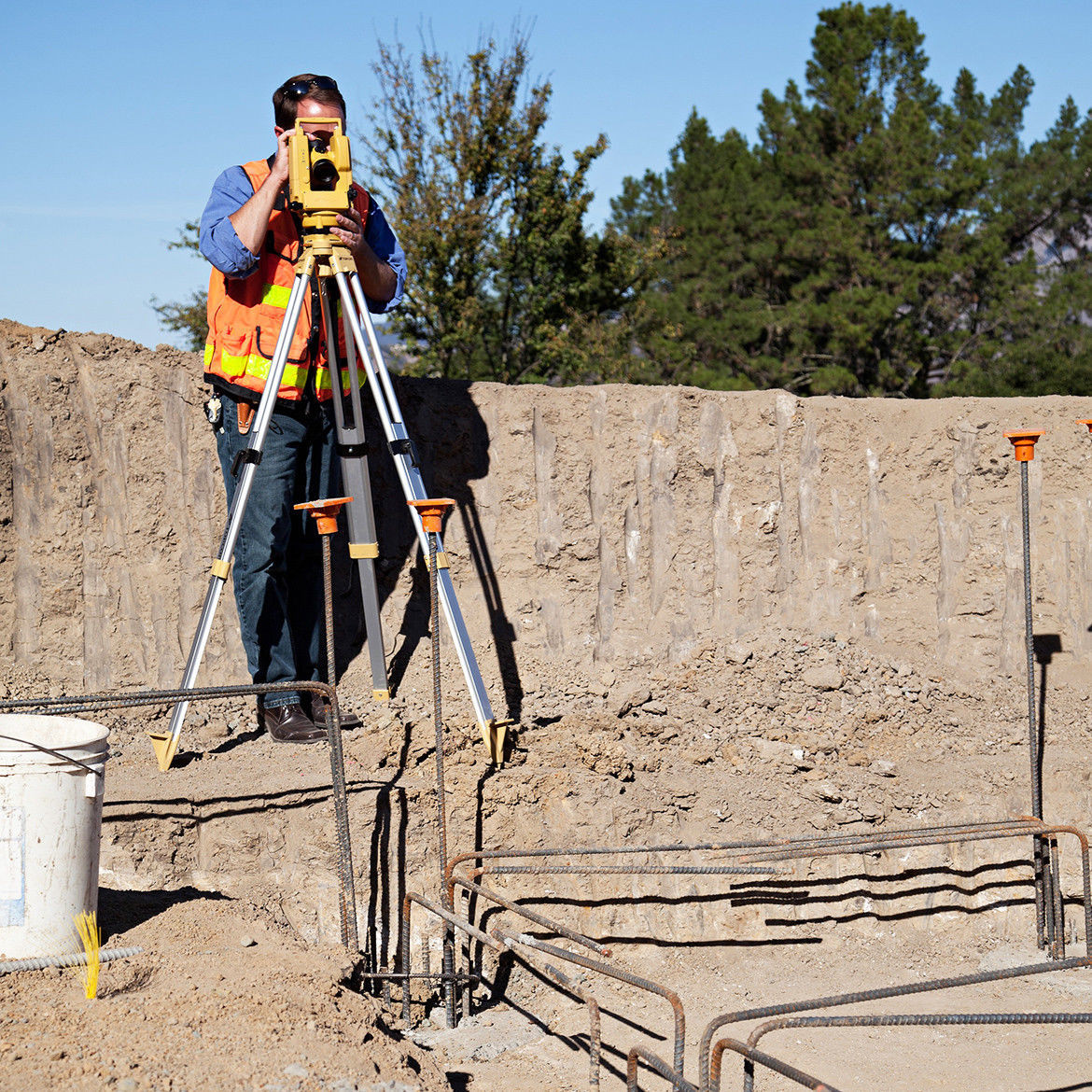

Topcon DT207L Digital Theodolite Kit with Laser and 7 Second Accuracy - Model

Overview

The Topcon DT207L Digital Theodolite delivers survey-grade angular measurements with integrated laser targeting for professionals who demand precision and visual confirmation in a single instrument. Municipal surveyors, civil engineers, and construction layout teams use this kit for control network establishment, structural monitoring, pipeline alignment, and infrastructure setpoints where 7-second accuracy ensures regulatory compliance and millimeter-level positioning over distance. This complete kit configuration pairs the DT207L theodolite body with a protective hard case, optical plummet, and all necessary tools for immediate field deployment—eliminating the need to source components separately and ensuring every accessory meets Topcon's build standards for durability and calibration retention.

Key Specifications

• Angle Accuracy: 7 seconds (horizontal and vertical circles)
• Display Resolution: 1 second / 10 seconds selectable
• Laser Pointer Range: 100 m (328 ft) visible red beam
• Telescope Magnification: 30×, 45 mm aperture
• Minimum Focus Distance: 0.9 m (3.0 ft)
• Compensator Range: ±3 arcminutes (self-leveling accuracy: ±0.5")
• Ingress Protection: IP66 (dust-tight, water-resistant)
• Battery Life: 30 hours continuous measurement (4× AA alkaline)
• Operating Temperature: -20°C to +50°C (-4°F to +122°F)
• Instrument Weight: 5.1 kg (11.2 lbs) with battery

What's in the Kit

• DT207L Theodolite Body: Factory-calibrated with dual-axis compensator and laser pointer assembly
• Optical Plummet: 3× magnification for centering over control points
• Hard Shell Carrying Case: Impact-resistant with custom foam inserts and weather seals
• Tool Kit: Adjustment pin, screwdrivers, and lens cloth for field maintenance
• Battery Set: Four AA alkaline cells (pre-installed)
• Instruction Manual: Multi-language with setup diagrams and troubleshooting procedures
• Lens Covers: Snap-fit dust caps for objective and eyepiece protection during transport
• Plumb Bob & String: Backup centering option for environments where optical plummet is impractical

Job Applications

• Control Network Establishment: 7-second accuracy meets ALTA/NSPS standards for horizontal control monuments and third-order traverse surveys where angular closure error must stay within ±10 seconds√N.
• Bridge and Structural Monitoring: Repeated angle measurements to fixed reference targets detect deflection, settlement, or movement in post-tensioned decks, bearing assemblies, and expansion joints over time.
• Pipeline Alignment Layout: Integrated laser projects visible reference lines for trench excavation and pipe placement while digital readout confirms bearing angles match engineered horizontal curves and PI stations.
• Vertical Plumbness Checks: Direct zenith/nadir angles on building facades, elevator shafts, and tower structures quantify out-of-plumb conditions for QA documentation and corrective formwork adjustments.
• Machine Guidance Verification: Field crews validate GPS/total station layout points using independent angular ties to benchmarks, catching coordination errors before concrete pours or steel erection begins.
• Tunnel and Mining Surveys: Compact design and battery efficiency support underground traverses where GNSS is unavailable, with laser pointer simplifying target sighting in low-light headings and cross-passages.

Compatible Accessories

Expand system capabilities with these field-tested components:

• Topcon Wooden Tripod with Flat Head – 1.7 m extended height for instrument stability
• SECO Thumb-Release Bipod – Quick-setup targeting pole for one-person layout work
• CST/Berger Magnetic Locator – Locate buried control monuments and rebar hubs before setup
• Topcon Rechargeable Battery Pack BT-62Q – Lithium-ion alternative for extended sessions (50+ hours runtime)
• Prism Pole Kit 8-ft with Tilting Target – Reflective target for long-distance angular measurements and radiation checks

Related Guides

• How to Set Up and Level a Digital Theodolite – Step-by-step tribrach adjustment and compensator initialization
• Theodolite vs. Total Station: Which Tool for Your Survey? – Feature comparison and cost-benefit analysis for angle-only vs. distance-measuring instruments
• Maintaining Theodolite Accuracy in the Field – Calibration checks, cleaning protocols, and environmental protection techniques
• Troubleshooting Theodolite Compensator Errors – Diagnose tilt warnings, drift symptoms, and recalibration procedures

Frequently Asked Questions

What's the practical difference between 7-second and 5-second theodolites for municipal work?

For most city engineering, utility layouts, and horizontal control under 500 feet, 7-second accuracy delivers angular precision within 0.01 ft at 300 ft—more than adequate for stakeout tolerances, right-of-way surveys, and as-built documentation. Upgrade to 5-second models only when state-level geodetic control or long-distance traverses (1,000+ ft legs) require tighter angular closure to meet positional accuracy standards under 0.005 ft.

Does the laser pointer replace traditional target sighting?

No—the laser is a supplemental aiming aid that projects a visible beam onto surfaces for layout confirmation, but all precision angle measurements still rely on the optical telescope crosshairs and reflected prism/target. Use the laser to guide rod placement, mark wall points, or verify line-of-sight before formal sighting, then switch to telescope view for data capture. Laser accuracy (±5 mm at 30 m) does not match the 7-second angular resolution of the theodolite's measurement system.

Can I use this theodolite for grade/elevation measurements like a level?

The DT207L measures vertical angles with 7-second precision, allowing you to calculate elevation differences using trigonometric leveling (measuring slope distance and zenith angle to a target). However, for direct grade checking along a horizontal plane—such as pipe laser applications or benchmark transfers—a dedicated automatic level or rotating laser provides faster, more intuitive elevation control without angle-to-height conversions and is less sensitive to distance-related errors.

How often does the DT207L need professional calibration?

Topcon recommends annual factory calibration for instruments in daily commercial use, or every 18–24 months for occasional deployment. Field indicators requiring immediate service include: compensator tilt warnings during setup on level surfaces, horizontal circle readings that drift more than 10 seconds between redundant pointings, or vertical index errors exceeding 20 seconds when measuring face-left vs. face-right. Many crews perform monthly two-peg tests and collimation checks to catch drift early before it impacts deliverables.
