Topcon DT209L Digital Theodolite Kit with Laser and 9 Second Accuracy - Model

Overview

The Topcon DT209L Digital Theodolite represents the entry point into Topcon's most advanced DT200L laser series, delivering professional-grade angle measurement capabilities for land surveyors, civil engineers, and construction professionals. With 9-second angular accuracy and an integrated laser plummet, this theodolite provides the precision required for boundary surveys, construction layout, structural alignment, and monitoring applications. Unlike basic optical theodolites that require manual reading interpretation, the DT209L features a clear digital display that eliminates reading errors and speeds up fieldwork. The inclusion of a dual-axis compensator ensures accurate vertical measurements even when the instrument isn't perfectly leveled, while the built-in laser plummet allows for faster, more accurate setup over control points compared to traditional optical plummets. This complete kit includes everything needed to begin working immediately, making it an excellent choice for surveying firms upgrading from older equipment or contractors requiring precise angle measurements for complex projects.

Key Specifications

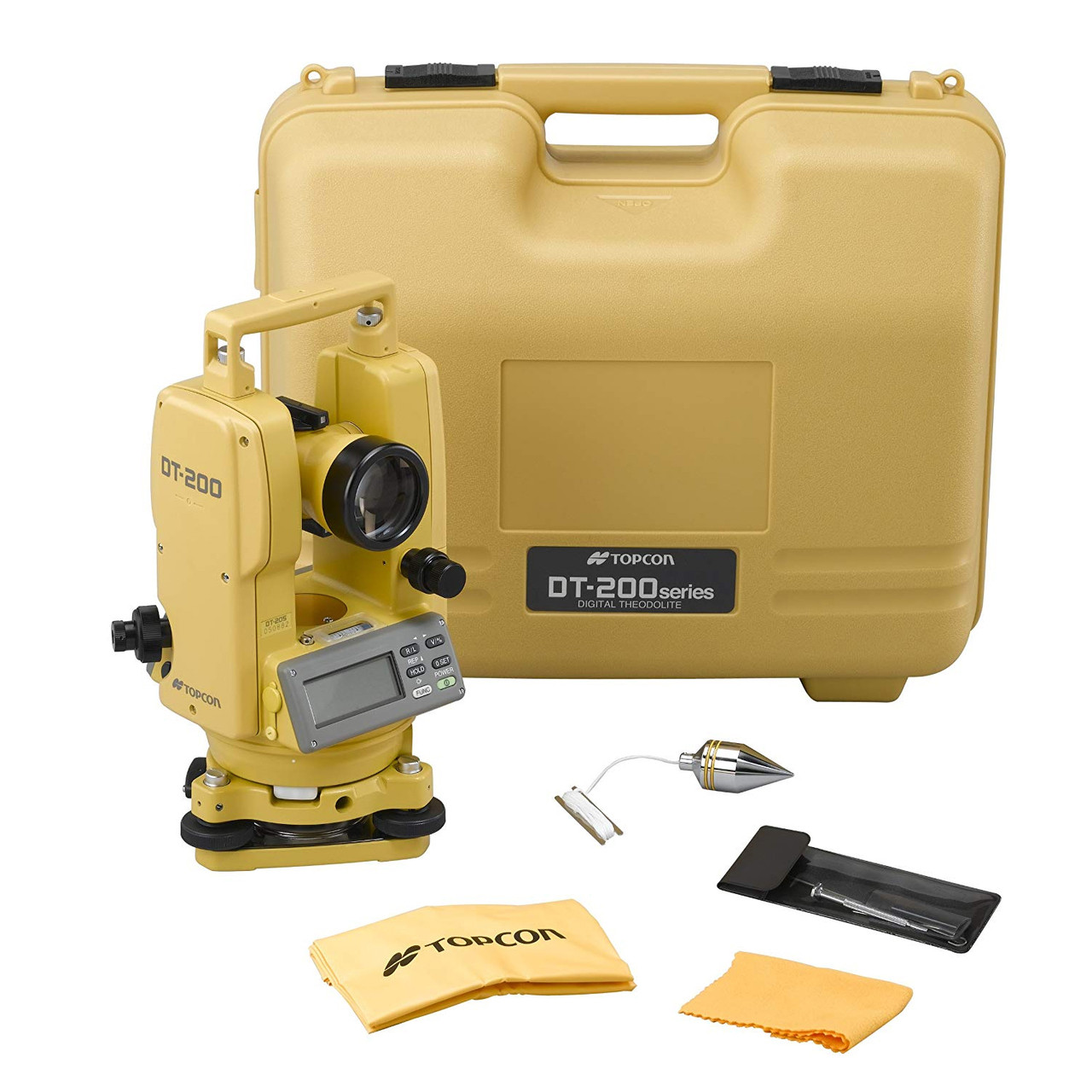

What's in the Kit

• Topcon DT209L Digital Theodolite: The main instrument featuring 9-second accuracy, integrated laser plummet, dual-axis compensator, and digital display for horizontal and vertical angle measurements.
• Laser Plummet: Built into the theodolite base, this red laser provides precise instrument centering over survey points, eliminating the need for optical plummets and reducing setup time.
• Hard Carrying Case: Protective transit case designed specifically for the DT209L, with custom foam inserts to protect the instrument during transportation and storage between job sites.
• Instruction Manual: Comprehensive user guide covering setup procedures, operation, calibration checks, and maintenance schedules to ensure optimal performance.
• AA Batteries: Initial set of 4 AA alkaline batteries to power the theodolite and laser plummet, providing approximately 30 hours of continuous operation.
• Tool Kit: Basic adjustment tools for minor field calibrations and battery compartment access.
• Lens Cloth: Microfiber cleaning cloth for maintaining clear optics and display screen.

Job Applications

Boundary and Topographic Surveys: The 9-second accuracy makes the DT209L ideal for property boundary establishment and topographic mapping where precise horizontal and vertical angles are required to determine property corners, easement lines, and terrain features. The digital display speeds data recording and reduces transcription errors in field books.

Building Construction Layout: Use the DT209L to establish building corners, lay out structural column locations, and verify vertical plumb of walls and elevator shafts. The laser plummet ensures accurate instrument setup over control points, while the dual-axis compensator maintains measurement accuracy even on uneven construction sites.

Bridge and Highway Construction: Establish horizontal and vertical control for bridge abutments, pier locations, and highway alignment. The theodolite's 9-second accuracy meets typical DOT specifications for transportation projects, and the 30x magnification telescope allows for long-range sightings across construction zones.

Pipeline and Utility Installation: Determine slope angles and alignment for gravity-fed pipeline installations, sewer systems, and drainage structures. The grade conversion feature simplifies percent-grade calculations, making it easier to verify proper fall for water and wastewater conveyance.

Structural Monitoring: Monitor settlement, tilt, or lateral movement of structures, retaining walls, and excavation support systems by measuring angle changes over time. The instrument's precision allows detection of subtle movements that could indicate structural problems.

Crane and Heavy Equipment Positioning: Establish precise horizontal angles for crane positioning, tower placement, and industrial equipment alignment where angular accuracy is critical for safety and proper operation.

Tunnel and Underground Construction: Transfer alignment into tunnels and underground workings, establish centerline control, and verify excavation profiles. The compensator ensures accurate measurements even in confined spaces where perfect leveling is challenging.

Compatible Accessories

• Heavy-Duty Aluminum Tripod - Professional-grade tripod with adjustable legs and quick-clamp system for stable theodolite mounting on various terrain.
• Topcon Prism Pole and Target Set - Telescoping prism pole with circular target for precise angle turning and distance measurements when used with compatible total stations.
• External Battery Pack for Topcon Instruments - Extended runtime battery solution for all-day operation in cold weather or extended surveying sessions.
• Topcon Tribrach with Optical Plummet - Interchangeable tribrach for quick instrument swapping and backup optical plummet capability.
• Field Data Collector and Software - Electronic data recording system to capture angle measurements digitally and eliminate manual field book transcription errors.
