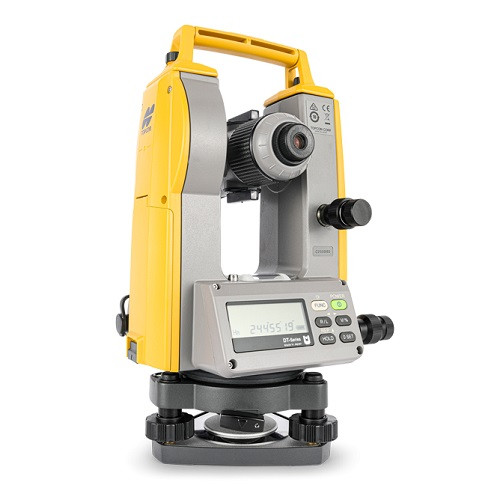

Topcon DT307 Digital Theodolite Kit with 7 Second Accuracy - Model

Professional-Grade Angle Measurement You Can Trust on Every Job

The Topcon DT307 Digital Theodolite delivers 7-second arc accuracy for contractors, surveyors, and layout crews who need reliable horizontal and vertical angle measurement without the guesswork of optical instruments. The bright LCD display reads out directly in degrees, minutes, and seconds, eliminating parallax error and reducing the chance of transcription mistakes that cost time and money in the field. Whether you're setting building corners, staking utility corridors, or running boundary traverses, the DT307 gives you a proven, rugged platform that holds up to daily jobsite demands.

Overview — Where the DT307 Fits on the Jobsite

The DT307 sits squarely in the professional-grade segment of digital theodolites, offering the accuracy and feature set that working surveyors and layout crews expect without the cost of a total station. It excels at angle-only workflows: turning angles for property boundaries, establishing reference lines for structural steel erection, plumbing columns and walls, and setting control points for grade crews. The dual-axis electronic level display lets operators confirm instrument leveling on-screen rather than straining to read bubble vials in bright sunlight. The instrument accepts a standard tribrach mount, so it integrates easily into your existing equipment setup.

Key Specifications

• Angle Accuracy: 7 arc-seconds (DIN 18723)
• Telescope Magnification: 30x
• Minimum Focus Distance: 1.0 m (3.3 ft)
• Display: Dual-face LCD, degrees/minutes/seconds readout
• Horizontal Circle: 360° absolute encoding
• Vertical Circle: 360° absolute encoding
• Compensator: Dual-axis liquid electronic
• Operating Temperature: -20°C to +50°C (-4°F to +122°F)
• Battery Life: Approx. 70 hours continuous use (AA batteries)
• Weight: Approx. 4.8 kg (10.6 lb) with tribrach
• Part Number: 1034419-06

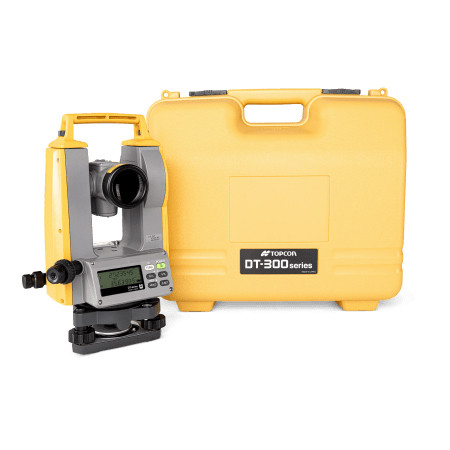

What's in the Kit

• Topcon DT307 Digital Theodolite
• Carrying case with foam-fitted interior
• Lens cap and lens cleaning cloth
• AA battery set
• Tribrach (instrument only — tripod sold separately)
• Operator's manual

Job Applications

Property Boundary Surveys: Turn precise deflection angles between traverse legs and record horizontal circle readings directly to your field book or data collector. The 7-second accuracy satisfies most state survey standards for boundary and topographic work.

Building Layout and Column Plumbing: Set a backsight on a control hub, then turn the exact angle to establish perpendicular building lines. The dual-axis compensator confirms you're level so column plumb readings are trustworthy floor to floor.

Utility Corridor Staking: Run centerline traverses for pipeline, conduit, or road alignments. Repeat angle capability lets crews check measurements without re-entering settings, speeding up production staking on long corridors.

Structural Steel and Precast Erection: Plumb columns and walls by sighting the instrument on a known vertical reference and reading the vertical angle display in real time. The bright LCD is readable even in direct sunlight, keeping erection crews moving.

Compatible Accessories

• Topcon Aluminum Field Tripod — Heavy-duty tripod compatible with standard tribrach mount
• Topcon Tribrach with Optical Plummet — Precision centering for control point setups
• Prism Pole and 360° Prism Set — Extend your measurement capability when paired with a total station
• Hard Shell Transit Case — Additional protection for transport in work trucks and vans
• Rechargeable AA Battery Pack — Extended runtime for full-day field sessions

Related Guides

• How to Set Up and Level a Digital Theodolite
• Theodolite vs. Total Station — Choosing the Right Instrument for Your Work
• Reading and Recording Angles in the Field
• Topcon DT-Series Maintenance and Calibration Tips

Frequently Asked Questions

Does the Topcon DT307 measure distances?

No. The DT307 is a pure digital theodolite designed for angle measurement only — horizontal and vertical. It does not include an EDM (electronic distance measurement) module. For combined angle and distance measurement, consider a Topcon total station such as the ES or GM series.

What tripod does the DT307 use?

The DT307 mounts on any standard surveying tripod with a 5/8-inch by 11 tribrach thread, which is the industry-standard fitting. Topcon aluminum and fiberglass field tripods are fully compatible and available separately through Express Tools.

Is the DT307 suitable for use in rain or dusty conditions?

The DT307 is built to handle typical outdoor jobsite conditions, but it is not rated to a full IP67 waterproof standard. Avoid direct water immersion or operation in heavy downpours without a protective cover. In dusty environments, keep the lens caps on when the instrument is not in active use.

How long do the batteries last, and what type does it use?

The DT307 runs on standard AA alkaline batteries and delivers approximately 70 hours of continuous operation under normal conditions. Keeping a spare set of AA batteries in your kit bag ensures you won't lose a day in the field due to a dead instrument.
