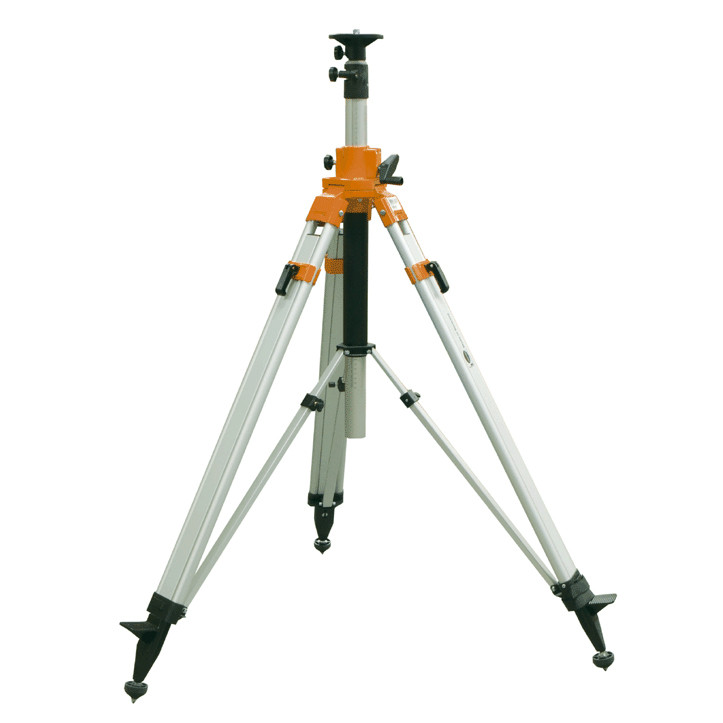

Topcon 60810 Extra Heavy-Duty Aluminum Elevating Tripod (33 to 119-inch)

Built for Elevation: Topcon 60810 Heavy-Duty Elevating Tripod

When your project demands instrument positioning far above standard tripod height — or precise low-point measurements close to grade — the Topcon 60810 Heavy-Duty Elevating Aluminum Tripod delivers. With an industry-leading height range of 33 to 119 inches and a robust crank-elevating center column, this tripod is engineered for professional surveyors, construction contractors, and utility crews who can't afford to compromise on stability or reach.

Overview & Jobsite Applications

The Topcon 60810 is designed for demanding fieldwork where conventional fixed-height tripods fall short. Whether you're setting control points on a multi-story structure, performing utility corridor surveys, or positioning a total station over an obstruction, the extended elevating column gives you the flexibility to place your instrument exactly where the job requires. The heavy-duty aluminum alloy construction keeps the unit rigid under load while remaining portable enough for one-person transport across active job sites.

Key Specifications

• Height Range: 33 to 119 inches (fully collapsed to fully extended)
• Construction: Heavy-duty aluminum alloy legs and center column
• Elevation Mechanism: Robust rack-and-pinion crank system for smooth, precise height adjustment
• Head Type: Flat/wide-format head compatible with standard 5/8" x 11 instrument threads
• Leg Locks: Dual wing-nut style clamps for secure leg positioning at any angle
• Load Capacity: Rated for professional-grade total stations, levels, and optical instruments
• Footwear: Hardened steel points with rubber caps for use on hard and soft surfaces
• Weight: Optimized for single-operator field portability

Key Features

• Extended crank-elevating center column provides 33-119" of continuous height adjustment without re-leveling legs
• Heavy-duty aluminum construction balances rigidity and weight for field portability
• Wide tripod head accommodates a broad range of Topcon and third-party survey instruments
• Dual wing-nut leg clamps lock securely at any spread angle for stable setups on uneven terrain
• Hardened steel leg tips penetrate soft ground; rubber caps protect finished surfaces
• Integrated shoulder carry strap and protective leg bags for transport and storage
• Compatible with standard 5/8" x 11 threaded instrument bases — no adapters required for most Topcon instruments

Job Applications

Multi-Story Construction Layout: Position a total station or optical level above formwork, rebar, and equipment at elevated floor levels without compromising line-of-sight to control points.

Utility & Pipeline Corridor Surveys: Set instruments above vegetation, berm obstructions, or trench spoil piles to maintain clear sight lines across long corridor alignments.

Bridge & Infrastructure Inspection: Elevate instruments to deck height or above railing structures for precise as-built measurements and deformation monitoring.

Low-Clearance & Below-Grade Work: Collapse the center column to 33 inches to set instruments in confined areas, below overhead obstructions, or near grade for invert and pipe-bottom measurements.

Compatible Accessories

• Topcon 5/8" x 11 Tribrach Adapter — mounts tribrachs directly to the tripod head
• Topcon Optical Plummet Tribrach — for precise centering over control points
• Topcon AT-B Series Automatic Level — pairs seamlessly with the 60810 for differential leveling
• Aluminum Tripod Carrying Bag — padded protection for transport and job site storage
• Tripod Leg Shoes / Replacement Steel Tips — field-replaceable tips for extended service life

Related Guides

• How to Choose the Right Survey Tripod for Your Instrument
• Elevating vs. Fixed-Height Tripods: What Contractors Need to Know
• Setting Up a Total Station on an Elevating Tripod: Step-by-Step
• Topcon Survey Equipment Buyer's Guide for Contractors

Frequently Asked Questions

What instruments are compatible with the Topcon 60810 tripod?

The Topcon 60810 features a standard flat head with 5/8" x 11 thread compatibility, making it suitable for virtually all Topcon total stations, automatic levels, theodolites, and most third-party survey instruments that use this industry-standard thread. No adapter is needed for most professional instruments.

Can I re-level my instrument after cranking the center column up or down?

The crank elevating mechanism is designed to raise and lower the instrument vertically without disturbing the rough level set on the tribrach. However, small adjustments to the tribrach or instrument level vials may be needed after significant elevation changes, particularly at the upper range of the column travel.

Is the Topcon 60810 suitable for use on hard surfaces like concrete or asphalt?

Yes. The tripod ships with hardened steel leg tips and rubber foot caps. Use the rubber caps on finished or hard surfaces to prevent scratching and to provide additional grip. Switch to the steel tips when setting up on soft ground, soil, or grass for maximum penetration and stability.

How does the Topcon 60810 differ from a standard fixed-leg tripod?

Unlike a standard tripod where height is adjusted only by changing leg spread or extension, the 60810 features a rack-and-pinion elevating center column that allows continuous, precise height adjustment across a much wider range — up to 119 inches — after the legs are set and leveled. This is especially valuable when working around obstructions or at elevated structures where re-setting the legs is impractical.
